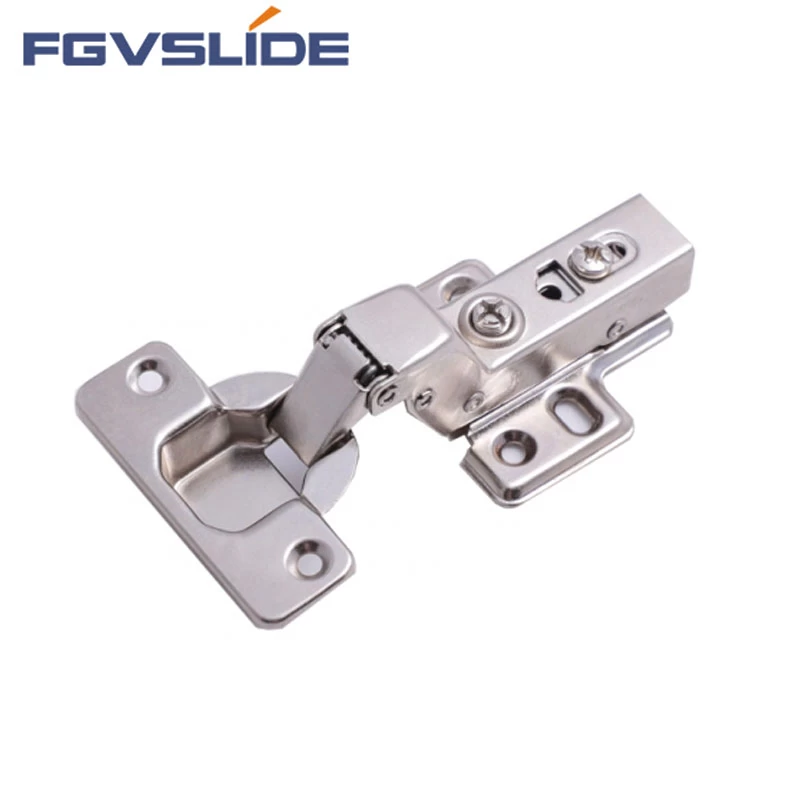

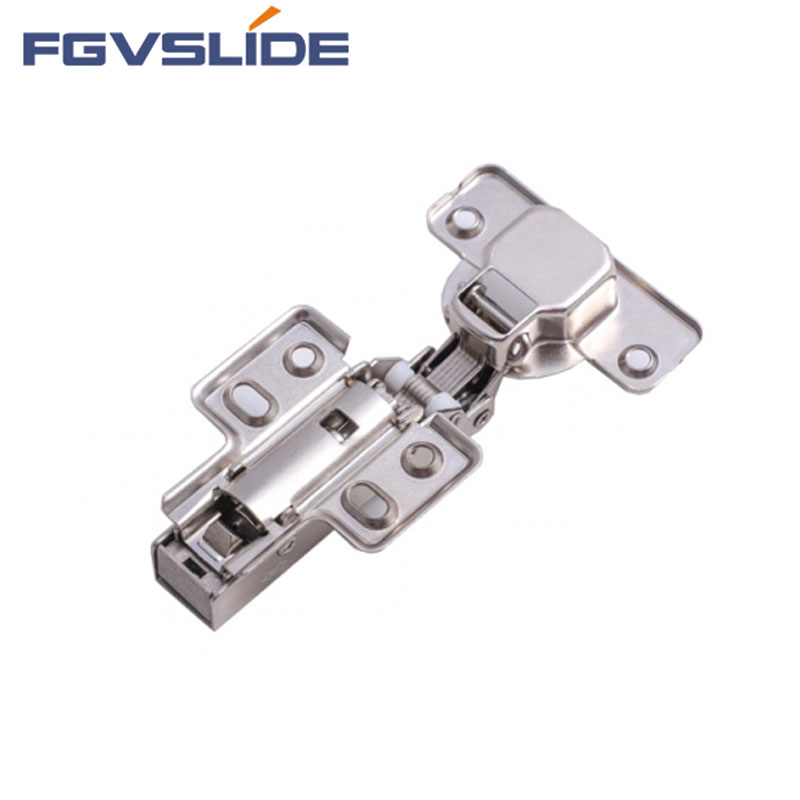

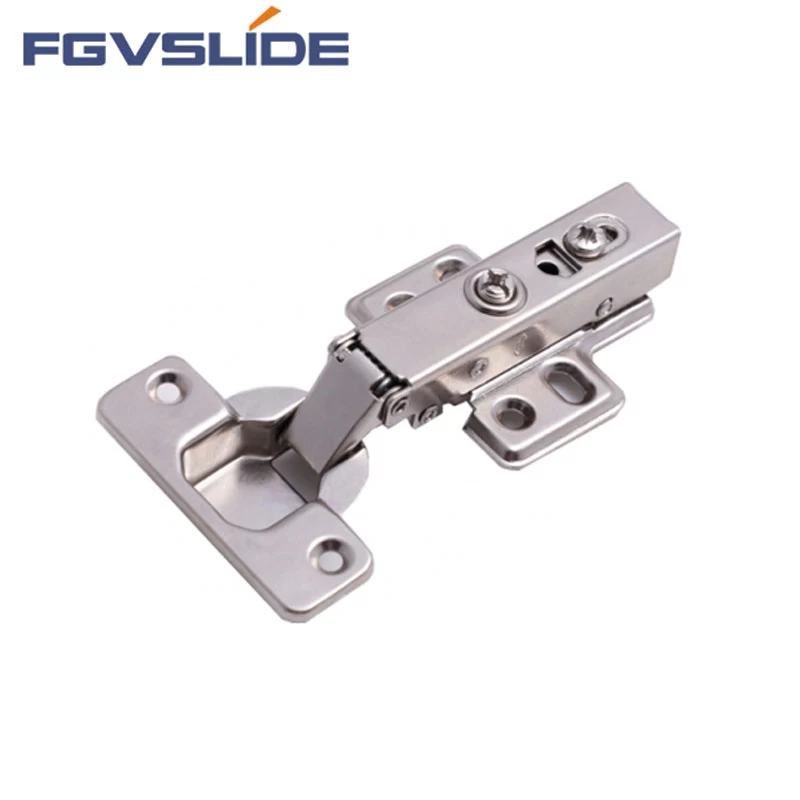

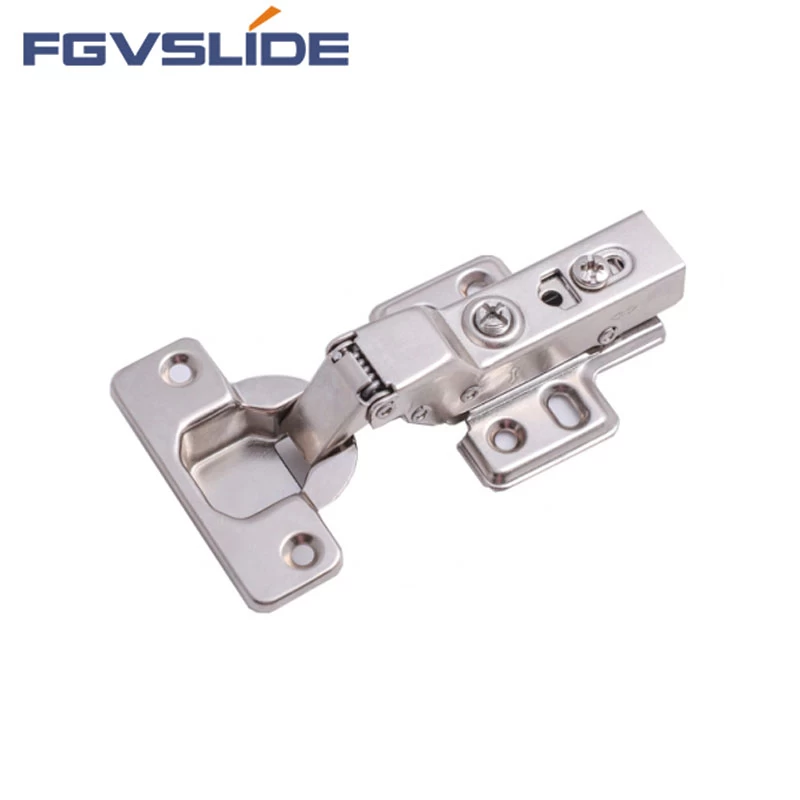

Full Overlay 35mm Hydraulic Cabinet Hardware Hinge
1. Designed for frameless cabinet doors, it helps to save space in tight cabinets to improve kitchen convenience.
2. Each cabinet door hinge features a built-in damper that creates a soft closing door for quieter and safer results.
3. The slide-on plate and 2-way adjustments allow for faster, more efficient installation.
4. Crafted with a 35mm hinge cup and 110° degree opening angle it’s easier to open doors to suit your kitchen needs.
|
Material
|
steel
|
Cup drilling depth
|
11.3mm
|
|
Recommended plank thickness
|
14-23mm
|
Cup fixed
|
wood screws φ4*16mm
|
|
Opening angle
|
110
|
Face panel(k) measurement
|
3-7mm
|
|
cup diameter
|
35mm
|
Available cup holes distance
|
φ45,φ48,φ52
|
