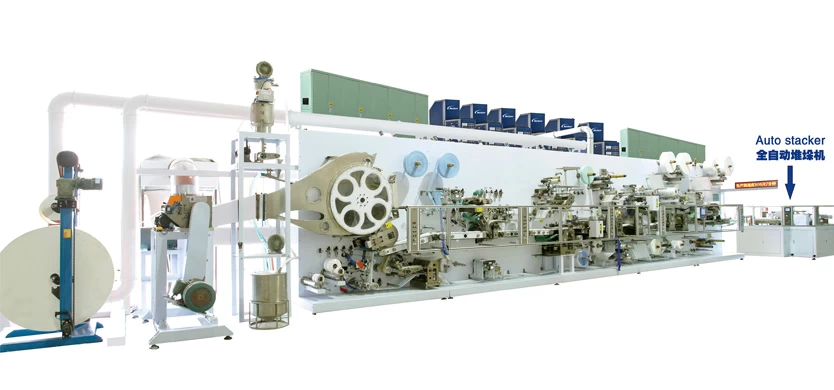

Full Servo Control Baby Diaper Production Line

Phase cutting and  ear paste is stability in high speed, beautiful product.good appearance.  In accordance with the European CE standard design, machinery and equipment of good quality



Full Servo Baby Diaper Machine,Phase cutting and  ear paste is stability in high speed, beautiful product.good appearance.  In accordance with the European CE standard design, machinery and equipment of good quality, production and processing safe and reliable.


1.Compact design, easy

2.operation&maintenance

3.Modular design, for future upgrading

4.Low consumption, high efficiency

5.Servo or frequency inverter transmission

6.Touch screen for man-machine conversation

7.Auto record and calculation of process data

8.Main raw material auto splicing at zero speed

9.Inverter or servo unwinding with tension control

10.Web guiding controller

11.Sensor quality control systems

12.Material broken and lost inspection, auto machine stop and defective products auto rejection

13.Easy size changing and manufacture

14.CE approval



1.Volume (million pieces/ year): 40-140 million pieces

2. Designed Speed: 600pcs/min

3. Stable Speed: 400-500pcs/min

4.  Passing rate ≥ 98% (Not include the glue applicator, Auto Splicing)

4. Overall size(L×W×H): 30m X 8m X 4.5m (With stacker)

5. Total power(exclude glue applicator and air compressor): 380V 50HZ, Tri-phase

6. Weight: About 98 T

7.Can be with full servo control stacker(Auto Bagging machine), production speed 50 bags/Min


High speed pulverizer(untreated pulp is allowed)

Waist elastics application unit

Fluff forming unit

Central folding unit

SAP dosing unit

Final cutter unit

Raw material feeding units

Air application unit

Inner core cutter unit

Safety protection unit

Inner core turning unit


1.Aloe/perfume application unit

2.Gravimetric SAP dosing unit

3.Camera quality detection unit

4.Full Servo Stacker machine

5.Full Servo Packing & Bagging Machine

6.Product detection system (including the weight, metal, appearance, position)

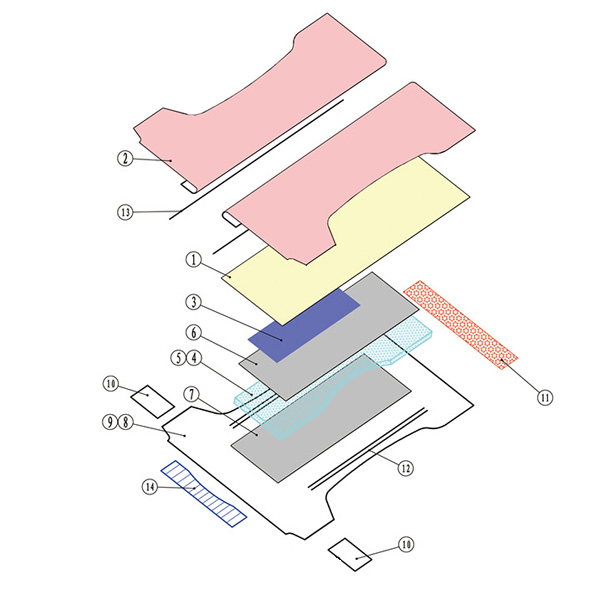

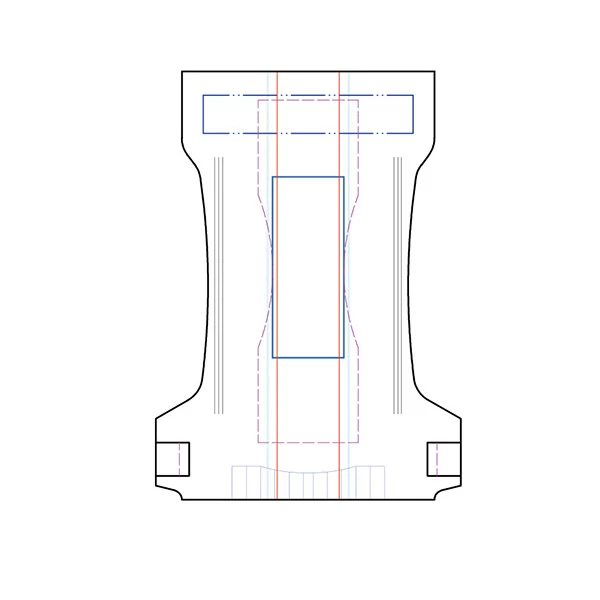

OUTPUT FEARTURES

* Easy-fit design

* Soft and Extra dry

* Re-adjustable tapes

* No rash

* High quality
