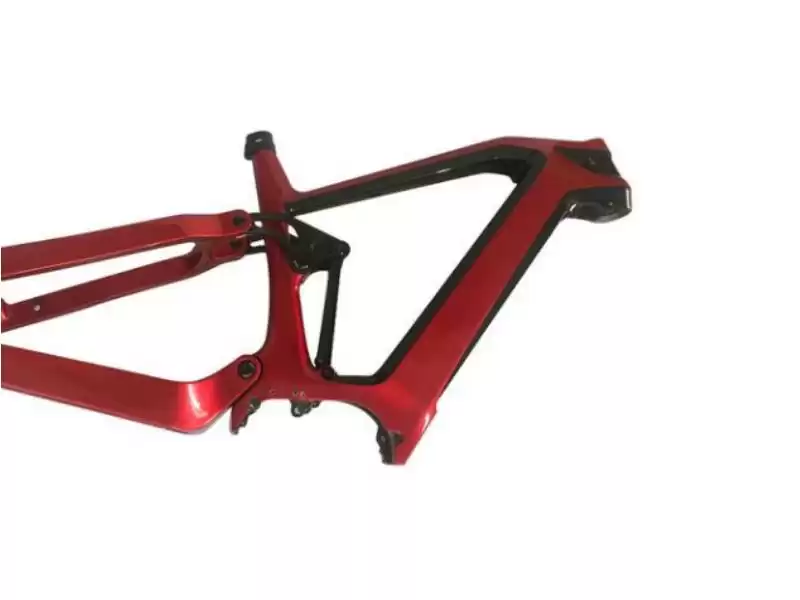

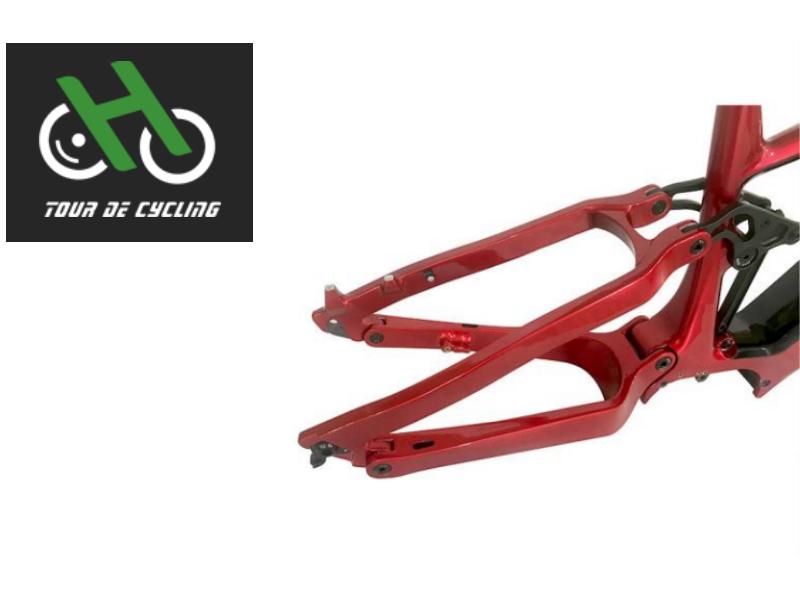

Full Suspension Carbon Fat Bike Frame Fit Bafang M620/M600/M500 Motor

-Type: FULL Suspension AM E-bike Frame

-Size: 15.5"/17.5"/19"

-Head Tube: Upper 44mm lower 56mmFSA-NO.57

-Weight :3300g±50g

-Seat tube Diameter :φ31.6mm




Full Suspension Carbon Fat Bike Frame Fit Bafang M620/M600/M500 Motor


  • Type: FULL Suspension AM E-bike Frame
  • Size: 15.5"/17.5"/19"
  • Head Tube: Upper 44mm lower 56mmFSA-NO.57
  • Weight :3300g±50g
  • Seat tube Diameter :φ31.6mm
  • Motor System:M620
  • Battery :  SYR-MUSTANG Pro-B 36V*24.5&48V*17.5
  • Max Tire Clearance :  26"*4.8"
  • Brake Type :  Post Mount Disc brake
  • O.L.D: 190mmφ12mm
  • Finish :UD/Color
  • Rear travel:150mm
  • Max Chainring:40T

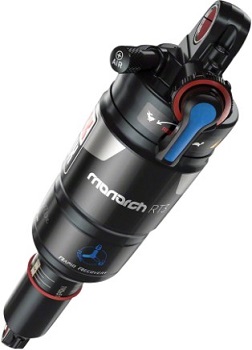

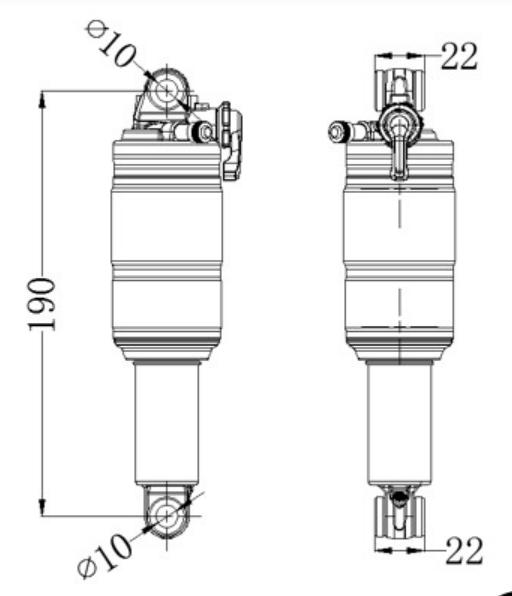

  • Rear shock size: 190mm*51mm (UP54*m10*P1.0,DOWN 22*φ10
  • Test Standard : ISO4210/EN15194



Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.


Size
15.5"
17.5"
19"
Stack 621.6 630.9 640.1
Reach 423 446 469
Head Tube Angle 68 68 68
Head Tube Length 133 143 153
Seat Tube Angle 72.4 72.4 72.4
Seat Tube Length 400 451 482
Top Tube Length 620.1 646.3 672
BB Drop 15.8 15.8 15.8
Rear To BB Center 500 500 500
Fork To BB Center 722.9 749.8 776
Fork Built Height 540 540 540
Fork Rake 51 51 51
Wheel Base 1222.5 1250 1276


Rear shock size 190*51 standard  mount compatible

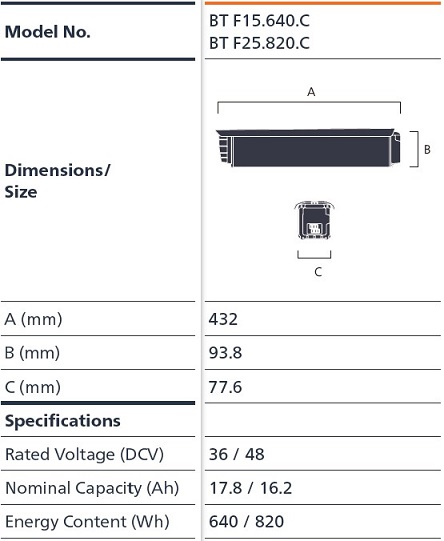

Electric Bike BatteryElectric Bike FramesElectric Bike Battery Specification

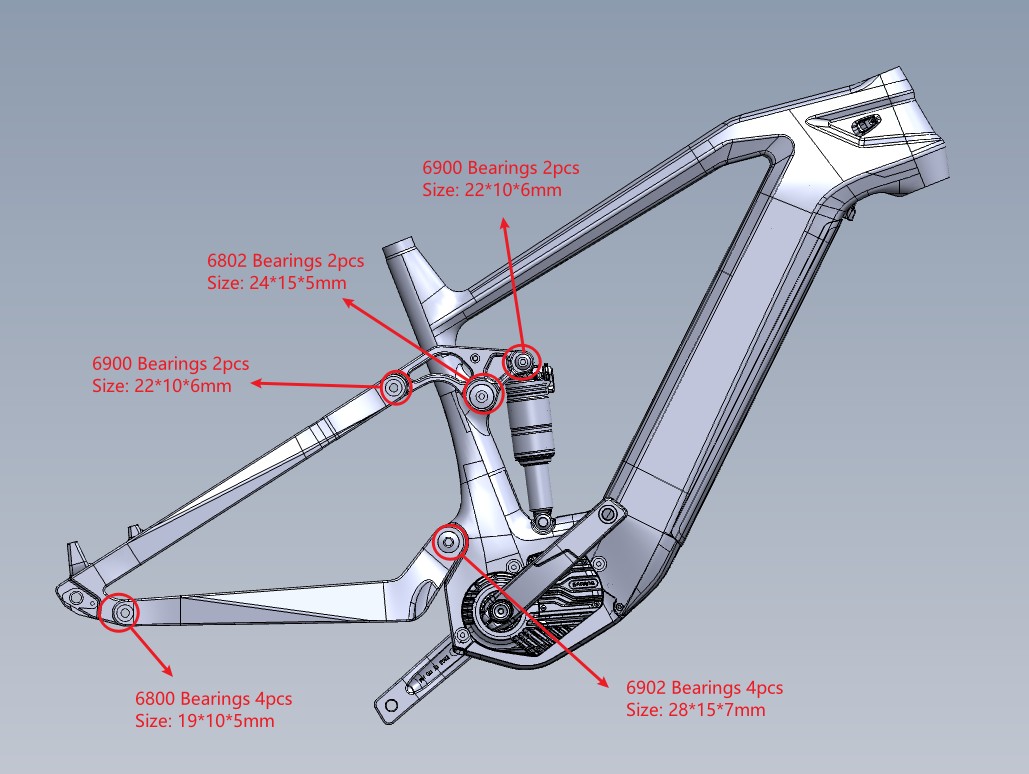

Bearings Size and Quantity

Electric Bike Frames

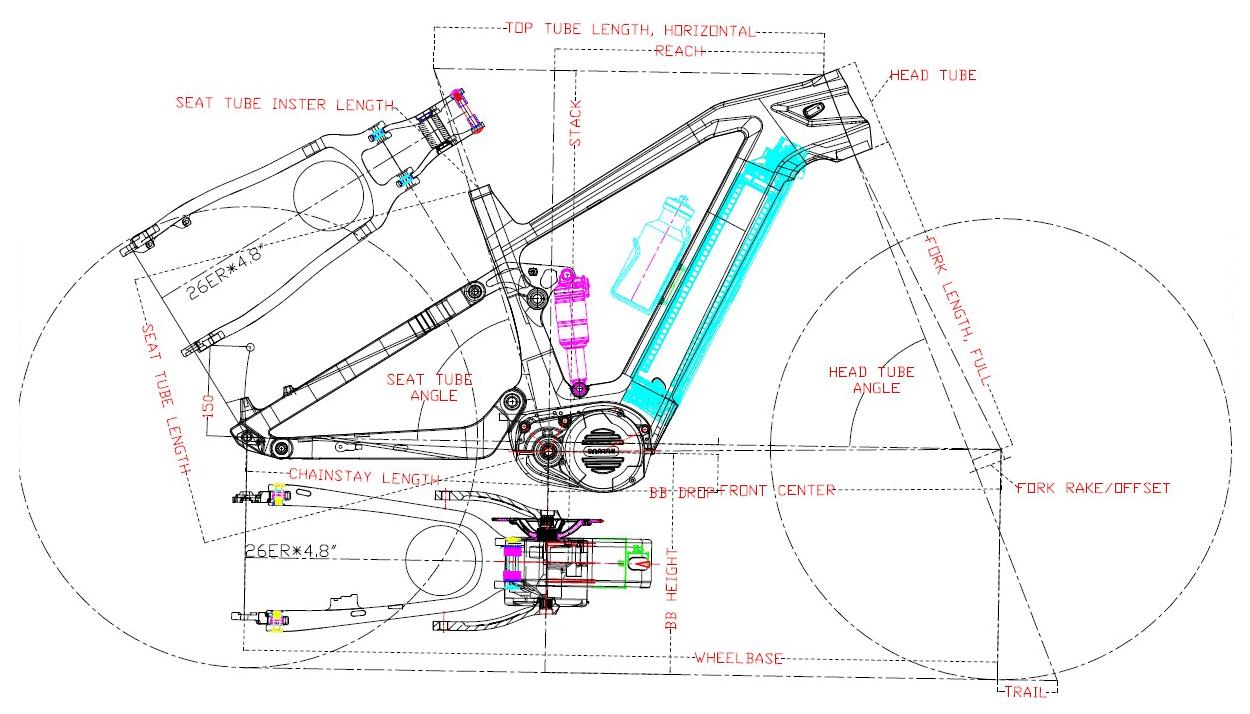

Ebike frame geometry and size chart

Electric Bike Frame Chart

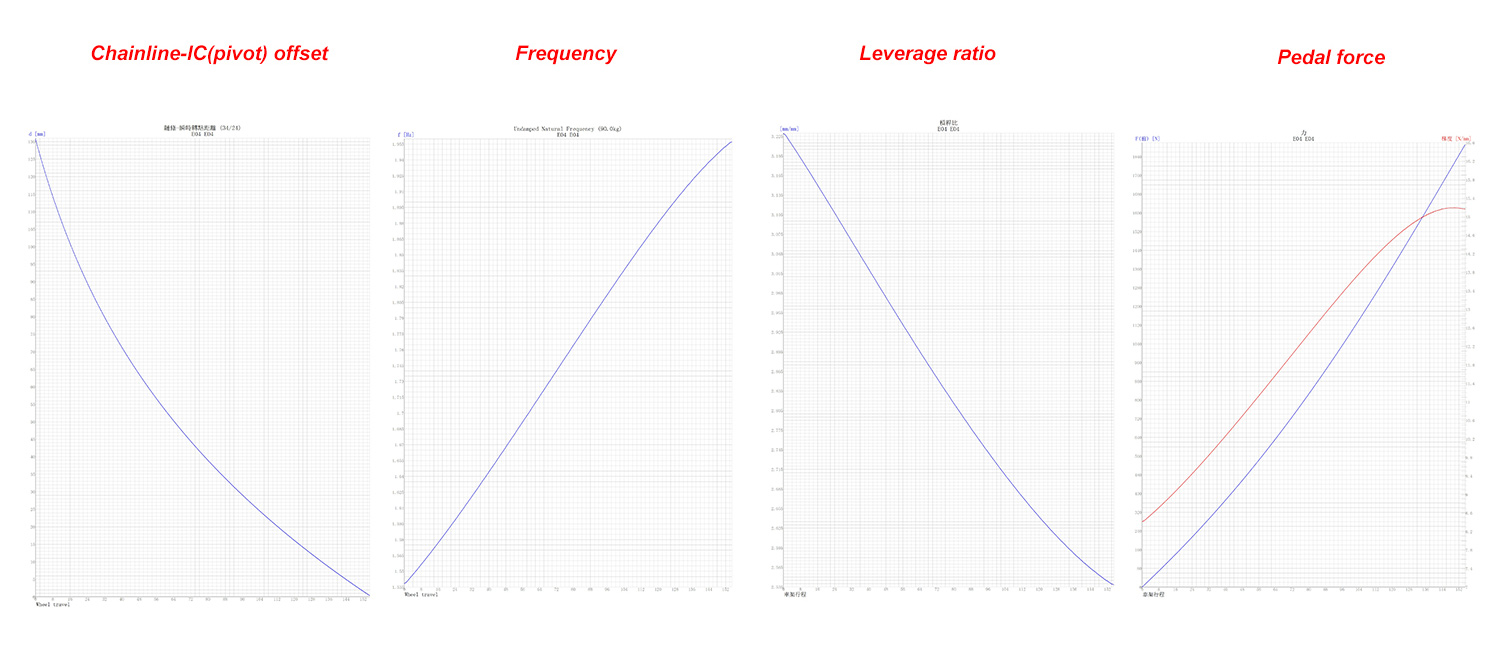

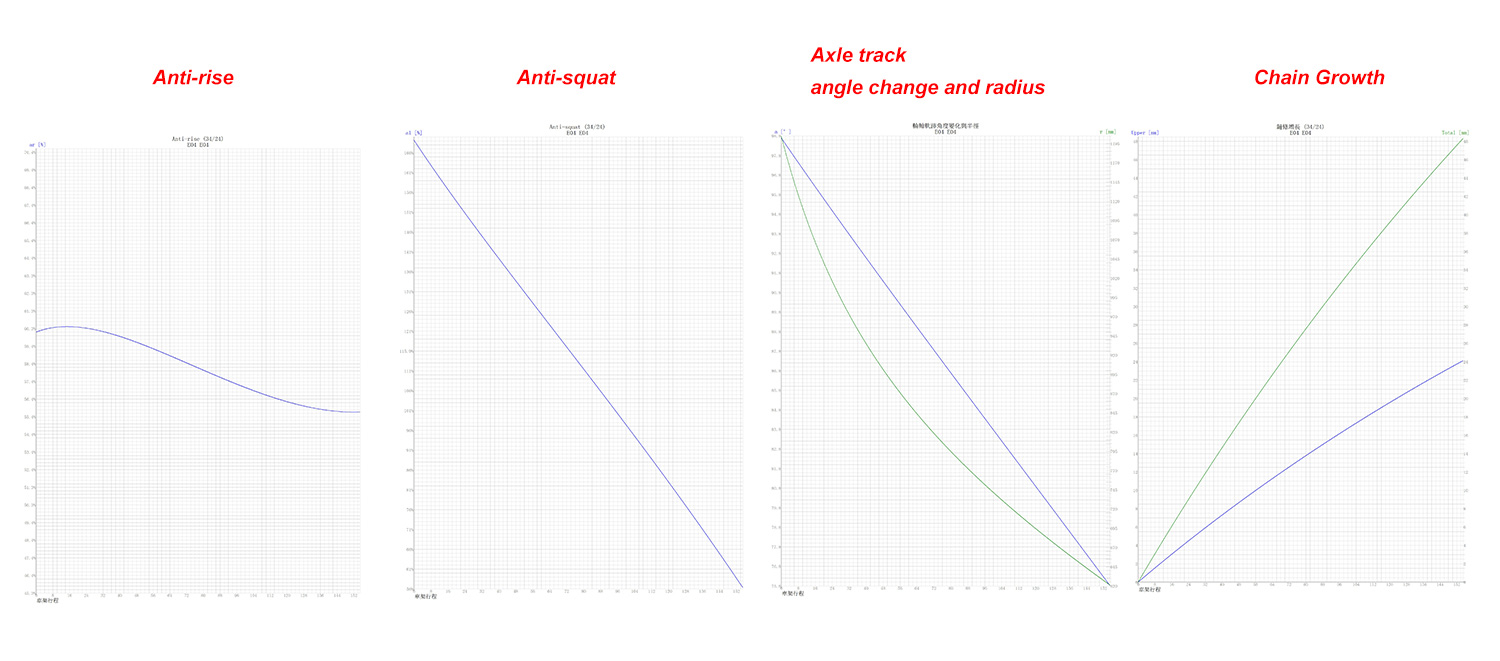

Below curve data was simulated

Bike Frame Curve Data

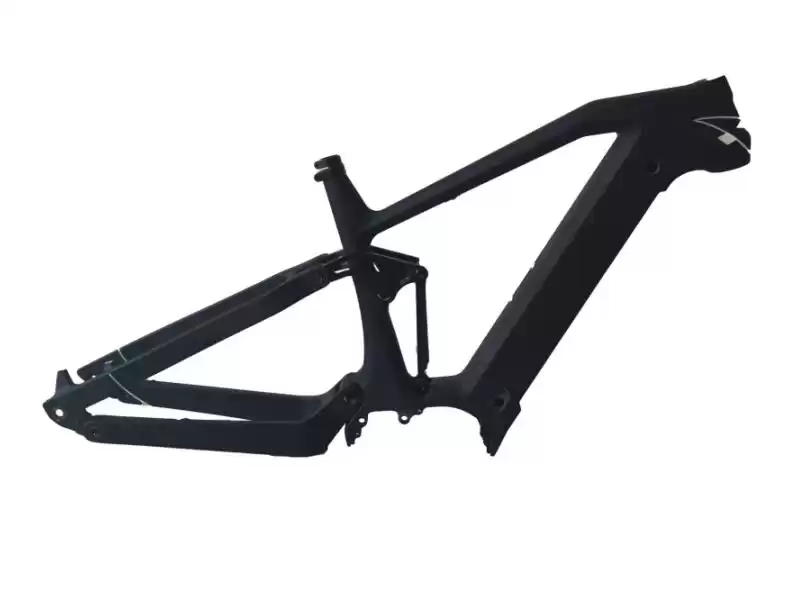

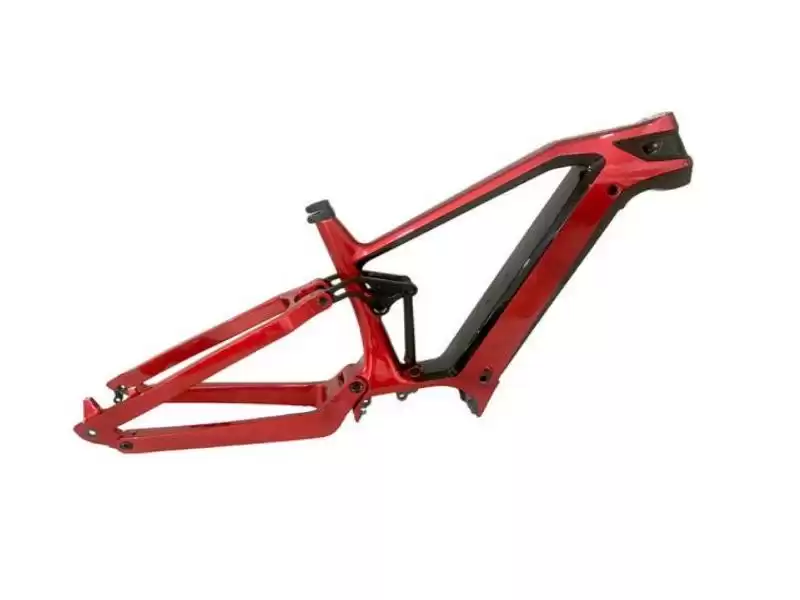

Electric Mountain Bike Frames

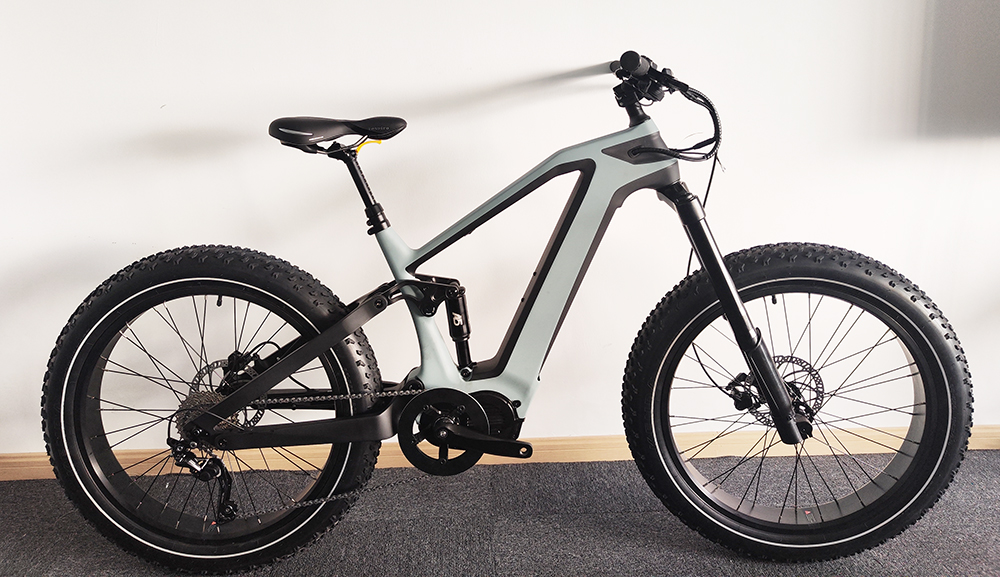

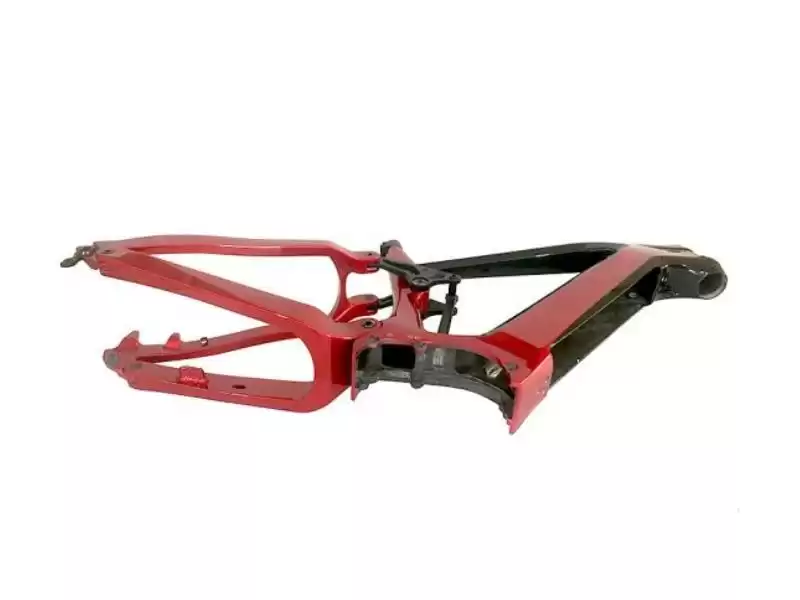

Complete built bike with TDC-EM18 carbon frame

E-Bike Carbon Fiber Frames





TECHNOLOGY


carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

3D latex mandrel technology

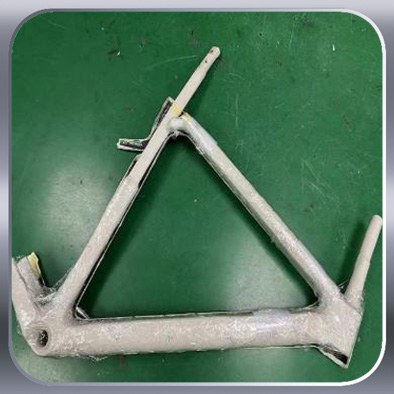

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

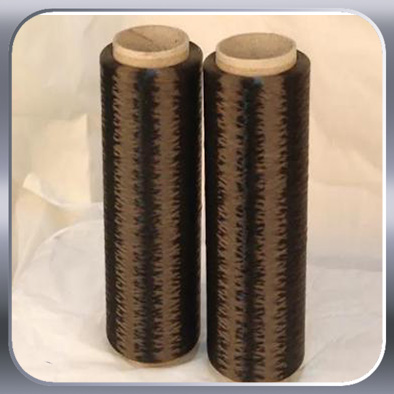

Carbon Fiber Material

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

BIKE FRAMES TEST LAB

Lab Test

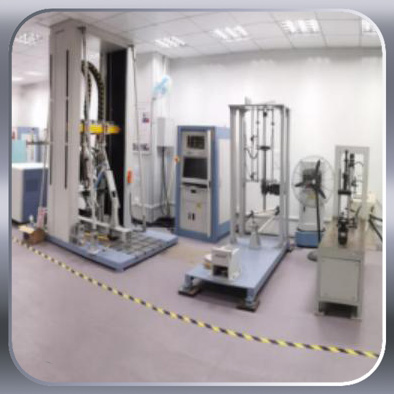

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.


Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.
