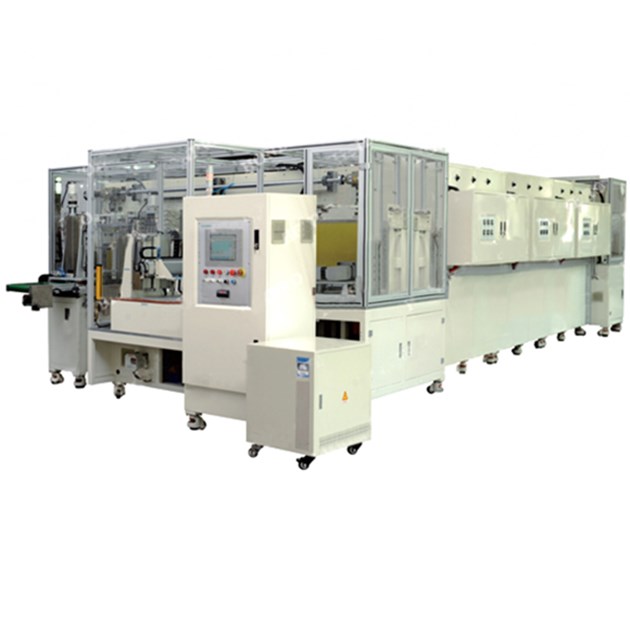

Fully auto baking tunnel furnace for Production Line
Functions
● Suitable for auto load and unload Baking fixture, Baking oven, Baking furnace cooling, in order to achieve high temperature polymerization, standing.
Features
● Manual load materials to jig, manipulator clamp feeding to the Baking step by step from the rotary table
● Baking fixture in precision positioning and auto calibration devices are removed from the institutions
● Baking jig locked by servo control
● Baking furnace and cooling furnace use plate chain conveyor, closed loop control
● Baking fixture tensioning force servo control, tensioning force within the touch screen settings, tensioning force accuracy ±0.25%
● Baking furnace temperature control precision of ±3 ℃ (except within one meter distance from the security door)
● After Baking the battery thickness accuracy: plus or minus 3.0% T (T is average thickness of the battery)
● After cooling, the temperature below 40 ℃ when Baking fixture
● Head component structure adopts movable roller structure, convenient maintenance, and dismantling
Technical Parameters(for reference)：
|
ITEM
|
MAIN PARAMETERS
|
|
Measures
|
(L*W*H): 9800*3500*2350mm
|
|
Weight
|
About 10T
|
|
Power
|
AC380V/50HZ, 72Kw
|
|
Air source
|
≧0.6Mpa,150L/Min
|
|
Vacuum source
|
≤-85Kpa,60L/Min
|
|
Applicable range
|
L:50-180mm,W:30-130mm,T:2-10mm
|
|
Capacity
|
15-20PPM(Baking time:4 hour,4pcs in one time, Thickness≤5mm)
|
|
Cold source
|
Cooling water,10-18℃, head of delivery:20M
|
|
Action
|
≧99%
|
