Application
◆ Adopt rotary module design, according to customer requirements can be choose front and back positioning (rotary positioning), varnishing , screen printing and hot stamping function.
◆ Adopt imported Germany splitter, ensure machine running stably, high precision, high speed and high automatic level.
◆ Adopt full-servo motor design, facilitate operation and with quickly adjustment, reduce the workload for operator.

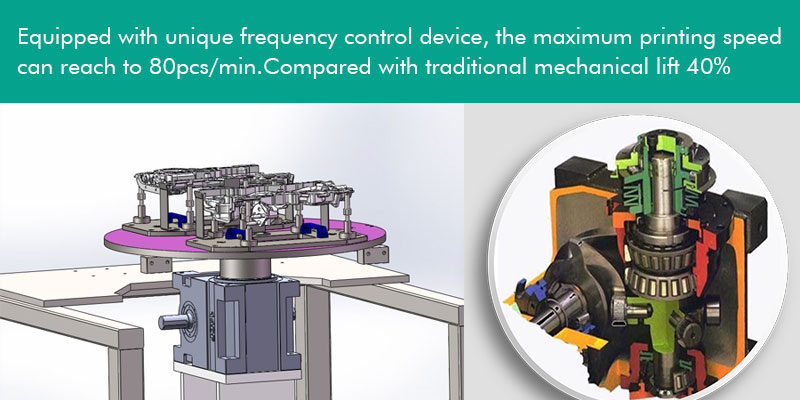

◆ Equipped with unique frequency control device, the maximum printing speed can reach to 80pcs/min,
Compared with traditional
mechanical lift 40%
◆ With high precision sensor, ensure second printing with high positioning.
◆ With independent vacuum suction system, keep each fixture in vacuum.

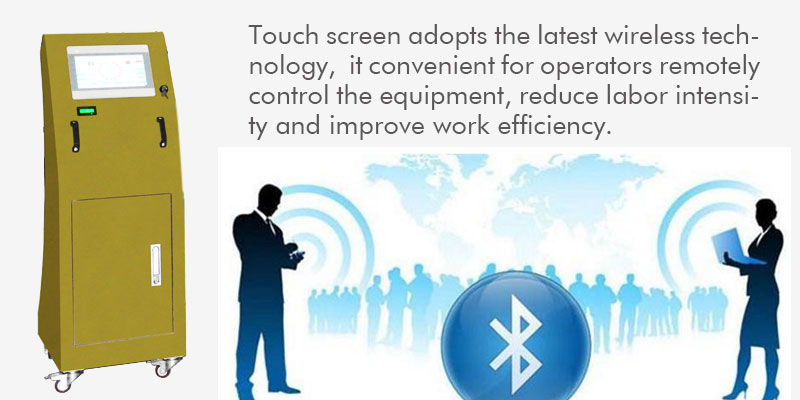

◆ Touch screen adopts the latest wireless technology, it convenient for operators remotely control the equipment, reduce labor intensity and improve work efficiency.

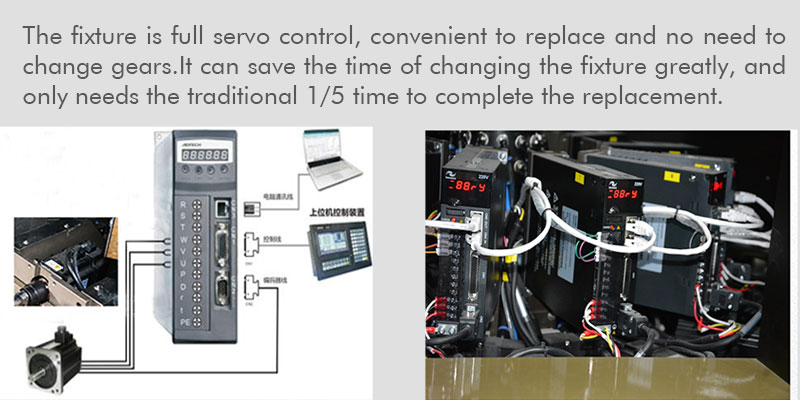

◆ The fixture is full servo control,
convenient to replace and no need to change gears.It can save the time of
changing the fixture greatly, and only needs the traditional 1/5 time to
complete the replacement.
◆ 100% of the fixture is controlled by independent servo to each
mandrel, which can ensure the accuracy of printing and the effect of lacquer
flowing, especially the color matching of the folding position is perfect. It is also because of the independent control
of the fixture, which pioneered the technical application that traditional
equipment in the industry can not achieve. That is, the technology breakthrough
of positioning silk printing can be achieved by fixing the lid immediately
after varnish.
Product highlight

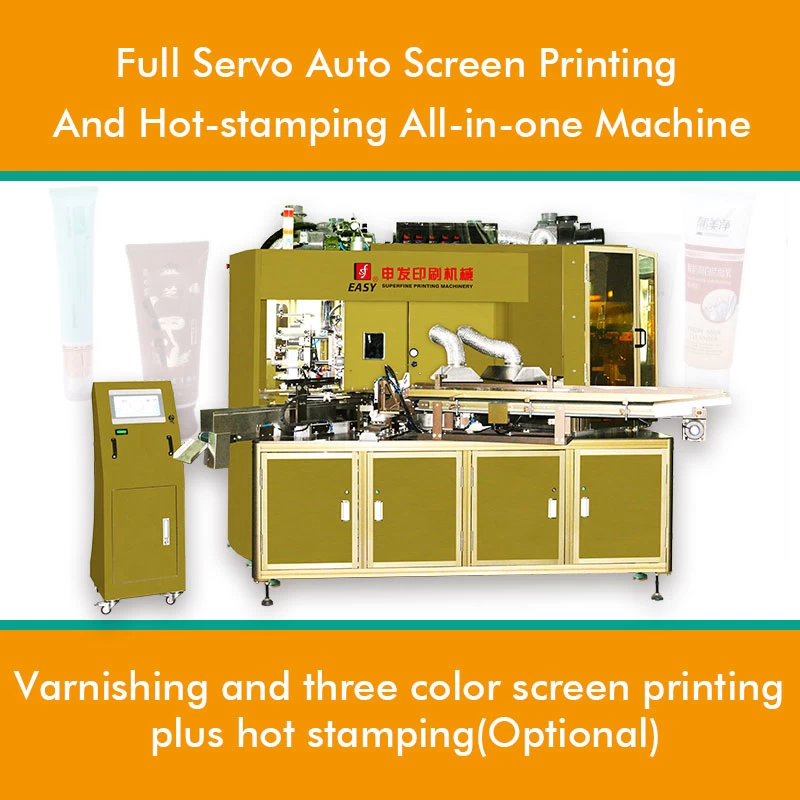

Module design: The equipment is modular design, according to customer needs, varnishing, screen printing and hot-stamping function
※ 5 color screen printing or 4 color screen printing plus hot-stamping .

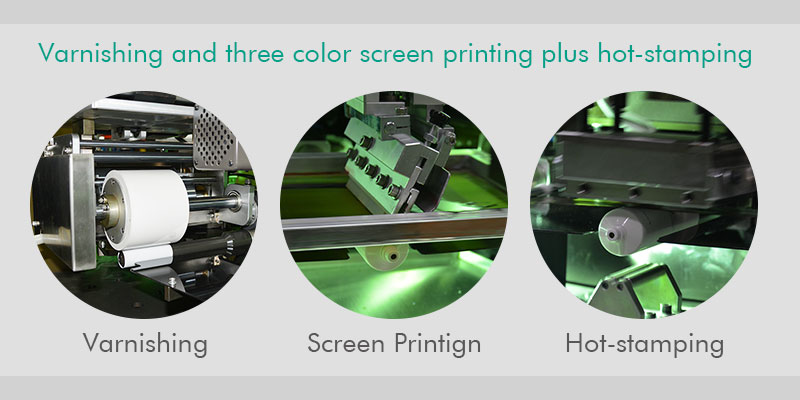

※ varnishing plus 3 color screen printing plus hot-stamping .
Technical Data
Model:SF-SHR516
Max Print Size(mm)： ∅(13-60)x(20-240)L
Max . speed(pcs/min)：80
Dimensions(mm)： L3200 x W2800 x H2200
Air Pressure(bar)： 5~7bar
Power： AC380 50/60Hz 35KW

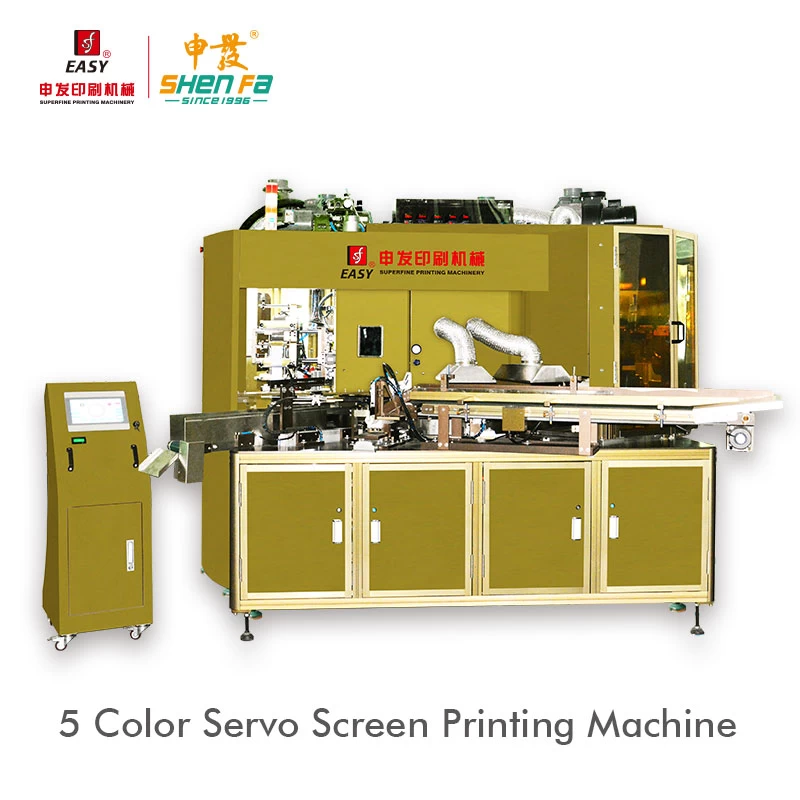

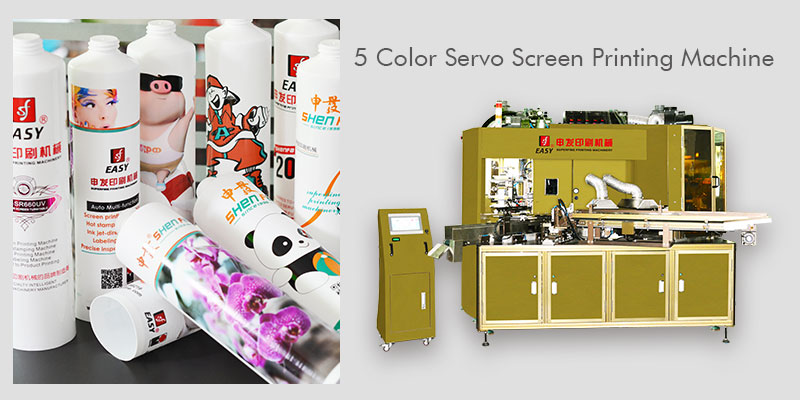

5 Color Servo Screen Printing Machine
Module design:
The equipment is modular design, according to customer needs, varnishing, screen printing and hot-stamping function
Divider
Use top German brand variable frequency divider, running smoothly to improve printing precision and stability
Bluetooth technology
Convenient for the operator to control the machine at a long distance
The touch screen console adopts the latest wireless Bluetooth technology to facilitate the operator to control the equipment at a long distance to reduce the labor intensity and improve the work efficiency
Full servo printing
The machine’s full servo design can greatly reduce the workload of the operator during changing for different products, the adjusting time of the machine is shorter, and the work is easier.

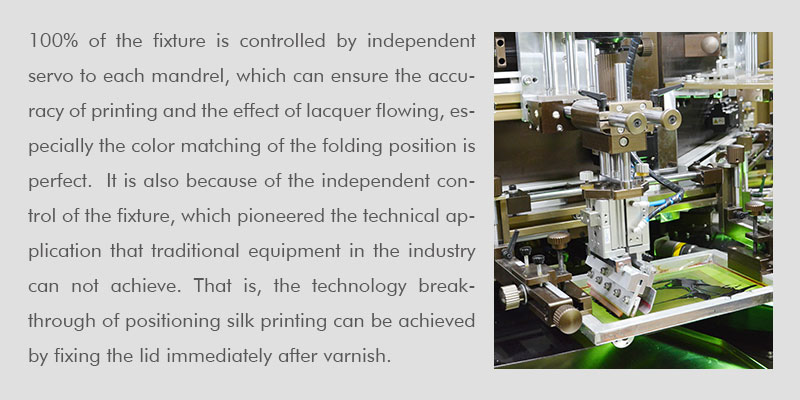

100% of the fixture is controlled by independent servo to each mandrel
Printing samples
