Bath shampoo bottle nozzle PE pipe making machine

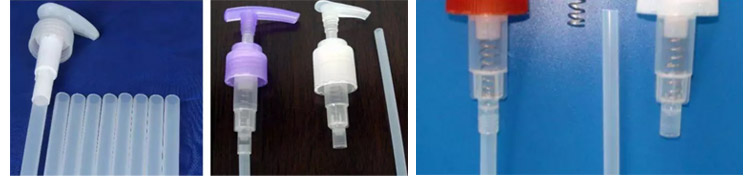

This production line mainly used for making drinking straw and nozzle tube or balloon stick or cotton stick , according to different requirements, equipped with different extruders, can make single and multi-color drinking straw or nozzle tube. The products are widely used for perfume and hair/bath shampoo.
Supply Ability:10 Set/Sets per Month Packaging Details: film or wooden case
Quick Details
Condition: New
Application: Pipe
Plastic Processed: PE
Screw Design: Single-screw
Voltage: 380V 50HZ 3Phase(Customized)
Dimension(L*W*H): 9.2m*1.5m*1.8m
Weight: 2T
Certification: CE ISO
After-sales Service Provided: Video technical support, Free spare parts, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Warranty: More than 5 Years
Mulicolor: High Capacity
Automatic Grade: Fully Automatic
Power(W): 11KW
Configuration of machine
|
Model No.
|
Screw Diameter
|
Screw L:D
|
Main Motor Power
|
Capacity
|
|
50
|
50mm
|
28:1
|
7.5kw
|
500pcs/min
|
|
55
|
55mm
|
28:1
|
11kw
|
600-800pcs/min
|
|
65
|
65mm
|
28:1
|
18.5kw
|
1500pcs/min
|

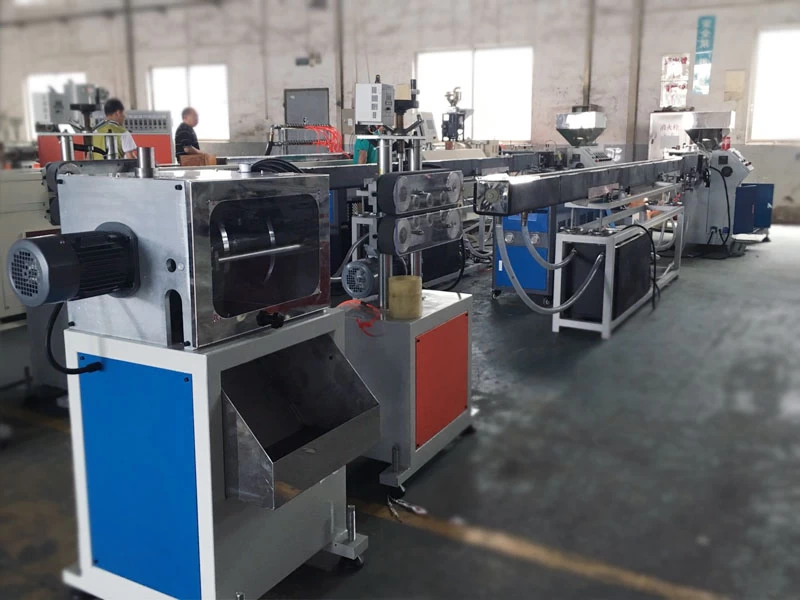

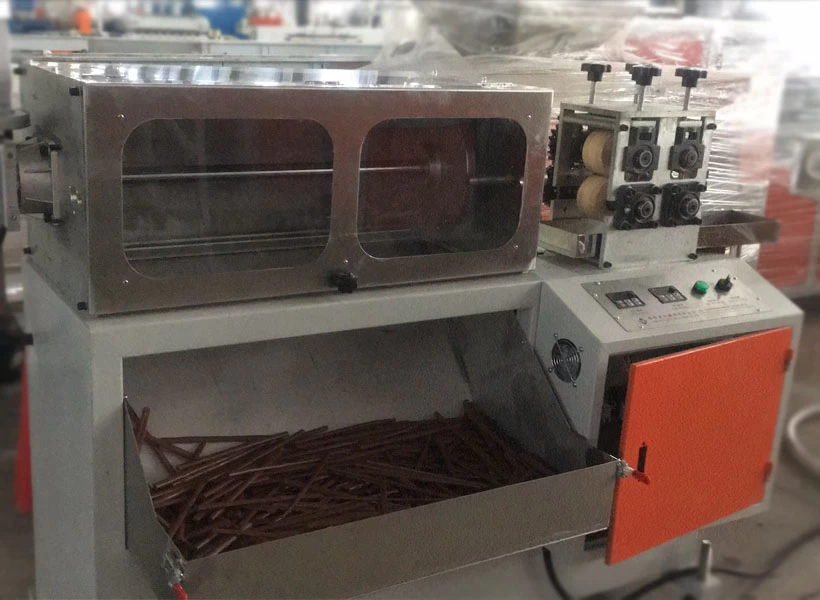

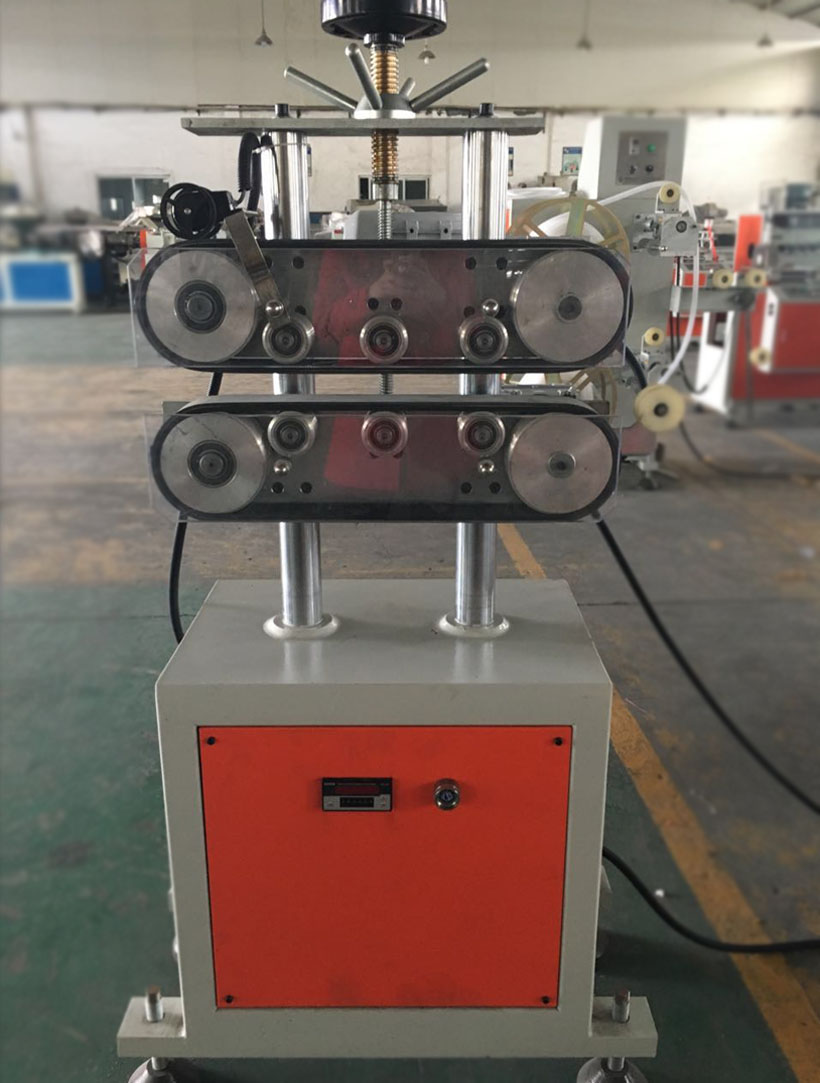

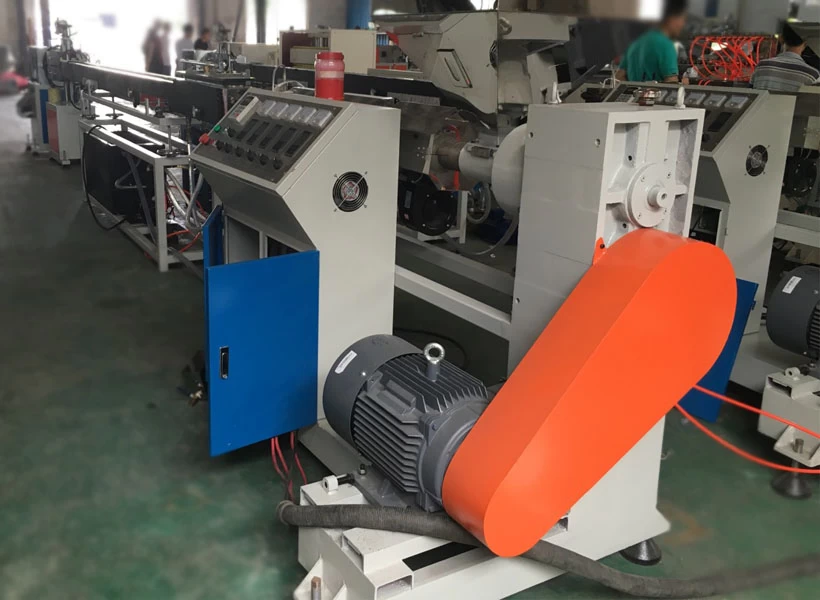

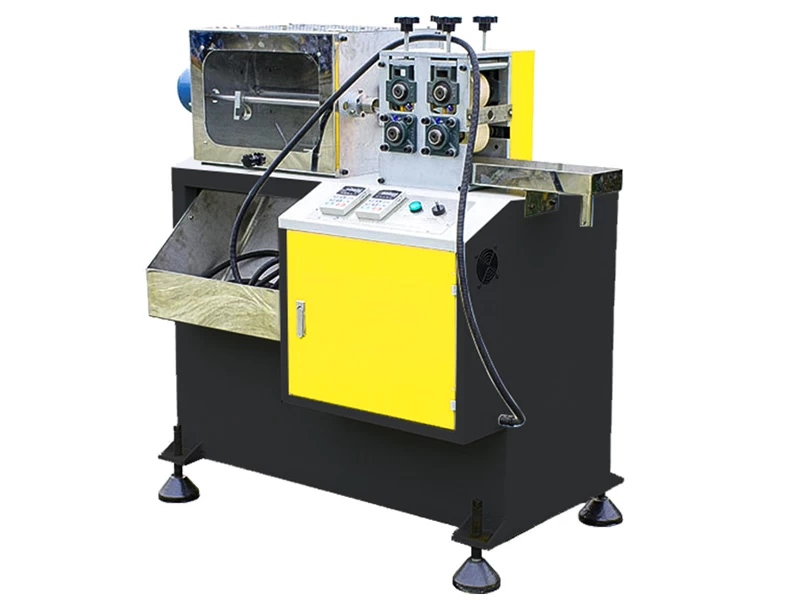

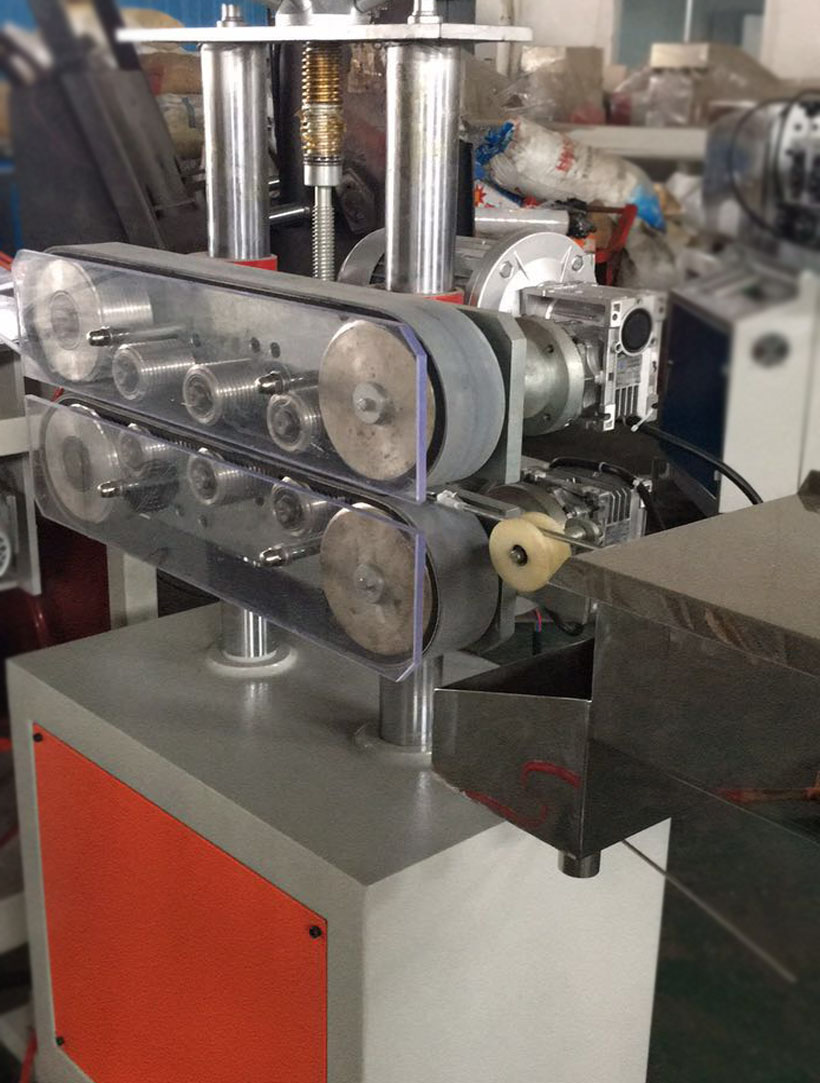

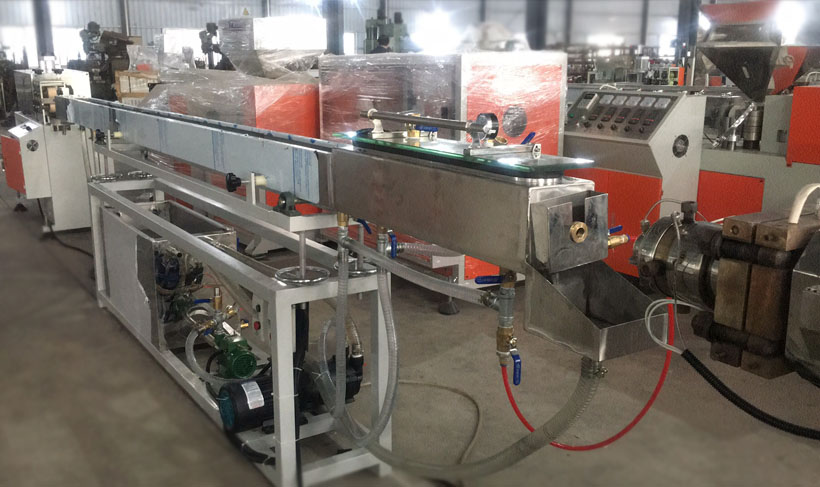

Complete line included : extruder -- mould die -- vacuum cooling tank -- puller -- cutter
Custom all kinds of PE pipe,such as follows:
Machine
If you need any support, please don't hesitate to contact us!
