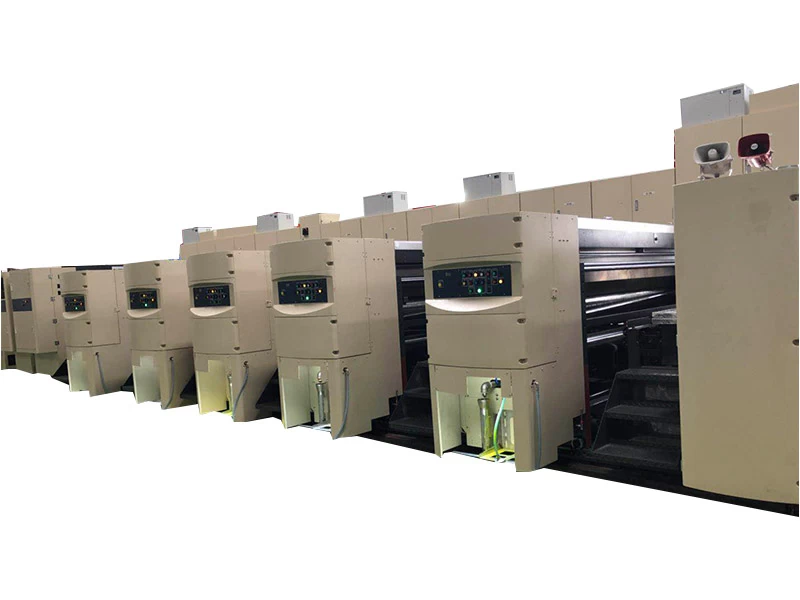

Fully Automatic Carton Box Printing Machine

Printing machine corrugated box of semi automatic Model K4, economical option!



Fully Automatic Carton Box Printing Machine


Printing Machine for Boxes Characteristic:

1.Fast cleaning up ink system within 3 minutes。

2.Low residual ink.

3.Fast hanging plate within 15 seconds

4.High productivity for small orders with setup times within 2 minutes.

5.Corrugated carton flexo printing machine running cost is reduced by energy conservation in electric power 170KVA

6.Each unit is individually driven by a servomotor.

7.High folding accuracy that meets every customer’s demands.

           Unit

                         Equipment

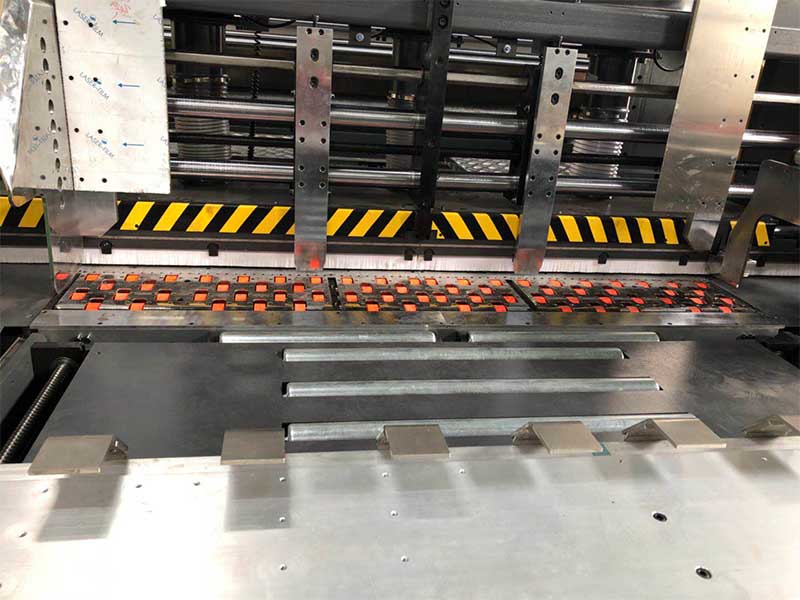

Feeding Unit

Lead edge feeder

Auto return to 0 position

Back guide auto

Lead edge auto set

Trial sheet running device

Paper dust remover (Shinkos original design)

Sheet jam detector

Batch counter

Side jogger

Lead edge table grating-less mechanism

 Carrying

Center belt suction






Printer

Print cylinder lifting device

Print cylinder motorized lateral adjustment

Print cylinder auto return to  0  position

Shinko inking system

Ink flow monitoring buzzer

Ceramic anilox roll

Automatic ink touch

Automatic stereo film winder

Ink bath teflon coating

Chambered doctor blade system






Slotter Unit

Double slotter system

Crush rolls

1:1 creasing rolls

Automatic setting of yoke heads

Automatic RSC set up with a selection of regular glue flap or extended glue flap

Glue joint waste remover

(Glue joint waste is removed by a rotary brush and fan system, delivering clean product to the folding section.)


Die-cutting Unit

One touch hand hole cutter

Polyurethane anvil

Running register auto set





Forming Unit

Forming rollers

Guide Bars

Upper suction belt

Underneath belt with suction function( with variable speed)

Select device to change clearance based on flutes

Double tanks

Glue roll

Counter

One-stage counter

Squaring Unit

Squaring hopper

Holding fan



CNC

Touch panel

Main control panel

Unversal power supply

Teaching function


Printing Box Machine Specification:

Maximum machine speed:275 sheet/min

Maximum sheet size (RSC):1210×2700mm

Minimum sheet size (RSC):290×755mm

Minimum gluer bridge size:360mm

Maximum sheet size (no folding):1210×1600mm

Minimum sheet size (no folding):290×650mm

Maximum width of sheet not folded:2000mm

Maximum printing area:1100×2600mm

Maximum film length:1210mm

Guide joint width:35mm

Minimum box height:50mm

Required power:120KW

Approx. Weight: 82,000KG


Flexo Machine Printing Advantages:

1.CNC control system. (Intelligent Control)

2.Independent Servo motor Drive in Each Unit. (High Speed and Energy Saving)

3.Fast Change Order within Two Minutes, Fast Change Printing Plate within 15 Seconds. Able to change 40-150          orders each day. (High Efficiency)

4.Fast Clean ink within three minutes, lower residual ink.


Our Research and Development:

KESHENGLONG has a perfect Research and Development system, and owns a high level R&D team, leading capability of independent innovation, and complete producing, processing and manufacturing capability. We has Full computer gantry boring and milling machining center, CNC pentahedron boring and milling machine, 5 meter grinding machine etc., more than 200 set of processing equipment.

Carton Box Printing Machine

Carton Box Printing Machine

Carton Box Printing Machine
