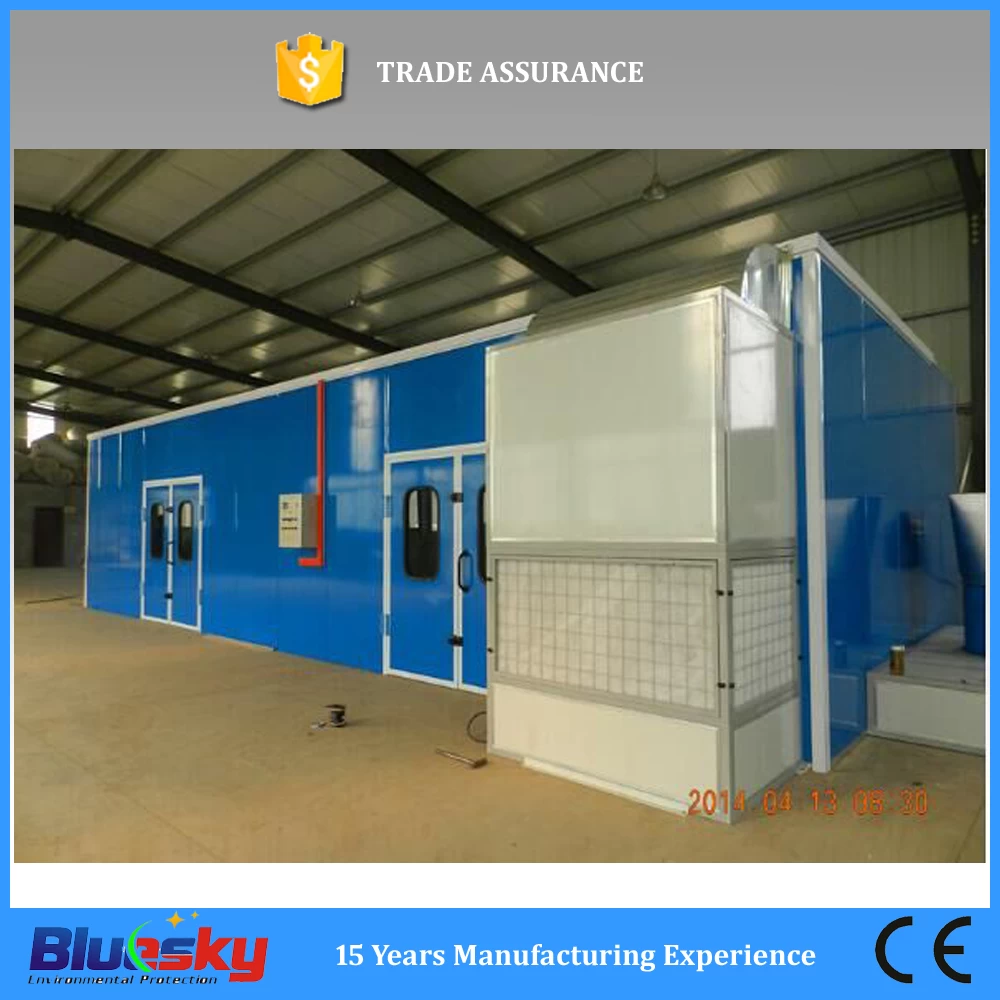

55㎡ Furniture Spray Booth
| Model |
55 M2 |
| Outside Dimension(mm)L×W×H |
11000x5000x3000 |
| Painting Room Dimension(mm)L×W |
6000x5000x3000 |
| Drying Room Dimension(mm)L×W |
5000x5000x3000 |
| Incoming Door Dimension(mm)W×H |
1900×2300 |
| Delivery Door Dimension(mm)W×H |
1900×2300 |
| Air Capacity(m3/h) |
20000 |
| Air Speed(m/s) |
0.2-0.3 |
| Ventilation Rate(Times/Hour) |
255 |
| Fan Power(KW) |
2*3kw |
| Wall Panels |
Panels 50mm EPS colorful steel skin panel,
steel 0.4mm thick,12kg/cbm and flame-resisting EPS,
tongue groove style, compound construction, anti-flame and heat-insulation.
|
| Grilles |
10#channel steel， 6M2 |
| Lighting |
4*4*36W lamp,Illuminance exceeding 750LUX, non explosive |
| Infrared Heating Tubes |
24 pieces ×1 KW infrared light heater ,anti-explosion |
| Generator Setting Type |
Upper intake air |
| Intake Air Fan For painting room |
2×3KW double-intake centrifugal fans, air capacity: 20000m³/h |
| Intake Air Fan For baking room |
1×1.5 KW |
| Filter System |
Intake air: pre-filter, high efficiency filter(ceiling filter)
Exhaust air: water channel filtering
|
| < |
