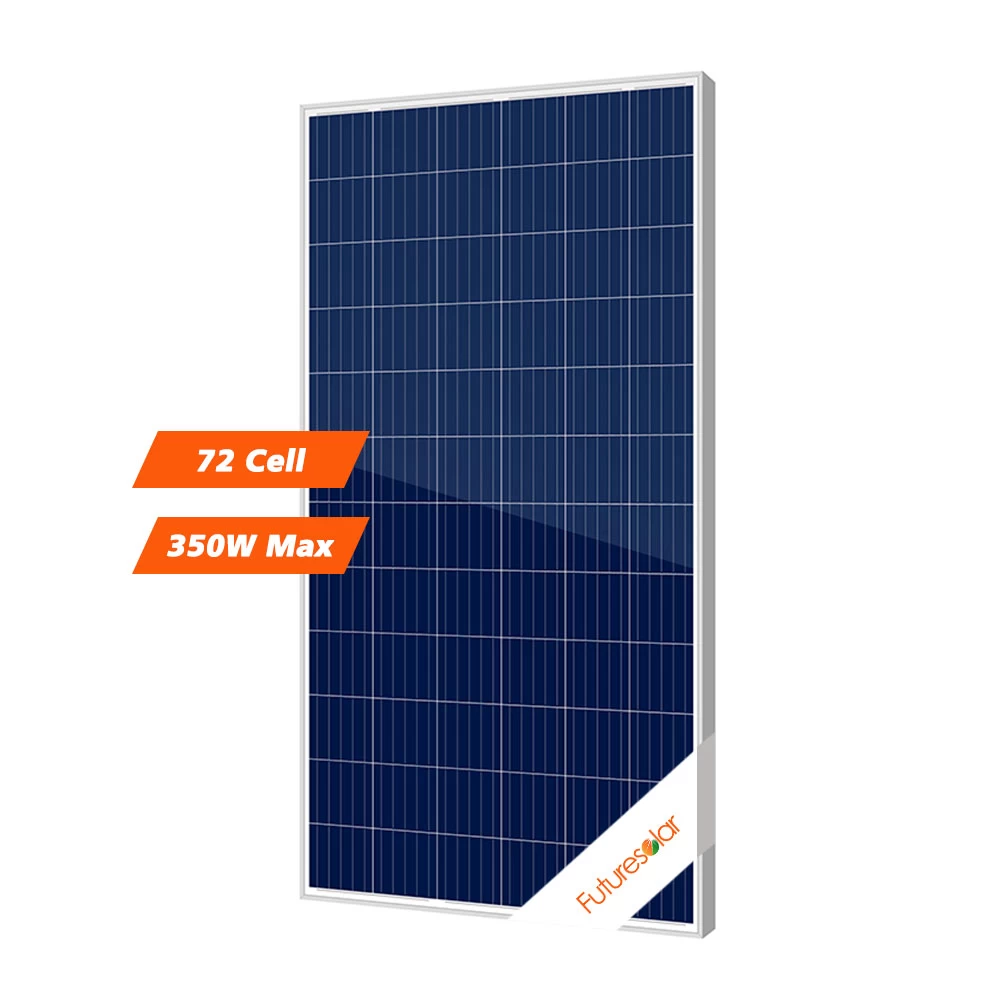

Futuresolar 72 Cell poly crystalline solar panel 310W 325w 330W 335W 340W 345w 350W

Add a Futuresolar solar panel 350w poly to a home or commercial building is the first step in converting the structure from being energy-dependent to energy producing. Primarily used for residential and commercial purposes, rooftop solar power systems are the perfect way to decrease an electric bill. Also great for large off-grid systems, this poly solar panel modules can be used in multi-panel solar arrays for cabins and sheds. This poly panel features the high efficiency poly solar cells which are designed to improve both efficiency and reliability. Complete a large scale project with 72 cells poly solar panel, perfect for on-grid or off-grid projects.

Moduel	FSM325P-72	FSM330P-72	FSM335P-72	FSM340P-72	FSM350P-72
Rated Maximum Power at STC	325W	330W	335W	340W	350W
Open CircuitVoltage(Voc/V)	46.0	46.1	46.3	46.5	46.9
Maximum Power Voltage(Vmp/V)	37.17	37.6	37.9	38.2	38.5
Short Circuit Current(Isc/A)	9.05	9.28	9.36	9.45	9.6
Maximum Power Current(Imp/A)	8.74	8.78	8.84	8.9	9.09
Module Efficiency(%)	16.77	17.00	17.3	17.5	18.0
Power Tolerance	-0~+5W
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5



Detail

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%

> Module efficiency is increased by 2%

> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell

> High Efficiency PV Cells

> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

Frame

> Conventional frame

> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

Junction box

> Conventional standalone edition and engineering custom edition

> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

Futuresolar, Your BEST PV Manufacturer, Power Green Living
