Futuresolar black solar panels half-cell 400w-450w mono crystalline solar panel

Black/Ultra Black Solar Panels

Full Black solar panel 60 cells, 72 cells, 78 cells, 120 cells, 144 cells, 156 cells

0 Tariffs for North America market

  • Number of Cells144Cells
Facebook Twitter Pinterest LinkedIn 分享

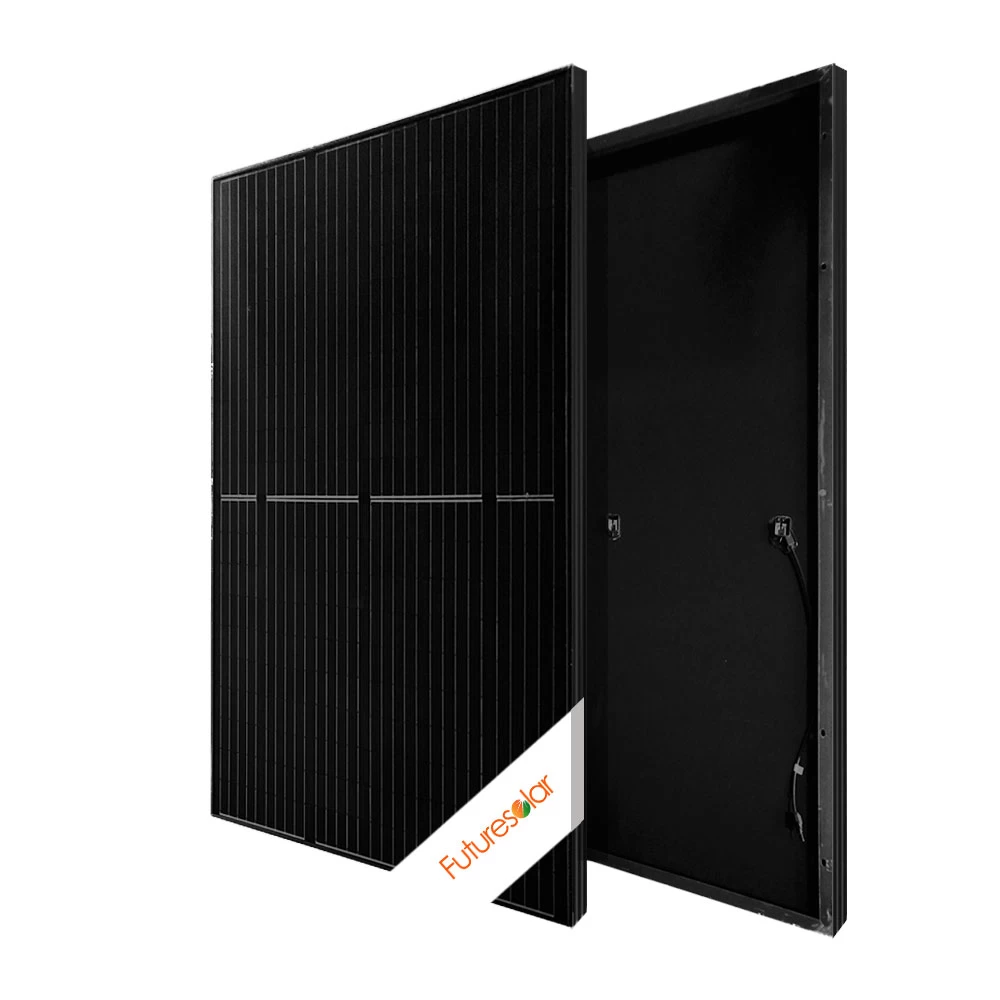

Futuresolar Black Mono Solar Panels Half-cell 400w 410w 420w 430W 440W 450W crystalline Solar Panel

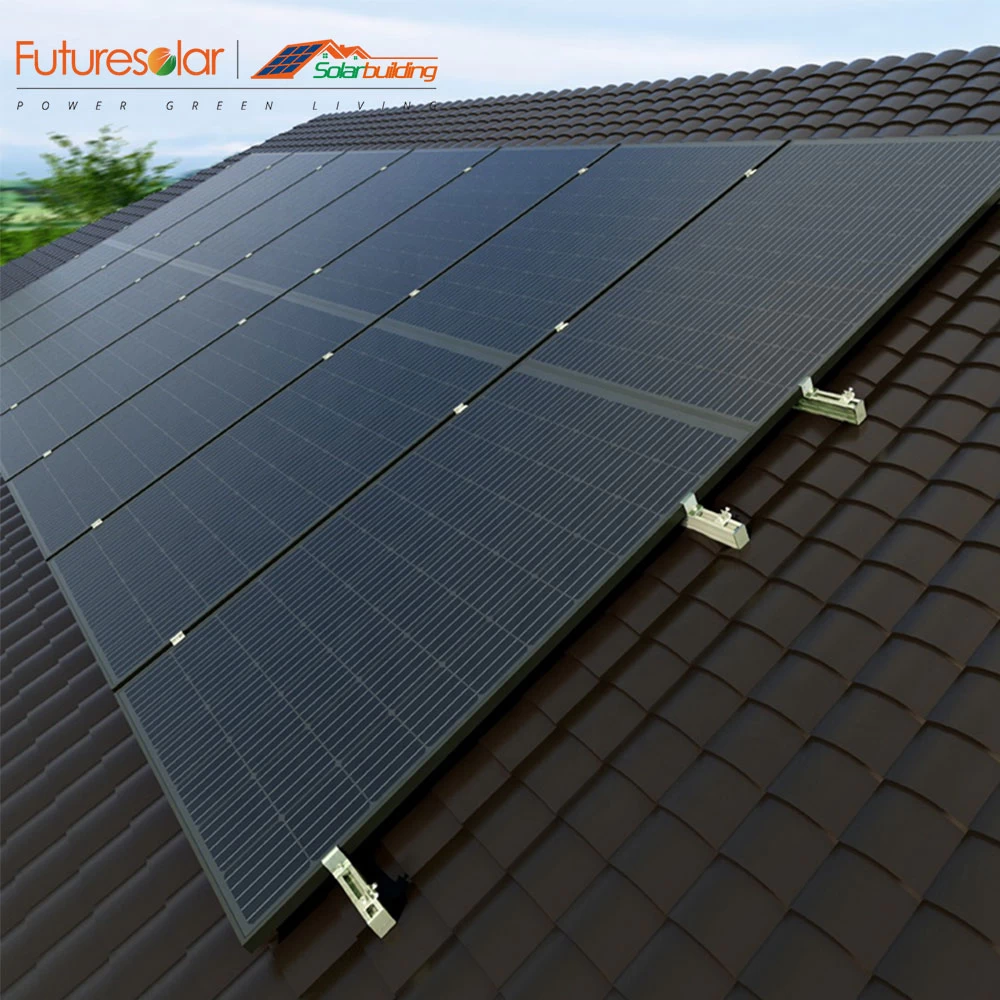

Futuresolar black on black solar panel perfect for residential home solar system, black frame and black backsheet. 144 half-cut mono cell 455W maximum output.



ELECTRICAL DATA(STC)

Module
FSMxxxM-72H     xxx = Peak Power Watts
Peak Power Watts(Pmax/W)
425
430
435
440
445
Power Output Tolerance(W)
0~+5
Maximum Power Voltage(Vmp/V)
43.50
43.60
43.70
43.80
43.90
Maximum Power Current(Imp/A)
9.78
9.87
9.97
10.06
10.15
Open Circuit Voltage(Voc/V)
52.23
52.38
52.50
52.65
52.70
Short Circuit Current(Isc/A)
10.38
10.47
10.57
10.67
10.77
Module Efficiency(%)
19.6
19.8
20.1
20.3
20.5

STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.

*Measuring Tolerance: ±3%.


Detail
solar glass



Glass


> Antireflective glass

> Translucency of normal luminance is increased 2%

> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years

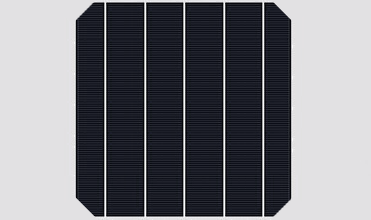

Solar Cell


> High efficiency 5BB PV cell

> Uniform color

> Anti-PID

> Germany  standard Cell

> Full test


mono solar cell

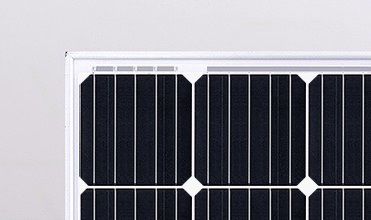

Futuresolar pv module frame


Frame


> Stock-size

> Silvery and black

> thickness 30/35/40/45/50mm

> stress test



Junction box


>Conventional standalone edition and engineering custom edition

> Quality diode ensures module running safety

> IP67 protection level
> Heat dissipation
> Long service life


Futuresolar pv junction box

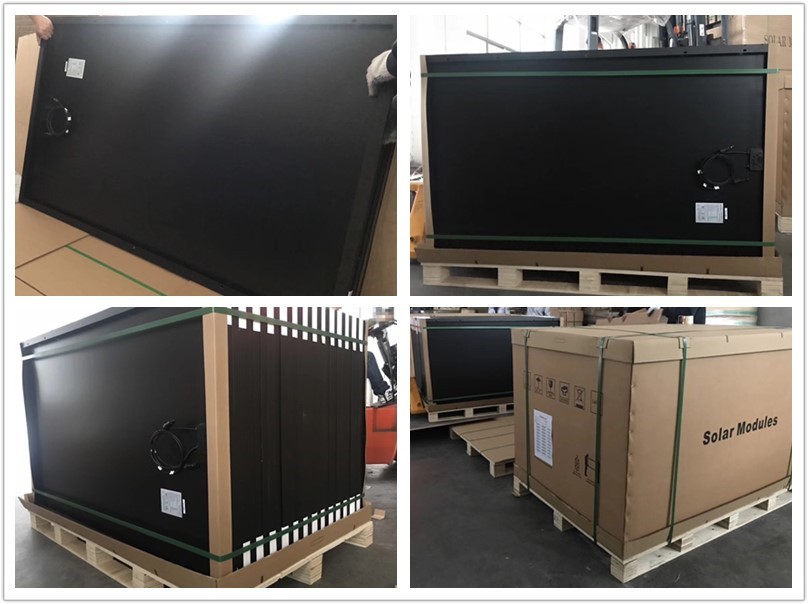

Packing


Futuresolar black solar panels
