Overview

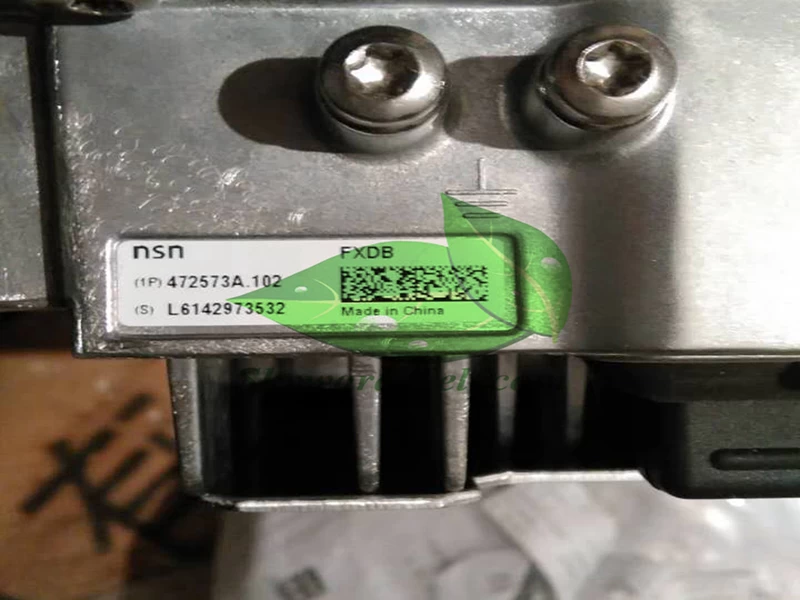

Brand: Nokia
Product Number: 472573A
Model: FXDB
Discription: Nokia FXDB Flexi RF Module 900 triple 90W
RF Module external interfaces
|
|
PWR IN
|
ANT
|
RxO
|
RET
|
EAC
|
OPT
|
|
RFM 3x80W 900MHz FXDB
|
Screwinterminal
|
6x 7/16 female
|
3x QMA(female)
|
/
|
RJ45 female shielded
|
3Gb or 6Gb SFP
|
RF Module frequency range and bandwidth (Cont.)
|
RF Module variant
|
TX frequency range [MHz]
|
RX frequency range [MHz]
|
DL instantane ous bandwidth [MHz]
|
UL instantaneous bandwidth [MHz]
|
DL filter bandwidth [MHz]
|
UL filter bandwidth [MHz]
|
|
RFM 3x80 W 900 MHz FXDB
|
925-960
|
880-915
|
35
|
35
|
35
|
35
|
