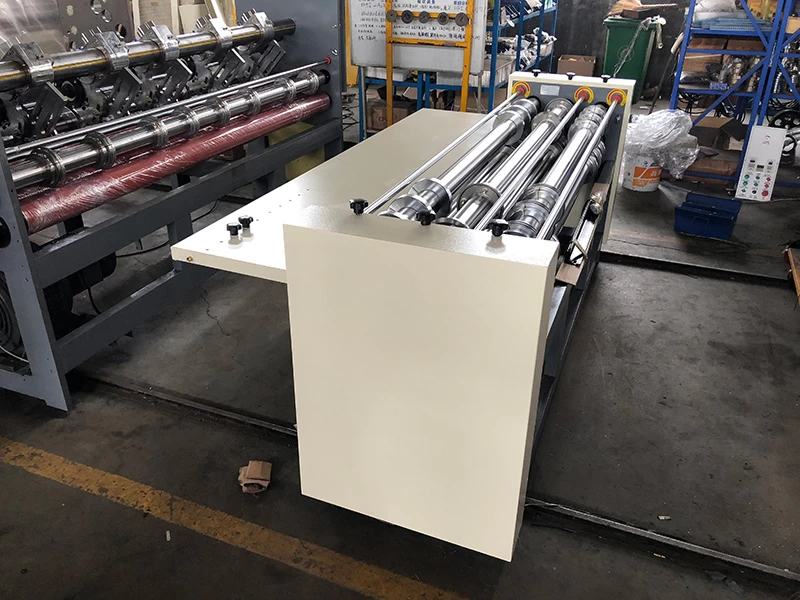

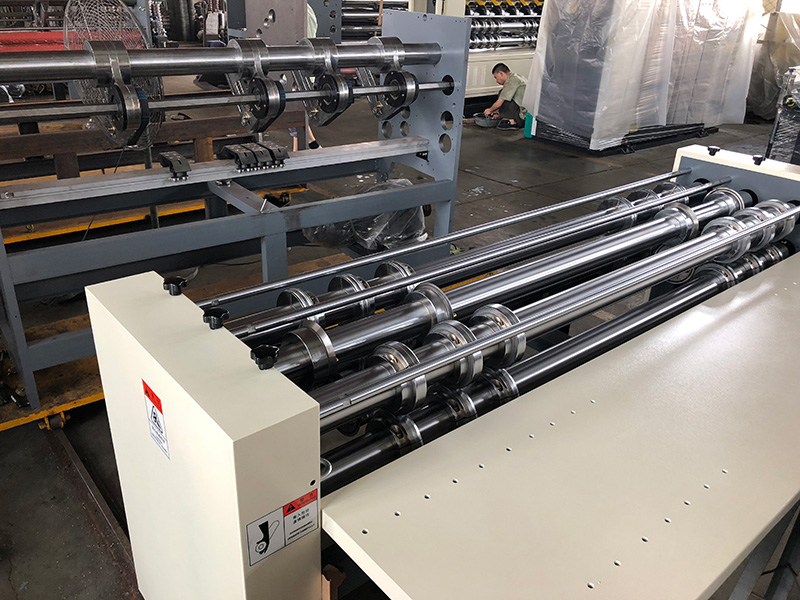

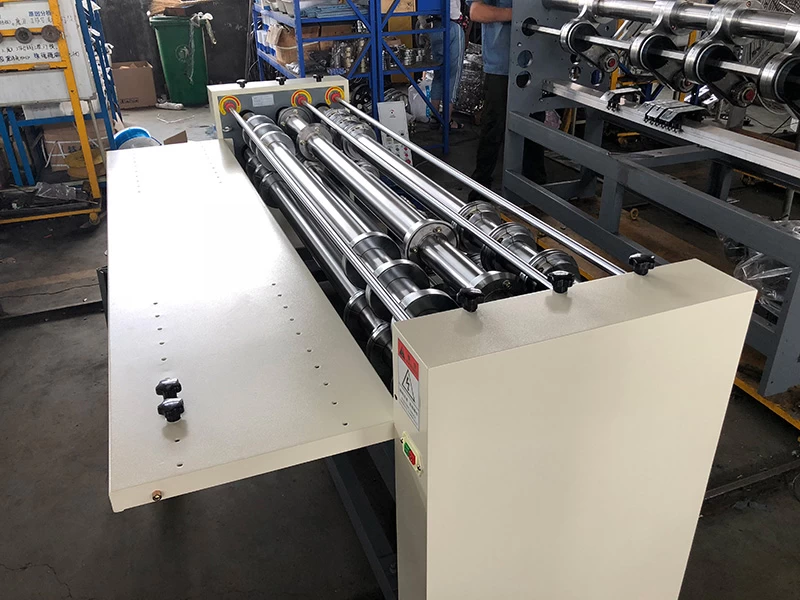

Product Name:FY Rotary Slitting And Creasing Machine
Features：
·Used to produce single, double and multiple
layer corrugated cartons;
·Cutting, slotting and creasing are done in one run;
·Compact design and easy operation;
·Option of four-knife/six-lines and
five-knife/eight-lines available.
|
Model
|
FY－2000
|
FY－2500
|
FY－3000
|
FY－3500
|
FY－4000
|
|
Sheet Size (mm)
|
2000
|
2500
|
3000
|
3500
|
4000
|
|
Speed (m/s)
|
2
|
2
|
2
|
2
|
2
|
|
Power (Kw)
|
1.1
|
1.5
|
2.2
|
2.2
|
3
|
|
Weight (Kg)
|
1000
|
1400
|
2000
|
2500
|
3100
|
|
Dimension (LxWxH) (mm)
|
2625×1160×1190
|
3045×1100×1170
|
3560×1275×1220
|
4060×1275×1220
|
4570×1330×1260
|
The
product specification is subject to amend without any notice in case of
technical requirements
