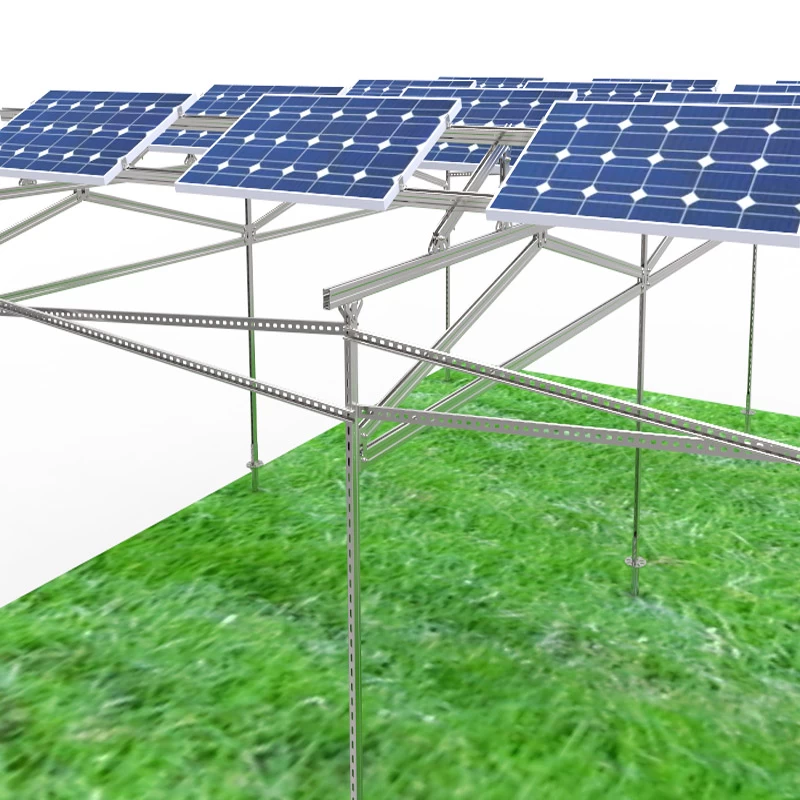

Galvanized agriculture ground mounting system is high above the ground, which does not affect the growth of the underlying crops, but also makes full use of solar power. The surface of the bracket is galvanized and is not easy to rust.
Technical Parameters
|
Installation Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Q235(Galvanized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

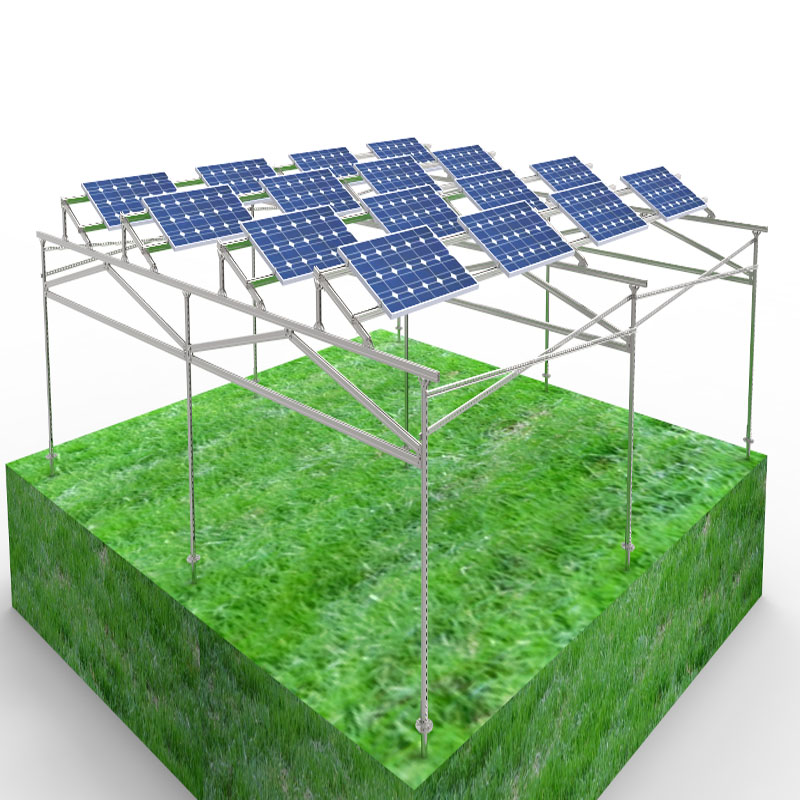

Galvanized agriculture ground mounting system
Feature:
1. The cross beam, support beam and support rod of
carbon steel shed are all U-shaped channel steel with long holes
at certain
distances at the bottom, and the installation is allowed to have deviation;
2. Galvanized steel surface with hot galvanizing treatment, no rust, and the
price is cost-effective;
3. Install U-shape slope beam before and after,make
whole mounting system more stable.
Advantage：
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2011,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

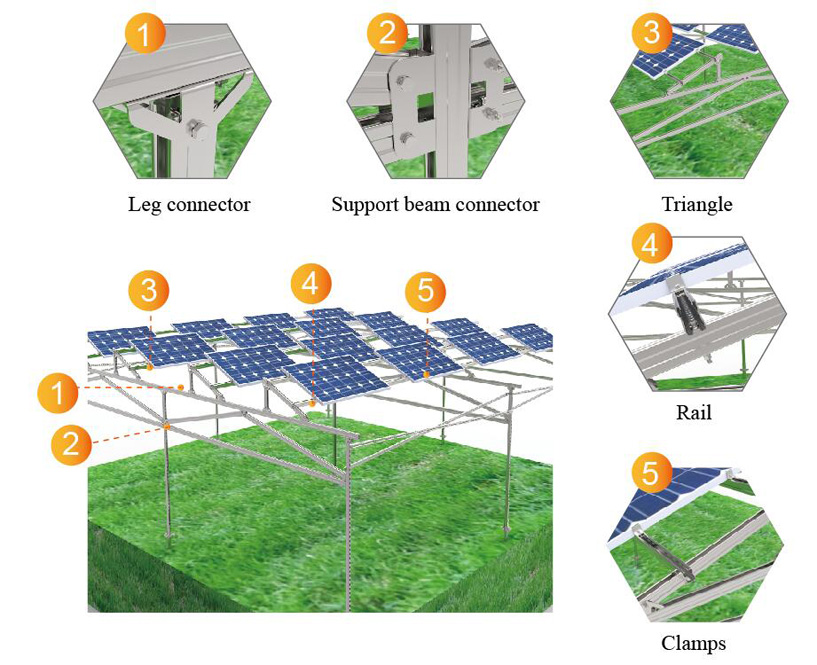

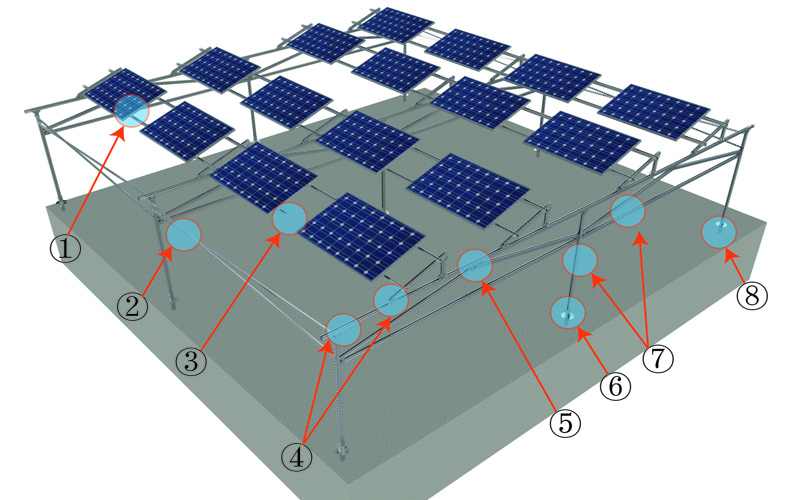

Component photos of galvanized agriculture ground mounting system
1. End clamp 2. Galvanized U-shape rail 3. Rail splice 4. Triangle clip
5. Galvanized connecter 6. Galvanized base 7. Pole or pull rod 8. Ground screw
Installation steps of galvanized agriculture ground mounting system

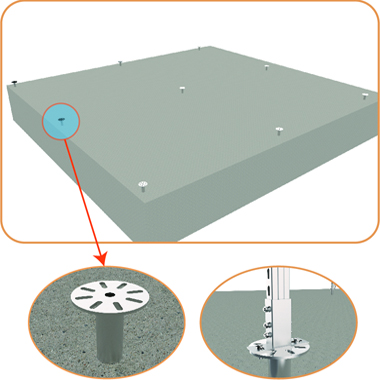

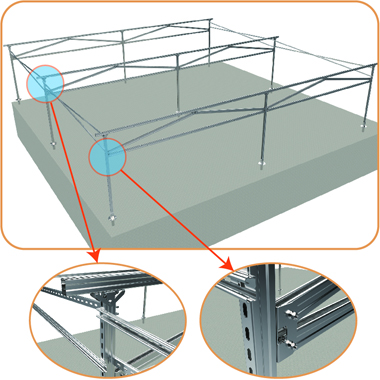

Step1：Install ground screw according to Step2： Install U-shape pole and
distance marked in drawing support beam on the ground screw
Install ground screw Install base in the ground crew Details of connecter Details of pole and connecter

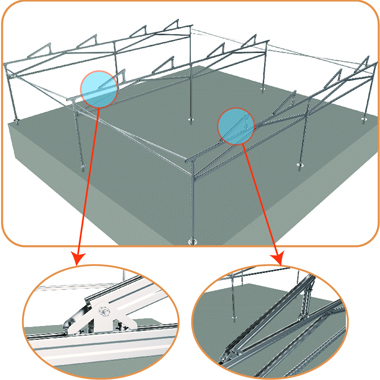

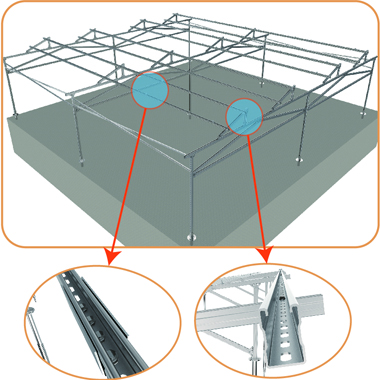

Step3：Choose U shape steel rail Step4：Install triangle in the support beam
as ballance rod,install ballance rod
Install U shape balance rod Front part of triangle Details of triangle

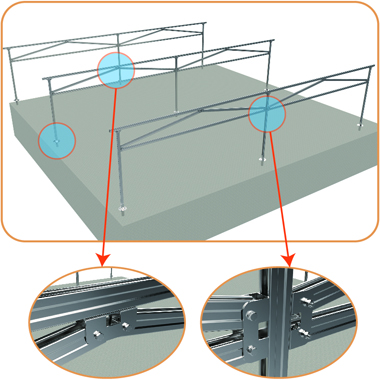

Step5：Install rails and rail splices Step6：Fasten panel by end clamps
Connect rail Detail of rail installation End clamp
Component details
