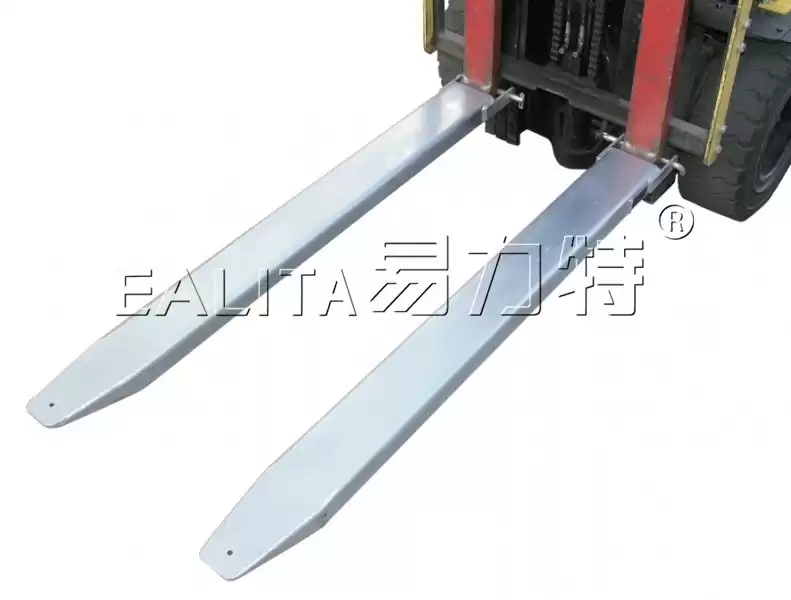

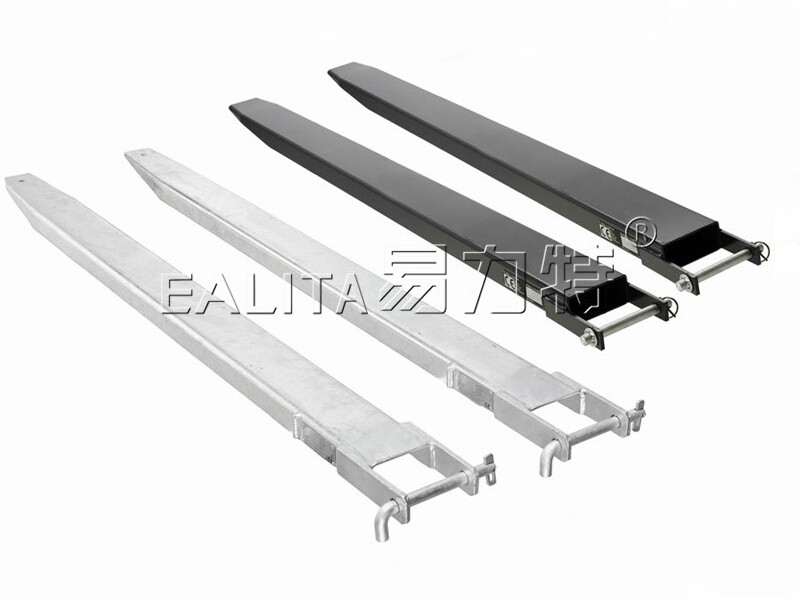

The Fork Extension Slippers extend the versatility of the fork truck.
- These slim profile slippers have been designed and manufactured in accordance with AS2359.15.
-- In accordance with AS2359.15 slippers used for general usage should be no longer than 167% of the supporting tine’s length.
- If the slippers are longer than 167%, then the usage of those slippers shall be restricted to their specified application.
Specifications
• Made from high tensile grade steel
• High Safe Working Load (SWL) rating
• Supplied with locking pins
• Galvanzied & Paint available
|
Type
|
Code
|
Suit Fork Size(mm)
|
Length(mm)
|
Capacity(kg)
|
Plat Thickness(mm)
|
Weight(kg/pair)
|
|
F-HCT1-16-5
|
03.01.01.0007
|
100 x40
|
1600
|
2500
|
5
|
40.5
|
F-HCT1-18-5
|
03.01.01.0011
|
100 x40
|
1800
|
2500
|
5
|
46
|
F-HCT1-20-5
|
03.01.01.0012
|
100 x40
|
2000
|
2500
|
5
|
51.5
|
|
F-HCT1-22-5
|
03.01.01.0013
|
100 x40
|
2200
|
2500
|
5
|
57
|
F-HCT1-24-5
|
03.01.01.0035
|
100 x40
|
2400
|
2500
|
5
|
62.5
|
|
F-HCT2-16-5
|
03.01.01.0059
|
120 x 40
|
1600
|
3000
|
5
|
46
|
F-HCT2-18-5
|
03.01.01.0001
|
120 x 40
|
1800
|
3000
|
5
|
51
|
F-HCT2-20-5
|
03.01.01.0034
|
120 x 40
|
2000
|
3000
|
5
|
56
|
F-HCT2-22-5
|
03.01.01.0064
|
120 x 40
|
2200
|
3000
|
5
|
61
|
F-HCT2-24-5
|
03.01.01.0064
|
120 x 40
|
2400
|
3000
|
5
|
66
|
F-HCT3-18-6
|
03.01.01.0037
|
125 x 50
|
1800
|
4000
|
6
|
66
|
|
F-HCT3-20-6
|
03.01.01.0046
|
125 x 50
|
2000
|
4000
|
6
|
73
|
|
F-HCT3-22-6
|
03.01.01.0040
|
125 x 50
|
2200
|
4000
|
6
|
80
|
F-HCT3-24-6
|
03.01.01.0010
|
125 x 50
|
2400
|
4000
|
6
|
87
|
F-HCT3-30-6
|
03.01.01.0055
|
125 x 50
|
3000
|
4000
|
6
|
108
|
|
F-HCT4-18-8
|
03.01.01.0038
|
150 x 60
|
1800
|
7000
|
8
|
104
|
|
F-HCT4-20-8
|
03.01.01.0048
|
150 x 60
|
2000
|
7000
|
8
|
116
|
|
F-HCT4-22-8
|
03.01.01.0041
|
150 x 60
|
2200
|
7000
|
8
|
128
|
|
F-HCT4-24-8
|
03.01.01.0039
|
150 x 60
|
2400
|
7000
|
8
|
140
|
|
F-HCT4-30-8
|
03.01.01.0042
|
150 x 60
|
3000
|
7000
|
8
|
176
|
