The galvanized brackets structure is stable,and the surface of galvanized bracket is treated with hot galvanizing, which is not easy to rust.

Technical Parameters

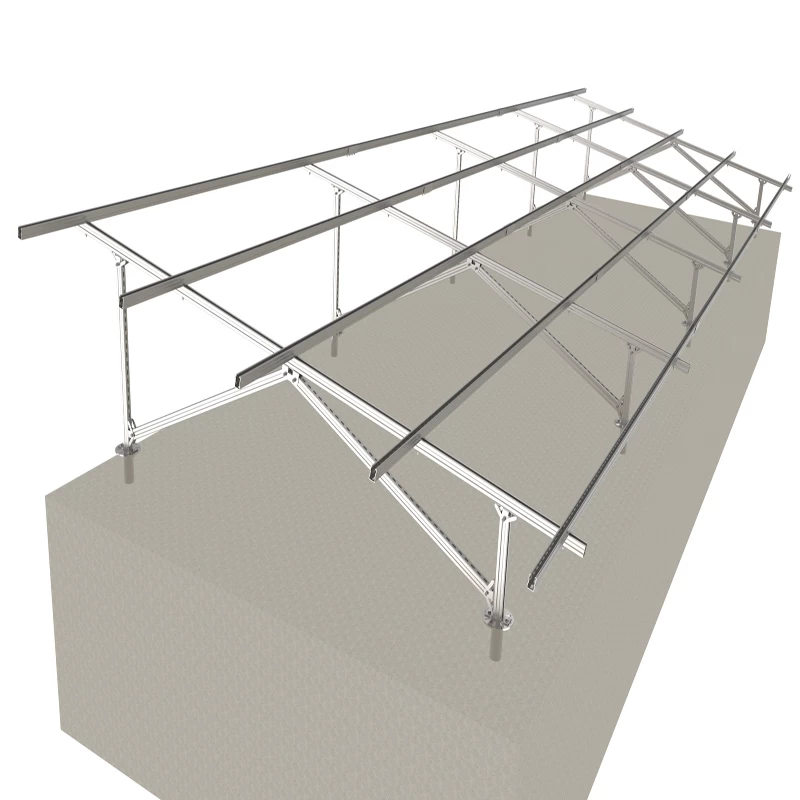

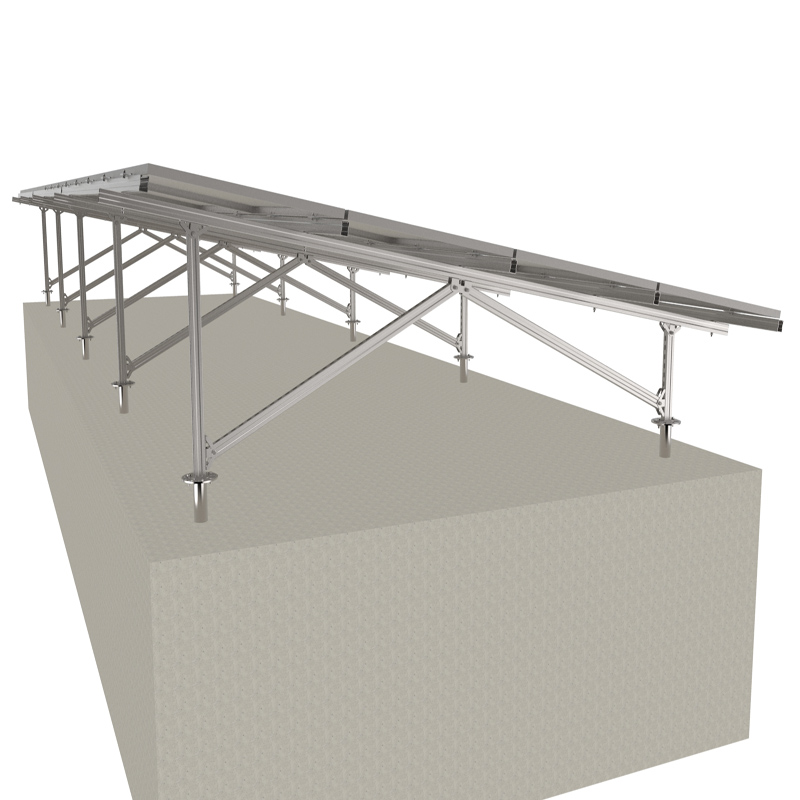

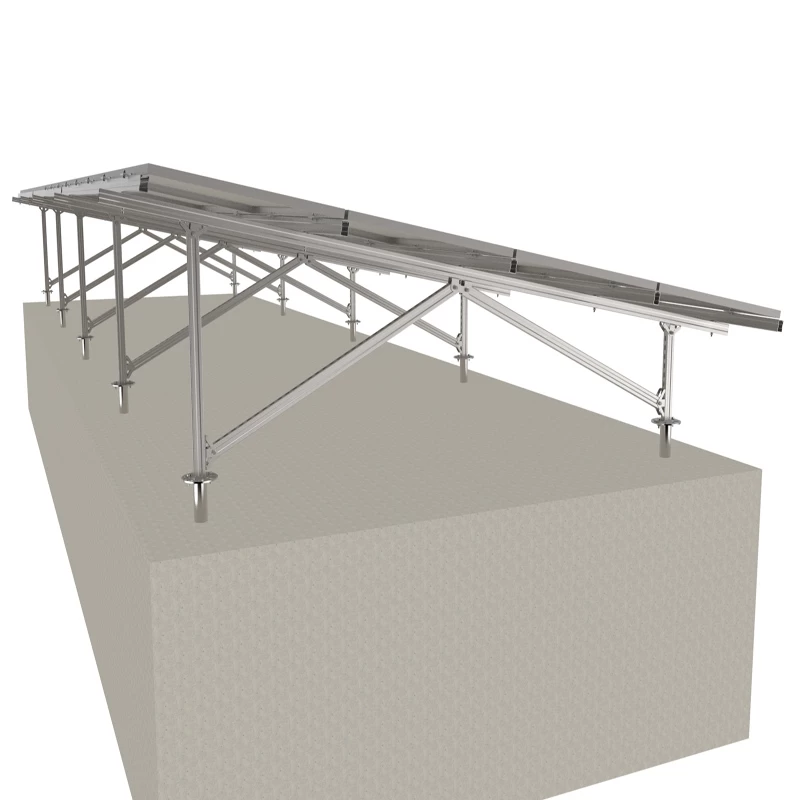

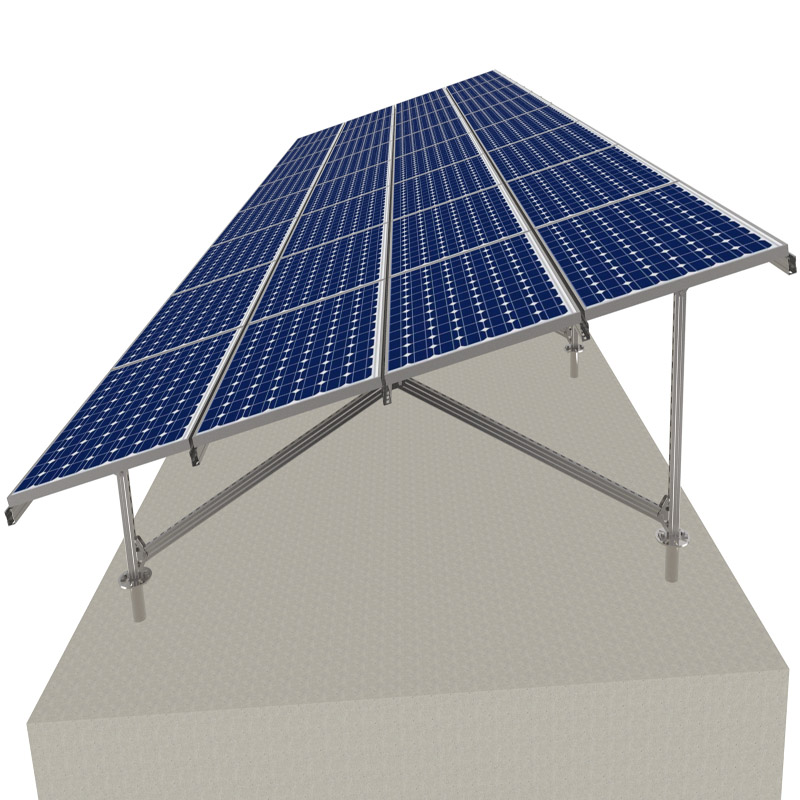

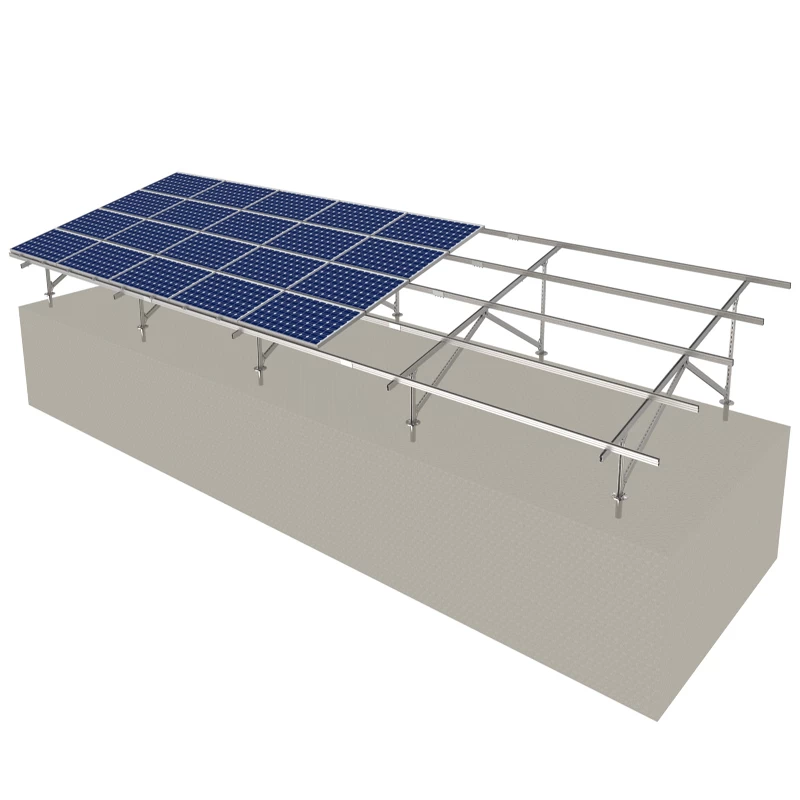

W Type Galvanized ground mounting system

Feature:

1. The surface of galvanized bracket is treated with hot galvanizing, which is not easy to rust.

2. The galvanized bracket is cheaper overall.

3. The galvanized bracket, beam, the longitudinal beam and the support rod are all steel with U-shaped channel,

    which is with few components and simple structure.

4. W-type brackets structure are stable

Advantage

High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);

Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);

Max wind speed :up to 60m/s;

Material:Al 6005-T5;

Anti-corrosive:anodized;

Warranty:12 years;

Duration:25 years.

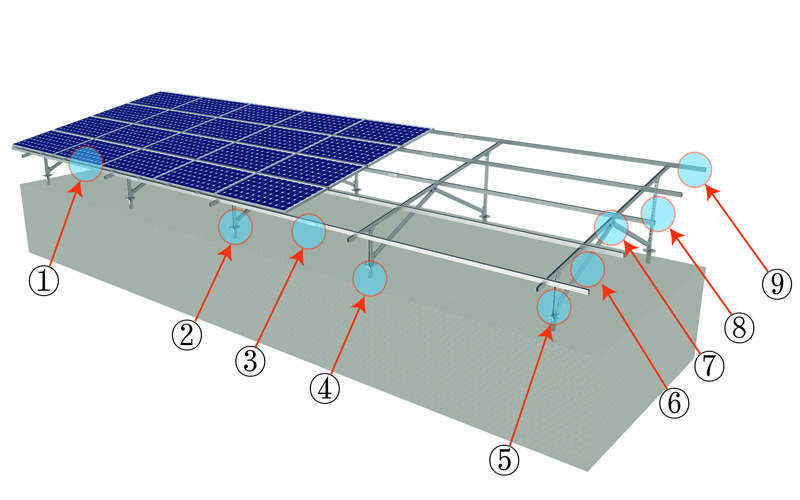

Component photos of W type galvanized ground mounting system

1.  Solar fastener  under board    2. Solar Galvanized connector     3.Solar galvanized beam     4.  Solar ground screw

                                                           with single head                          connector

 5. Solar galvanized front foot      6.  Solar galvanized         7. Solar galvanized connector     8.Solar galvanized back leg

                                                             diagonal support           with double head


 9. Solar Galvanized U beam

Installation steps of  W type galvanized ground mounting system

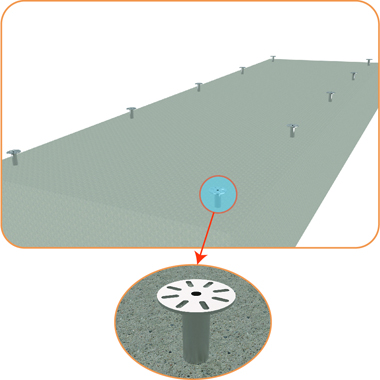

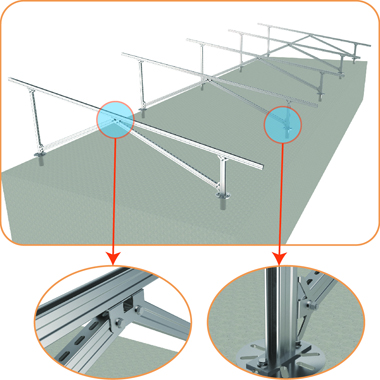

Step1：Install ground screw according to                 Step2： Install the pre-assembled
             distance marked in drawing                                      support beam on the ground screw

                          Install ground screws                                             Galvanized connector

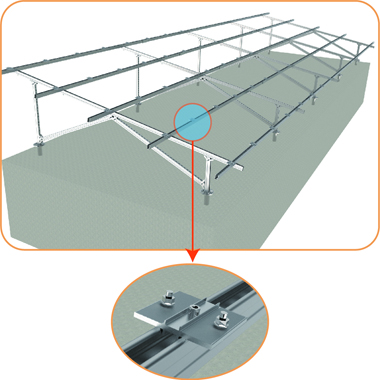

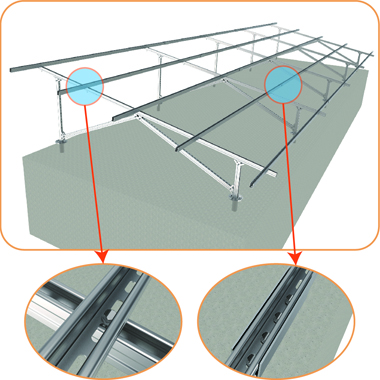

Step3：Install rails and rail splices                             Step4： Fasten the retainer plates



                         The Galvanized beam connector                          The retainer plates

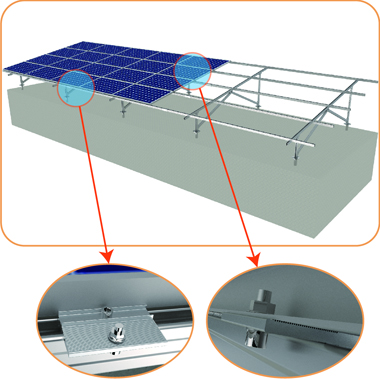

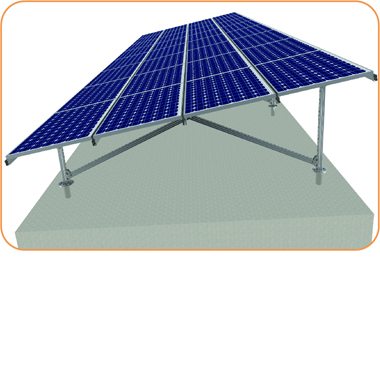

Step5：Fasten panel by the screw bolts                    Step6：Installation completion diagram

       The retainer plates             screw bolt
