Gas Heating Continuous Tea Leaf Steam Machine For Kinds Of Tea 6CSTL-Q80

DL-6CSTL-Q80 gas heating continuous tea leaf steaming machine can use for many kinds of tea, such as green tea, oolong tea and others.


  • Efficiency100 kg/h
  • Heating typeLiquid gas, Natural gas
  • Barrel speed5-37 rpm
  • Voltage of exhaust fan220 V
  • Speed of exhaust fan1400 rpm
  • Power of exhaust fan370 W
  • Voltage of drive motor380 V
  • Speed of drive motor1400 rpm
  • Power of drive motor2.2 KW
  • Barrel length4000 mm
  • Barrel diameter800 mm
  • Dimension1200×5200×2610 mm
  • Voltage380V / 50Hz

Description:
The Gas Heating Continuous Tea Leaf Steam Machine use of high temperature to destroy the activity of enzymes in fresh leaves, to prevent polyphenol oxidase from continuing to oxidize, so that the water inside the fresh leaves evaporates. Making the smell of grass in the tea subsides, the fragrance of tea emerges, and the leaves become soft, creates conditions for rolling process.

Application:
Electric heating fresh tea leaves fixation machine can processing many kinds tea, such as green tea, yellow tea, brick tea and oolong tea and so on.

Advantage:

1. The tea fixing machine uses gas heating, high thermal efficiency, cost saving and fast heating up;

2. The tea fixationg machine has three heating zones, each with the same area and length;

3. The temperature of each heating zone can be controlled at will, and the real-time temperature of each section is displayed.

Parameter:
DL-6CSTL-Q80 gas heating type continuois tea leaf steaming machine specification:
Model DL-6CSTL-Q80
Dimension 1200×5200×2610 mm
Voltage 380/50 V/Hz
Input power 85 KW
Inner barrel diameter 800 mm
Inner barrel length 4000 mm
Drive motor Power 2.2 W
Speed 1400 rpm
Voltage 380 V
Exhaust motor Power 370 W
Speed 1400 rpm
Voltage 380 V
Barrel speed 5-37 rpm
Heating type Liquid gas, Natural gas
Efficiency 100 kg/h
The above data is based on fresh tea leaf water content of 75-80%.

Details:

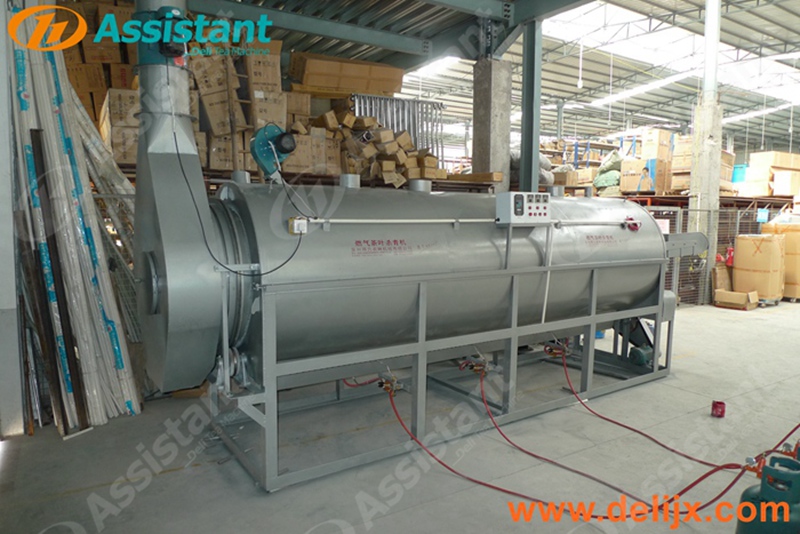

Gas Heating Continuous Tea Leaf Steam Machine For Kinds Of Tea 6CSTL-Q80

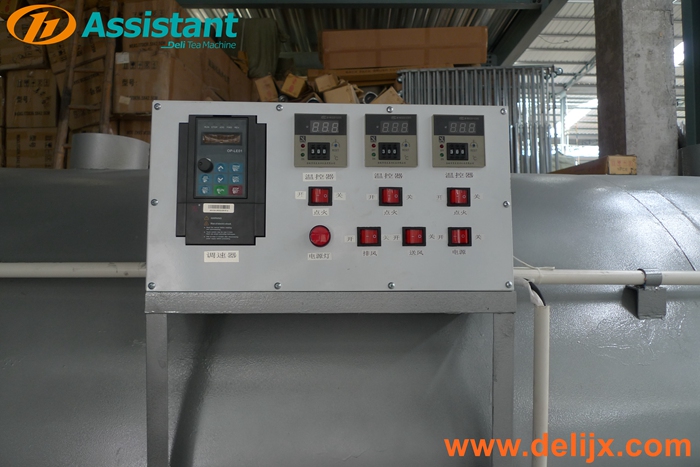

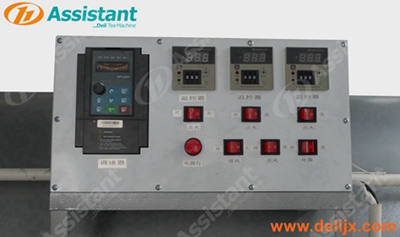

Industry pioneered piecewise temperature control system
The tea fixation machine is divided into three heating zones. The temperature of each zone can be controlled by this control panel. The panel displays the real-time temperature.


Gas Heating Continuous Tea Leaf Steam Machine For Kinds Of Tea 6CSTL-Q80
Gas Heating Continuous Tea Leaf Steam Machine For Kinds Of Tea 6CSTL-Q80

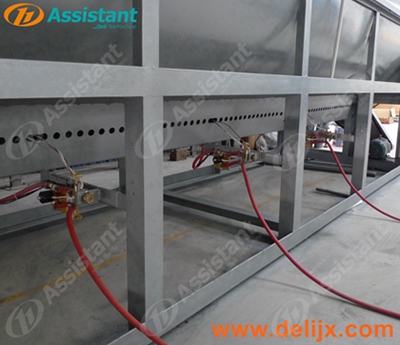

Three heating zones, independent control of each region.

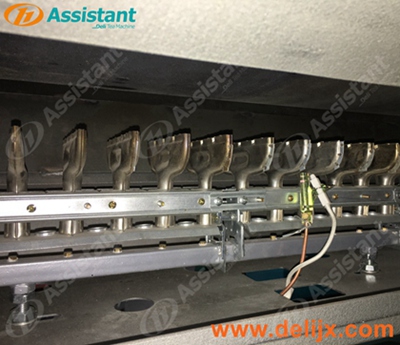

"T" type gas burner
Gas Heating Continuous Tea Leaf Steam Machine For Kinds Of Tea 6CSTL-Q80
Gas Heating Continuous Tea Leaf Steam Machine For Kinds Of Tea 6CSTL-Q80
Super long drum design ensures tea quality
Calcium silicate board insulation layer

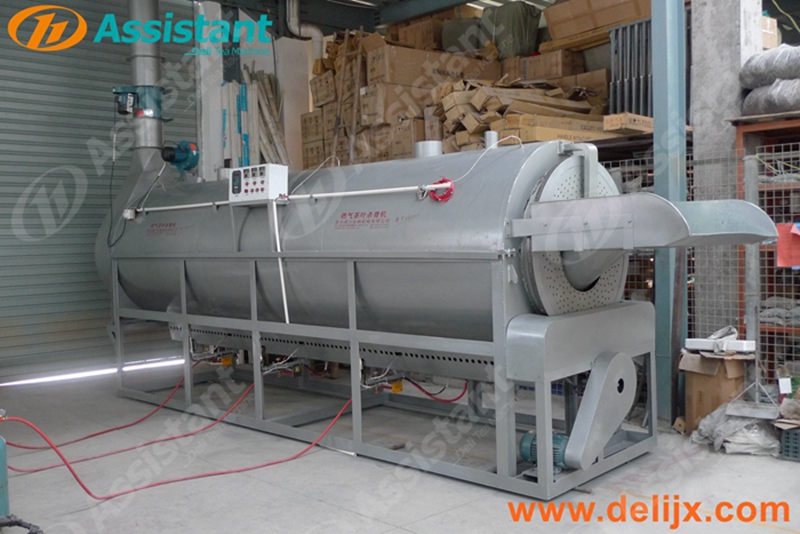

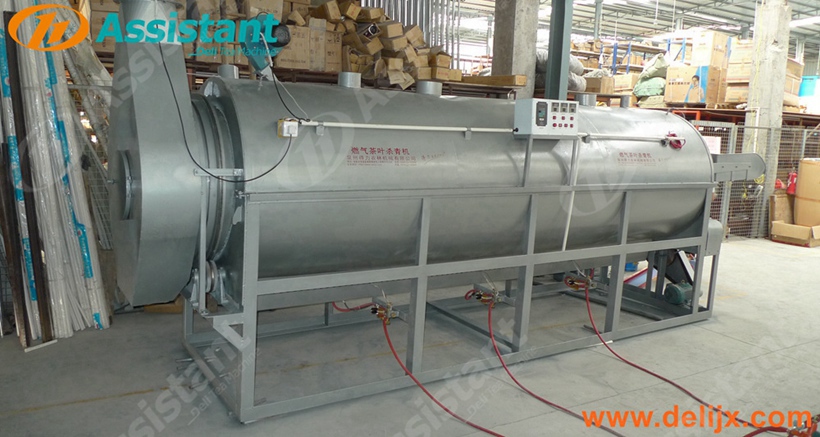

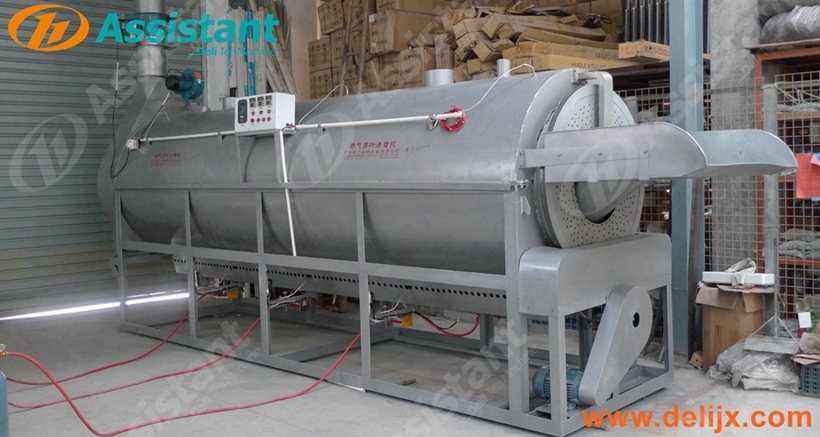

DL-6CSTL-Q80 gas heating tea steam machine photos:

China Tea Steam Machine For Tea Manufacturer 6CSTL-Q80
China Tea Steam Machine For Tea Manufacturer 6CSTL-Q80
China Tea Steam Machine For Tea Manufacturer 6CSTL-Q80
