DL-6CST-90 liquid gas heating tea fixation machine use of high temperature to destroy the activity of enzymes in fresh leaves, to prevent polyphenol oxidase from continuing to oxidize, so that the water inside the fresh leaves evaporates. Making the smell of grass in the tea subsides, the fragrance of tea emerges, and the leaves become soft, creates conditions for rolling process.
DL-6CST-90 tea fixation machine can processing many kinds tea, such as green tea, yellow tea, brick tea and oolong tea and so on.
DL-6CST-90 tea fixing machine specification:
|
Model
|
DL-6CST-90
|
|
Dimensions
|
1230×2100×1840 mm
|
|
Voltage
|
380/50 V/Hz
|
|
Inner barrel diameter
|
900 mm
|
|
Inner barrel length
|
1240 mm
|
|
Drive motor
|
Power
|
0.75 KW
|
|
Speed
|
1390 rpm
|
|
Voltage
|
380 V
|
|
Exhaust fan
|
Power
|
85 W
|
|
Speed
|
2200 rpm
|
|
Voltage
|
220 V
|
|
Barrel speed
|
5-37 rpm
|
|
Heating type
|
Liquid gas
|
|
Efficiency
|
100 kg/h
|
The above data is based on fresh tea leaf water content of 75-80%.

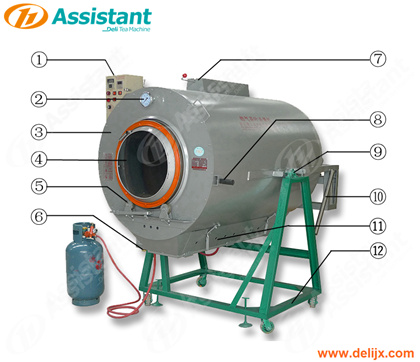

DL-6CRT-90 tea leaf roasting machine decomposition diagram:
|
①
|
Electric control panel
|
⑦
|
Heat dissipating switch
|
②
|
Thermometer
|
⑧
|
Handle
|
③
|
Outer barrel
|
⑨
|
Balance bolt
|
④
|
Inner barrel
|
⑩
|
Shock absorber rod
|
⑤
|
nylon wheel
|
⑪
|
Combustion zone
|
⑥
|
Ignition switch
|
⑫
|
Support frame
|
|

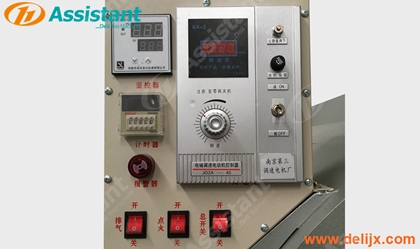

Integrated multifunctional electric control box
The first intelligent temperature control system in tea machinery industry
|
|
|
|
|

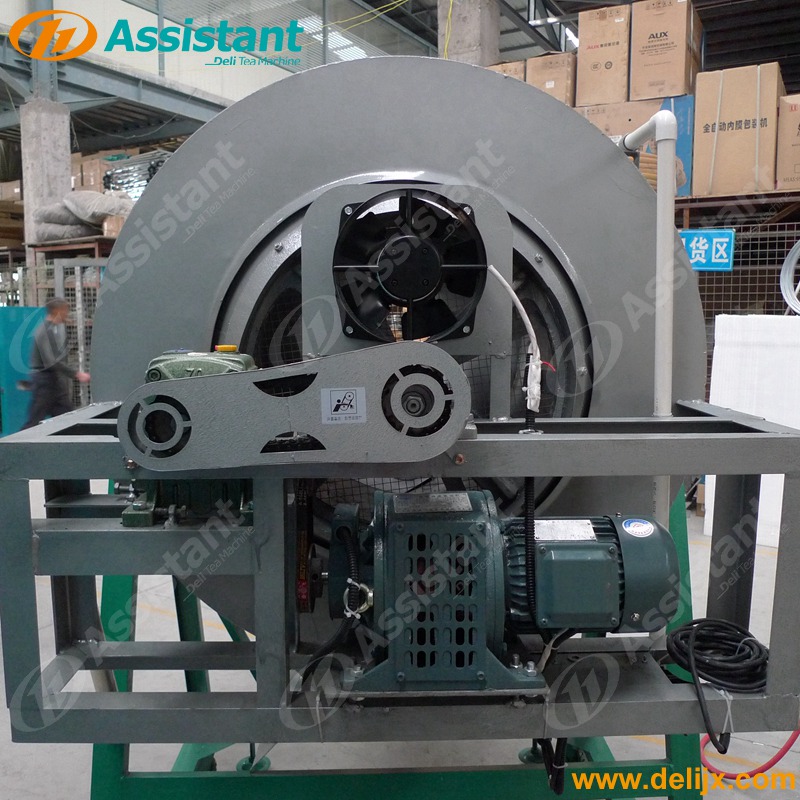

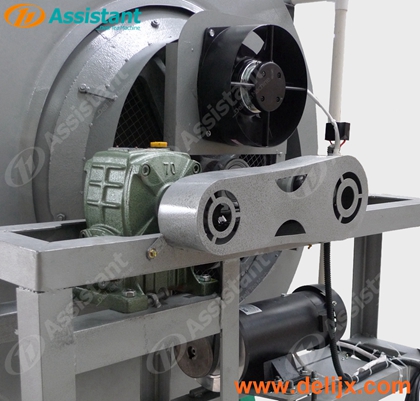

Copper core driving motor
|

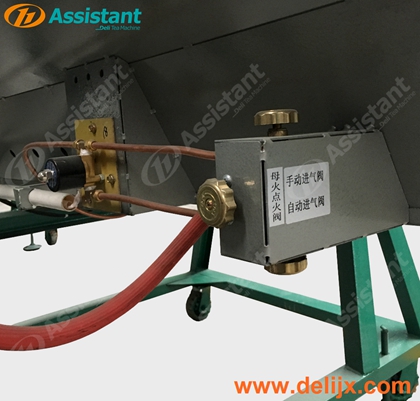

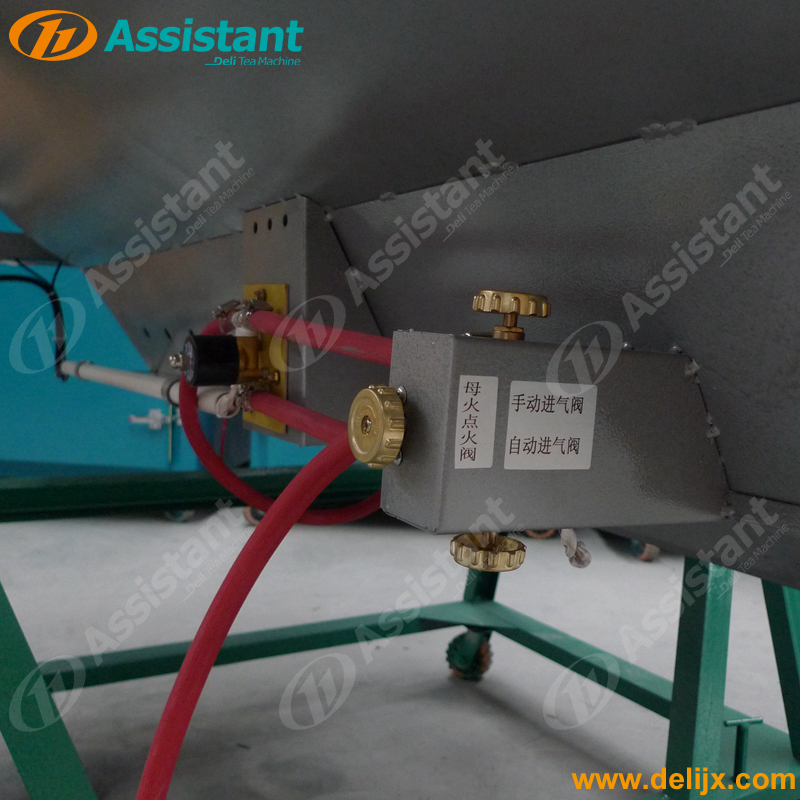

Gas-fired igniter
|

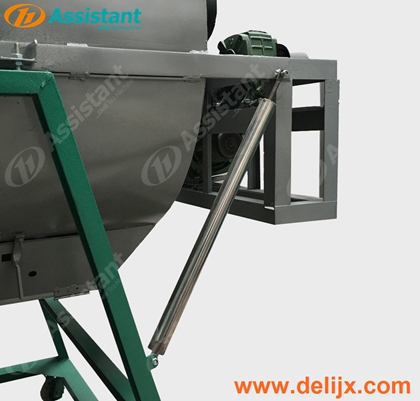

Shock absorber cylinder
|
|
|

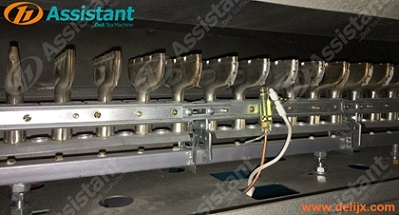

"T" type gas burner
|

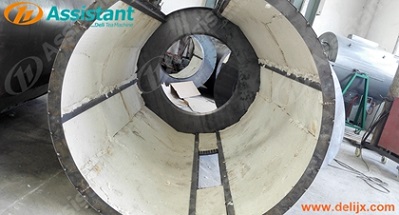

Calcium silicate board insulation layer
|
|

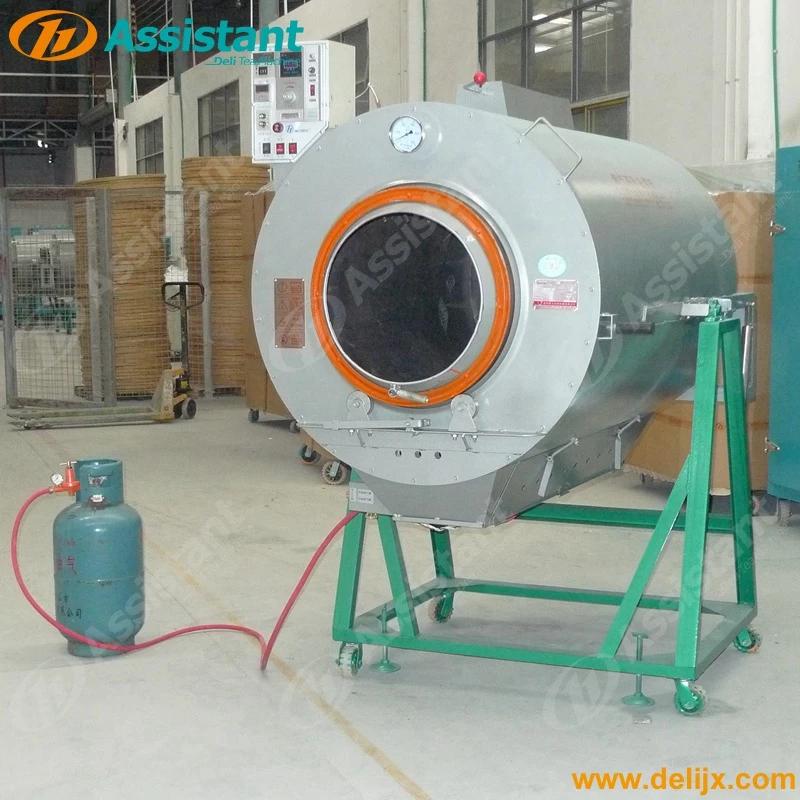

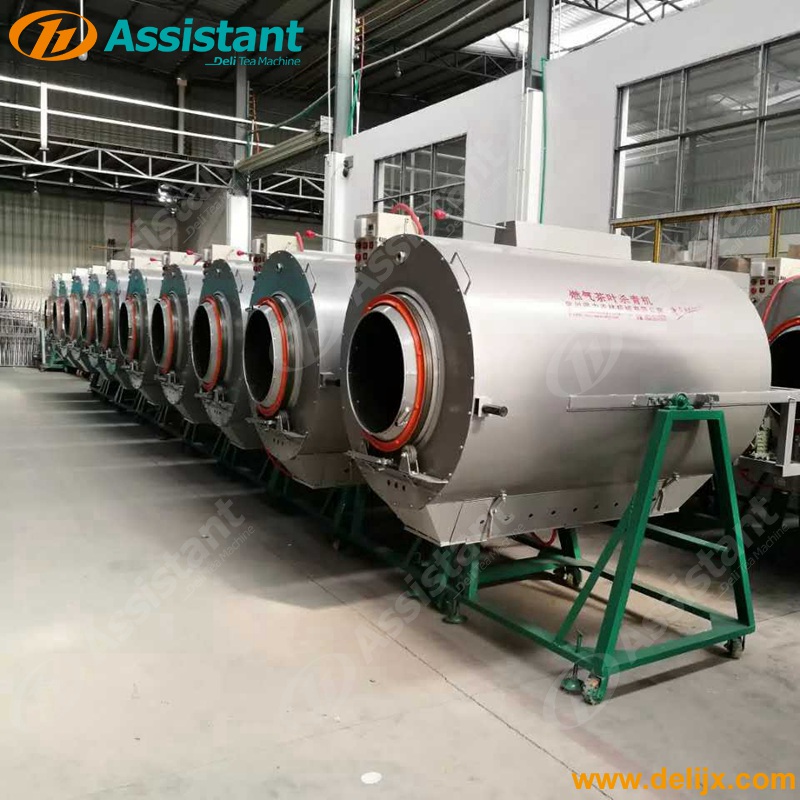

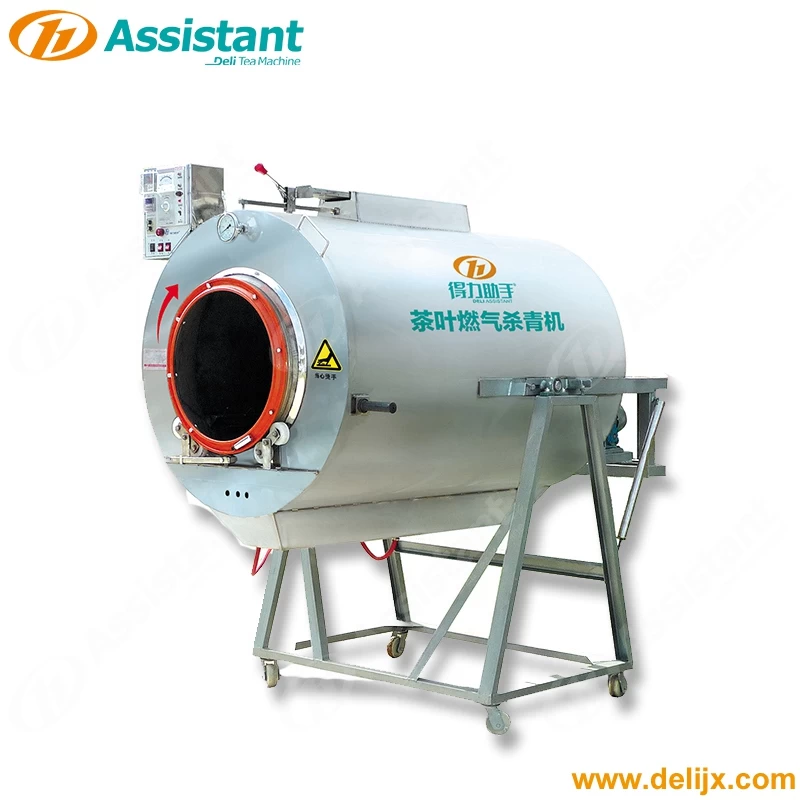

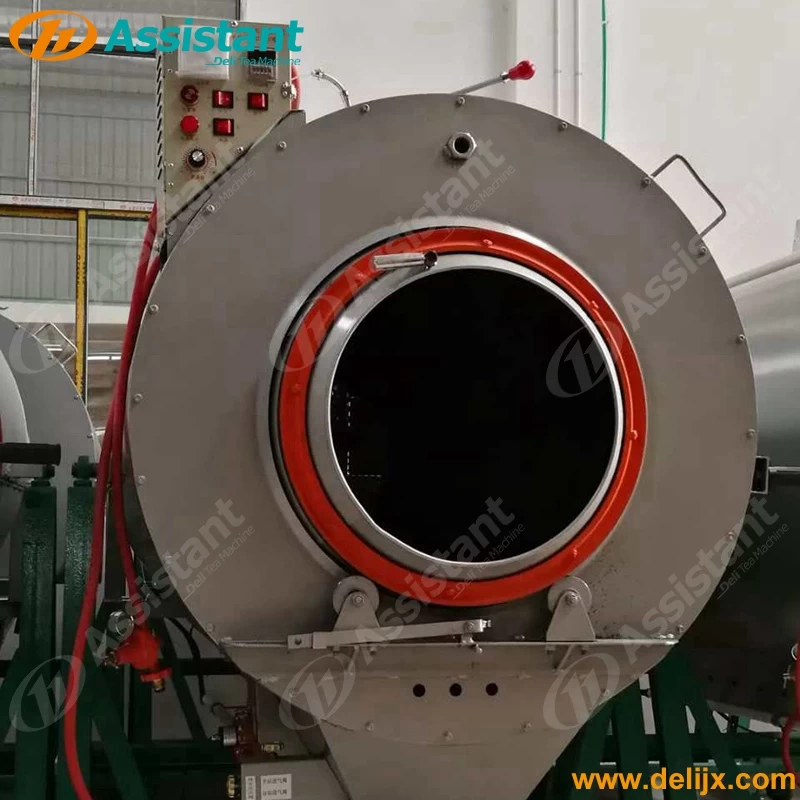

DL-6CST-90 gas heating tea fixing machine photos:
|
