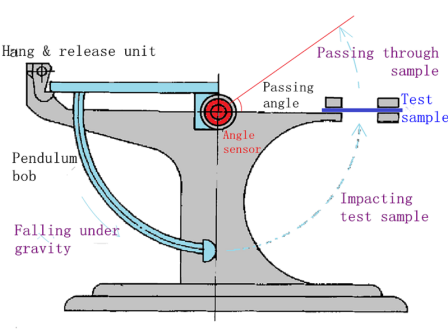

1. Working principle
The ball shaped impact head rams into and bursts the test sample with certain speed, and the system measure the energy the impact consumed to determine impact resistance of test sample.
2.Technical parameters
Maximum impact energy: 3J
Test precision: 0.001J
Pendulum angle: 90°
Pendulum swing radius: 280mm
Size of impact head: Φ25.4mm, Φ19mm
Size of clips: Φ90mm
Size of test sample: 100mm × 100mm
Gas source compressed air: 0.6Mpa
Power: 1000W
Instrument size: 480mm × 330mm × 540mm
Weight: 48 kg

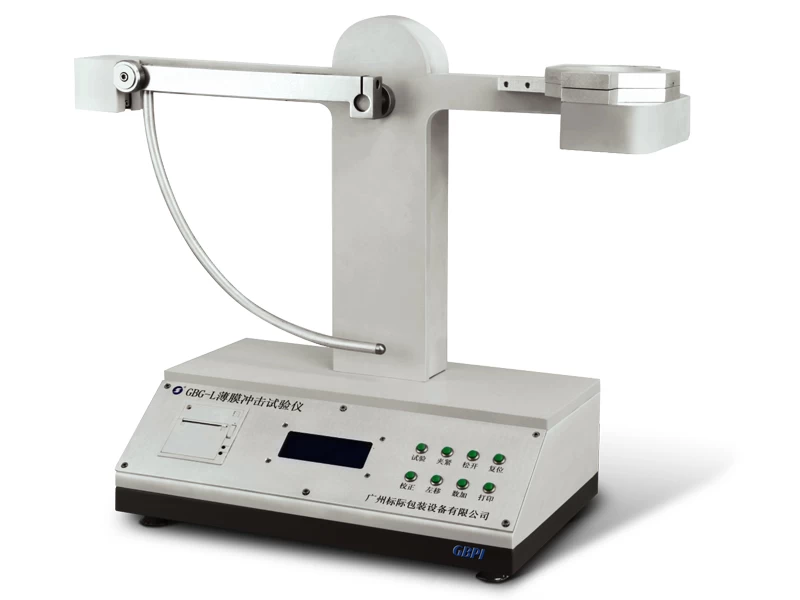

3. Product features
Accurate test result;
LCD display;
Automatic data processing;
Can print out test report;
Controlled by computer; can also run independently;
Can change impact head and clips;
Easy to use; designed for flexible packaging industry.
4. Standards
The instrument is up to standards of ASTM D3420 and GB/T 8809.
