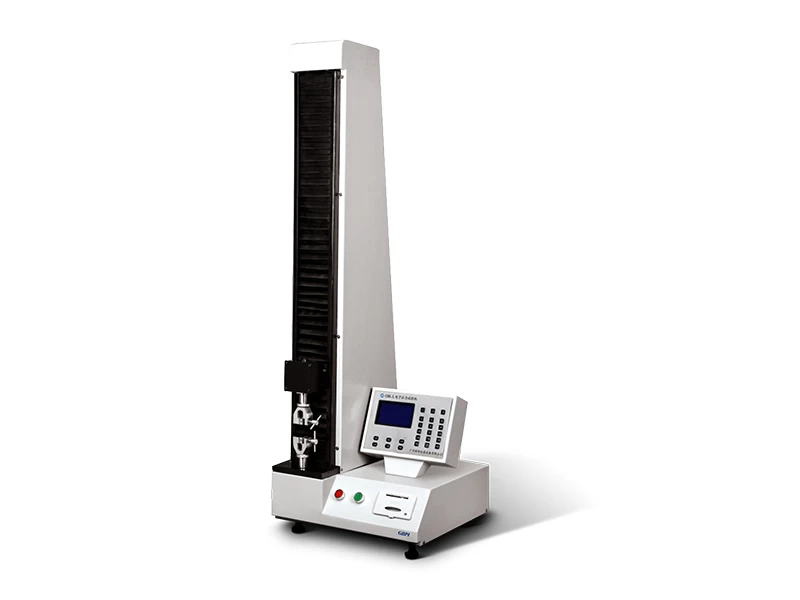

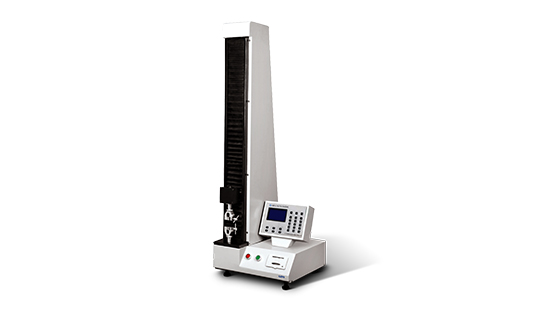

GBL-L Electronic Digital Tensile Tester Machine
Standards
GB8808, GB13022, GB/T1040, GB4850, GB/T7753, GB/7754, GB/T453, GB/T17200, GB/T16578.1, QB/T1130, GB/T 2791, GB/T 2790, GB/T 2792, GB/T 7122, GB/T 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB00112003, YBB00102003, YBB00132002, YBB00202004, ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358
Features
u Can test tensile strength, peeling strength, heat sealing strength and tearing strength.
u User can set various parameters like width, speed, thickness and distance.
u Results are shown on LCD screen.
u Can print out testing results with built-in thermal printer.
u Core parts are imported, with high precision and durability.
u High sampling speed (50 times/s) and accurate data.
u 3 levels of security protection make the experiment safer.
u Table standing design for sitting operation, easy and comfortable.
Specifications
|
Item
|
Technical parameters
|
|
Force range
|
0-300N (0~500N optional ), 1400% elongation
|
|
Force accuracy
|
within ±1% of the displayed value (grade 1)
|
|
Test speed
|
0-500mm/min (infinitely variable speeds)
|
|
Displacement accuracy
|
within ±1% of the displayed value
|
|
Test width range
|
30mm (50mm can be customized)
|
|
Travel distance range
|
700mm
|
|
Instrument size
|
600mm×500mm×1300mm
|
|
Power
|
300W
|
|
Power supply
|
AC 220V，50Hz
|
|
Weight
|
65kg
|
Configuration List
|
A、Spare parts
|
|
NO.
|
Name
|
Remark
|
Quantity
|
|
1
|
Power cable
|
3*0.75 10A 1.8M
|
1 PC
|
|
2
|
Communication cable
|
RS232 nine-pin data cable
|
1 PC
|
|
3
|
Tensile clip
|
30mm
|
1 PC
|
|
4
|
Piercing clip
|
|
1 PC
|
|
5
|
Software flash disk
|
4G
|
1 PC
|
|
6
|
Buckboard
|
|
1 Set
|
|
7
|
Allen wrench
|
|
1 Set
|
|
8
|
Right-angle tear blade
|
|
1 Set
|
|
9
|
Wooden box
|
|
1 PC
|
|
10
|
Cross screwdriver
|
6-10mm
|
1 PC
|
|
B、Optional parts
|
|
NO.
|
Name
|
Unit
|
Quantity
|
Remark
|
|
1
|
Computer
(win7 32bit)
|
set
|
1
|
Optional
|
|
2
|
Pneumatic clip
|
set
|
1
|
Optional
|
|
3
|
Metrology Certificates
|
|
|
Optional
|
|
C、User provide
|
|
1
|
Power supply 500w 220V 10A three holes socket ground wire
|
|
2
|
1 set of computer（with nine-pinCOM port，Windows7
|
