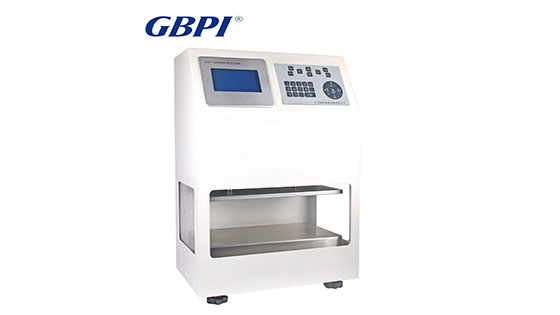

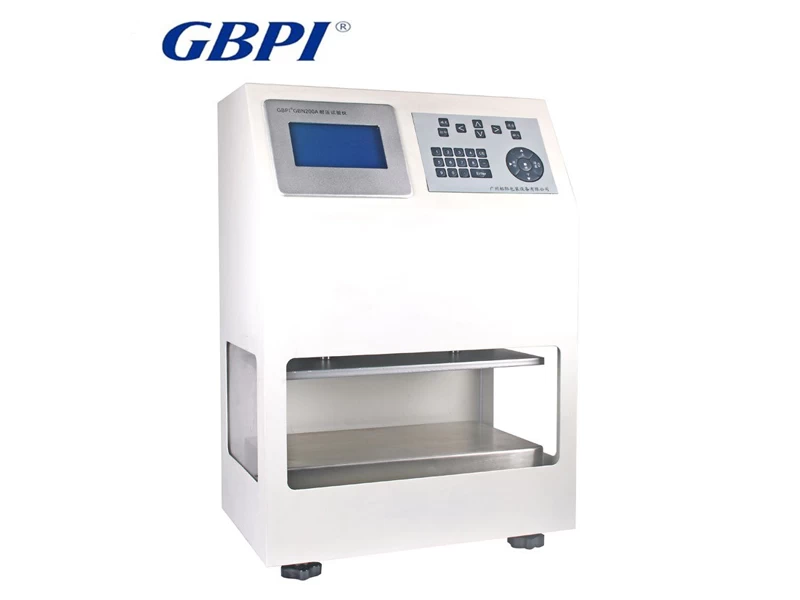

GBN200A Compression Tester
I. Features
1. Fully functional, multiple parameters setting and test.
2. Wholly automatic, can set auto judgment, auto return and stop; auto process data.
3. Built-in operation system can test independently without computer.
4. LCD display test data.
5. Can set fixed speed and measure the force.
6. Can set fixed pressure and measure displacement.
7. Professional software, simple interface, easy to operate.
8. Display multiple curves; can zoom and move curves freely.
9. Professional test report, can edit and export file in Excel, PDF format etc.
10. Simple calibration of force sensor.
II. Specifications
|
Test range
|
0~5000N optional
|
|
Test speed
|
0~300mm/min(infinitely variable speeds)
|
|
Test distance
|
0-135mm
|
|
Valid working area
|
500x400mm
|
|
Instrument size
|
550x460x725mm
|
|
Power
|
1000w
|
|
Power supply
|
AC 220V, 50Hz
|
