Data Sheet: FANUC A02B-0303-C074 10.4-INCH COLOR LCD OPERATOR INTERFACE
Product Identity

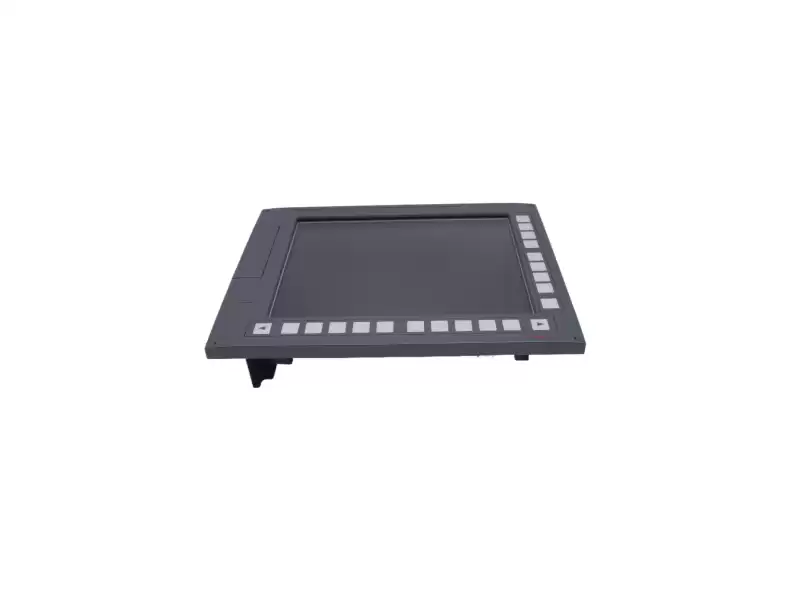

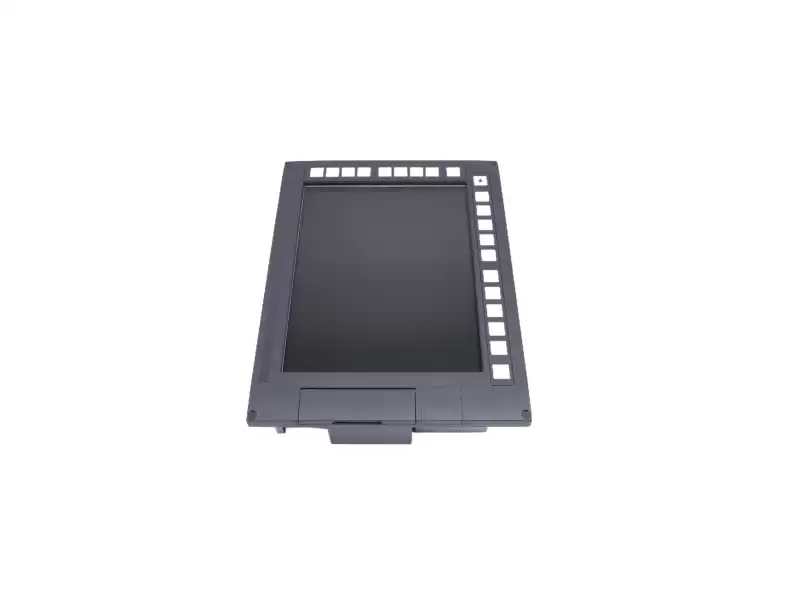

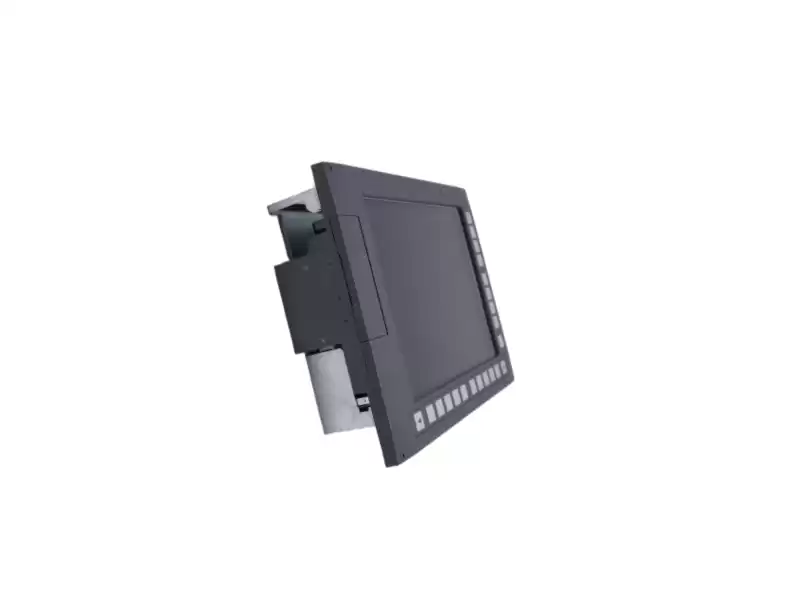

A02B-0303-C074 is the 10.4-inch color LCD operator interface for FANUC 0i/16i/18i/21i and 31i-series CNC controllers. It provides high-resolution graphics, real-time machine status, and intuitive navigation without touchscreen functionality.
Key Characteristics
|
Attribute
|
Value
|
|
Screen Size
|
10.4″ TFT color LCD
|
|
Resolution
|
XGA 1024 × 768 pixels
|
|
Backlight
|
LED, 50 000 h life
|
|
Interface
|
RS-232 + Ethernet (10/100)
|
|
Supply
|
24 V DC ±10 %, 12 W max
|
Frequently Asked Questions
Q1: Will this LCD drop into my 0i-MF controller?
A: Yes. Plug the 50-pin ribbon into the main board, set DIP 3 ON, and the CNC detects it automatically.
Q2: Can I add touch later?
A: Swap to A02B-0303-C075 (resistive overlay) without changing the bezel cut-out.
Q3: How long does the LED backlight last?
A: 50 000 hours at 25 °C—about 5.7 years of 24/7 operation.
Q4: Is the Ethernet port isolated?
A: Yes, 1 kV isolation meets IEC 61000-4-5 surge immunity.
Q5: What if I need a backup supply?
A: Use IC693PWR321—24 V DC DIN-rail supply, 5 A, hot-standby ready.
Q6: Can the front be cleaned with IPA?
A: Yes. IP65 front resists solvents; gasket kit A02B-0309-C007 is available for re-sealing after cleaning.
Ready-to-Ship Package
|
Part Number
|
Description
|
|
A02B-0303-C074
|
10.4″ LCD unit (this SKU)
|
|
A02B-0303-C075
|
Same LCD with touch overlay
|
|
A02B-0309-C003
|
1 m Ethernet cable
|
|
A02B-0309-C004
|
3 m RS-232 cable
|
|
A02B-0309-C005
|
2 m 24 V DC power cable
|
|
A02B-0309-C006
|
50-pin ribbon cable kit
|
|
A02B-0309-C007
|
IP65 gasket set
|
|
IC693PWR321
|
24 V DC 5 A DIN-rail supply
|
|
A05B-2550-C001
|
Dust cover (10-pack)
|
All items factory-sealed and ready for same-day dispatch from PLC Autocontroller.
