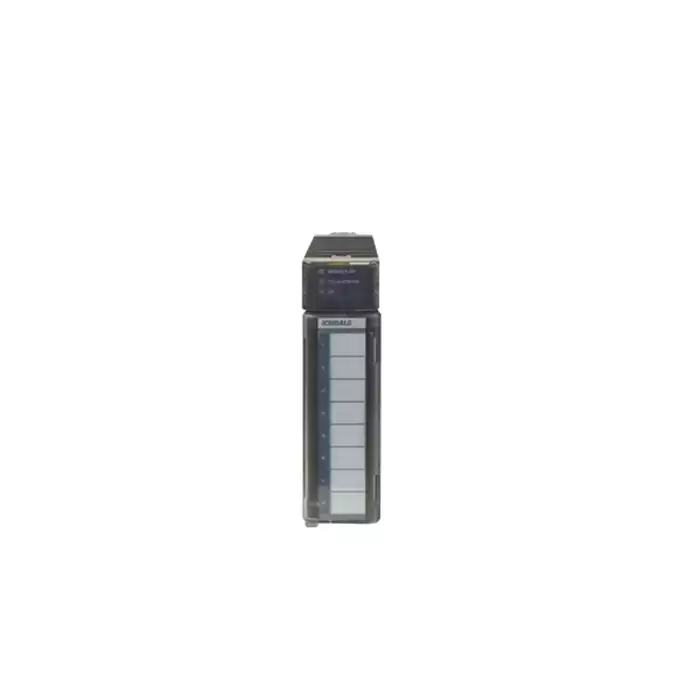

GE Fanuc IC695ALG608 analog input module that is part of the PACSystem RX3i platform

IC695ALG608 is an analog input module that is part of the PACSystem RX3i platform, currently under Emerson Automation



Product description

The IC695ALG608 is installed to an RX3i universal backplane. It occupies a single slot of the rack with current draw 330 mA maximum @ 5.0V +5% / -2.5% and 600 mA maximum @ 3.3V +5% / -3%. This module is used with an RX3i Central Processing Unit (CPU) firmware version 3.0 or later and configured using Machine Edition version 5.0 SP3 and later. Available filter options for each input channel includes 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 500Hz which are mainly used to normalize analog readings and eliminate rapid fluctuations.

The IC695ALG608 is compatible for use with a variety of terminal blocks such as Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), or Extended Spring-style (IC694TBS132) terminal Block. This module does not have external jumpers for setting module operation instead, parameters are defined via software configurable parameters. In addition, this module features full-autocalibration, on-board error checking, open circuit detection, alarm settings, module fault reporting, interrupts for channel alarm and fault and other equally important features.

The GE Fanuc IC695ALG608 module is a non-isolated analog current or voltage input module that supports single-ended and differential wiring configuration. This module is from the RX3i PacSystem series. This module has a current range between 0 and 20 milliamps, 4 and 20 milliamps, and -20 and +20 milliamps. The module’s voltage rate ranges between -10 and +10 Volts DC, 0 and 10 Volts DC, 0 and 5 Volts DC and 1 and 5 Volts DC. It has 4 differential input channels or 8 single-ended input channels and an internal current rating of 450 milliamps at 3.3 Volts and 600 milliamps at 5 Volts. The GE Fanuc IC695ALG608 analog input module can be used with terminal blocks such as the extended spring-style IC694TBS132 terminal block, the extended box style IC694TBB132 terminal block, the spring-style IC694TBS032 terminal block, and the box-style IC694TBB032 terminal block. The extended terminal blocks offer the additional shroud depth required for shield wiring.

The GE Fanuc IC695ALG608 analog input module is installed in the universal backplane of the RX3i PacSystem. It has features such as on-board error monitoring, reporting of the module faults, complete auto-calibration, startup auto-calibration, rate of alarm changes that are both negative and positive, terminal block detection for either terminal block removal or insertion, and flash memory for upgrades. When testing the GE Fanuc IC695ALG608 module’s input channels, it is necessary to confirm 3 things: a stable channel, an accurate channel, and an active channel. The users need to use a high-density terminal strip like the IC694TBB032 strip to test this module. Ensure that the strip’s lever is in an upright position by confirming that the green LED is turned on to ensure that the strip is connected.
