Dimensions: 28.8x72x3.5cm
|
Weight: 0.36kg
|
Voltage:12 VDC
|
|
Master Gateway：-20 to 45°C
|
Series:Mark V
|
|

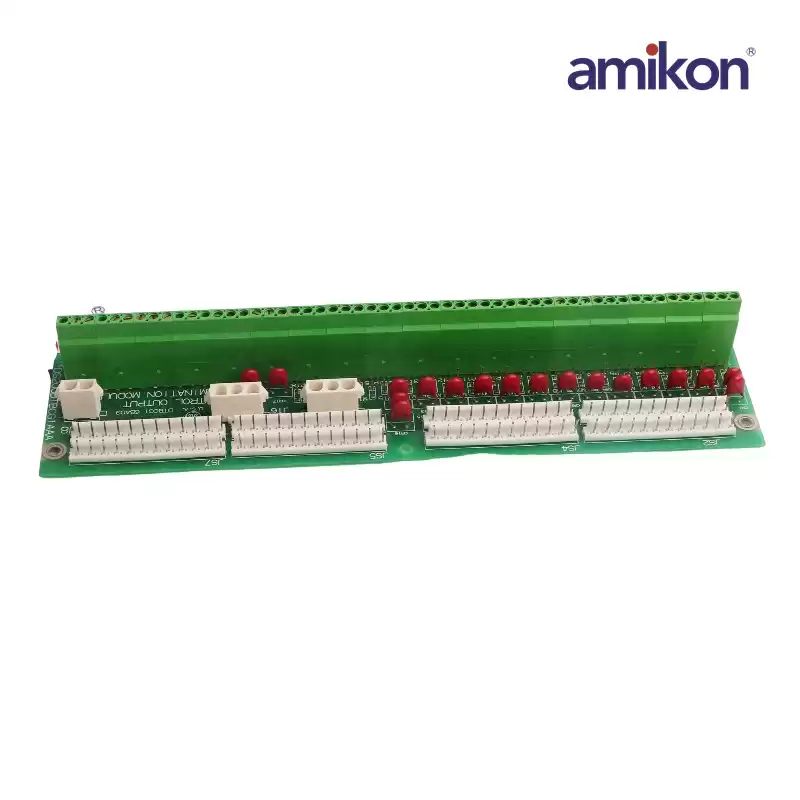

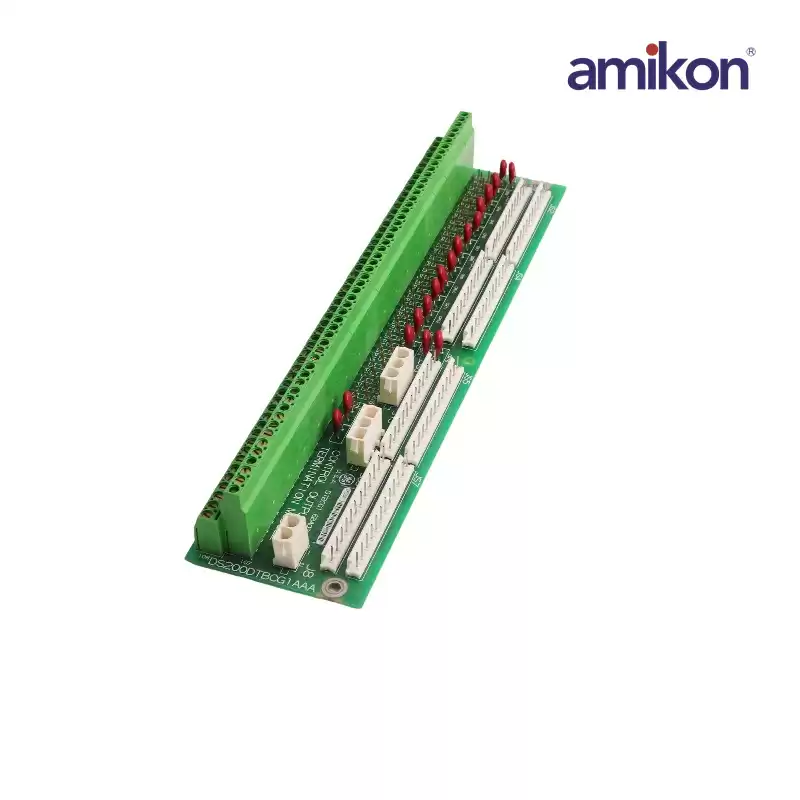

Full Description:This DS200DTBCG1AAA printed circuit board is referred to in original General Electric and Mark V Series instructional manual materials as both a DS200DTBCG1AAA Connector Relay Terminal Board and as a Contact Output Termination Module.
|
|
DS200DTBCG1AAA
|

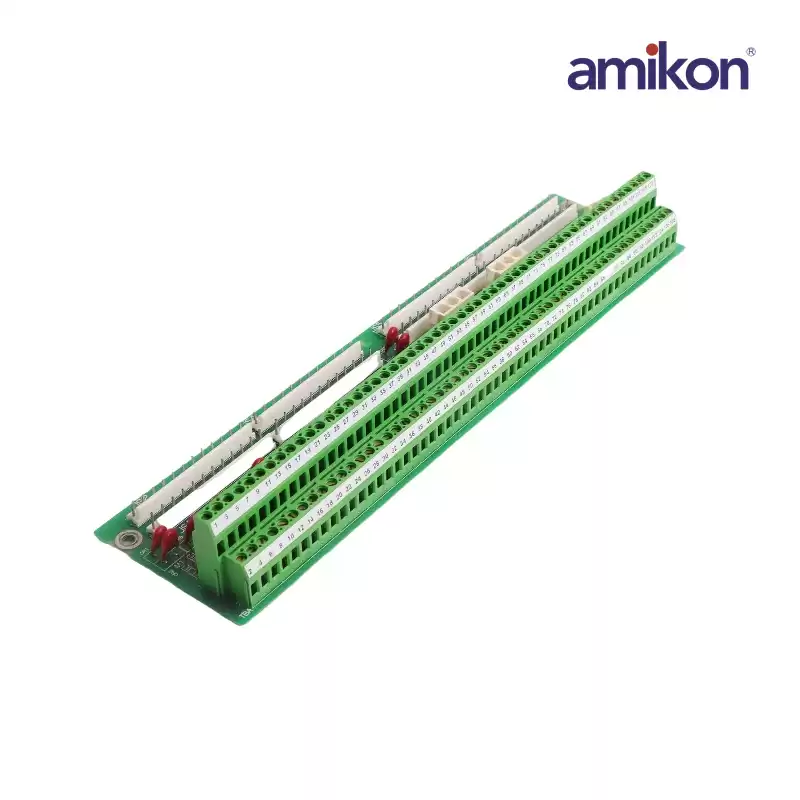

Given this DS200DTBCG1AAA product's dual functionalities, its internal assembly incorporates a unique and elevated amount of hardware components and component specifications. This DS200DTBCG1AAA The GE Connector Relay Terminal Board DS200DTBCGIAAA features 2 terminal blocks with terminals for 110 signal wires in each. It also contains 2 3-plug connectors and 1 2-plug connector and 10 jumpers. Some of the connectors made available to the assembly of this DS200DTBCG1AAA Contact Output Termination Module include:
The JS1-JS8 TCRA Board Relay Signals Connectors
The J8 TCPD Board Power Signal Connector
The J15 and J16 Connected 125 V dc Contact Outputs Power Connectors
|
