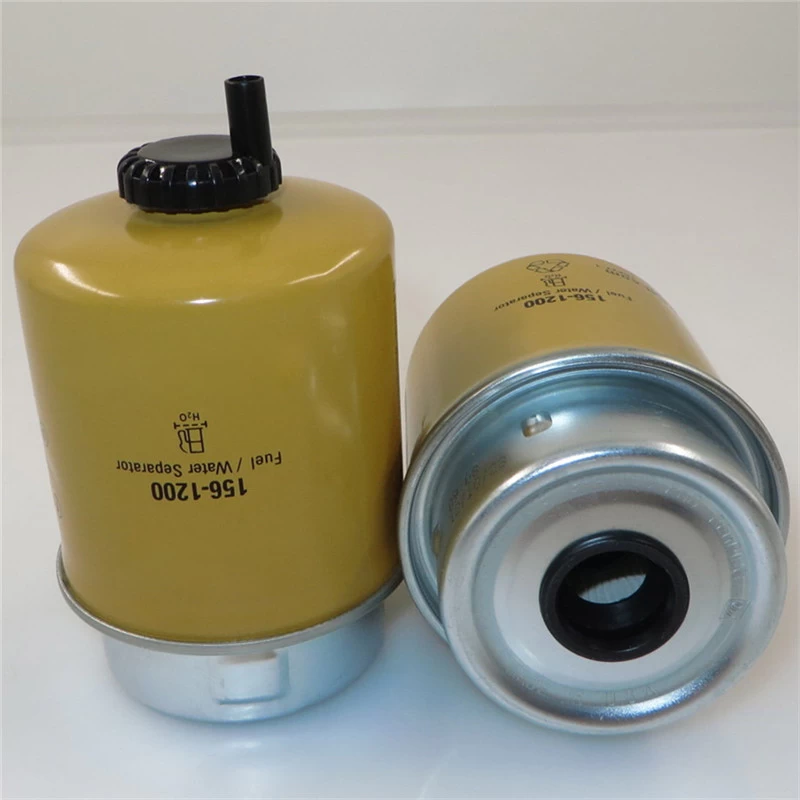

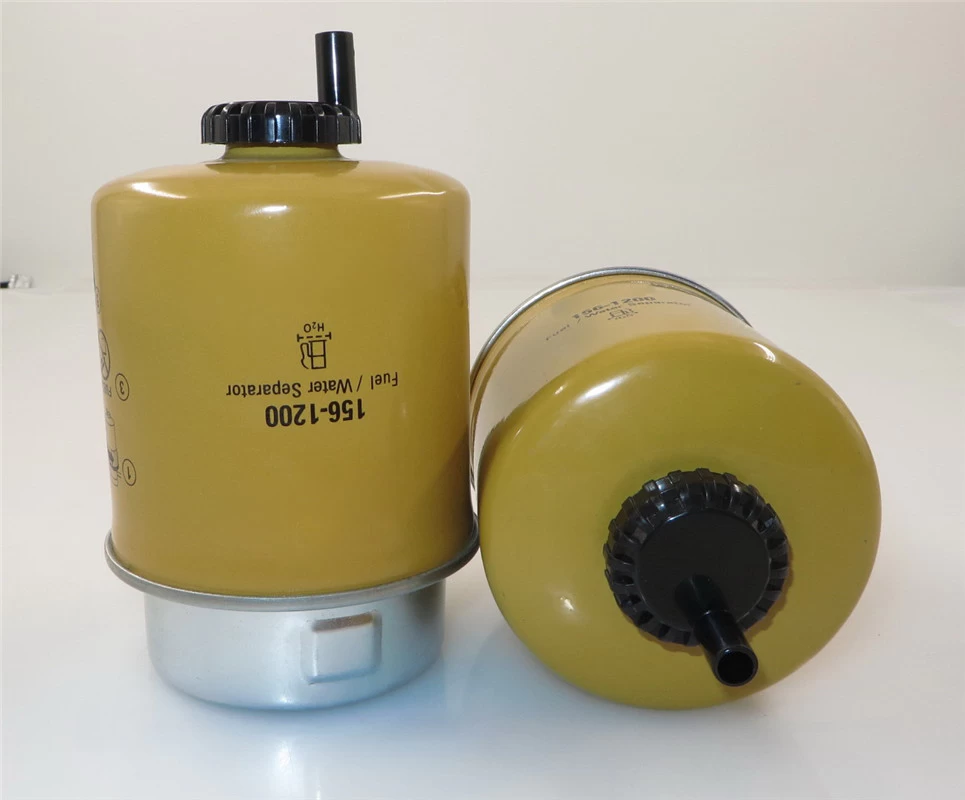

Genuine CAT Fuel Water Separator 156-1200, 1561200
Cross Reference:
Fleetguard FS19621,Donaldson P551423, Baldwin BF7675-D, John Deere RE60021
The 156-1200 Parameter：
|
Part Number
|
156-1200,1561200
|
|
Parts Name
|
Fuel Water Separator
|
|
Brand
|
Caterpillar
|
|
Overall Height
|
133.00 mm
|
|
Outer Diameter
|
84.00 mm
|
|
Inner Diameter
|
21.00 mm
|
|
Efficiency Rating
|
Ultra High Efficiency
|
The 156-1200 Advantage：
Cat Ultra High Efficiency Fuel Water Separators are designed to eliminate virtually all free water and 90% of emulsified water, along with smaller contaminates, while helping extend the life of your fuel system including your sophisticated fuel injectors.
Cat Filter offer the most reliable and effective protection of today’s high performance, low emission engines.
Choosing Cat filters is good for your equipment, the environment and your bottom line.
The 156-1200 has five attributes:
1. Unique filter media provides unsurpassed protection.
2. Acrylic beads prevent bunching
3. Spiral roving provides greater pleat stability and maximum dirt holding capability
4. Nylon center tube prevents metal contamination
5. Molded end caps prevent leaks
The 156-1200 Application：
|
Compatible Models
|
|
MEX
302.2D 303ECR, 304C CR 301.7D 301.6C, 305.5E 305.5E2 CR 302.5C, 305E 303.5E2 CR 308E 302.7D 307E2 308E CR 304.5, 305 304 301.6, 303.5, 308E SR305E2 CR 303C CR 303.5E 301.8, 307E 303.5C 308E2 305E2 301.7D CR 303.5E2 305C CR 304E 303E CR 305.5E2 302.4D 301.8C, 302.5, 306E2 304E2 CR304E2 301.5
|
|
BHL
420E 432F, 434F, 416E 422F, 444F, 428F, 416F2 420F2 420F 430E 430F 416F 414E
|
|
BACKHOE LOADERS
430EST, 416EST
|
|
SSL
232B, 247B3, 226B3, 257B, 232D 216B3, 247B, 216, 216B, 249D 239D 226, 226B, 232, 242, 242B
|
|
AP
AP-255E
|
|
WTL
904B, 901C2, 902C, 903C, 904H, 902, 901C
|
|
COMP
CB-335E, CB-224E, CB1.7, CB-334E, CB-34 XW CB-32 CB-224D, CC-24 CB-34 CB-14 CB-214D, CB-225E, CB-334E XW CB-22 CC-34 CB-225D, CB1.8, CB-24CB-214E
|
