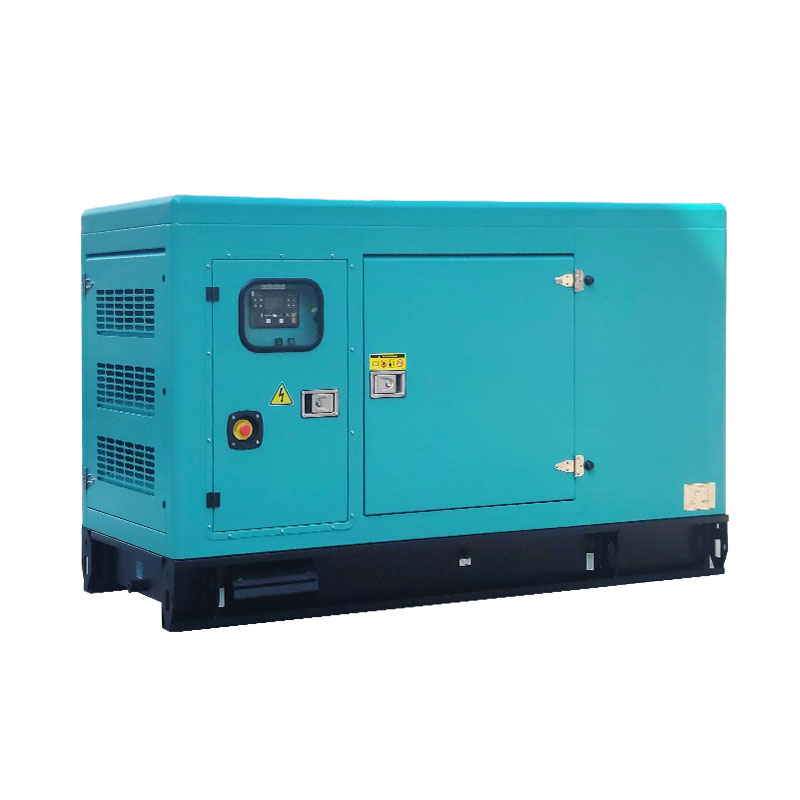

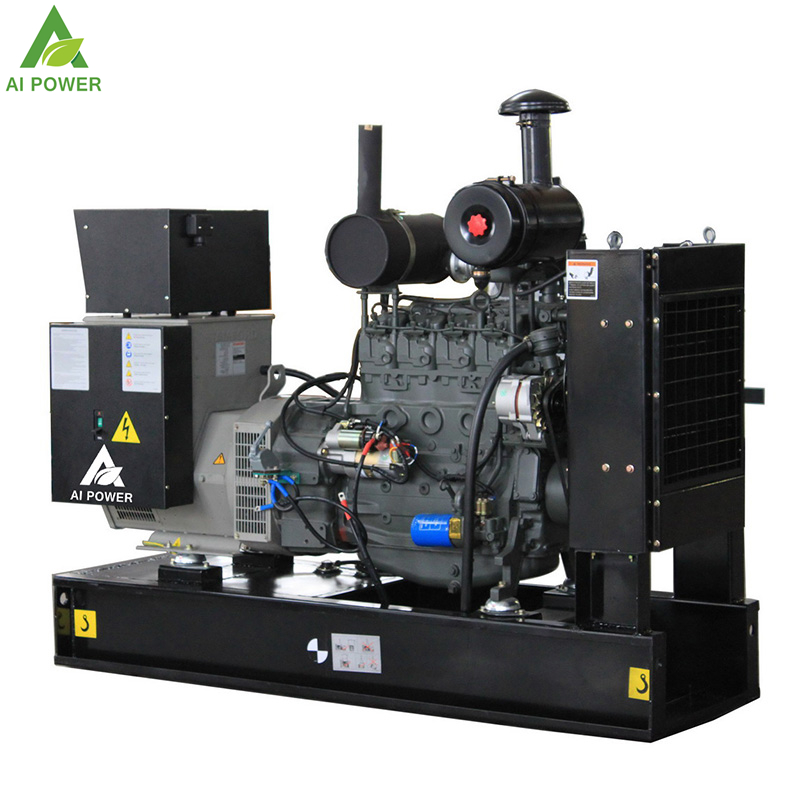

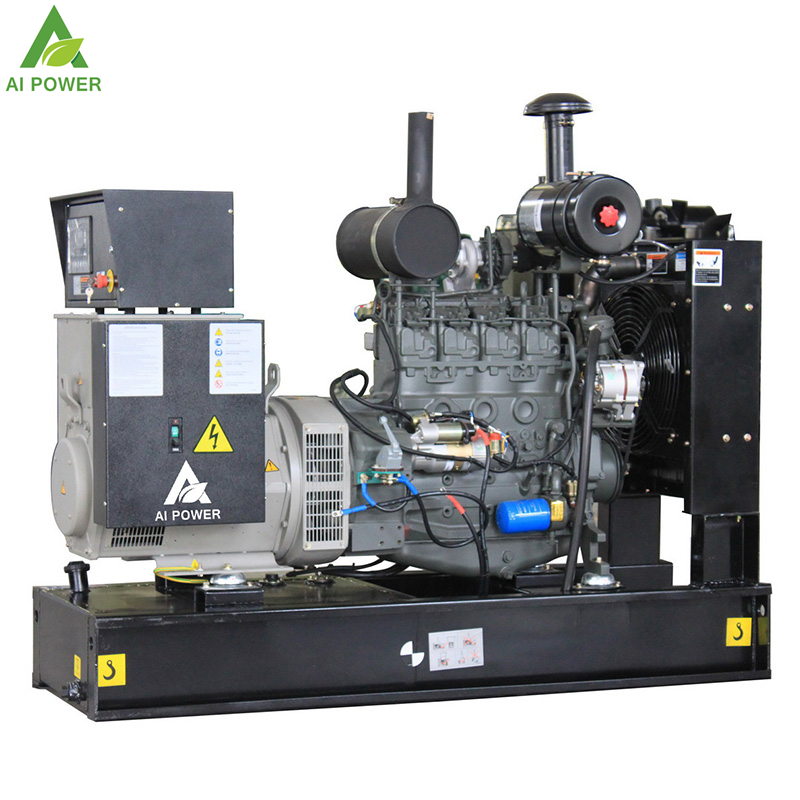

Germany Deutz Diesel Generator 40kva Generator Set With Deutz Engine BFM3T

High quality Germany Deutz engine BFM3T generator set



Product Description


Germany Deutz Diesel Generator 40Kva Generator Set With Deutz Engine BFM3T

TECHNOLOGY FEATURES:

1. Adopt the unit pump structure tested for 12 years in European markets, stable performance, reliable and average heavy repair mileage is 100,000 kilometers higher than other kind products, with 30 days more attendance in a year.

2. Adopt structures off the unit pump with the highest injection pressure and top built intake duct, short and high pressure pipe, met the emission standard, save 2 to 3 liters fuel per one hundred kilometers compared with other kind products.
3. Unique single injection pump fuel supplying system, low requirements for fuel quality, adaptable to Chinese fuel quality and guaranteed the reliability of the complete engine.
4. Noise lower than 96 decibels, the only one engine met the standard without assistant approaches in China.
5. Integrated design, compact structure, smaller and lighter than kind products by 100 to 150 kilograms.
6. Simple structure and easy to maintenance, all the repair point are on the same side with the engines; Series 2012 adopted non cylinder liner and none valve guide structure.




Engine manufacturer
Deutz (Dalian) Engine Co., Ltd.
Engine brand
Deutz
Engine model
BFM3T
Engine speed (rpm)
1500
Engine output(kWm)
Standby Power
44
Prime Power
40
Continuous Power
36
No. of Cylinder
4 in line
Aspiration
Turbocharged
Bore * Stroke (mm)
98 * 105
Displacment (litre)
3.168
Compression Ratio
18.5:1
Mean effective pressure (bar)
11.1
Piston speed (m/s)
5.25
Alternator manufacturer
Cummins Generator Technologies(China) Co. Ltd
Alternator brand
Stamford
Alternator model
S1L2-K1
Control system
SELF EXCITED
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
12
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)
----------------Cont.H-40°C
40/32
----------------Standby-27°C
44/35.2
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single

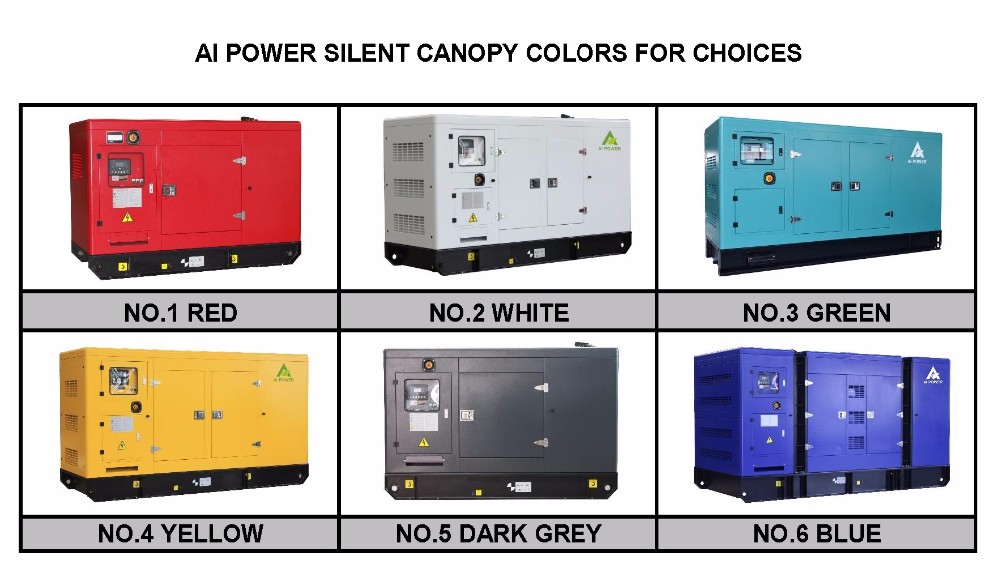

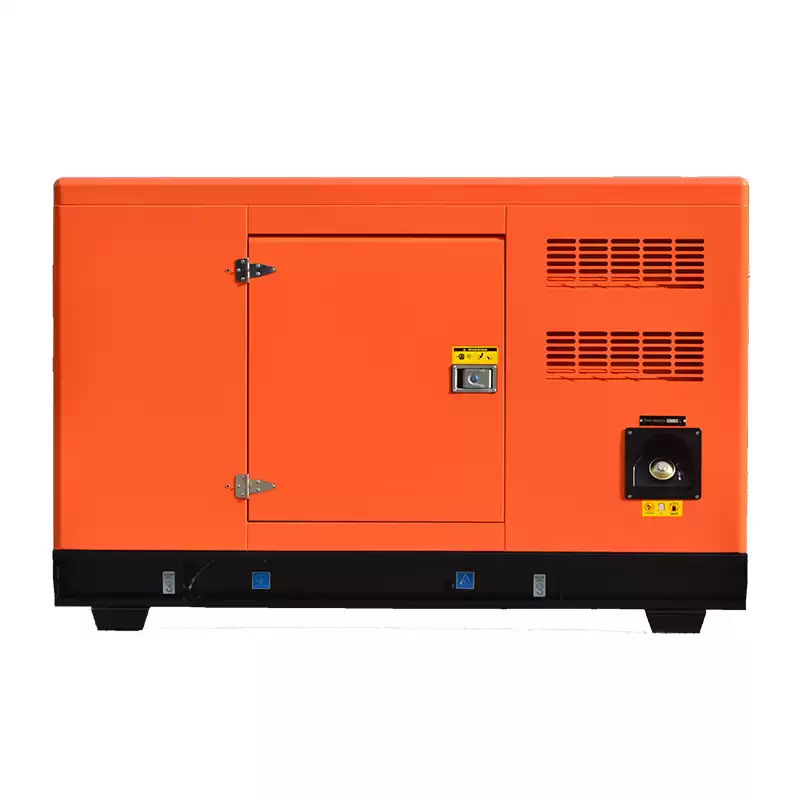

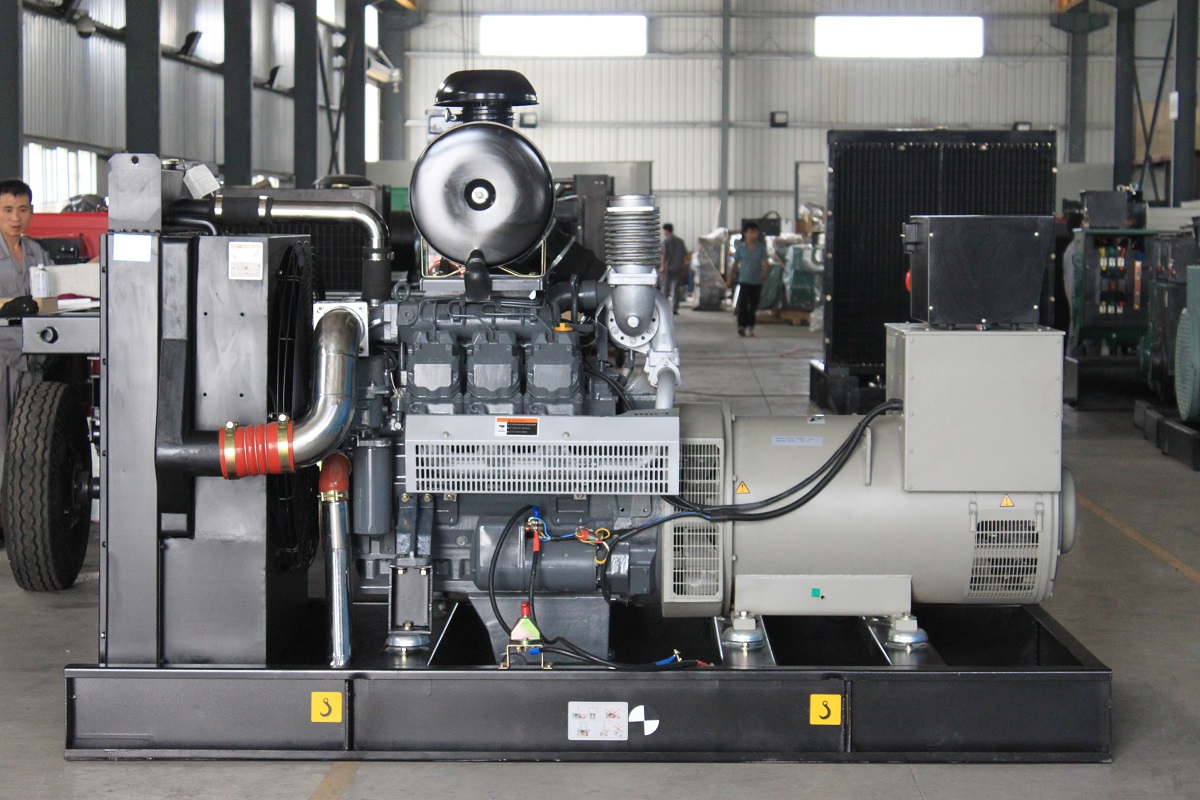

Products Show





Ai Power Company

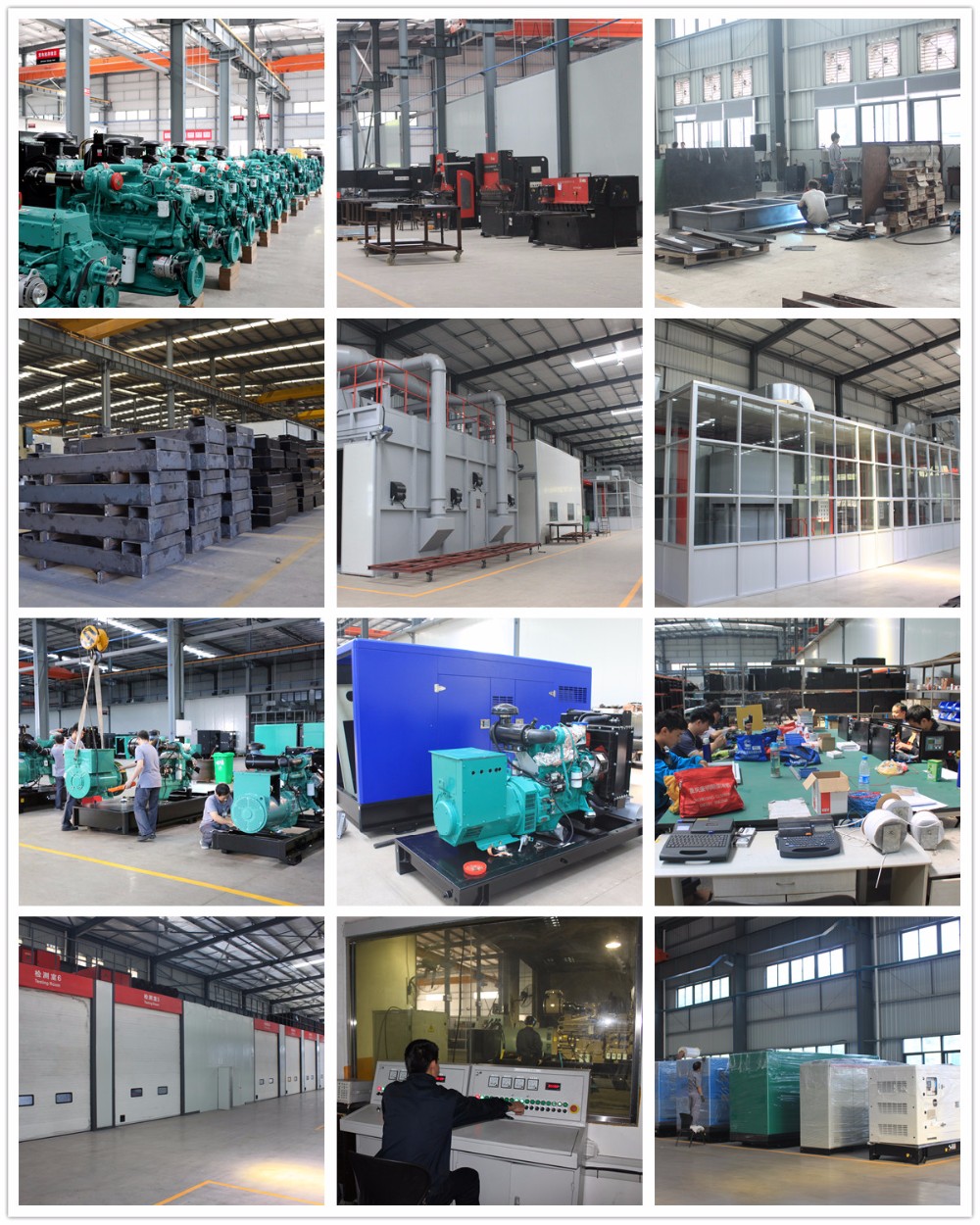

Company Profile


Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, etc.

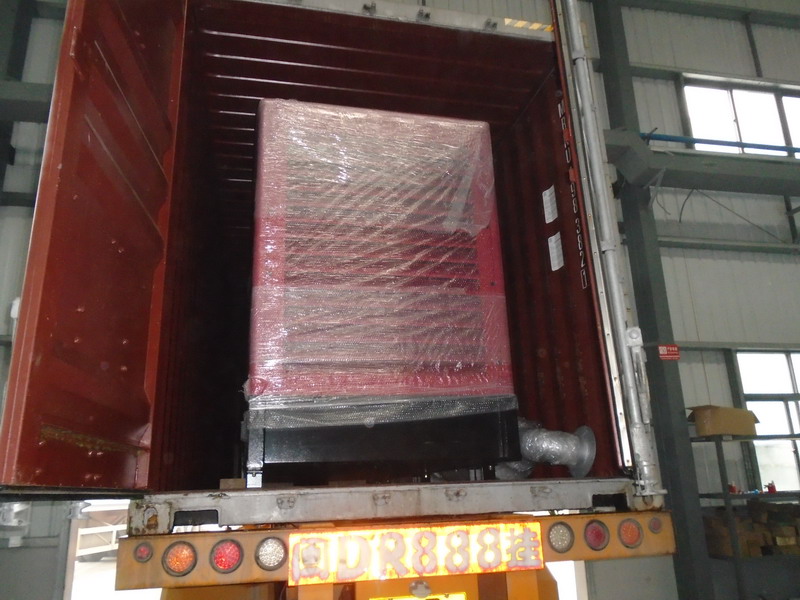

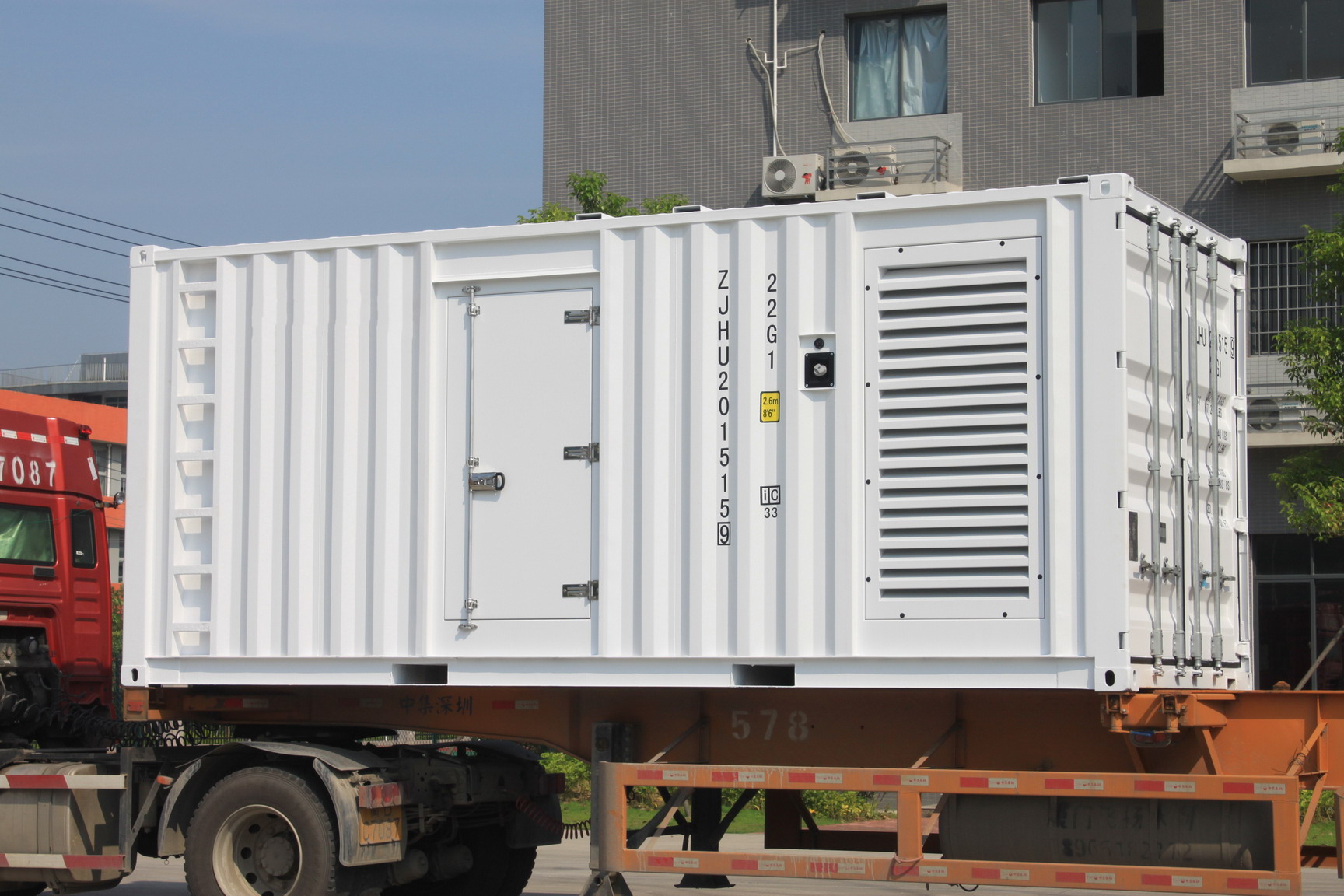

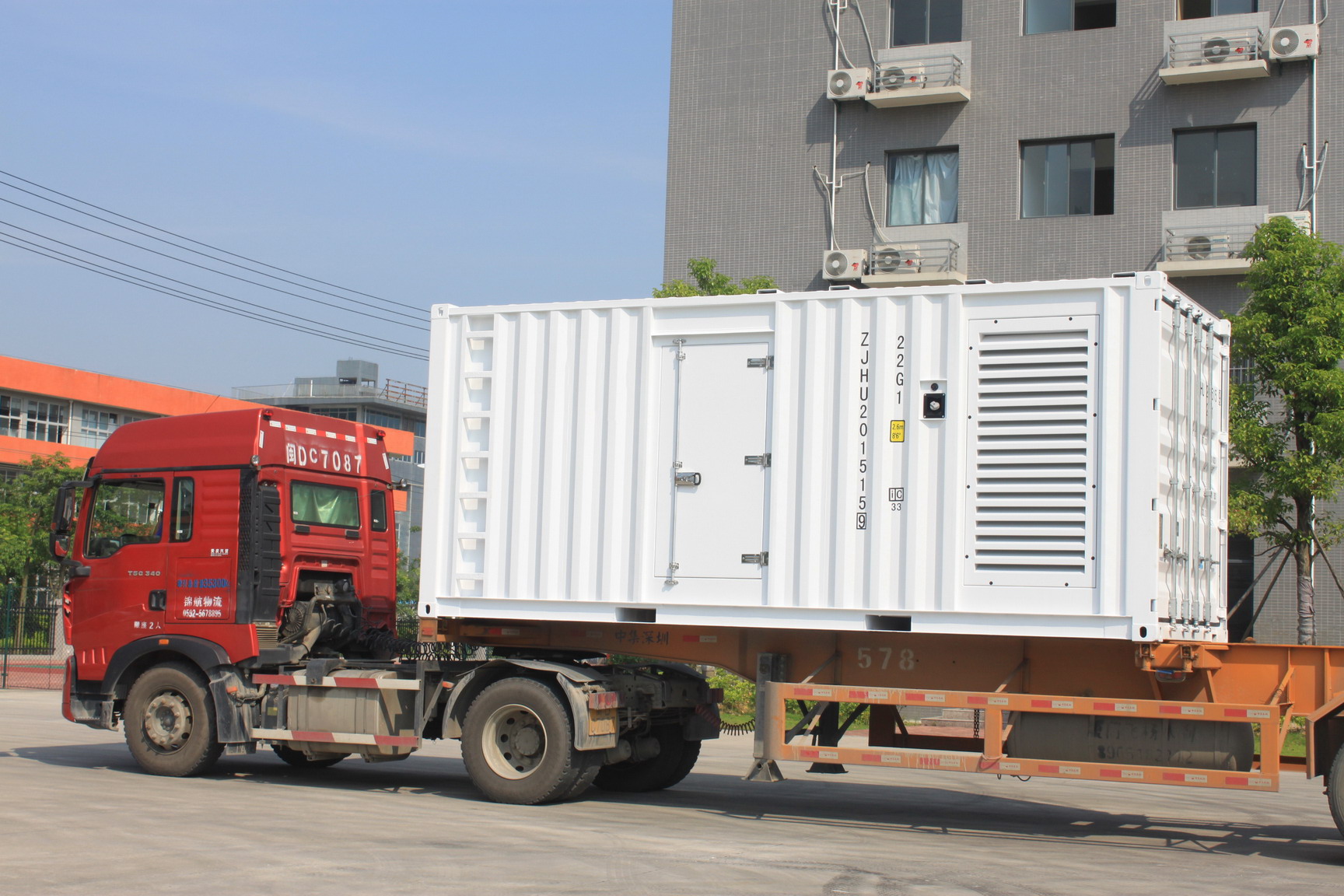

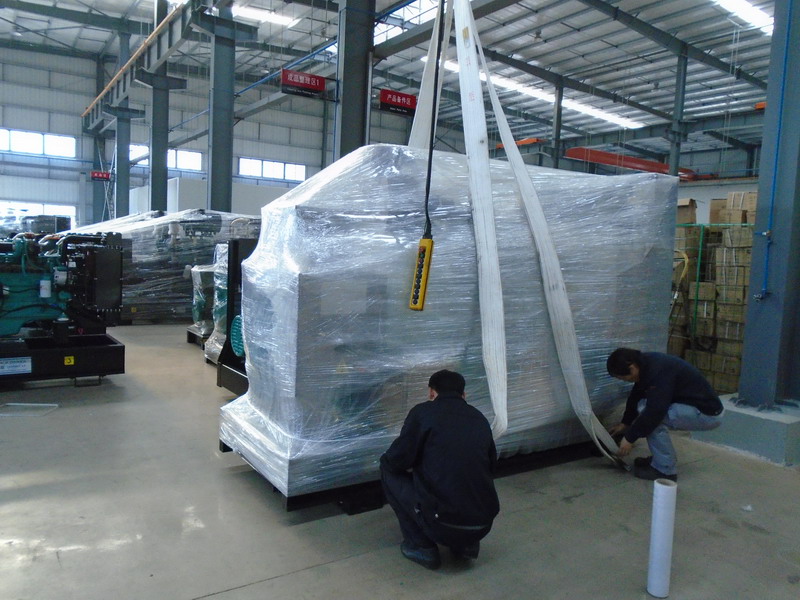

Packing & Delivery
FAQ


1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?

Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?

Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7.What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
