Guangli Car Lifts:

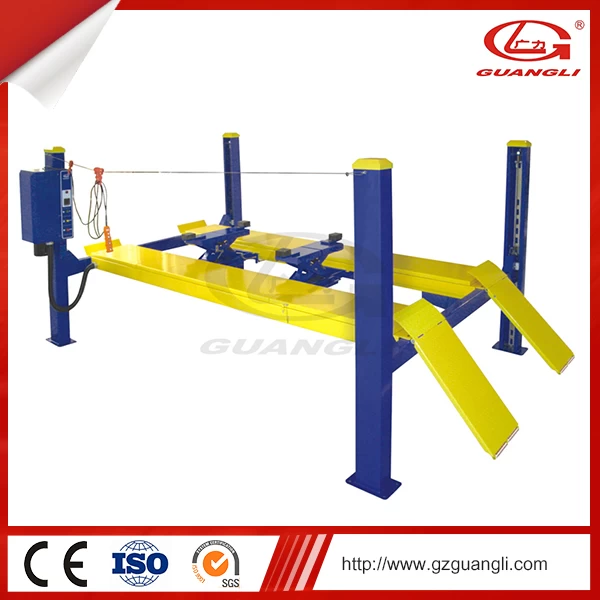

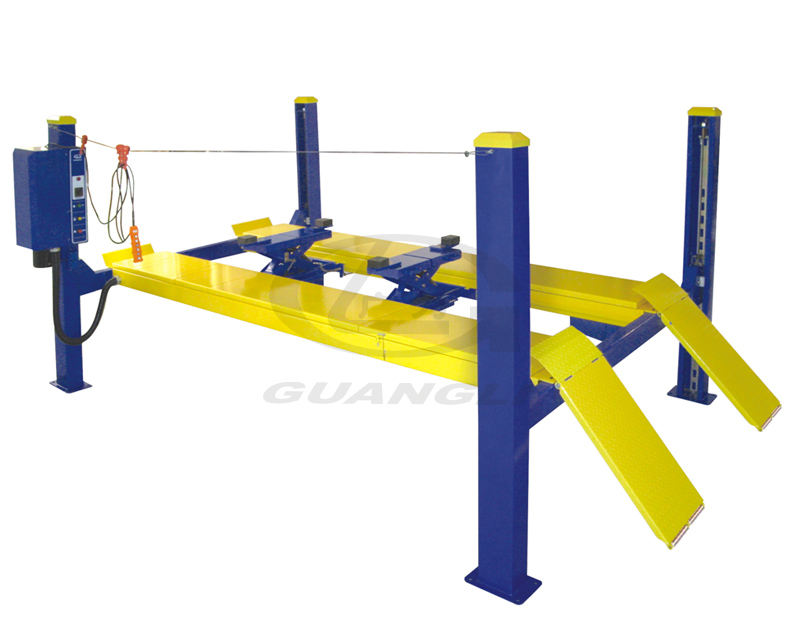

GL-4-4E1 Hydraulic Four Post Lift for Four Wheel Alignment:

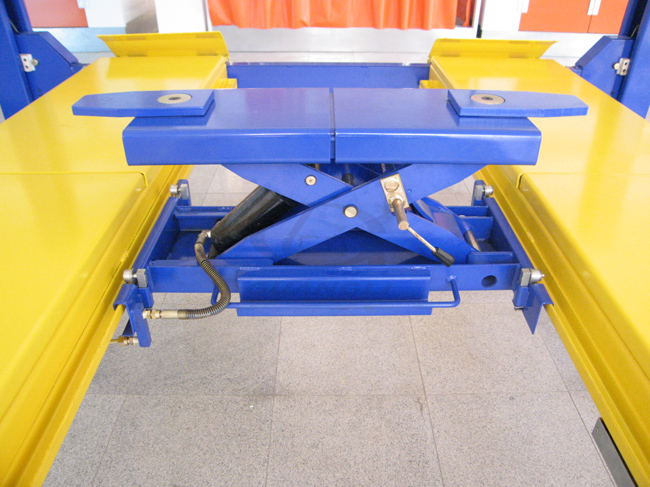

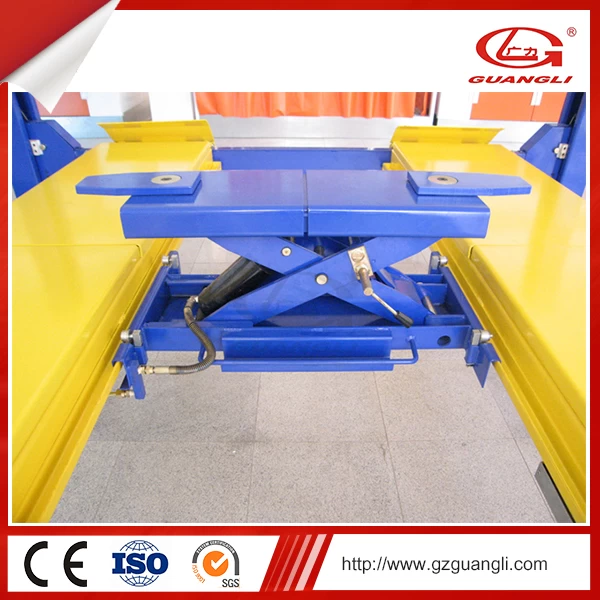

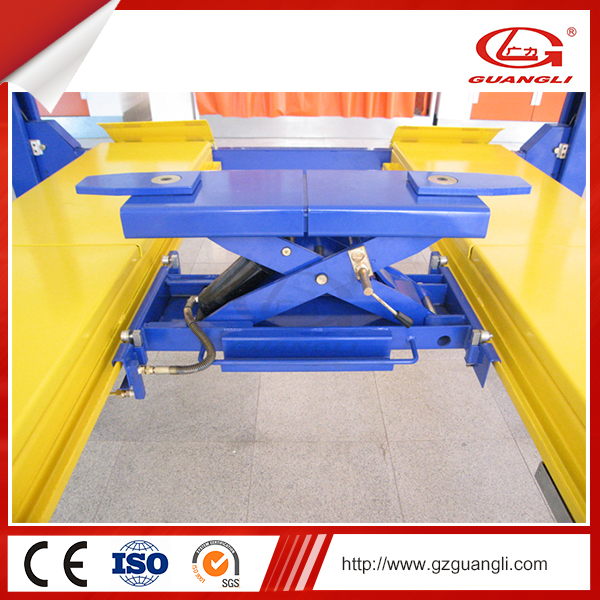

Equipped with two pieces of seceondray lift carriage which be controled by main car lift control box 、mobile control board which positoned on the side of plate

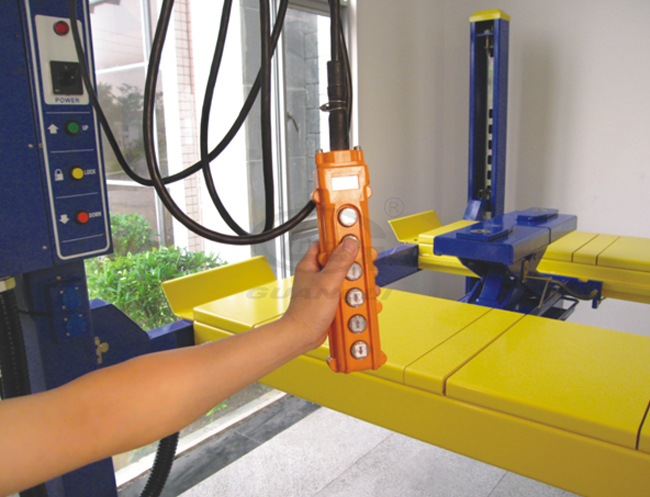

The equipment can be controled by both main electrical control box and mobile board
Four post lift Technical Specifications
Max.lifting weight(Kg) 4000
Max.lifting height(mm) 1650
The secondary Lifting(mm) 500
Voltage(V) 380
Frequency(Hz) 50
Motor power(Kw) 2.2
Remark Imported pumb for
four wheel alignment

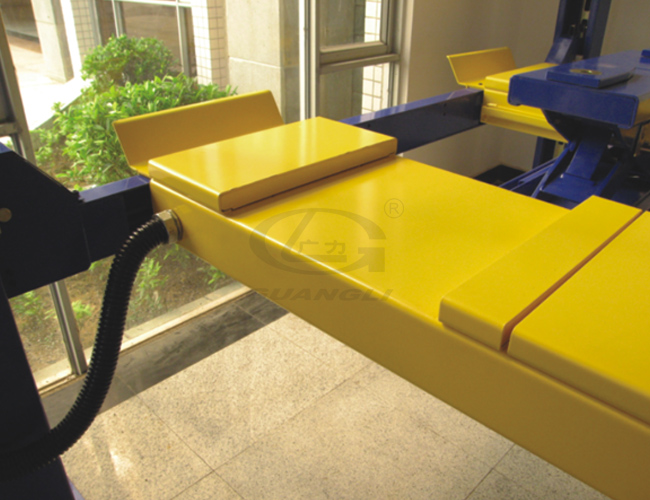

Front flutes are equipped for placing the front turning chassis

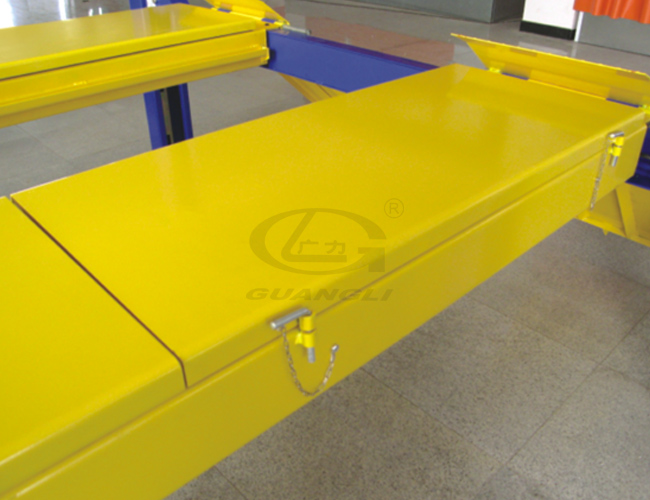

Lengthened slide,plates are applicable to most automobiles of various length

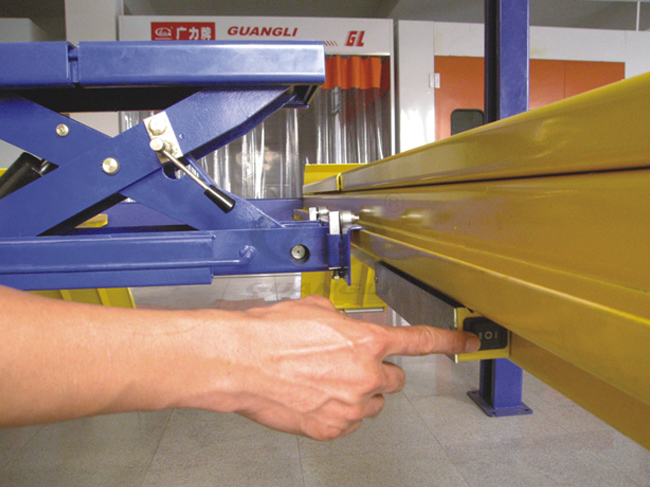

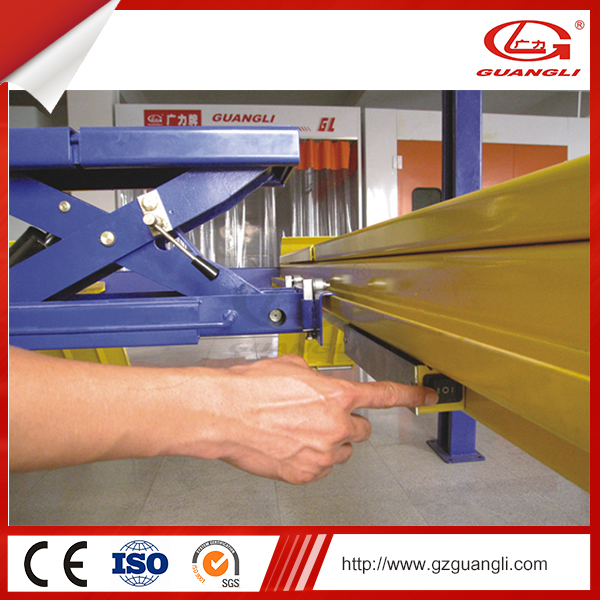

The control button for secondary left carriage positioned on the inside of the plat

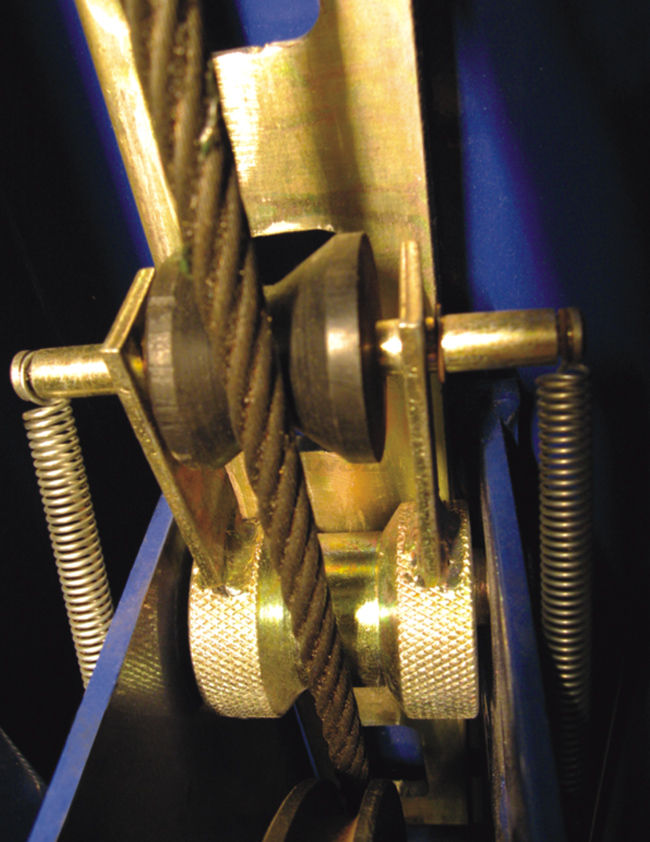

Safety device be equipped inside the four posts in case of the sudden cut of the rope
With outlet for added power

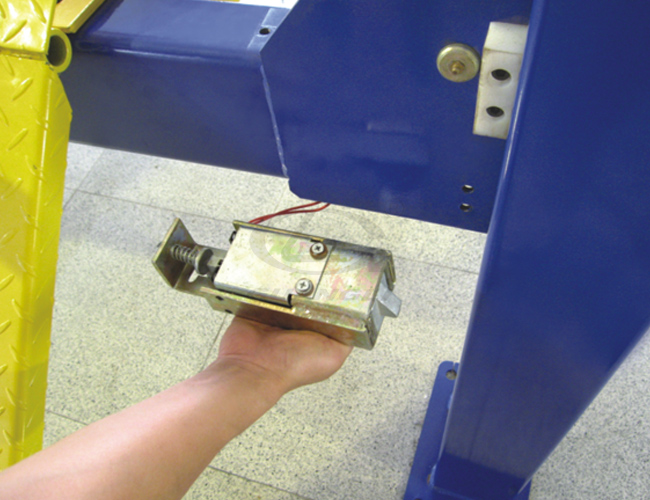

Mechanical automatic locking device positioned inside the four posts ,the device locked or released atutomatically when the posts up and down
