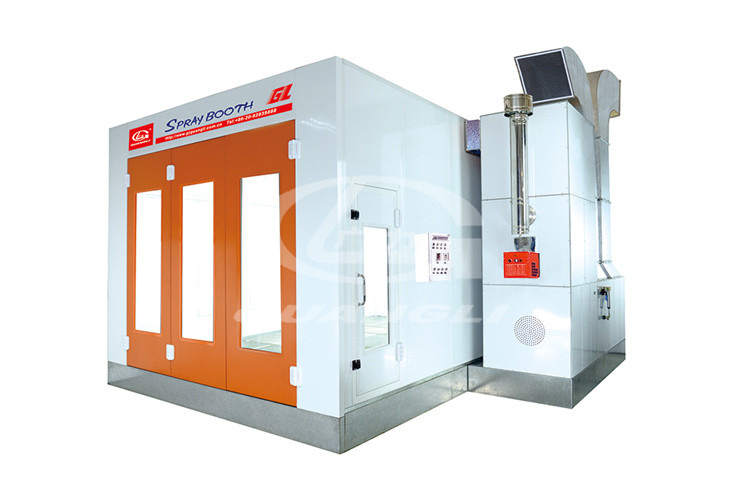

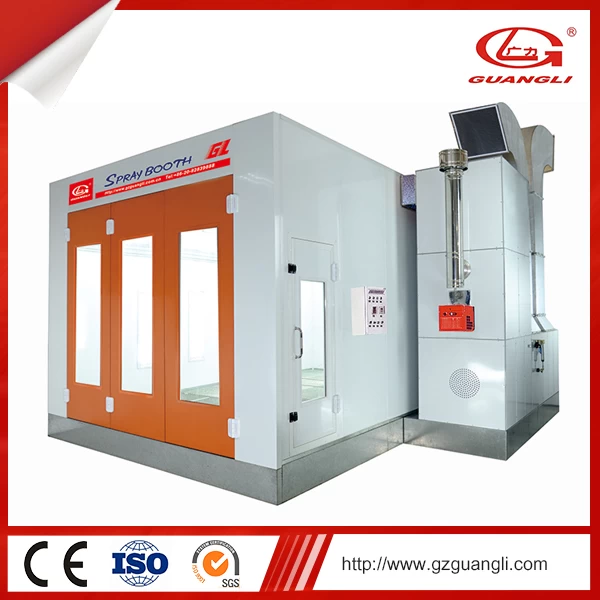

Auto Paint Booth GL-B2 series:

Spray Booth Specification:

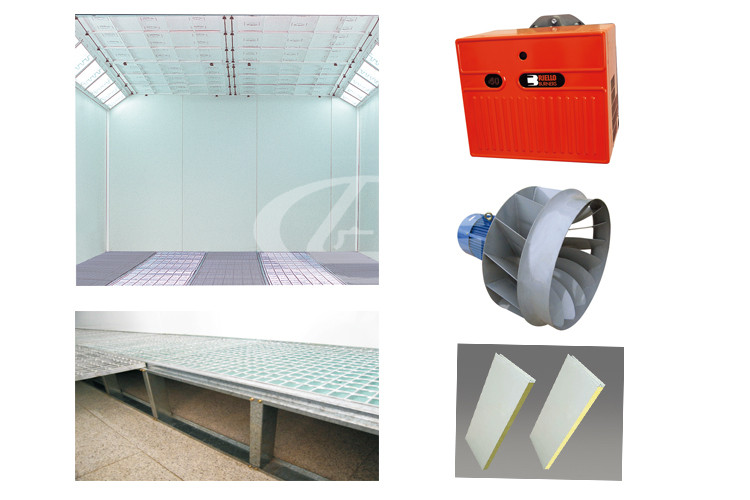

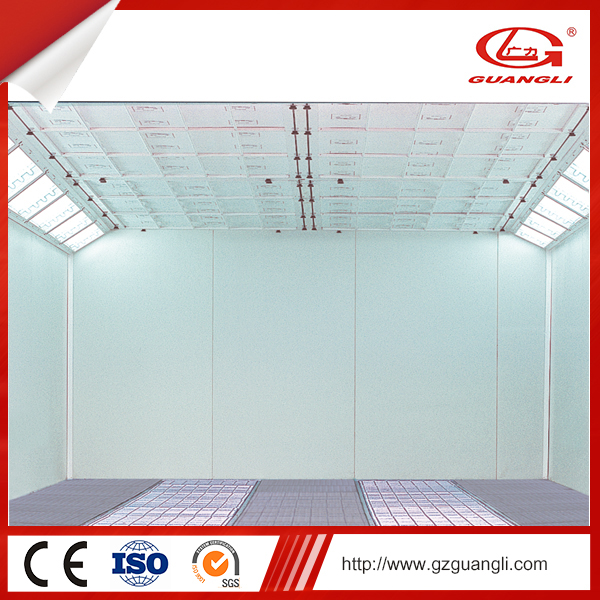

Main room & generator system:

Wall panel: choi steel + polystyrene material.

wall panel vertical type installation, rock wool is optional.

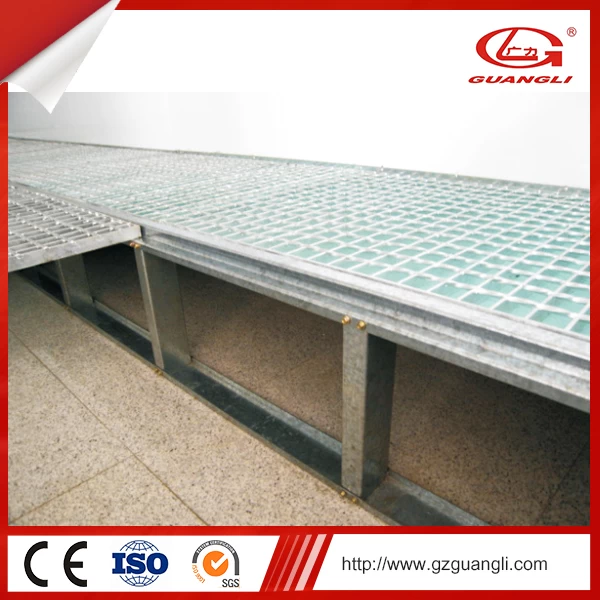

Basement:  steel structure, 3 tons rated load.

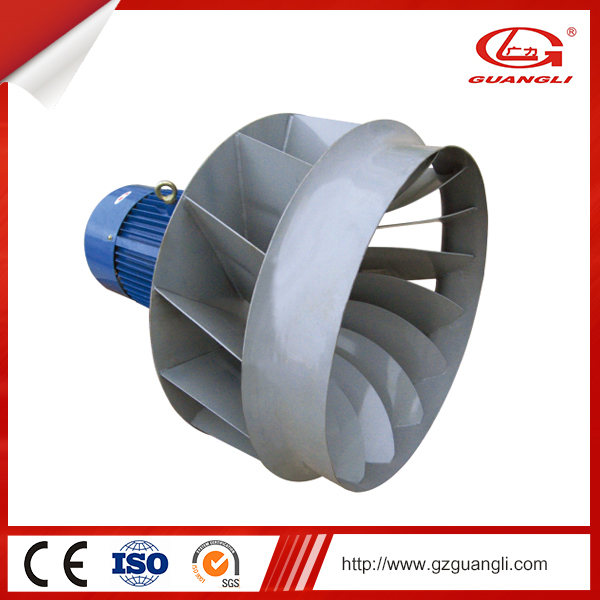

Intake/Exhaust Fan: the total air flow volume is 24000m³/h.
Spraying/baking transition damper: cylinder driving mechanism.

Lighting & Burner system:
Heat ex-changer: made of stainless steel, cycling heating.

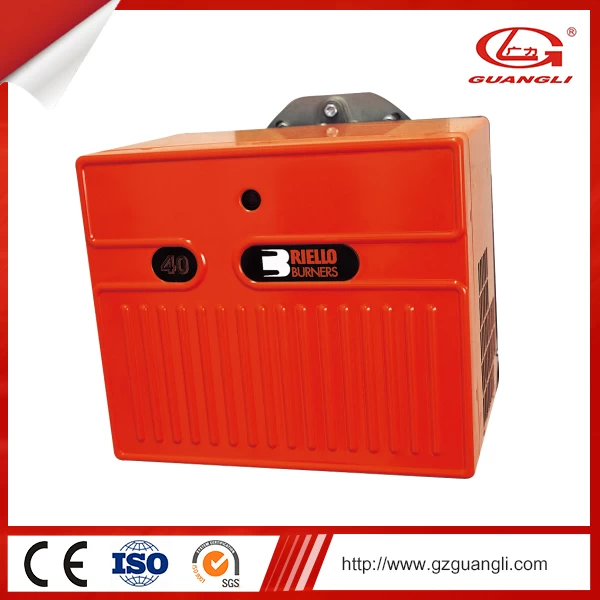

Burner: RIELLO /G20.
Roof filter: hinged type network installation.
Upper light: 10 sets, Side light: 8 sets.

Control system:
Control box: imported components, overload, overheat, phase-lacking, phase-locking protection.
Spraying:  with functions of constant temperature spraying.
Environmental filter: activated carbon as optional.
