GL4000-A2-CE Car Body Repair Equipment Auto Spray Booth
Spray Booth Specifications:
The main room & generator system:
Wall panel: sandwich style, δ=50mm，rock wool available as required.
Basement: steel structure, full grids，ramp: 2 pcs of grids.
Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
One 11kw intake fan and one 11kw exhaust fan.
DUCTS:
Electrical VCD. one pressure meter.
Spraying/baking transition damper, automatically air controlled.
Fire protection equipment: 1set, the inductor control closed; energy-saving equipment: 1set.
4m straight exhaust ducts, one 90° bend, and one 60° bend.Intake duct :4m straight exhaust
ducts, one 90° bend, and one 60°bend. 4m straight chimney and 2 small bends.
Filter & light system:
Upper light: 10 sets, 4*40w per set. side lights: 8sets, 4*40w.
Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
Heating & control system:
5 pcs of floor filter and 2 pcs of air mouth filter.--Heat exchanger: stainless steel. Riello/ RG5S burner.
Control box: imported components, overload, overheat, phase-lacking, phase-locking protection,
Motor soft start.
Automatically stop when preset time is up.
Constant temperature spraying.
|
Technical Specifications
|
GL4000-A2-CE
|
|
External size(m)(LxWxH)
|
7.0×5.6×3.5
|
|
Internal size(m)(LxWxH)
|
6.9×3.9×2.7
|
|
Door width(m)
|
3.0
|
|
Door height(m)
|
2.66
|
|
Air flow (m3/h)
|
30000
|
|
Inside on-load air speed(m/s)
|
0.3-0.5
|
|
Power (kw)
|
25
|
|
Vehicle suited
|
Saloon car
|
|
Tempraturer(Degrees Celsius)
|
20-80
|
|
Water based device
|
As optional
|
|
Environmental protection Device
|
As optional
|

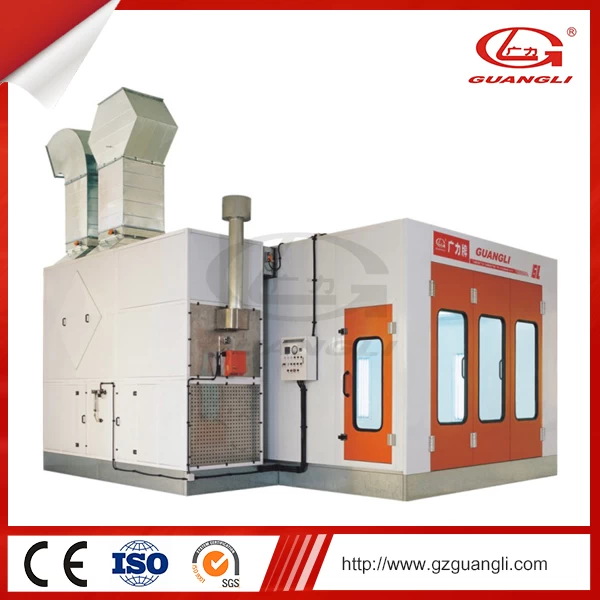

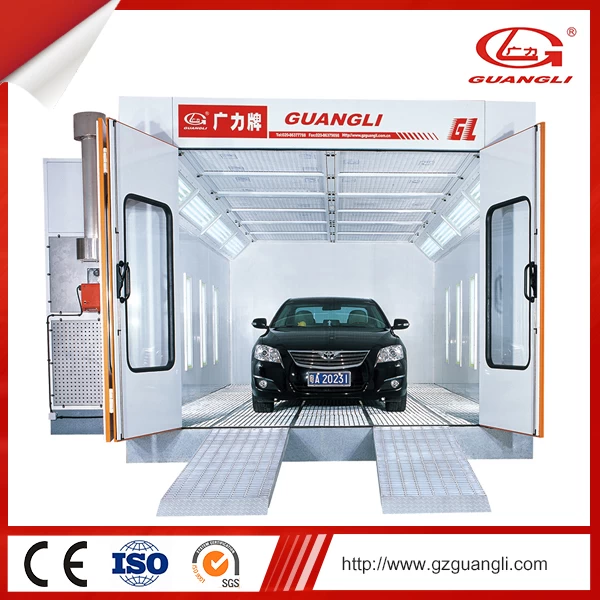

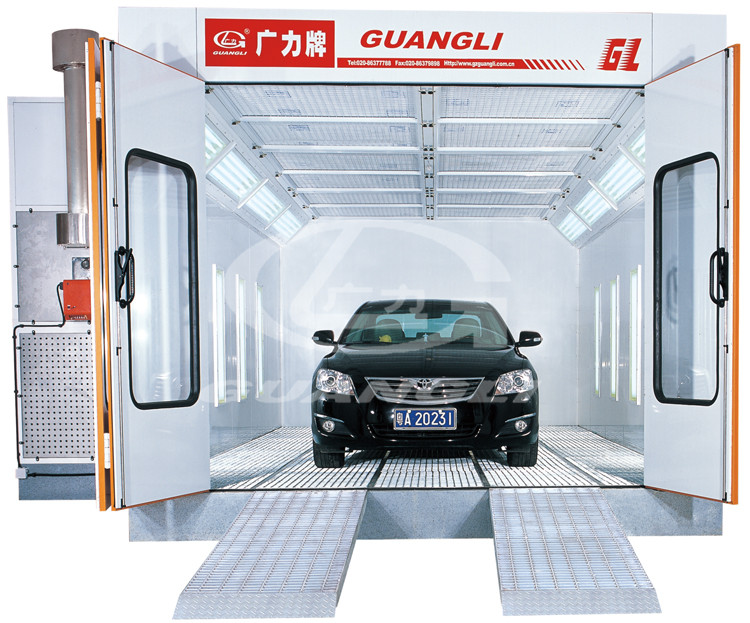

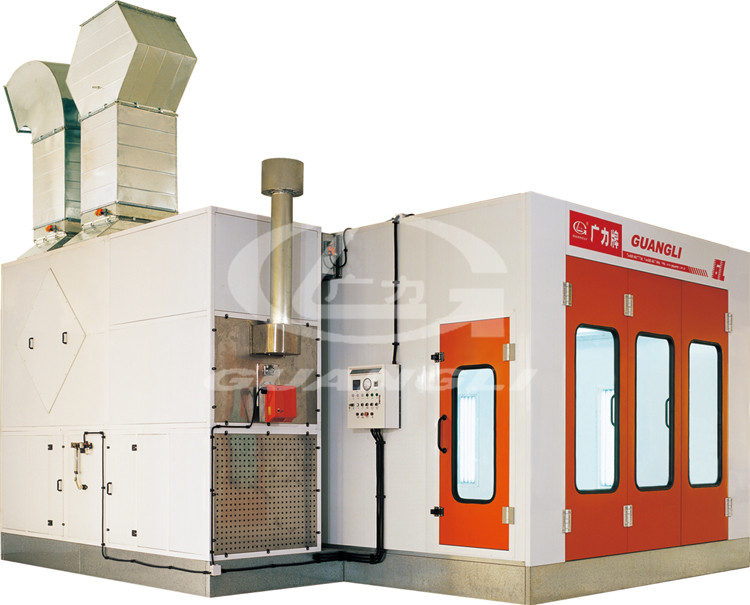

GL4000-A2-CE Spray Booth Show:
