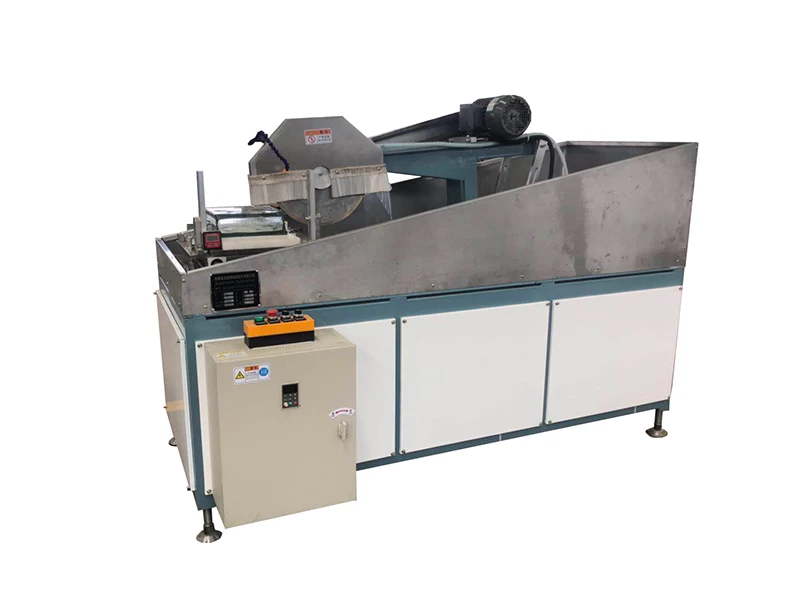

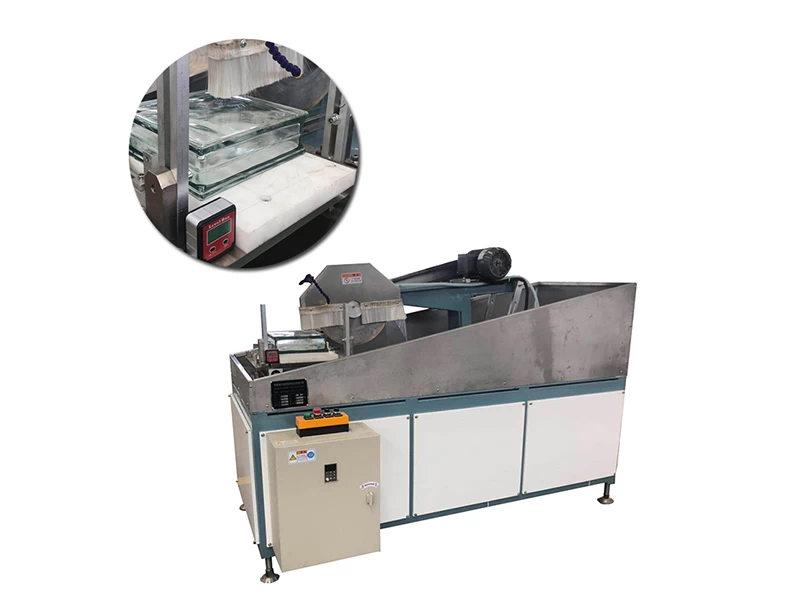

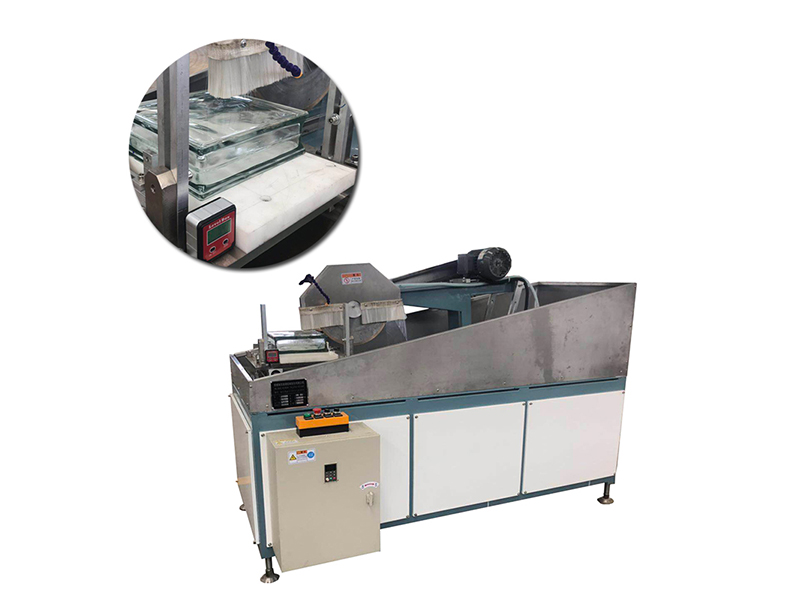

Parameters:

Dimensions 2000*680*1500mm

Weight 350kg

Power 1.55KW

Processing parameters:

Processing range 100*100mm--400*400mm (can be customized)

Glass thickness Φ8mm-Φ80mm (can be customized)

Processing accuracy plus or minus 0.50mm

Positioning accuracy, manual positioning, mechanical grid

Beats include loading time 3-5 minutes / knife

Machine configuration:

1. Cutting head motor: 380V/1.5KW (1440R/min)

2. Self-priming pump: 380V/100W

3. Screw: TBI

4. Round guide rail: domestic

5. Electrical components: CHINT

6. Case: 304 stainless steel

7. Cutting piece: D2mm R450mm (available by yourself)

Operating procedures:

1. Manual feeding, manual adjustment of cutting angle and tangential position, adjustable side grid positioning on the side and rear, tray with quartz brick can move left and right as a whole, and pinned to death (here the operation determines the position of the cutting line) );

2. Manually adjust the height of the cutting motor according to the outer diameter of the saw blade. The adjustment method is similar to the height adjustment of the quartz brick. When the cutting motor is started, the cooling water pump is automatically turned on, and the raw material is driven under the hand (the motor does not move);

3. After the cutting stroke is completed, the workpiece can be pulled back to the initial position as a whole, and the material is manually cut to identify the waste;

4. Repeat the last action;
