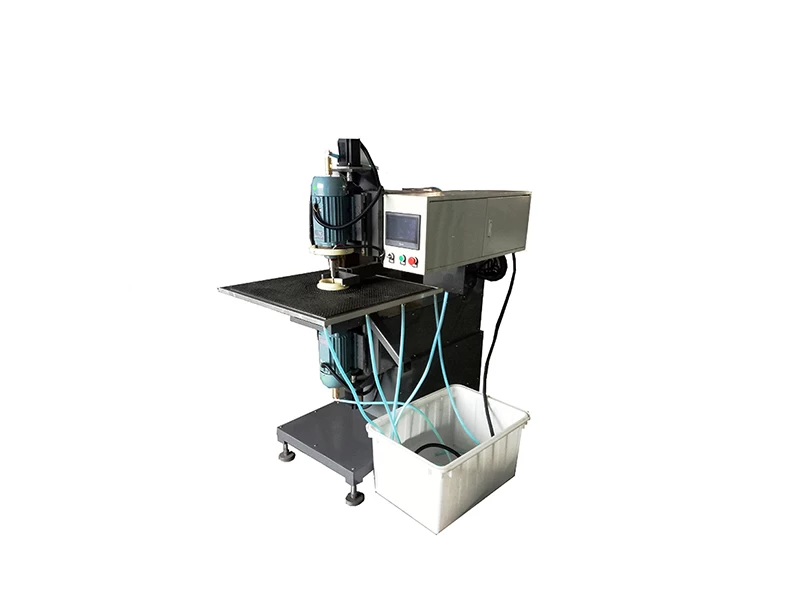

This machine is controlled by the PLC+touch screen. The operation is simple. The feed is controlled by the high power step motor and the speed is adjustable.

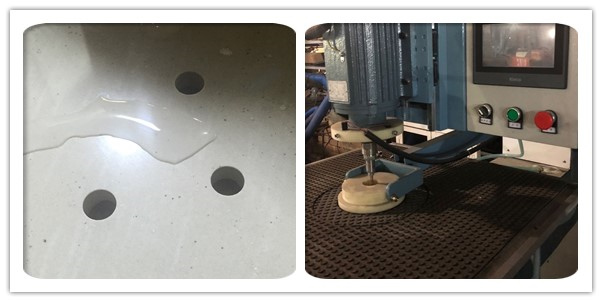

This machine is suitable for different thickness of glass drill hole. Pneumatic clamping glass, through the replacement of drill head and drill dis can drill different diameters holes, automatic control. Step motor control are playing, no bang edge. Using infrared positioning. The device has the advantages of simple operation, convenient maintenance and convenient replacement. The drilling head can be changed very easily, can be produced large quality glass drilling work.

Model: SY－1200

Power: 4.4kw

Drilling hole diameter: 4－120mm

Maximum glass size: 2000×3000mm

Glass thickness: 3－30mm

Weight: 0.7T

Machine dimension: 2500×2000×1650mm(L×W×H)

Machine configure

1. Drilling motor: XINDONGYA

2. Step motor: Stepping SIHAI Motor

3. Drive: SIHAI Mortor

4. Display: Shenzhen

5. Slide way: Taiwan

6. Proximity Switch: Great wall or CHINT

7. Drilling Head: Made in China superior quality

8. Infrared location: SHENZHEN

9. PLC: Panasonic

10. HMI: Delta

Machine work video please visit  Glass Drilling Machine
