Glazed Tile Making Machine for YX28-828

Classic Glazed Tile Making Machine with Taiwan Quality,China Price.

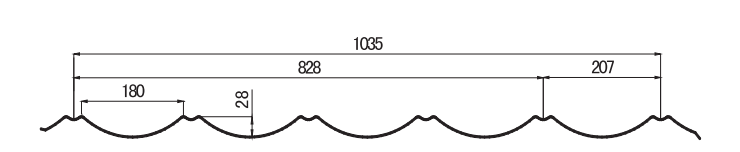

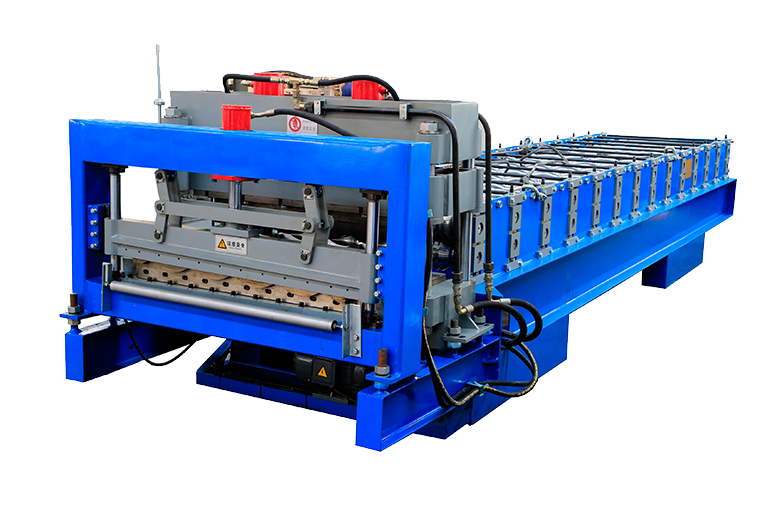

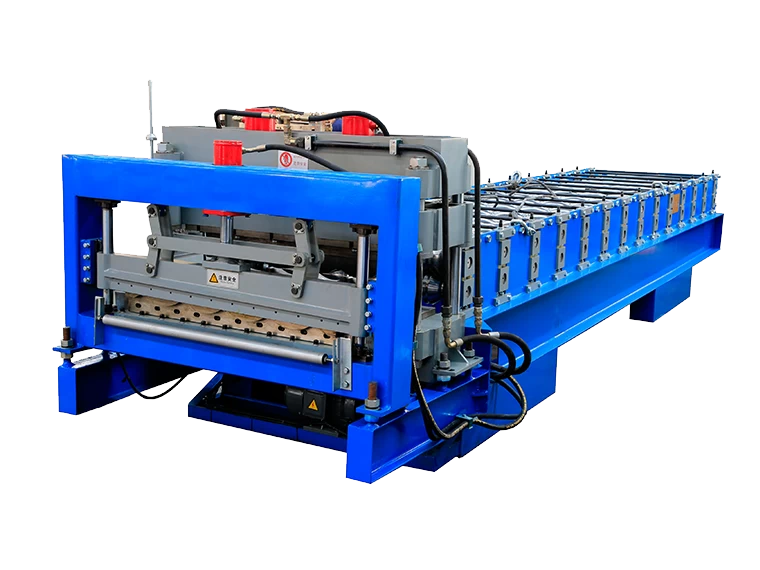

              YX28-828 Glazed Tile Making Machine





Glazed Tile Making Machine




1.Main features of Glazed Tile Making Machine




    The advantages of Glazed Tile Making Machine are as follows:

    1.The machine produced tile with low cost, light weight but high strength, short building period, and re-cycle use.

    2.Save material , no waste.

    3.Easy operation, low maintenance cost

    4.With Taiwan Quality,China Price.



2.Detailed Images of YX28-828 Glazed Tile Making Machine




    Machine Parts

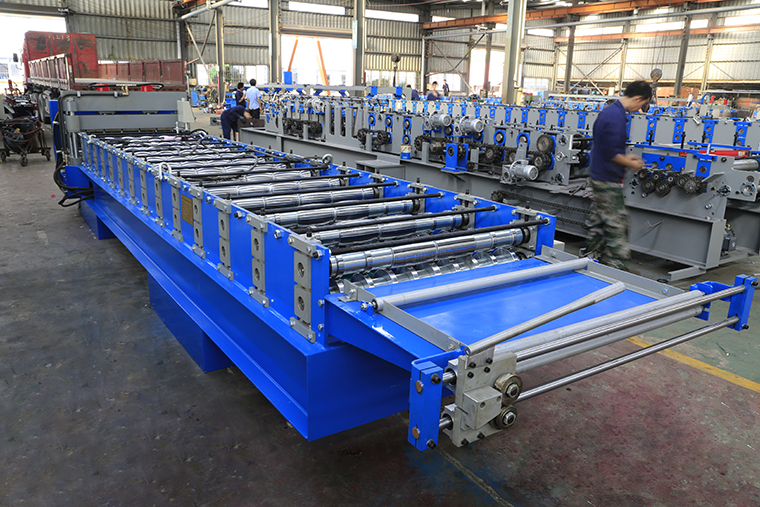

1)    YX28-828 Glazed Tile Making Machine pre-cutter

        Brand: BMS    Original: China

        Avoid wasting material



      Glazed Tile Making Machine

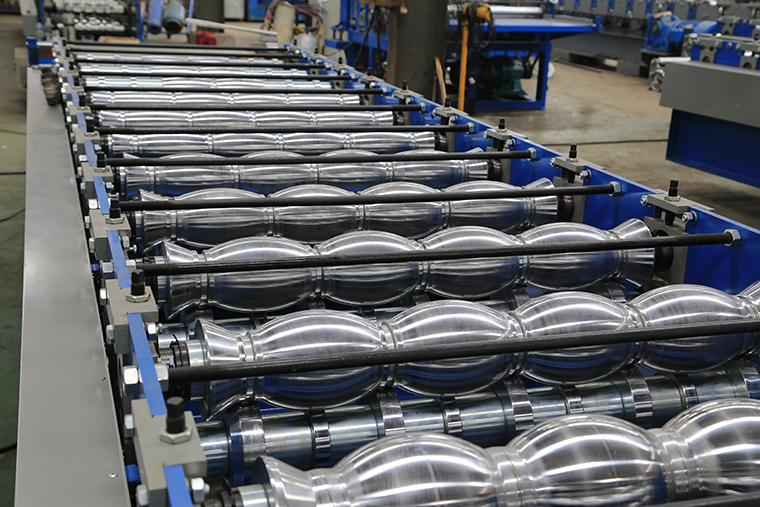

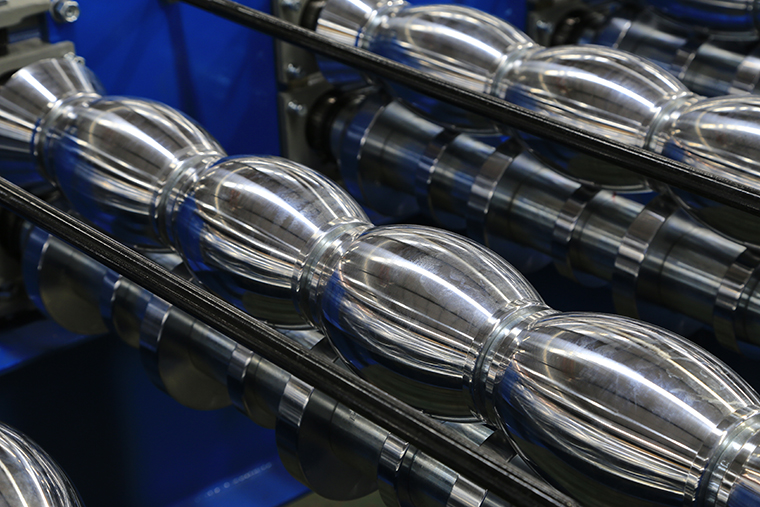

2)    YX28-828 Glazed Tile Making Machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with Hard-Chrome Coating for long working life

        Body framemade from 350# H type steel by welding


 Glazed Tile Making Machine


Glazed Tile Making Machine

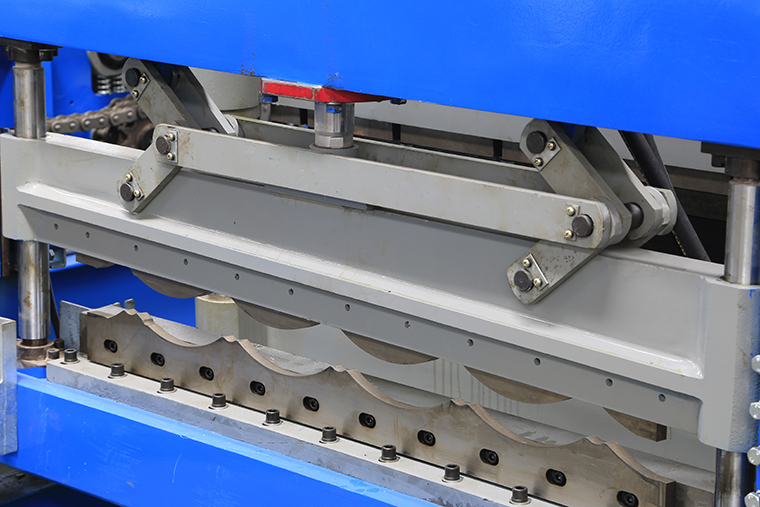

3)    YX28-828 Glazed Tile Making Machine post cutter

         Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa



Glazed Tile Making Machine

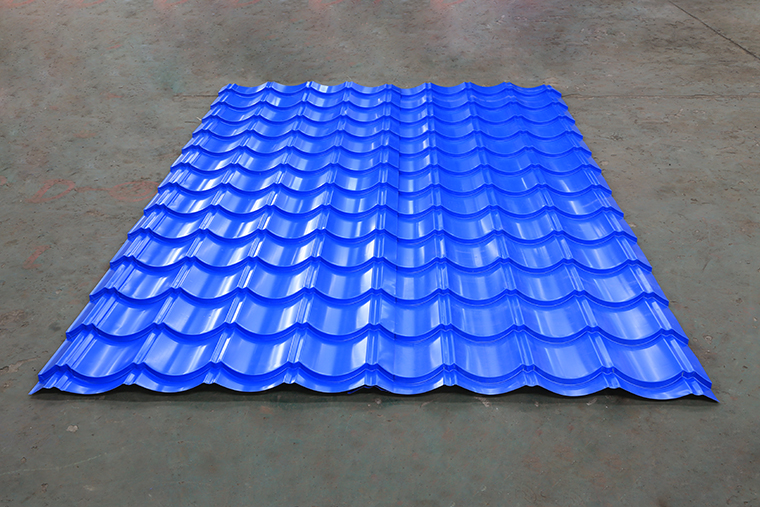

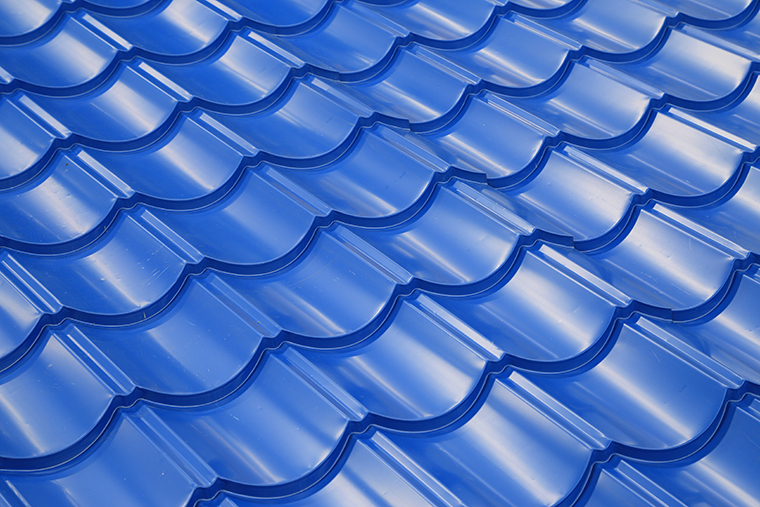

4)    YX28-828 Glazed Tile Making Machine product show



Glazed Tile Making Machine



Glazed Tile Making Machine


5)    YX28-828 Glazed Tile Making Machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton





        With 5-7 tons hydraulic decoiler for option



6)    YX28-828 Glazed Tile Making Machine exit rack

        Un-powered,one unit

Other detailes of YX28-828 Glazed Tile Making Machine



Suitable for material with thickness 0.4-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ90/75mm,precision machined

Motor driving,Gear chain transmission, 14 steps to form.

Main motor=5.5KW , Frequency speed control. Forming speed approx.3-5m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Schneider Electric/Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of Glazed Tile Making Machine



1. The warranty of Glazed Tile roll forming machine

    is 18moths after the client receives the machine.

    Within the 1.5years, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export to more than 50 countries and regions, including Taiwan, UK, France, Ireland, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, UAE, Iran, Kuwait, Yemen, India, Pakistan, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, Myanmar, Brunei, South Africa, Zimbabwe, Mozambique, Zambia, Congo, Cameroon, Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia,etc.
