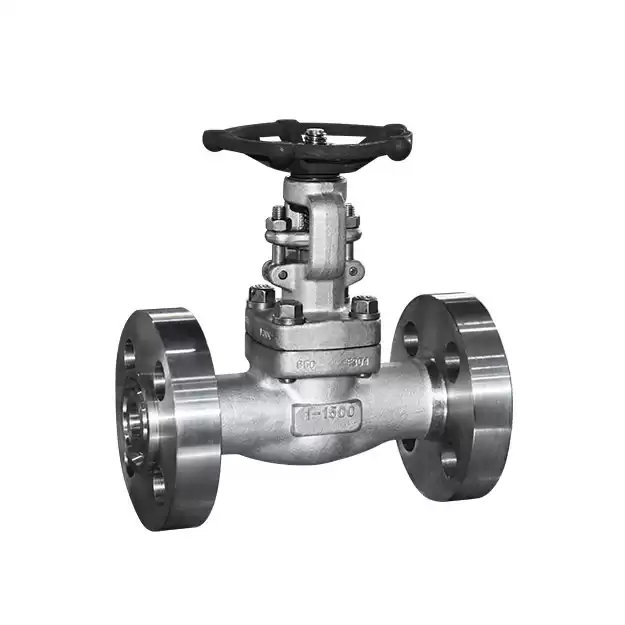

Globe Valve 1Inch 2500LB F304

API602 Rising Stem Globe Valve

1Inch,2500LB, F304, F304+STL, Handwheel

Manufacture STAVAL Factory Offers.


  • ConstructionRising/Non Rising Stem, Bolt/Weld Bonnet, Plug/Conical Disc
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Size Range½Inch ~ 2Inch (DN10 ~ DN50)
  • BoreFull Bore, Reduce Bore
  • End Connection BW, Flange, SW, NPT, PE
  • Working Temp.-196°C to +600°C

Key Specification

Type

Globe Valve

Size

1Inch

Pressure

2500LB

Construction

OS&Y, Rising Stem, Bolt Bonnet, Reduce Bore, Plug Disc

Connection

RTJ End

Body/Bonnet Material

A182 F304

Wedge Material

A276 F304

Stem Material

A276 F304

Seat Material

STL

Bolt/Nut

B8 / 8

Design Standard

API602

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Inspection & Test Std.

API598

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
