GoFast 20 Inch 23mm Width 38mm Depth 451 Clincher Carbon Fiber BMX Rims
Product Feature
-
Ultra light material. We use full Carbon Toray T700 & T800 material that enable the rims deliver durable performance.
-
Rims Clincher Compatible. For better traction and riding experience.
-
High Mold Carbon Fiber Strip. Provide extra strength on spoke holes, more durable and increasing spoke hole tension.
-
Customized Holes. Customize 16-36 holes and angles, to meet your specific requirement.
Specification
|
Item No.:
|
BMX451-23C38
|
Rim type:
|
20 inch BMX bike
|
Material:
|
Toray T700&T800 carbon fiber
|
Appearance:
|
UD / 3K / 12K
|
Finish:
|
Matte / Glossy
|
Depth:
|
38mm
|
Width:
|
Outer width:23mm, Inner width:16mm
|
ERD:
|
397mm
|
OD:
|
461mm
|
ETRTO:
|
451mm
|
Weight:
|
320±15g
|
Drills:
|
16-36H
|
|
Tire Size :
|
20"-451*1 1/8,
*1 1/4, *1 3/8
|
Valve Hole Dia.:
|
6.5mm
|
Spoke Hole Dia.:
|
4.5mm
|
Assembly Hole Dia.:
|
7.5mm
|
Weight Limit:
|
110kg
|
Max Spoke Tension:
|
130kgf
|
Max Tire Pressure:
|
110psi
|

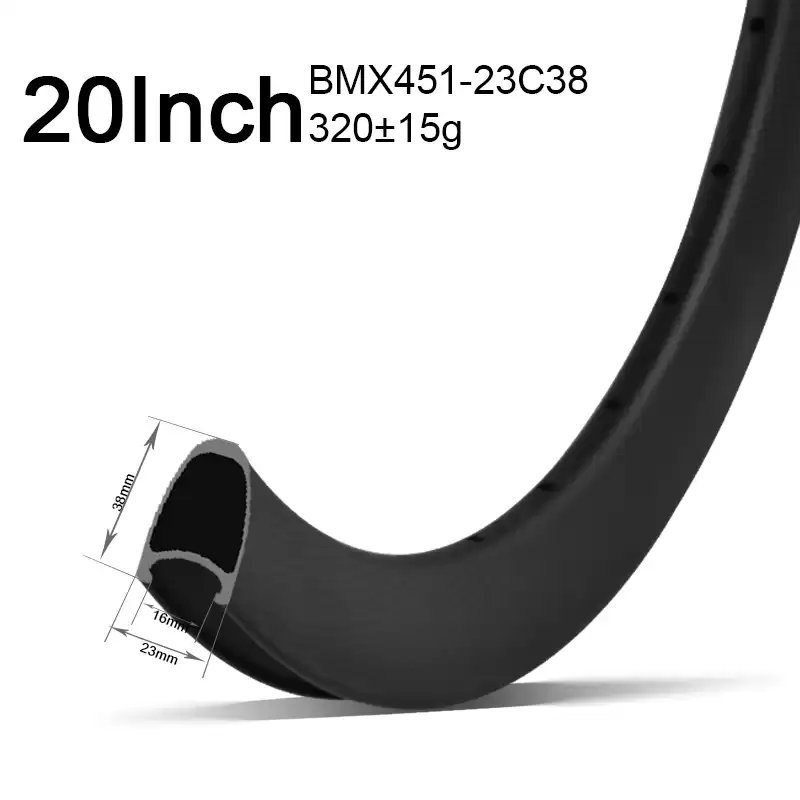

Geometry
BMX451-23C38 Overview
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
