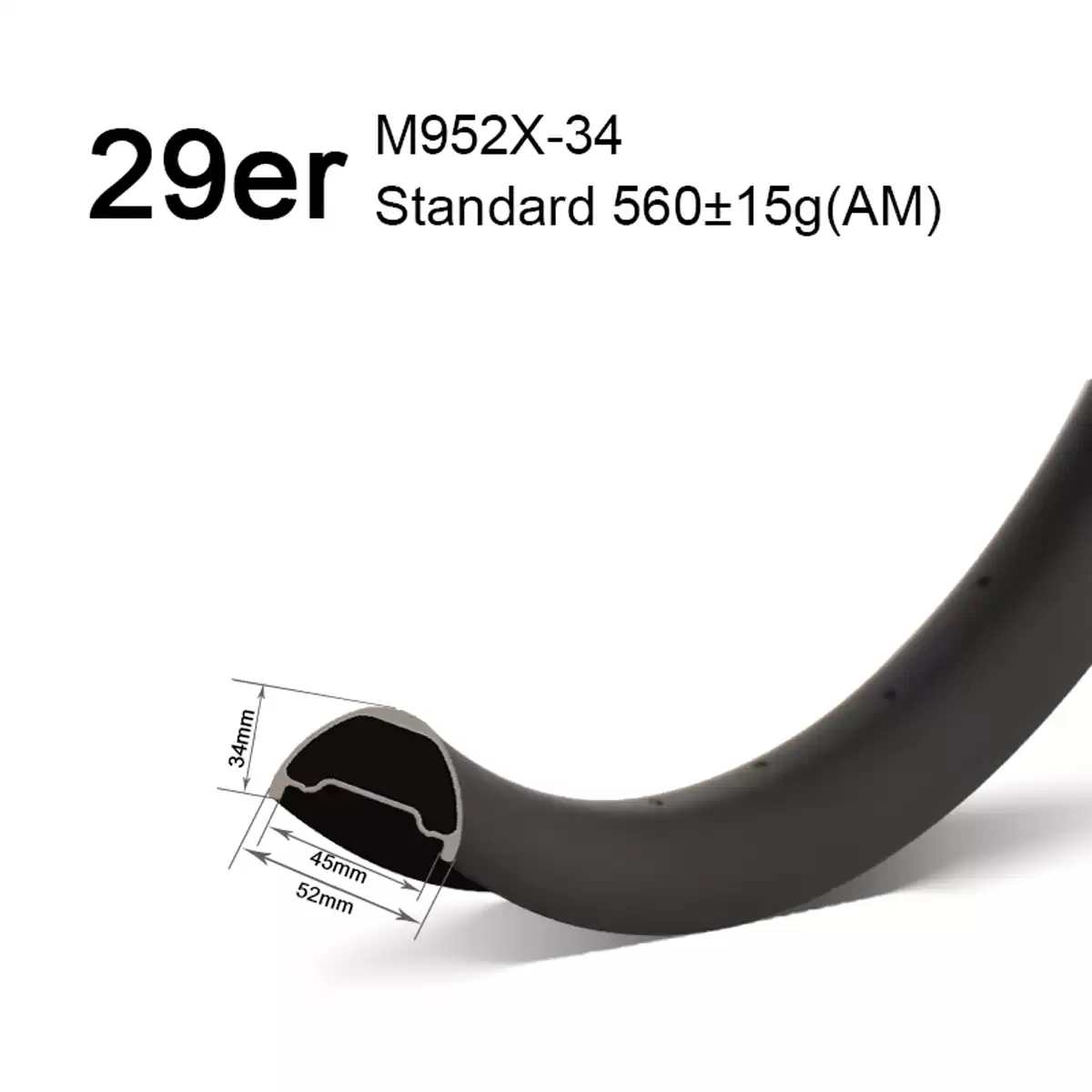

GoFast 29er 52mm Width 34mm Depth All Mountain Bike Rims

52mm wide 34mm deep carbon am rims 29er are constructed from Toray T700&T800.The max rider weight of am rims is 120kg.



GoFast 29er 52mm Width 34mm Depth All Mountain Bike Rims


Product Feature

  • Super lightweight,29er 52mm wide 34mm deep carbon am rims are constructed from Toray T700&T800 that structure minimize the rotational weight.
  • Carbon mtb rims 29 are used for all-mountain and fit 2.7-3.8" tire.
  • Imposite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.
  • Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.


Specification

Item NO.:
M952X-34
Size:
29er
Terrain:
All Mountain
Appearance:
UD/3K/12K
Finishing:
Matte/Glossy
Material:
Full carbon fiber (Toray T700+T800)
Spoke Hole:
24/28/32/36H
Outer width:
52mm
Depth:
34mm
ERD:
573mm
Type:
tubeless
Weight:
560±15g
Standard:
En Standard
Tyre Size:
2.7-3.8"
Max Tire Pressure:
60psi

Max Rider Weight:

120kg

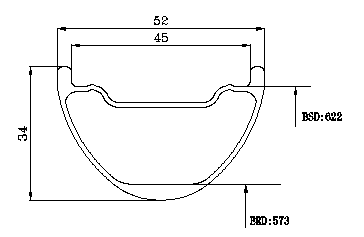

Geometry

29er am rims



Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory



100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
