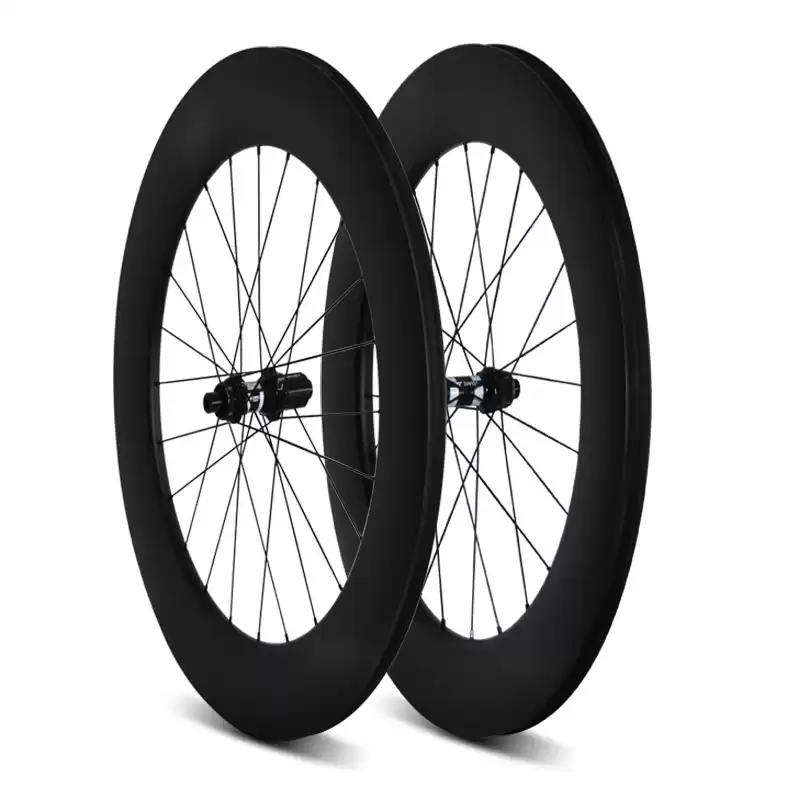

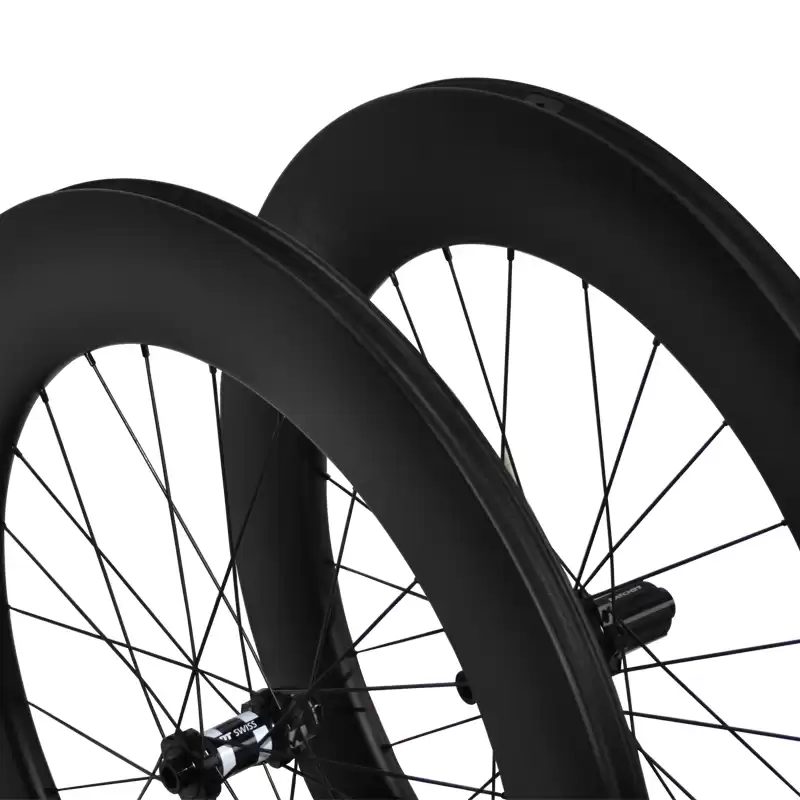

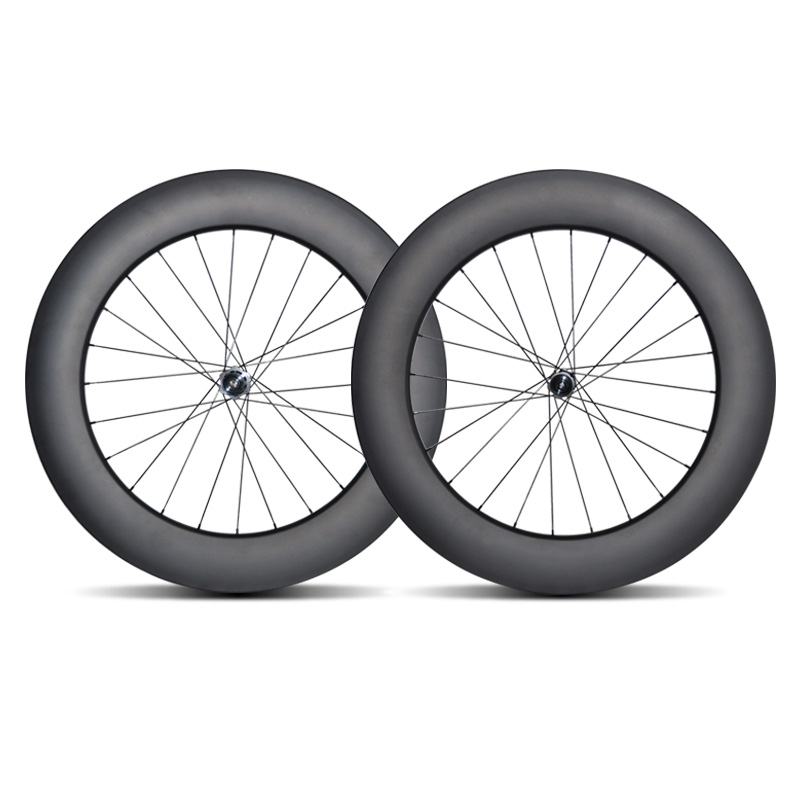

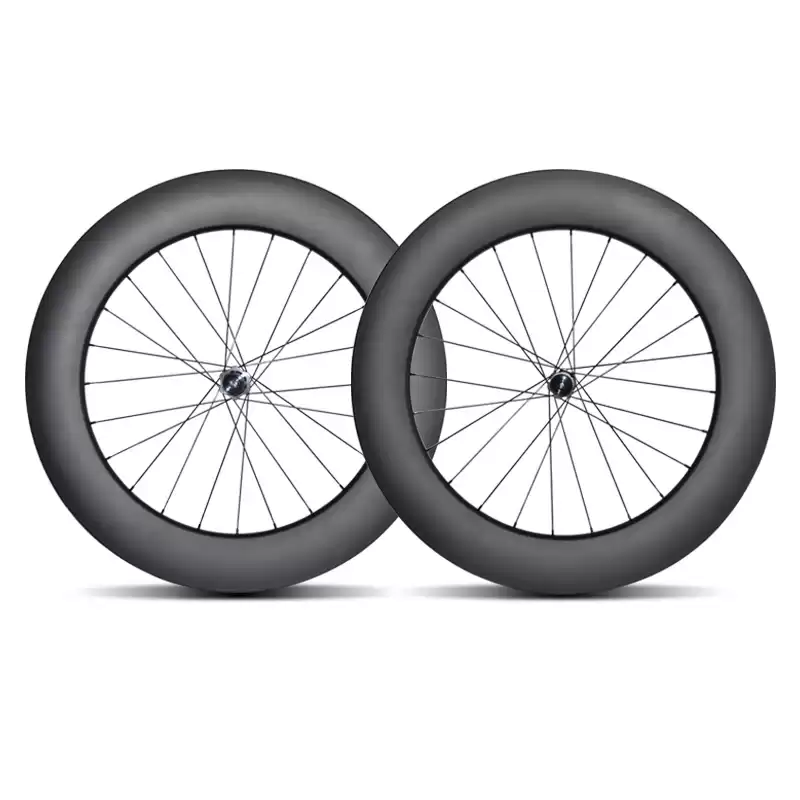

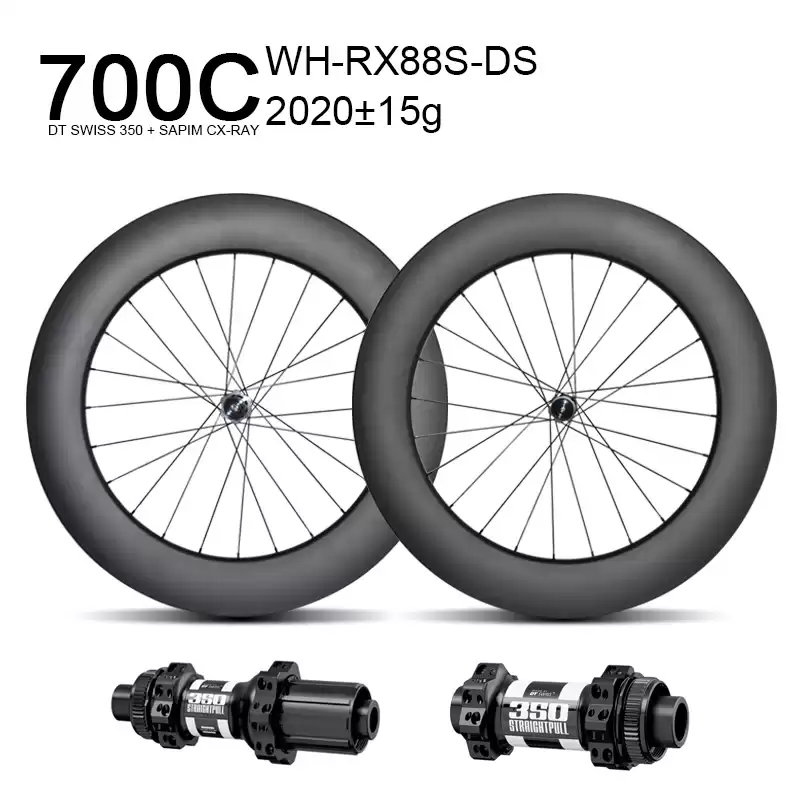

GoFast DT Swiss 350 Sapim Spokes Road Bicycle 25mm Width 88mm Depth Carbon Bike Wheels 700c
Product Feature
-
88mm rim is the most aerodynamic rim we offer. Ideal for long flat rides, triathlons, and time trials. The Epic 88mm rim is a no-compromise wind-cheating machine.
-
Ultra light material. All of our carbon rims and wheels constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
-
Sapim cx-ray spokes.Arguably the best spokes in the world. The aerodynamic shape of the CX-Ray is also 30% lighter than standard round spokes.
-
Rim shape reduces Aerodynamic drag by matching the spoke side of the rim to the round shape of a tire.
-
The maximum width of the rim improves aerodynamics by creating a more even airflow over the wheel - balancing the aerodynamics of the rim with the leading edge of the tire.
Specification
|
Item NO.:
|
WH-RX88S-DS
|
Braking System:
|
Disc Brake
|
Applicable Bicycle:
|
Road Bicycles
|
Appearance:
|
UD/3K/12K
|
Finishing:
|
Matte/Glossy
|
Material:
|
Full carbon fiber (Toray T700 and T800)
|
Spoke Hole:
|
24H
|
Rim Width:
|
25mm
|
Rim Depth:
|
88mm
|
Rim ERD:
|
469mm
|
Type:
|
Tubeless
|
Wheelset Weight:
|
2020±15g
|

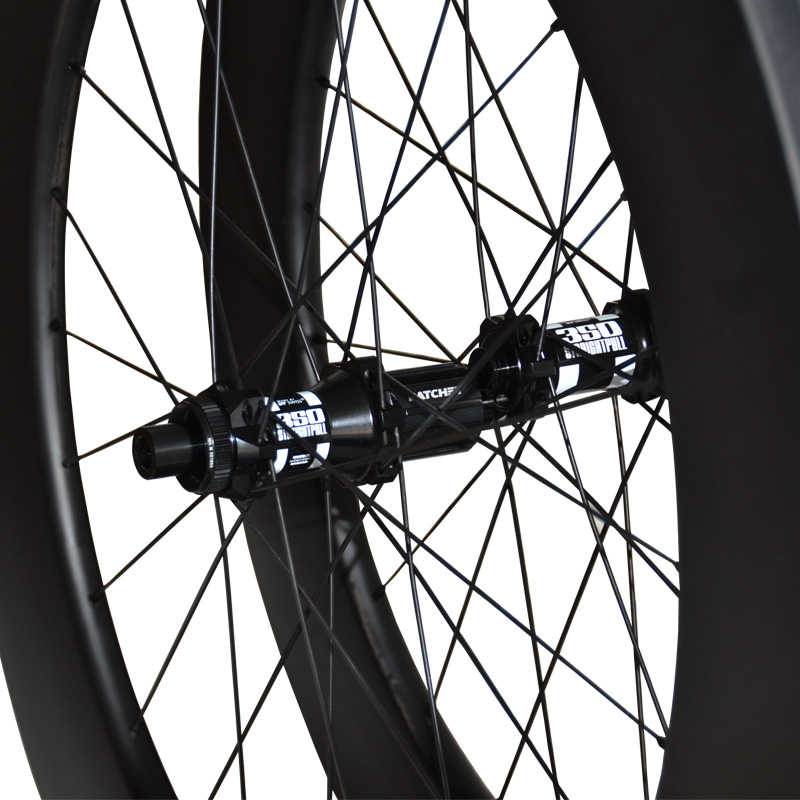

Hub:
|
DT Swiss 350
|
Spokes:
|
Sapim cx-ray
|
Maximum Rider Weight:
|
125kg
|
Warranty:
|
2 Years
|

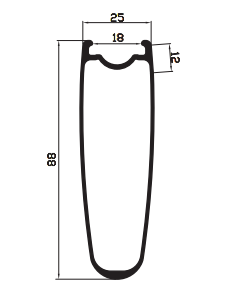

Rim Geometry

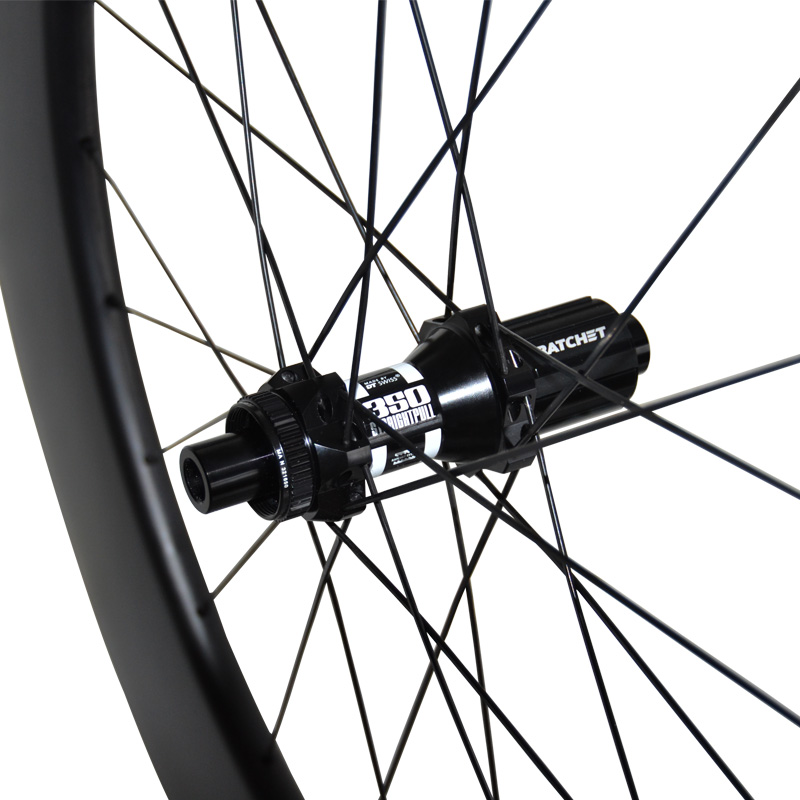

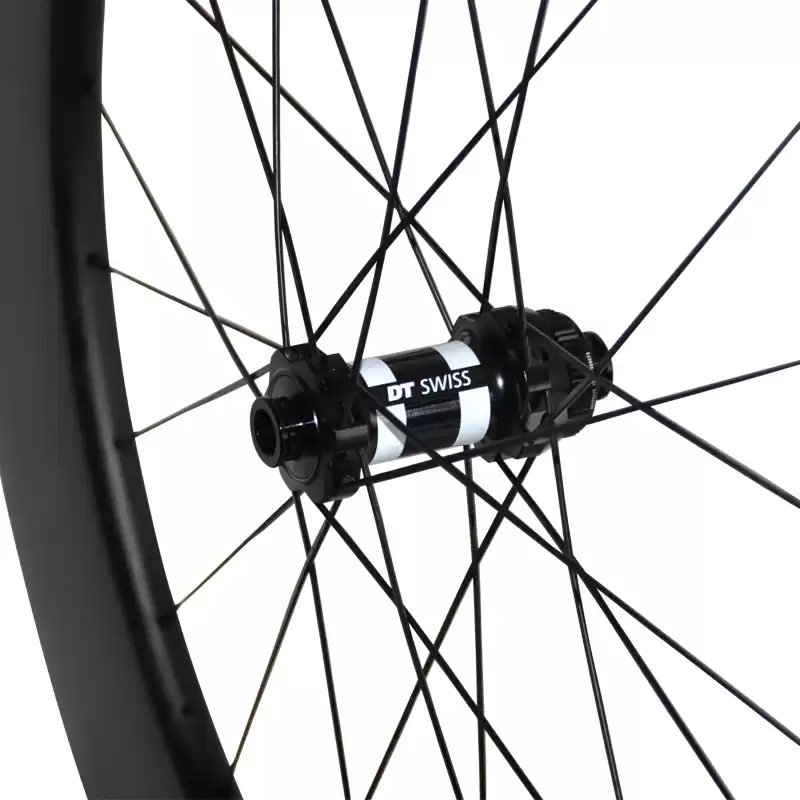

Hubs
Tubeless Lightweight Carbon Road Wheelset Info
Model
|
Rim
|
Rim Type
|
Rim Width
|
Rim Depth
|
Hub
|
Spokes
|
Weight(±3%)
|
WH-RX30S-DS
|
RX30S
|
Tubeless
|
25mm
|
30mm
|
DT Swiss 350
|
Sapim cx-ray
|
1450g
|
WH-RX35S-DS
|
RX35S
|
35mm
|
Sapim cx-ray
|
1470g
|
WH-RX38S-DS
|
RX38S
|
38mm
|
Sapim cx-ray
|
1500g
|
WH-RX45S-DS
|
RX45S
|
45mm
|
Sapim cx-ray
|
1550g
|
WH-RX50S-DS
|
RX50S
|
50mm
|
Sapim cx-ray
|
1580g
|
WH-RX55S-DS
|
RX55S
|
55mm
|
Sapim cx-ray
|
1640g
|
WH-RX60S-DS
|
RX60S
|
60mm
|
Sapim cx-ray
|
1680g
|
WH-RX88S-DS
|
RX88S
|
88mm
|
Sapim cx-ray
|
2020g
|
WH-RX30L-DS
|
RX30L
|
28mm
|
30mm
|
Sapim cx-ray
|
1460g
|
WH-RX35L-DS
|
RX35L
|
35mm
|
Sapim cx-ray
|
1480g
|
WH-RX40L-DS
|
RX40L
|
40mm
|
Sapim cx-ray
|
1500g
|
WH-RX45L-DS
|
RX45L
|
45mm
|
Sapim cx-ray
|
1520g
|
WH-RX55L-DS
|
RX55L
|
55mm
|
Sapim cx-ray
|
1640g
|
WH-RX60L-DS
|
RX60L
|
60mm
|
Sapim cx-ray
|
1700g
|
WH-RX88S-DS Overview
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made of one piece of long carbon fiber, with no wrinkles, to make the strength of the rim is the strongest. And we use a unique process to remove the air bladder from the valve hole so that the rim does not have to be patched as traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
Read More For Testing Of Carbon Rims By DCH Factory
