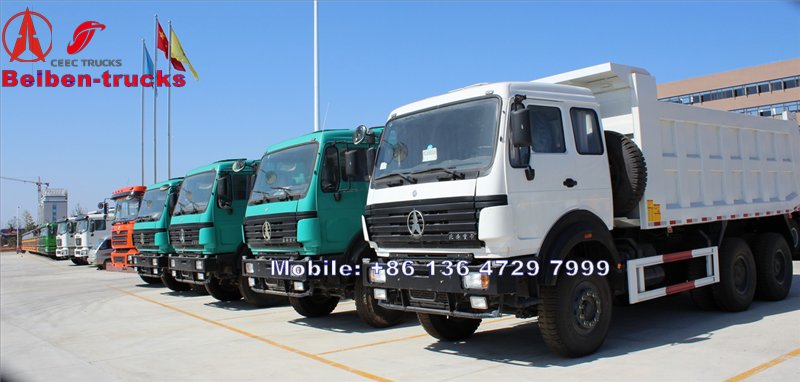

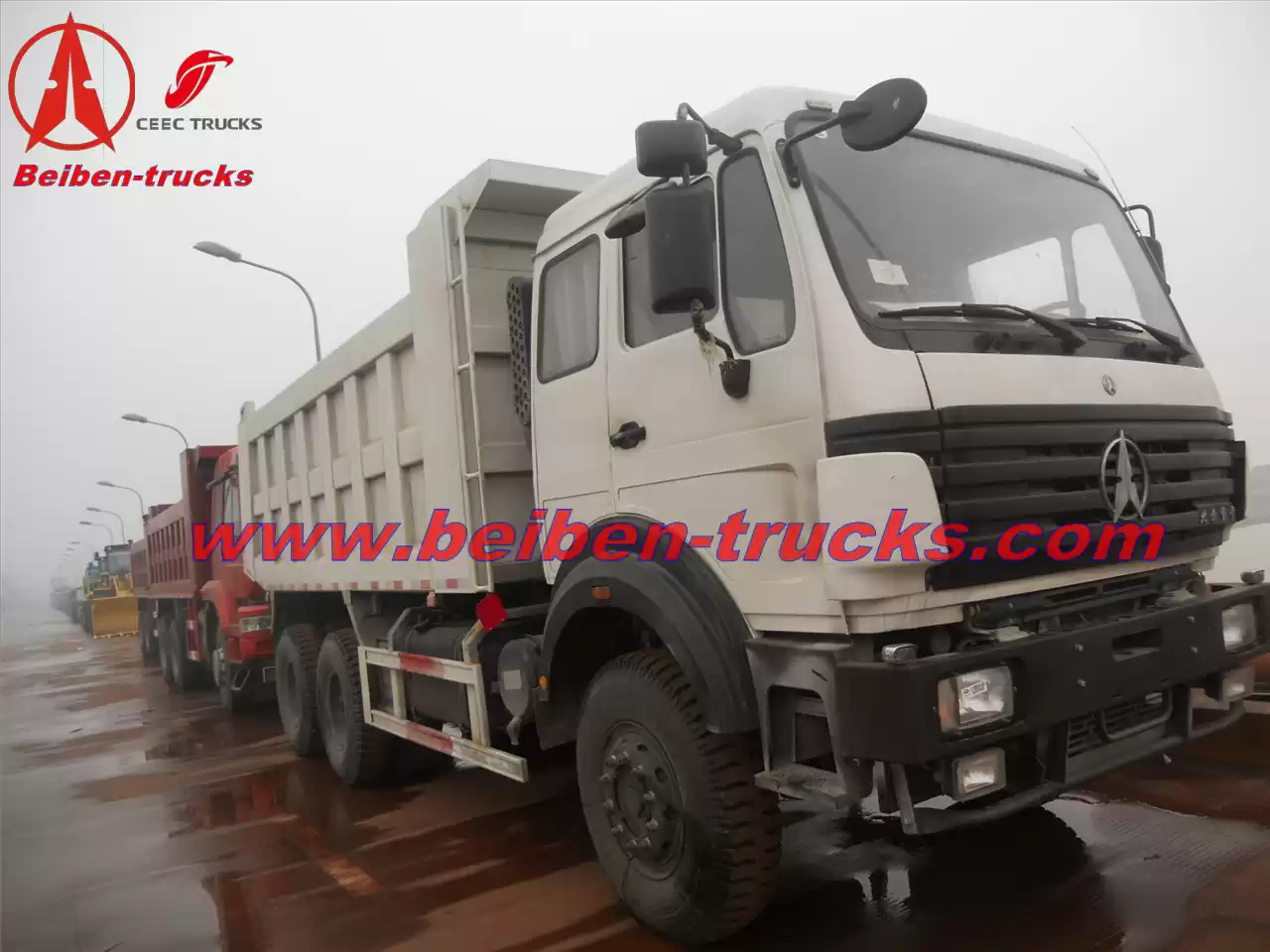

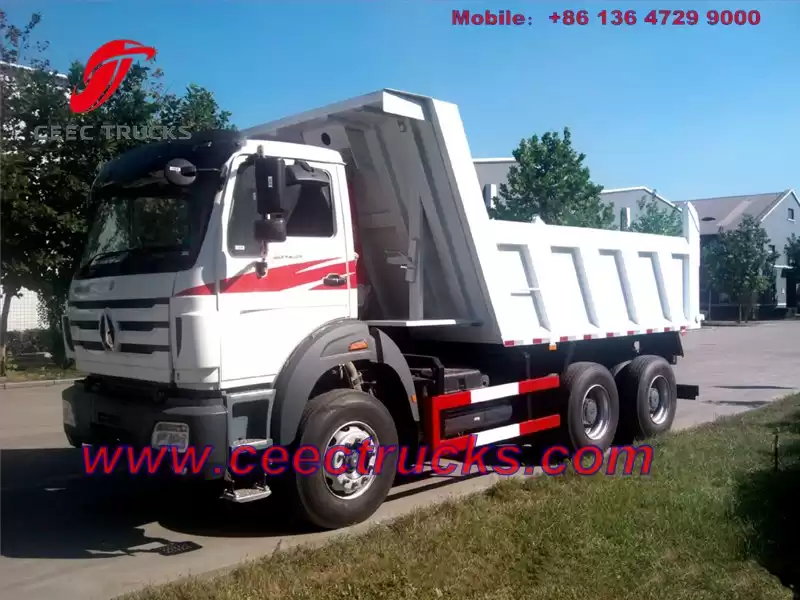

Good Performance Beiben Dump truck With Cheapest Price 6x4 dumper,
beiben 10 wheeler dump truck with good performance as benz classis NG80
cabin, very popular in congo market.

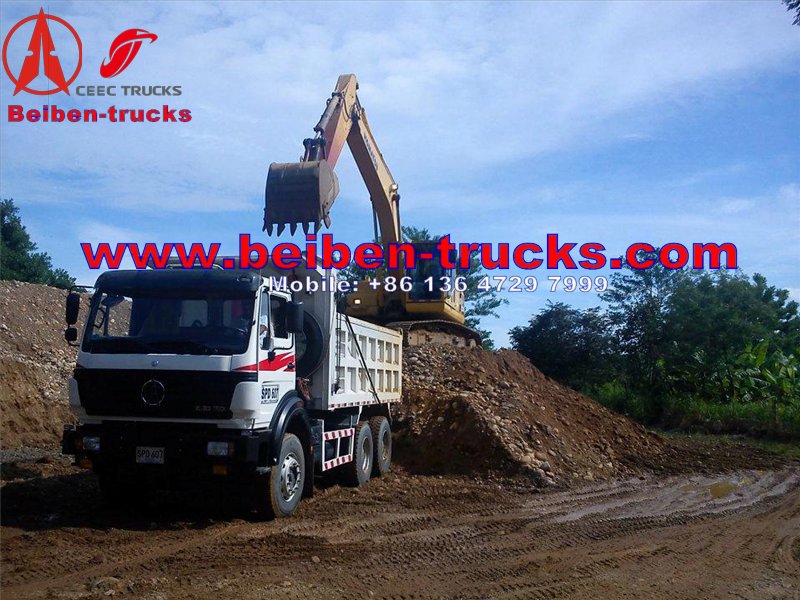

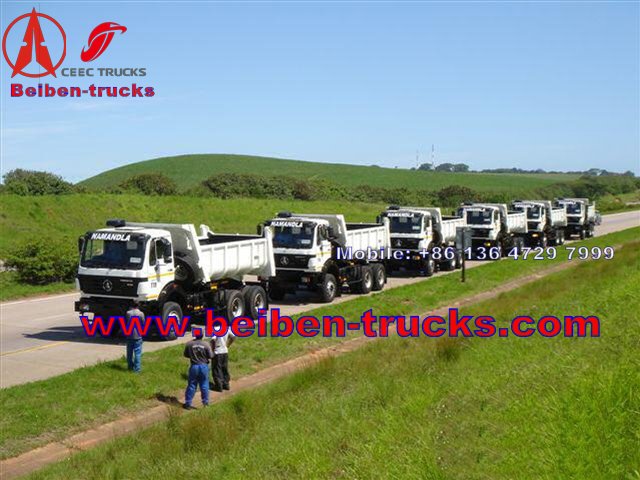

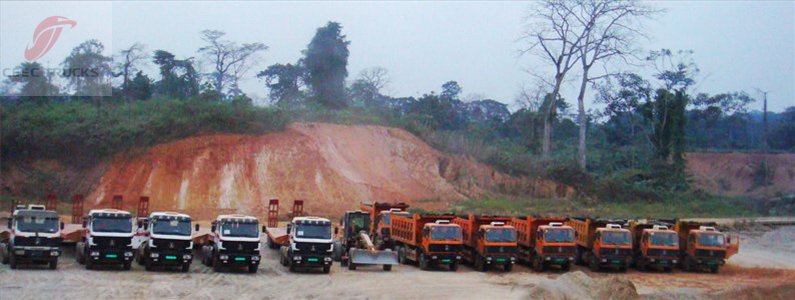

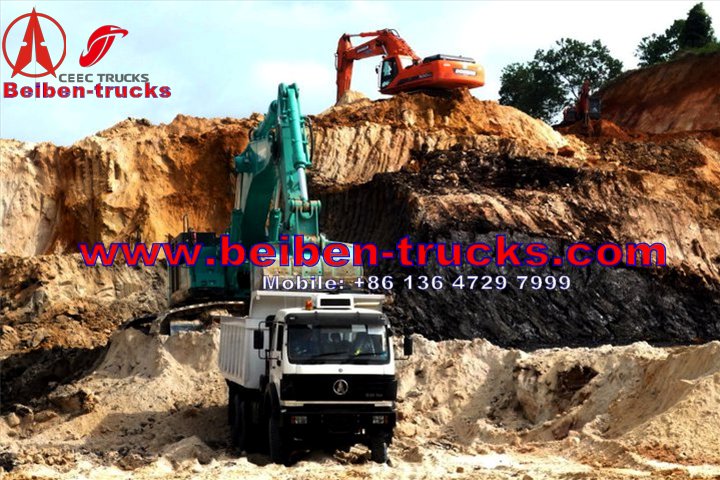

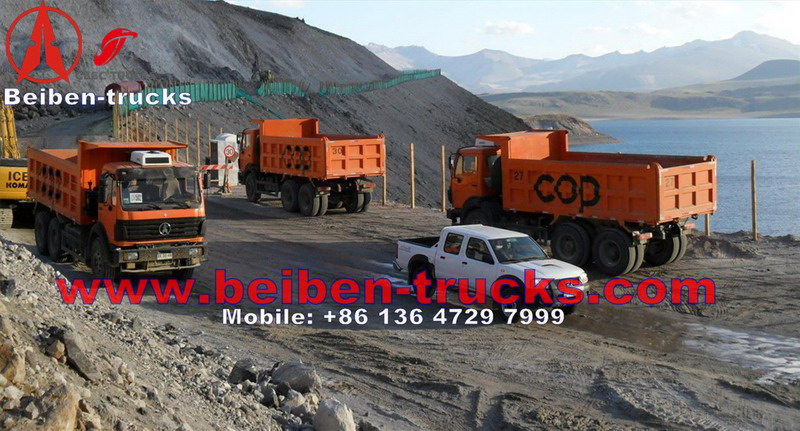

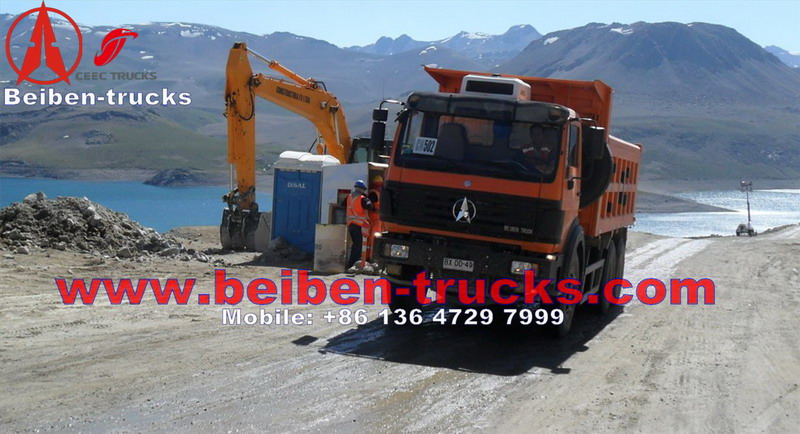

The beiben 6*4 dump trucks from us are using in foreign customer working site.
Product Description
Model
|
Beiben ND3253B38 dumper
|
Engine
|
Weichai WP10.290E32, 290HP
|
Displacement
|
9.726L
|
Transmission
|
10JSD140K gearbox, 10 forward, 2reverse
|
Steering
|
TAS85 hydraulic steering with power assistance
|
Clutch
|
GFX420, Single dry frictional disc, Hydraulic boosting
|
Front axle (Mercedes Benz Technology)
|
7Ton Double-shoe pneumatic brake, non-driving steering axle
|
Middle Rear axle (Mercedes Benz Technology)
|
18Ton Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Cab
|
NG80B short cab, inner A/C, no bed
|
Rim/Tires
|
12.00R20radial tire (one spare tire)
|
Cargobox Dimensions
|
5600x2300x1100+500mm
|
Thickness of Cargobox
|
16mmx12mm.
|

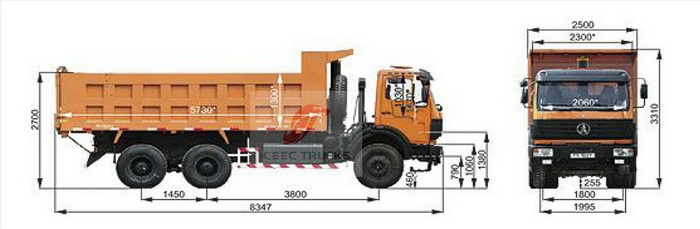

Overall Dimensions
|
8347×2500×33840mm
|
Gross Vehicle Weight
|
25000kg
|
Wheel base(mm)
|
3800+1450mm
|
Color
|
white, yellow
|
Fuel Tank
|
300L
|
