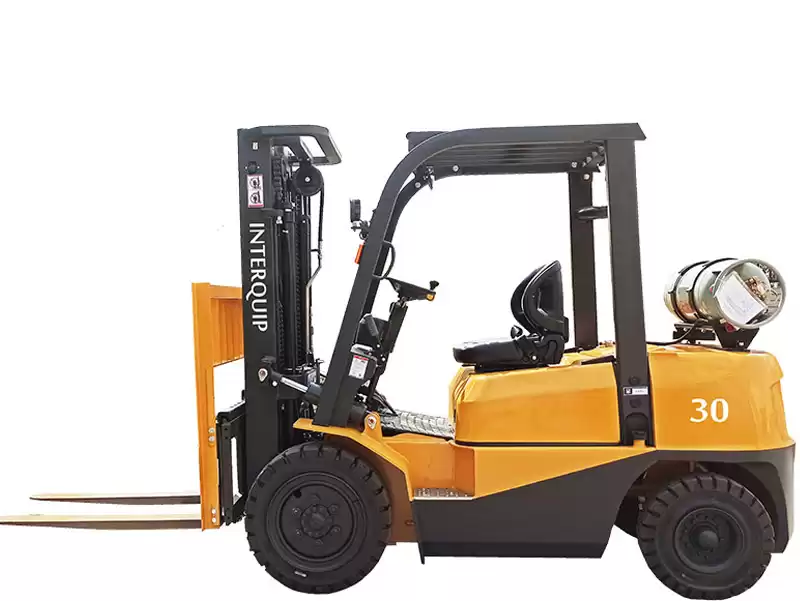

Automatic Hydraulic Transmission 3 Ton LPG/Gasoline/Petrol Forklift
Rated Capacity: 3 Ton/ 3000kg
Engine: Nissan K25
Lifting Height: 3-6m (Duplex/Triple)
Tyre: Pneumatic Tyre/Solid Tyre
Specifications:
|
Model
|
UNIT
|
FG30T
|
|
Specifications
|
Power Unit
|
|
LPG&Gasoline
|
|
Operator Type
|
|
Driver/Seat
|
|
Transmission Box Type
|
|
Automatic Transmission
|
|
Rated Capacity
|
kg
|
3000
|
|
Load Center
|
mm
|
500
|
|
Max.Lifting Height
|
mm
|
3000
|
|
Tire Type
|
|
Pneumatic Tire
|
|
Tire Number
|
Front
|
|
2
|
|
Rear
|
2
|
|
Tire Size
|
Front
|
|
28×9-15-14PR
|
|
Rear
|
6.5-10-10PR
|
|
Performance
|
Lifting Speed
|
Loaded
|
mm/s
|
480
|
|
Unloaded
|
500
|
|
Lowering Speed
|
Loaded
|
mm/s
|
420
|
|
Unloaded
|
400
|
|
Travelling Speed
|
Loaded
|
km/h
|
20
|
|
Unloaded
|
21
|
|
Max.Gradeability (Loaded)
|
%
|
20
|
|
Max.Drawbar Pull (Loaded)
|
kn
|
17
|
|
Mast Tilting Angle (Fwd/Bwd)
|
deg
|
6/12
|
|
Free Lifting Height
|
mm
|
150
|
|
Turning Radius
|
mm
|
2395
|
|
Dimensions
|
Overall Length (with fork)
|
mm
|
3800
|
|
Overall Width
|
mm
|
1240
|
|
Overhead Guard Height
|
mm
|
2145
|
|
Fork Size (LxWxT)
|
mm
|
1220×125×45
|
|
Mast Height (Fork lowered)
|
mm
|
2140
|
|
Battery (Voltage/Capacity)
|
V/Ah
|
12/90
|
|
Truck Weight
|
kg
|
4250
|
|
Fuel Tank Capacity
|
L
|
70
|
|
Engine
|
Brand
|
|
NISSAN
|
|
Model
|
|
K25
|
|
Rated Power
|
kw/rpm
|
37.4/2300
|
|
Rated torque
|
n-m/rpm
|
176.5/1600
|
|
Number Of Cylinder
|
|
4
|
|
Displacement
|
|
2.49
|
