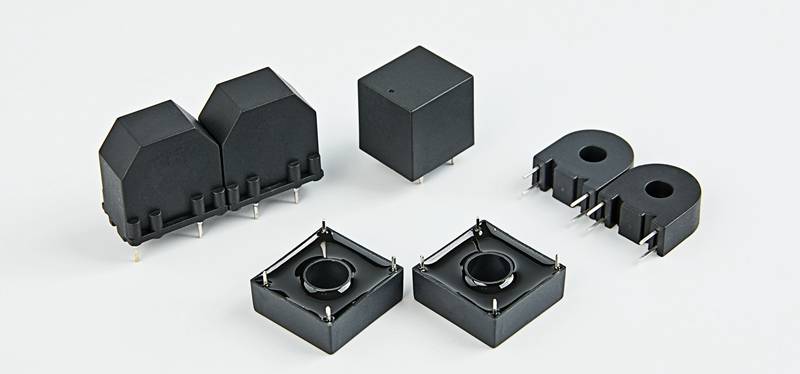

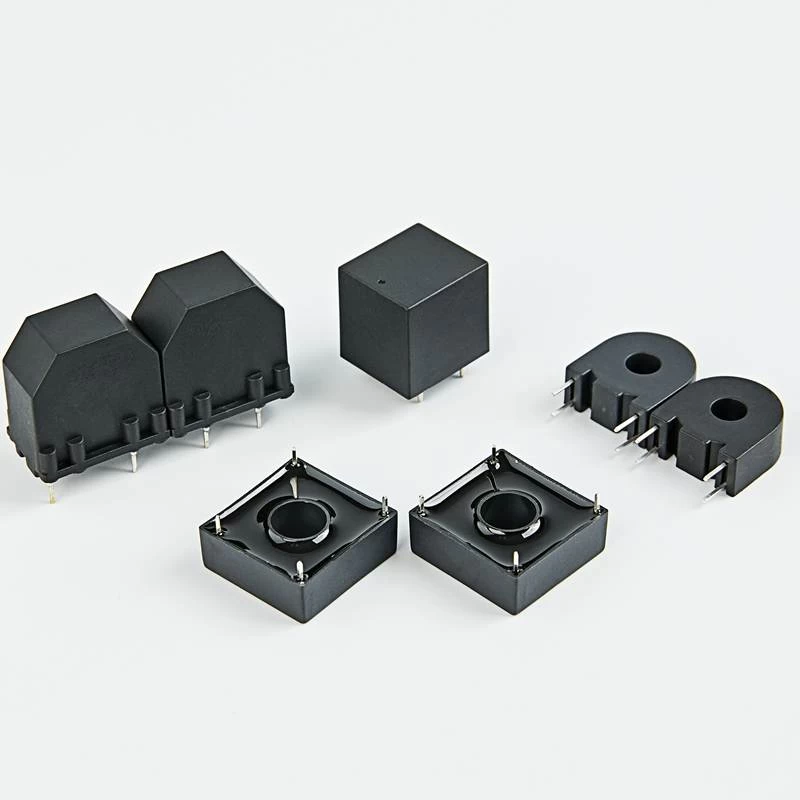

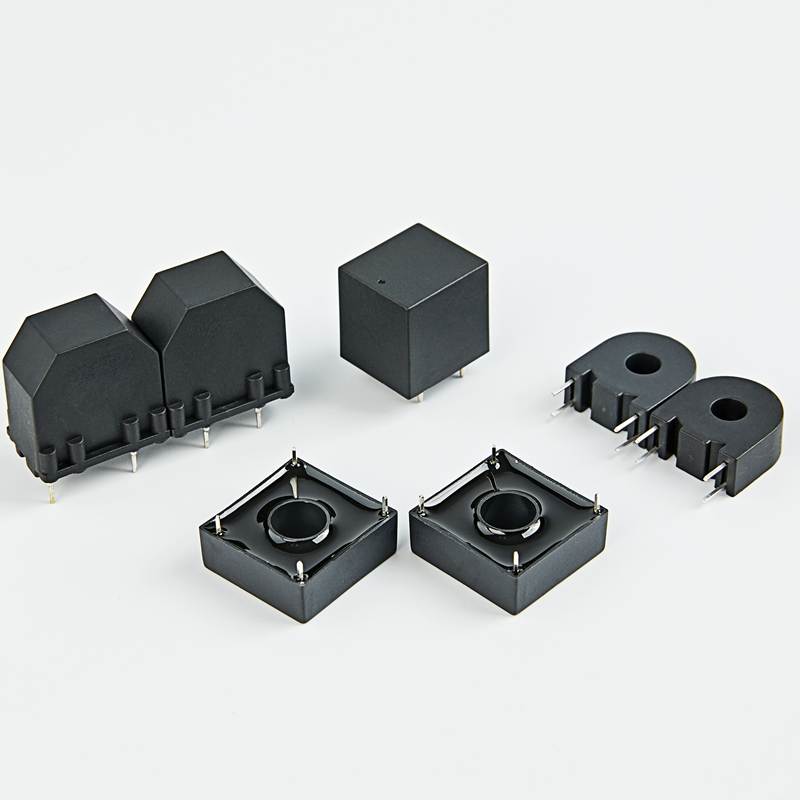

High quality voltage transformer
Voltage transformer is used to change the voltage,mainly used to supply power for the measuring instrument and the relay protection device,also used for measuring the voltage, power and electric energy in the line, or to protect the valuable equipment,transformer and motor from line fault.
Features
√ Small size, high accuracy and good consistency.
√ Excellent in linearity by using high conductivity permalloy or nanocrystalline
√ PCB welding and epoxy resin potting
Electrical Characteristic
|
Model No.
|
Current Ratio
|
Linear（%）
|
Load Resistance
(Ω)
|
Dimension(Unit: mm/inch)
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
PIN
|
|
PT519
|
1mA/1mA
|
0.2,0.5
|
100
|
5.7
|
19
|
18.2
|
7.8
|
7.2
|
14.2
|
4.5
|
0.8
|
|
0.224
|
0.748
|
0.717
|
0.307
|
0.283
|
0.559
|
0.177
|
0.031
|
|
PT526
|
2mA/2mA
|
0.2,0.5
|
200
|
5.8
|
19
|
18.2
|
7.8
|
14.2
|
5.3
|
4.7
|
0.64
|
|
0.228
|
0.748
|
0.717
|
0.307
|
0.559
|
0.209
|
0.185
|
0.025
|
|
PT531
|
2mA/2mA
|
0.2,0.5
|
200
|
23.2
|
12.5
|
25.5
|
12.5
|
10
|
15
|
3.5
|
0.8
|
|
0.913
|
0.492
|
1.004
|
0.492
|
0.394
|
0.591
|
0.138
|
0.031
|
|
PT551
|
2mA/2mA
|
0.2,0.5
|
200
|
18.6
|
21.6
|
12.8
|
10
|
20.4
|
4.5
|
—
|
0.8
|
|
0.732
|
0.850
|
0.504
|
0.394
|
0.803
|
0.177
|
0.031
|
Output voltage and Turns / resistor graph
Production Process
Implement ISO9001 / 14000 / IATF16949 to meet electrical and electric manufacturing and automobile industry requirement.
Testing
A series incoming and outcoming inspection ensure our products have high quality to meet customers requirement and outcoming pass rate less then 10PPM.
Packing and Shipping
We are specialized in voltage transformer, also providing customized service and expertise in consulting, design and manufacturing of current transformers for electrical safety and electric metering application.
Contact us today to discuss your project!
