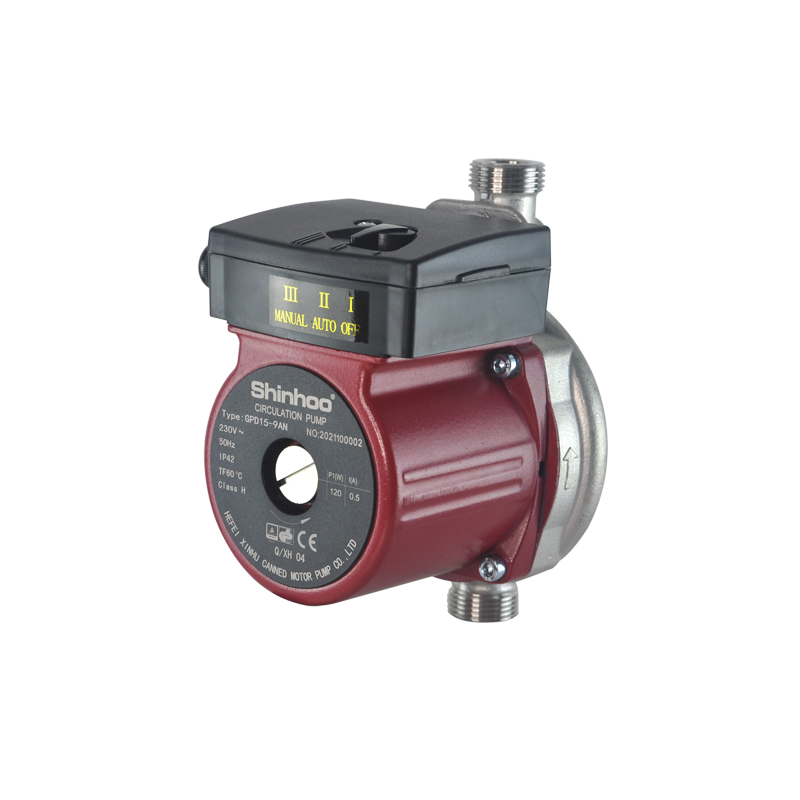

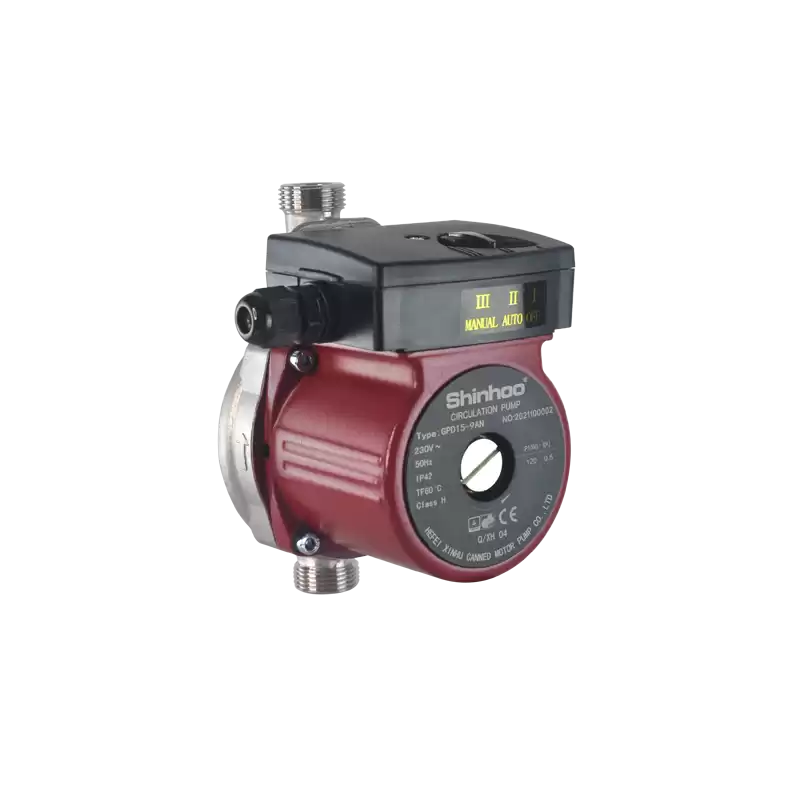

GPD15-9AN Boosting Pump

Suitable for:Domestic hot water recirculation;Industrial boiler systems

The automatic type has a switch for detecting water flow, which starts the water pump when water flows through.The stainless steel pump body allows no rust,which is fit for transmitting drinking water.It can be applied in Domestic hot water circulation systems in industry and building services.

The Shinhoo  pump for domestic hot-water recirculation in single- and two-family houses is suitable for drinking water with a corrosion-resistant pump housing.



Shinhoo GPD15-9AN  is a domestic booster designed for pressure boosting of drinking water supplied from an external source in residential homes. The booster pumps increase the pressure of domestic water to make the required pressure available at showers, taps and other tapping points.

Port-to-port l.: This pump has an inlet and outlet port of 3/4. The pressure rating of the pump corresponds with PN 10 and a port-to-port length of 160 mm.
The GPD15-9A provides the comfort of constant water pressure with automatic start and stop. This is controlled by the integrated flow switch ensuring optimal start/stop of the booster pump according to demand. The design is robust and built upon corrosion-free materials and catachresis-coated cast iron pump housing to ensure a long lifetime. The pump is a canned rotor pump type where pump and motor form an integral unit without shaft seal. This pump must always be installed with horizontal motor shaft.

  • Integrated flow switch: Automatic start and stop according to demand
  • Low noise level
  • Easy installation: plug and pump compact inline booster
  • Integrated non-return valve
  • Improved corrosion resistance
  • Copper connectors in the delivery



GPD15-9A Boosting Pump


Model:   GPD15-9AN

Power:  120w

Voltage: 230w

Frequency: 50hz

Max Flow: 1.78m3/h

Max Head: 9m

Rated Head: 7.5m

Diameter:  15mm

IP Grade: IP42

Temperature: 2 -60℃


Product Tags Booster pump systems          Water pressure booster pump          Domestic water booster pumps          Pressure boosting pump          Canned Motor Pump          industrial hot water pump
