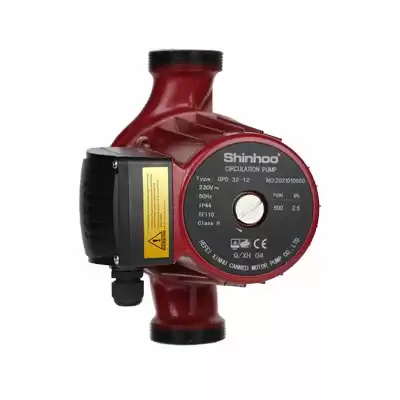

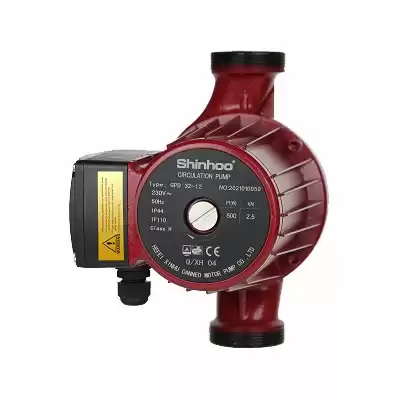

GPD32-12 Circulation Pump

GPD32-12 is a kind of single-phase canned motor pump designed and produced by Shinhoo . Our water circulating pump can be used in single pipe or double pipe heating system, also can be applied to city apartments, suburb villa, cooling, air-conditioning, boilers and solar systems etc.



Product ItemWater Circulation Pump GPD32-12

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. Speed no: The pump has single speed selector.
Product features

1.Low noise

2.No leakage

3.Ecological safety in operation

4.Artistic appearance

5.Easy installation

6.Reliable operation

Product selection

1.pump of cast iron body is widely used for delivering water of room temperature.

2.pump of copper body is largely used in the underground heating system.

3.for delivering domestic hot water we recommend using pump of stainless steel body(GDP-N) or copper body(GPD-B)



Model: GPD32-12

Power: 500W

Max.flow: 10.5m³/h

Max head: 12m

Current: 2.5A

Voltage/ Frequency: 115/230V 50HZ

Pump housing: Cast iron

Pumped liquid: Water

Insulation class: H

Degree of Protection: IP44

Liquid temperature range: 2-110℃

Max System Pressure: 1.0Mpa


Product Tags Water Pump for HVAC          Canned Motor Pump for HVAC          boiler circulating pump for HVAC          domestic hot water pump for HVAC          hot water booster pump          how do booster pumps work
