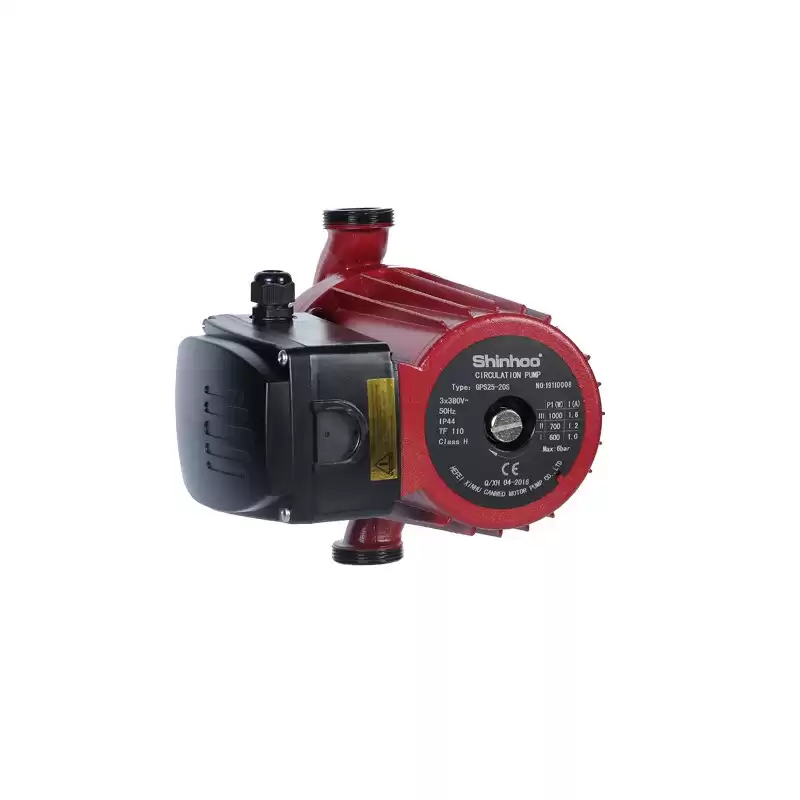

GPS25-20S Circulation Pump

1.Pump contains two parts:body and motor (with wet rotor).Body contains impeller,while motor includes stator,rotor,shield cover and deflating screw.

2.Tightness:the pump does not use mechanical seal.Stator and rotor are  sealed with shield cover made of stainless and two heat-resistant rubber rings,which makes no leakage.

3.Lubrication of bearings and cooling of motor by inner circulation of punped liquid.

4.Insulation class H,motor fixed with thermal protector,one speed or three speeds.



Product features

1.Low noise

2.No leakage

3.Ecological satety in operation

4.Artistic appearance

5.Easy installation

6.Reliable operation




Product features

1.Low noise

2.No leakage

3.Ecological satety in operation

4.Artistic appearance

5.Easy installation

6.Reliable operation







Product selection

1.pump of cast iron body is widely used for delivering water of room temperature.

2.pump of copper body is largely used in the underground heating system.

3.for delivering domestic hot water we recommend using pump of stainless steel body(GDP-N) or copper body(GPD-B)



Model: GPS25-20S

Power: 1000/700/600W

Max.flow:17/14/12.5m³/h

Max head: 20/17/14m

Voltage/ Frequency: 220/380V 3pH、 50HZ

Pump housing: Cast iron

Impeller: PES

Pumped liquid: Water

Insulation class: H

Degree of Protection: IP42

Liquid temperature range: 2-110℃

Max System Pressure: 1.0MPA
