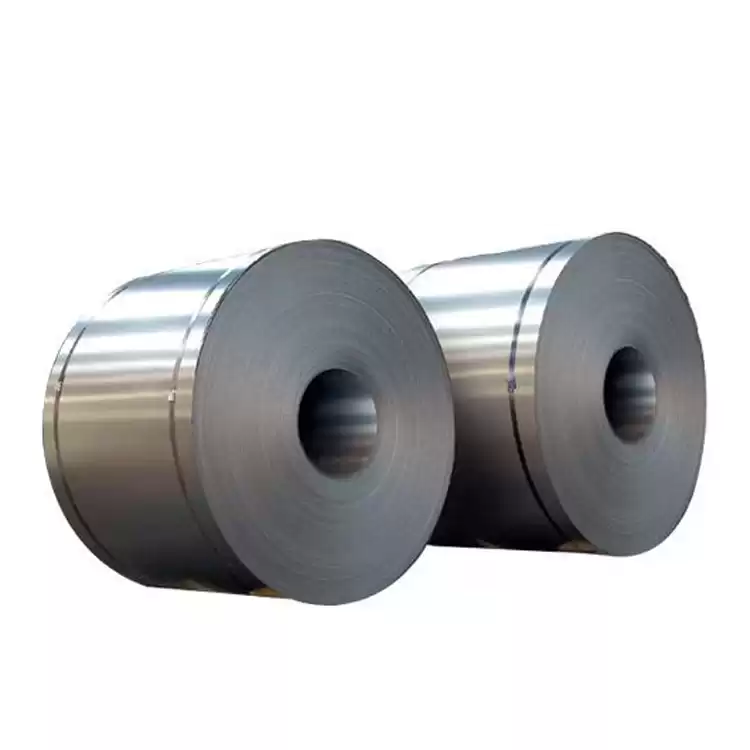

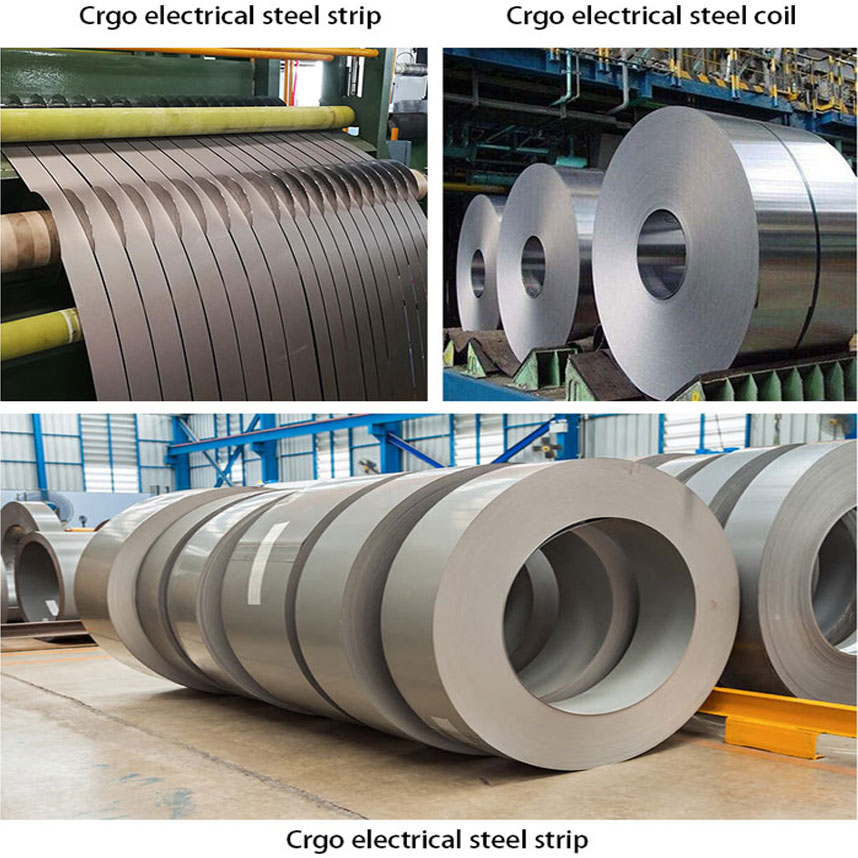

Grain Oriented Electrical Steel/Strip/Coil
WanJuan Steel is a full-service supplier of electrical steel specializing in Grain Oriented, Non-Grain Oriented. Additionally, we offer thin gauge, low loss grades for special applications with technical support. We aim to better understand customer needs and recommend most cost-effective material for intended applications.
Product Information
Grades and Specifications in compliance with AISI:
|
Conventional Type
|
|
Thickness
|
Typical core loss(w/kg. at 1.7 T) 50Hz
|
guarantee core loss(w/kg. at 1.7 T) 50Hz
|
Min Magnetic Flux At800 A/m. tesla
|
|
M5
|
0.30
|
1.23
|
1.30
|
1.80
|
|
M4
|
0.27
|
1.14
|
1.20
|
1.80
|
Specification
|
Product Name
|
Oriented Electrical Silicon Steel coil
|
|
Standard
|
AiSi, ASTM, bs, DIN, GB, JIS
|
|
Grade
|
Grain oriented steel:
27QG100/27QG110/27Q120/27Q130/27Q140
30QG110/30QG120/30QG130/30Q130/30Q140/30Q150/30QG125
35QG135/35Q135/35Q145/35Q155/35Q165
|
|
Type
|
Oriented Silicon Steel
|
|
Technique
|
Cold Rolled
|
|
Thickness
|
0.27mm - 0.65mm or as required
|
|
Width
|
20-1500mm
|
|
Surface Treatment
|
Coated
|
|
Steel shape
|
Steel Coil
|
|
Coil weight
|
3-5tons
|
|
Color
|
Gray
|
Magnetic properties
|
THICKNESS
|
TYPICAL CORE LOSS AT
|
GUARANTEED CORE LOSS AT
|
TYPICAL POLARIZATION AT
|
GUARANTEED POLARIZATION AT
|
|
mm
|
inch
|
1.5 T
50 Hz
W/kg
|
1.7 T
50 Hz
W/kg
|
1.5 T
60 Hz
W/lb
|
1.7 T
60 Hz
W/lb
|
1.7 T
50 Hz
W/kg
|
1.7 T
60 Hz
W/lb
|
800 A/m
typ. T
|
800 A/m
min. T
|
|
0.18
|
0.007
|
|
|
|
|
|
|
|
|
|
0.20
|
0.008
|
0.50
|
0.68
|
0.30
|
0.40
|
0.70
|
0.42
|
1.91
|
1.88
|
|
0.20
|
0.008
|
0.52
|
0.72
|
0.31
|
0.42
|
0.75
|
0.44
|
1.90
|
1.88
|
|
0.23
|
0.009
|
0.55
|
0.74
|
0.33
|
0.44
|
0.75
|
0.45
|
1.91
|
1.88
|
|
0.23
|
0.009
|
0.56
|
0.76
|
0.34
|
0.46
|
0.78
|
0.47
|
1.19
|
1.88
|
|
0.23
|
0.009
|
0.57
|
0.78
|
0.34
|
0.47
|
0.80
|
0.48
|
1.91
|
1.88
|
|
0.23
|
0.009
|
0.60
|
0.83
|
0.36
|
0.50
|
0.85
|
0.51
|
1.90
|
1.88
|
|
0.23
|
0.009
|
0.62
|
0.88
|
0.37
|
0.53
|
0.90
|
0.54
|
1.90
|
1.88
|
|
0.23
|
0.009
|
0.67
|
0.98
|
0.40
|
0.59
|
1.00
|
0.60
|
1.88
|
1.85
|
|
0.27
|
0.011
|
0.63
|
0.83
|
0.38
|
0.50
|
0.85
|
0.51
|
1.91
|
1.88
|
|
0.27
|
0.011
|
0.65
|
0.88
|
0.39
|
0.53
|
0.90
|
0.54
|
1.91
|
1.88
|
|
0.27
|
0.011
|
0.68
|
0.93
|
0.41
|
0.56
|
0.95
|
0.57
|
1.91
|
1.88
|
|
0.27
|
0.011
|
0.71
|
0.98
|
0.43
|
0.59
|
1.00
|
0.60
|
1.89
|
1.88
|
|
0.27
|
0.011
|
0.76
|
1.08
|
0.46
|
0.65
|
1.10
|
0.66
|
1.89
|
1.88
|
|
0.30
|
0.012
|
0.72
|
0.98
|
0.44
|
0.59
|
1.00
|
0.60
|
1.91
|
1.88
|
|
0.30
|
0.012
|
0.75
|
1.03
|
0.45
|
0.62
|
1.05
|
0.63
|
1.91
|
1.88
|
|
0.30
|
0.012
|
0.77
|
1.08
|
0.46
|
0.65
|
1.10
|
0.66
|
1.90
|
1.88
|
|
Mechanical Property
|
|
Grade
|
Yeild Strength
(N/mm2)
|
Ultra-TensionStrength(N/mm2)
|
Ductility
(%)
|
Hardness
(HV1
|
|
M35W230
|
430
|
560
|
20.0
|
225
|
|
M35W250
|
415
|
550
|
20.5
|
220
|
|
M35W270
|
400
|
515
|
20.5
|
215
|
|
M35W300
|
360
|
480
|
21.5
|
195
|
|
M35W360
|
350
|
480
|
23.5
|
190
|
|
M35W440
|
275
|
420
|
27.5
|
165
|
|
M35W550
|
265
|
415
|
33.5
|
160
|
FAQ
why our steel?
We are China well known steel sheet manufacturer and supplier. Cooperated with professional and strength manufacturer,we can provide metal products that meet your requirements.
whats the biggest advantage?
We saves you time and money. With our cold rolled steel sheet you can achieve greater yields, improved equipment usage and fewer work hours to manufacture your parts.
what services do we provide?
We can provide customized service including slitting,steel sheet & plating painting,hot dipped coating,finishing treatment,custom size options. Please feel free to send us your requirements,we will reply very soon.
How do we package the products?
Triple packaging (anti-rust paper + plastic film + corrugated paper), fixed with fumigated wooden pallets, which can effectively protect the product from corrosion during ocean transportation.
When do we deliver the products?
Standard products within 15 days, customized products within 20-30 days.
