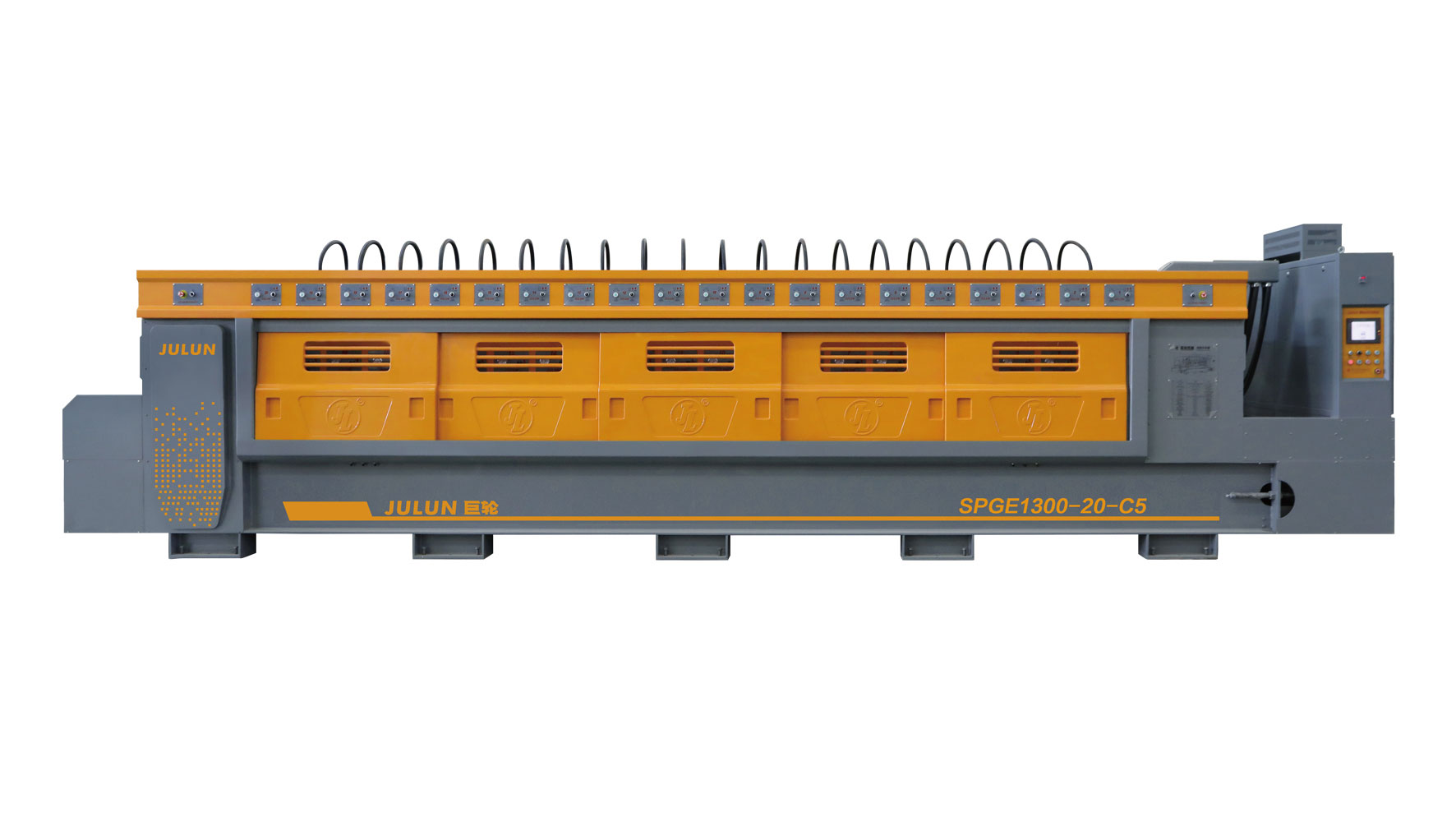

Granite Line Polishing Machine

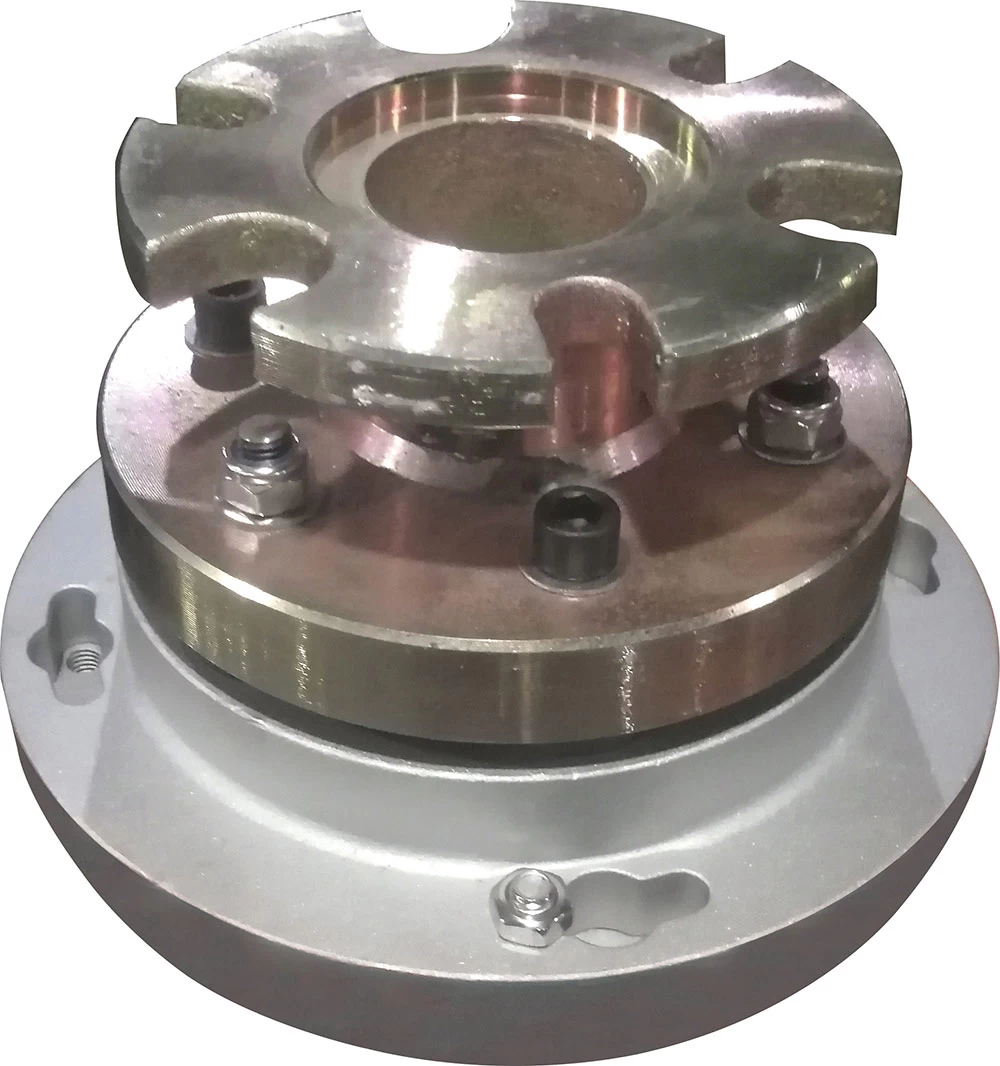

1.Automatic stone line polishing machine polish the surface for granite tiles,and is equipped with the resin disc polishing heads, the polishing result is more comprehensive, more efficient,lower abrasive wearing.

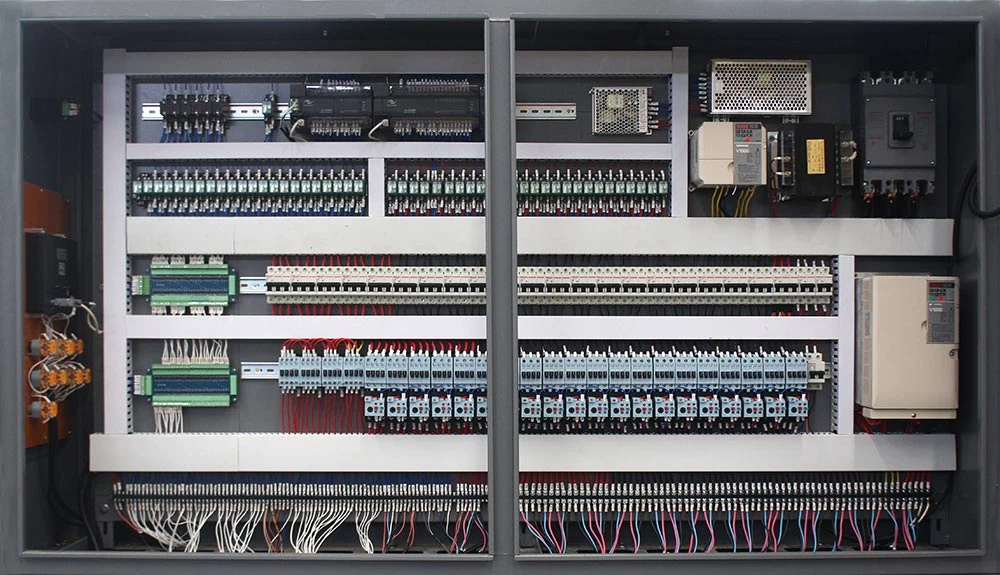

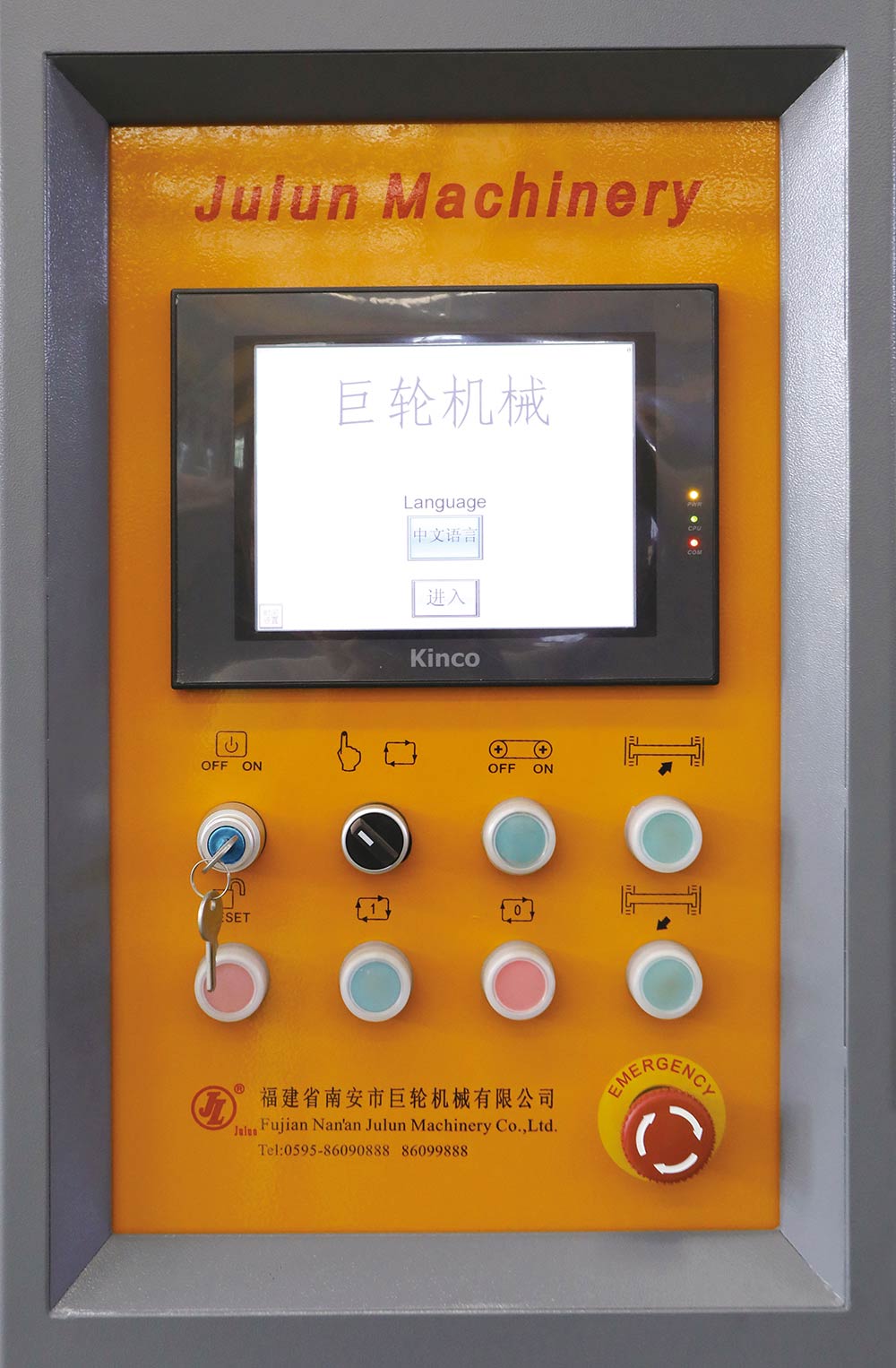

2.Using PLC system and liquid crystal display screen menu,offering intelligent control.
3.Easy to operate.the stroke pressure when main spindle lifts and falls, the beam travel speed and the belt moving speed can be adjusted according to the stone materials and the requiring finishing gloss.
4.Auto-dodging function and shape-memory function.equipped with an advice to prevent the grinding head from mistakenly hitting the belt,higher automation operation and lower labor the strength.
5.Using the most advanced and high-quality construction,rational structure,high stability and efficiency,and energy saving operation.

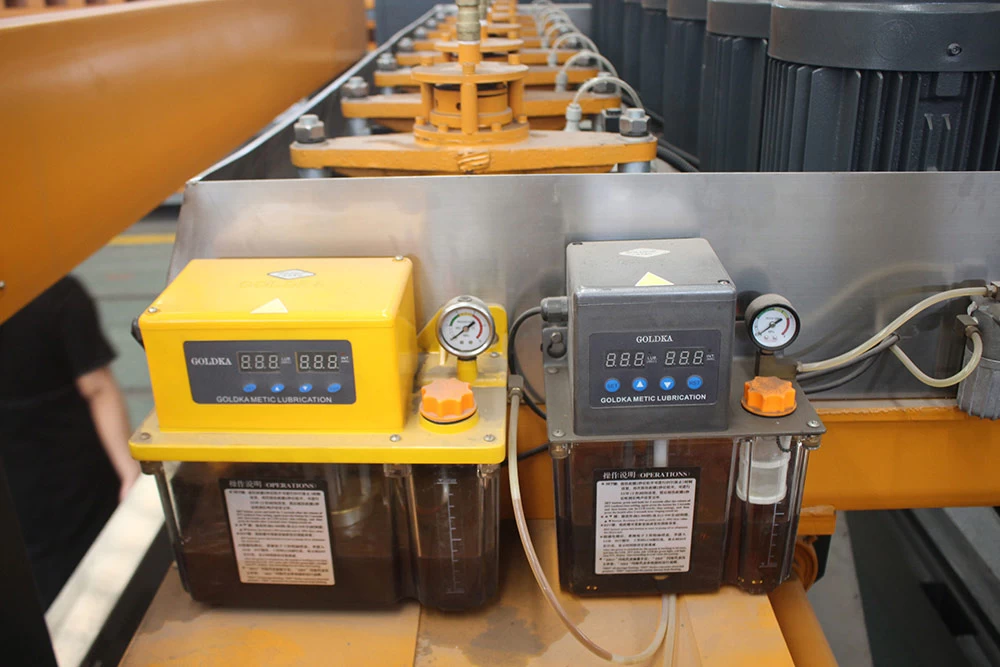

6.Using central automatic lubrication system,so that all moving parts and bearings can get a good lubricating effect,and longer life.

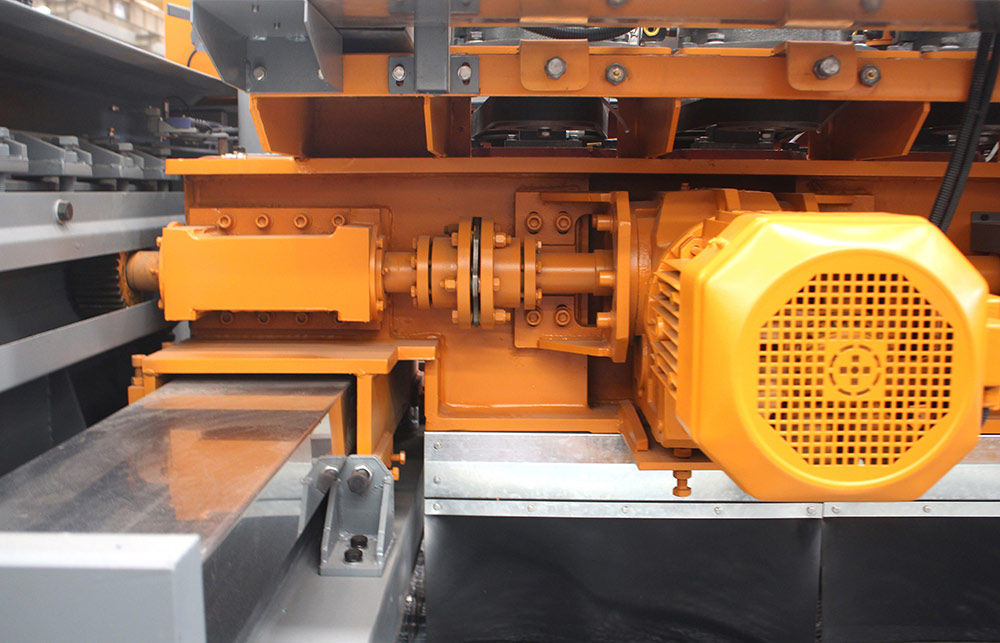

7.The power movement of polishing heads uses the narrow V belt with teeth set, to improved slabs flatness,reduced movement consumption and enhances the longer service life.
Specification
|
Appellation
|
Unit
|
SPGE1200-12C5
SPGE1300-12C5
|
SPGE1200-16C5
SPGE1300-16C5
|
SPGE1200-20C5
SPGE1300-20C5
|
SPGE1200-24C5
SPGE1300-24C5
|
|
Max.processing width(optional)
|
mm
|
1050/1250
|
1050/1250
|
1050/1250
|
1050/1250
|
|
Max.processing height
|
mm
|
50
|
50
|
50
|
50
|
|
Belt advanced speed
|
m/min
|
0~3
|
0~3
|
0~3.5
|
0~3.5
|
|
Number of grinding head(optional)
|
pcs
|
12
|
16
|
20
|
24
|
|
Water consumption
|
m3/h
|
13
|
18
|
22
|
27
|
|
Air consumption
|
m3/h
|
14
|
19
|
24
|
29
|
|
Power of main motor
|
kw
|
9 x7.5kW+
3 x 11kW
|
12 x7.5kW+
4 x11kW
|
15 x7.5kW+
5 x11kW
|
18x7.5kW+
6 x11kW
|
|
Total power
|
kw
|
≈120
|
≈155
|
≈194
|
≈230
|
|
Dimension(LXWXH)
|
mm
|
6780X3000X2400
6780X3220X2400
|
8020X3000X2400
8020X3220X2400
|
9300X3110X2400
9300X3330X2400
|
10600X3110X2400
10600X3330X2400
|
|
Weight
|
T
|
≈13
≈13.5
|
≈16
≈16.5
|
≈20
≈21
|
≈24
≈25
|

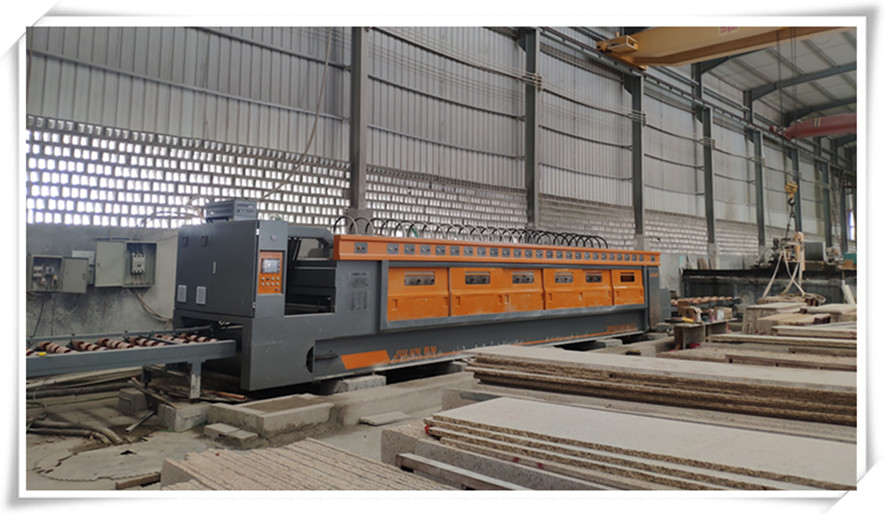

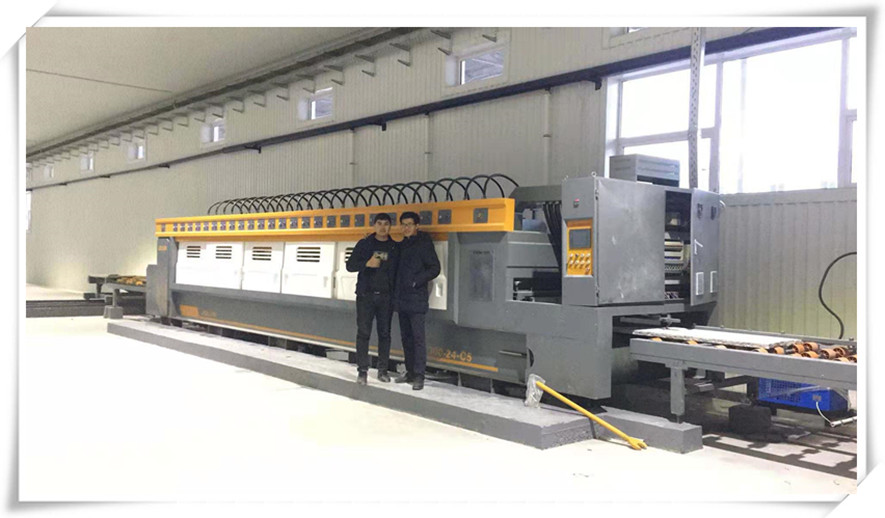

Photos
