For non-fermented tea such as green tea: the main function of tea rolling machine is shaping.Through the action of external force, tea rolling machine makes the leaves smash and light, the tea roll turns into a strip shape, and the volume is reduced, which is good for brewing.
For fermented tea such as black tea: Through the external force of the tea kneading machine, the tea leaf's juice overflows, the tea cells are damaged, accelerates the enzymatic oxidation of polyphenolic compounds, provided conditions for subsequent fermentation of tea leaves, Improve the taste of finished tea and make the quality of tea better.
Tea rolling machine can use for most of tea such as black tea, green tea, and oolong tea, for green tea ( non-fermented ) is mainly used for shaping the strip type, for black tea ( fermented tea ) is mainly used to destroy the cells of fresh tea leaves, so that the juice in tea can flow out and facilitate subsequent fermentation.

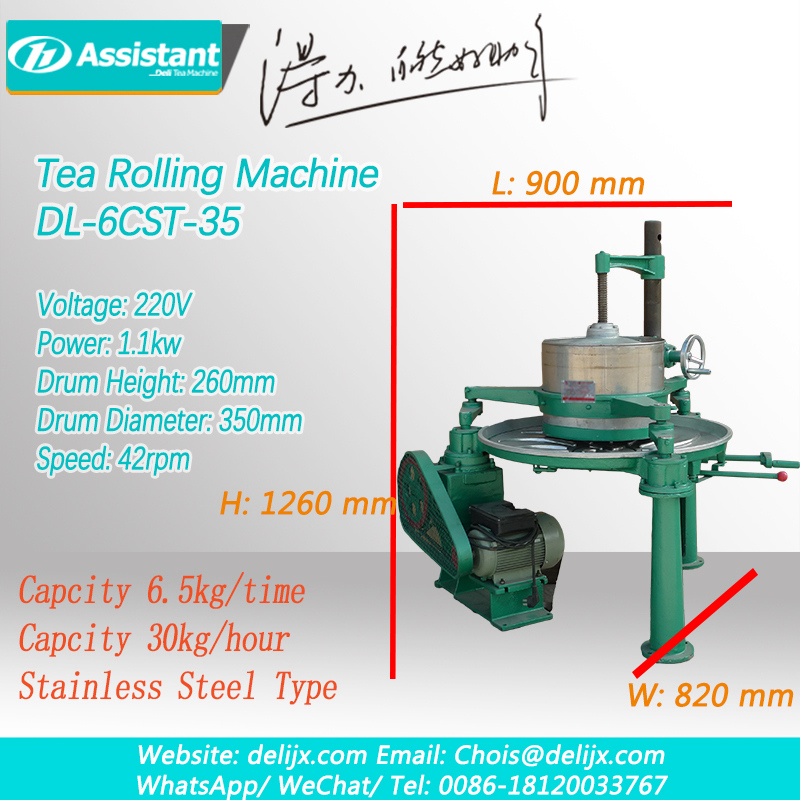

DL-6CRT-35 small tea roller machine specification:
|
Model
|
DL-6CRT-35
|
|
Dimension
|
820*900*1260 mm
|
|
Input voltage
|
220V / 50Hz
|
|
Tea disc diameter
|
720 mm
|
|
Barrel diameter
|
350 mm
|
|
Barrel height
|
260 mm
|
|
Matching motor
|
Power
|
1.1 kW
|
|
Speed
|
1400 RPM
|
|
Rated voltage
|
220 V
|
|
Barrel speed
|
42 RPM
|
|
Productivity
|
30 Kg/h
|
|
Maximum capacity per time
|
6.5 kg
|
The above data is based on fresh tea leaf water content of 75-80%.
DL-6CRT-35 tea leaves kneading machine decomposition diagram:
|
①
|
Transverse arm
|
⑧
|
Support column
|
②
|
Barrel cover
|
⑨
|
Rolling disc
|
③
|
Stainless steel Drum
|
⑩
|
Handwheel
|
④
|
Crank
|
⑪
|
Support frame
|
⑤
|
Transmission case
|
⑫
|
Tea discharge handle
|
⑥
|
Transmission belt
|
⑬
|
Tea outlet
|
⑦
|
Drive motor
|
⑭
|
Support leg
|
|
|
|

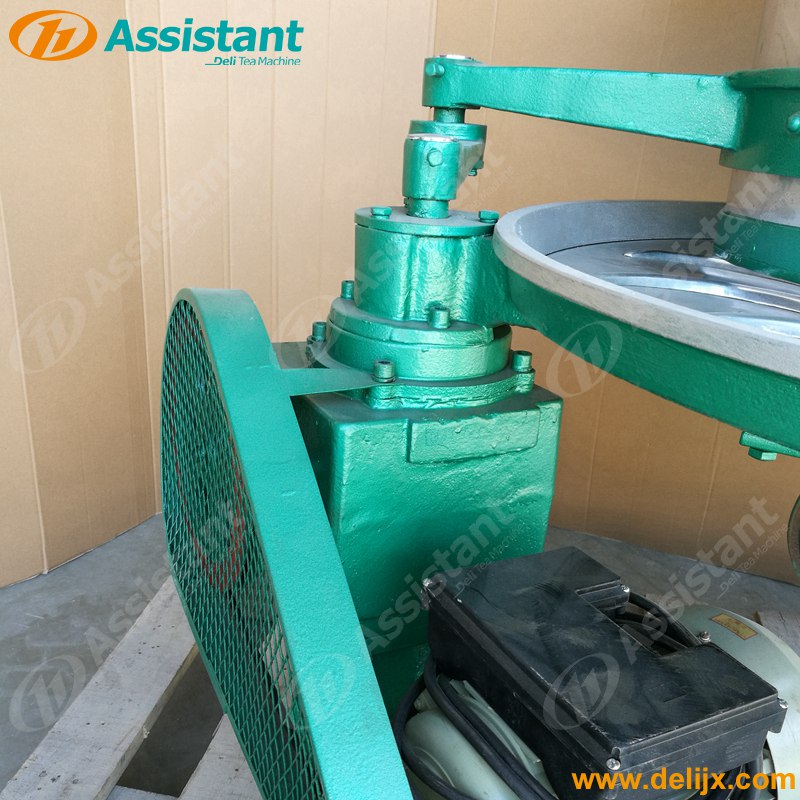

Gear box
|
Copper core motor
|

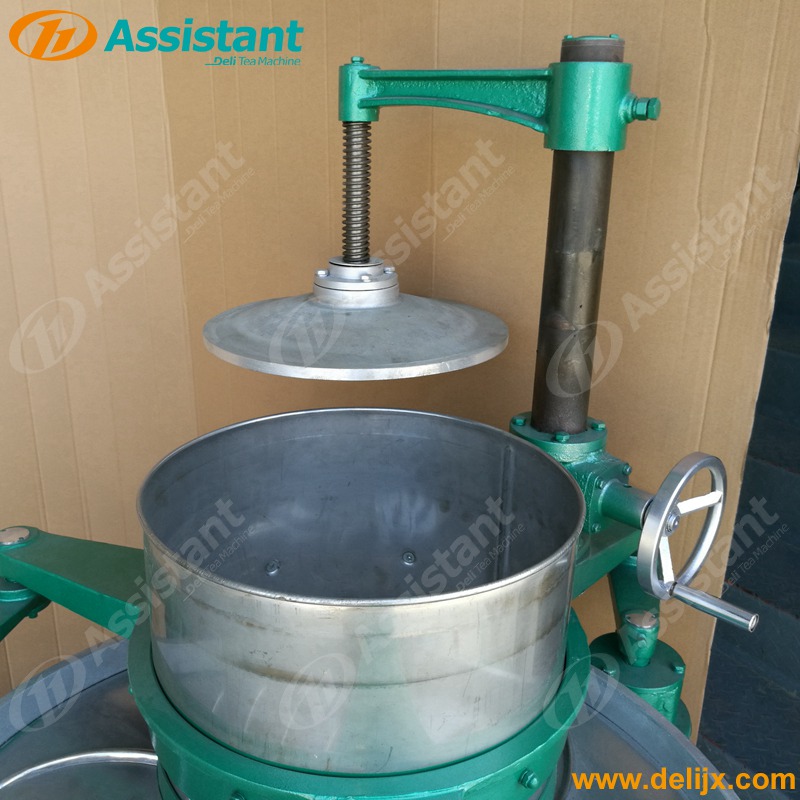

Handwheel and barrel cover
|
Stable gearbox, crank and support frame , ensure smooth and safe operation of tea rolling machines
|
Powerful copper core drive motor, provide a steady source of power for tea kneading machines.
|
Convenient handwheel, the barrel lid is pressurized by springs, and can be rotated, quality of tea more higher.
|
|

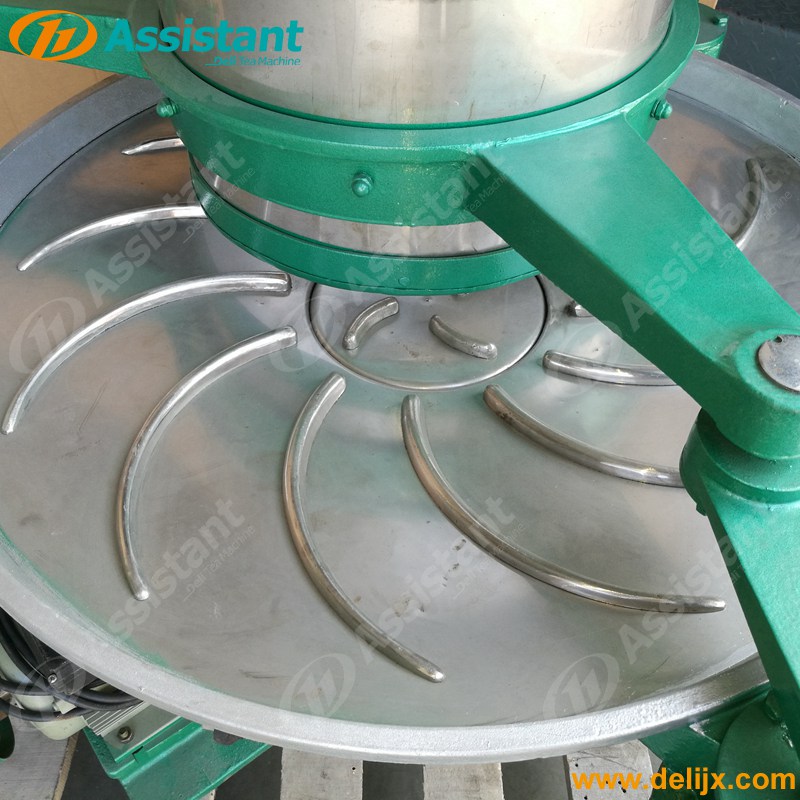

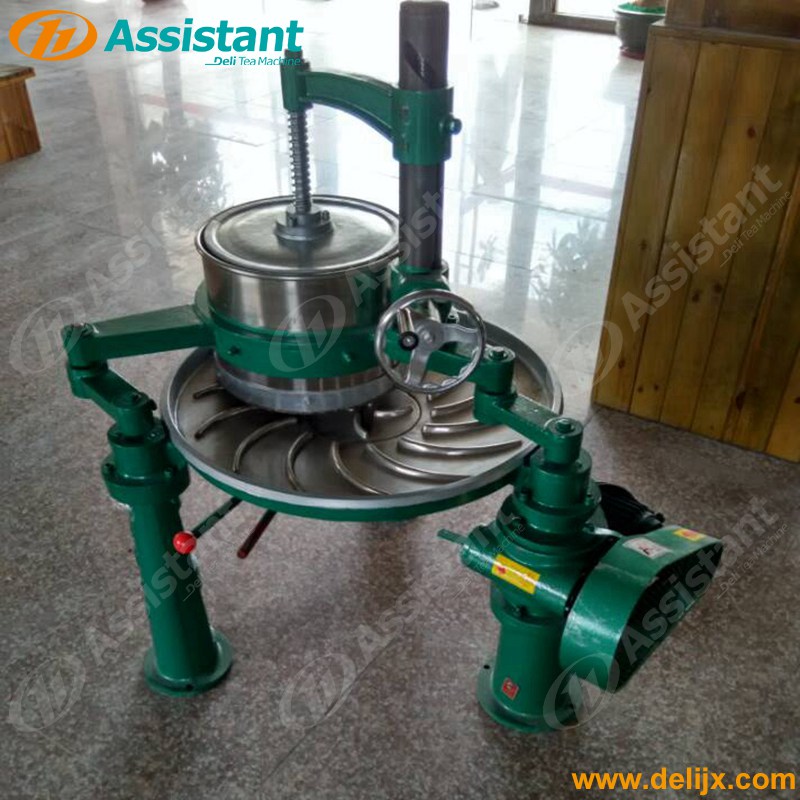

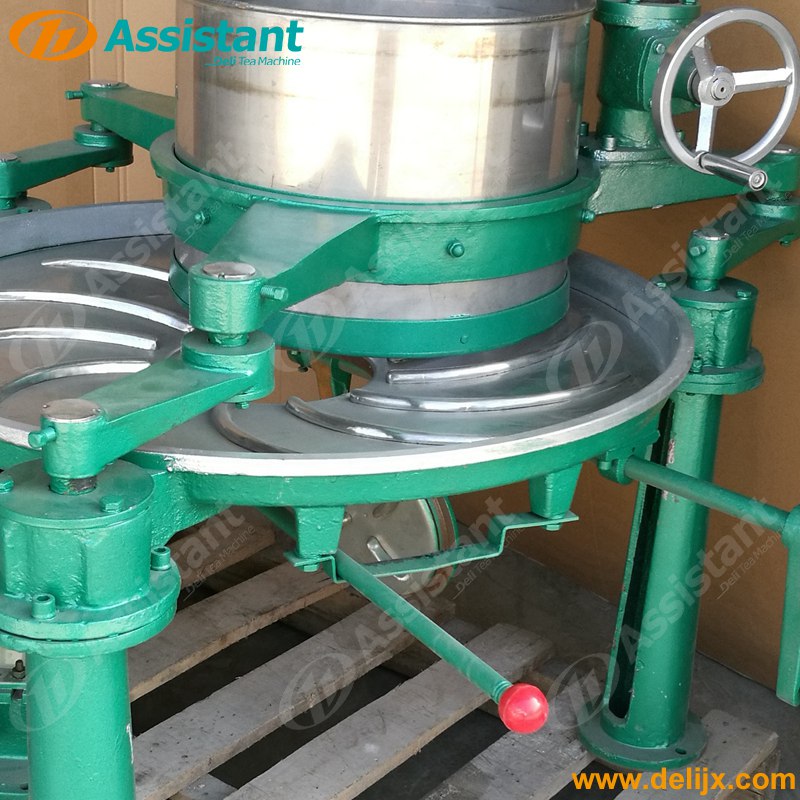

DL-6CRT-35 small tea roller machine photos:
|
