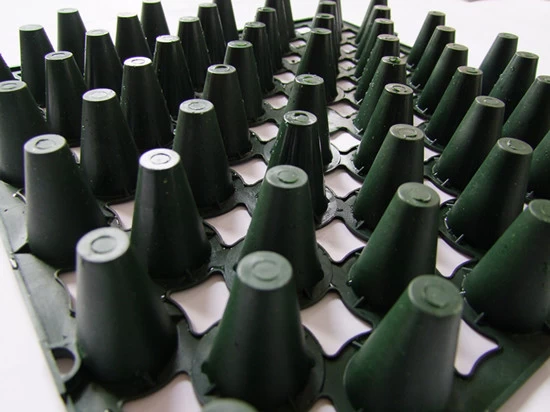

Green Roof System Drain Plates Composite with Geotextile

Green Roof System Drain Plates is made of HDPE Material(that is high density polyethylene) and is inert to soil borne chemicals and bactoria. Leiyuan drain plates shallow and effective drainage profile helps landscapers to make sure of mature plants on roof garden which needs soil depth and water retention properties.


  • Press Strength325KN
  • Total Volume0.06m3/bundle
  • Size410x410x50mm
  • ColorGreen
  • MaterialHDPE

Green Roof System Drain Plates Composite with Geotextile Specifications:

 Item No.  LY-B50A  LY-B50B  LY-B50C
 Color  Light green  Dark green  Black
 Size(mm)  410x410x25/30/40/50  410x410x25/30/40/50  410x410x25/30/40/50
 Unit weight(g/m2)  1900g/m2  1900g/m2  1900g/m2
 Material  HDPE  HDPE  HDPE
 Pressure strength(Kpa)  695KN  565KN  325KN
 Hardness  86  86  84
 Water Drainage  85%  85%  85%
 Vertical Circulating  Capacity(cm3/s)  25cm3/S  25cm3/S  25cm3/S
 Water retention(L/m2)  2.6L/m2  2.6L/m2  2.6L/m2
 Loading Capacity

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 Package  30pcs/bundle,0.06m3/bundle  30pcs/bundle,0.06m3/bundle

 30pcs/bundle,0.06m3/bundle

 MOQ  1x20FT CONTAINER  1x20FT CONTAINER  1x20FT CONTAINER



LEIYUAN Green Roof System Drain Plates to replace the drainage layer pebbles treatment not only save time,effort and energy, saving investment, but also reduce the load of the building. Good Drainage system for normal use and life cycle of civil construction and the building has an important role. Long and short cylindrical drain plates and geotextiles to form a drainage system, to form a water seepage, water and drainage systems.



Drain Plates for Green Roof System is light of its own weight, the roof structure will not increase the load. 100% recycled, not cause secondary pollution to the environment. Loading capacity per square can reach 80 tons weight, suitable for create a variety of landscape



Plastic Drain Plates Application:

Roof greening

Bridge abutments

Underground

Tunnels

Play ground

Retaining walls

Golf courses water drainage

Fire truck access paths

Golf buggy

Trolley paths

Modern factory building

Noble living communities

Emergency vehicle access roads through fields




Features and Benefits:

Lightweight

High compression strength

Seepage proof

Available in different sizes

Cost save

Water drainage and storage

Easy installation

No surface drains required

Reduces surface temperature around building

High load bearing 148.58t/m2 unconfined

Replenishes water supply to landscaped areas

Unique and easy to use interlocking system

Promotes fast and excellent plant growth

Strong structure can support heavy loads

Retains a minimum of approximately 76L/m2 of perched water above the cells

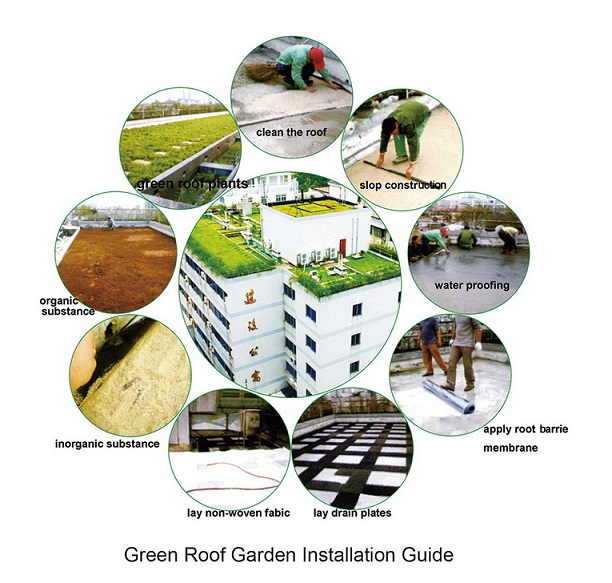

HDPE Drain Plates Construction:



Drain Plate for Green Roof Projects View:


Leiyuan Strength Drainage Cell: Good water feature, Long life service!


Reference:

More about Drainage Plate products, please refer: http://www.greengrassgrid.com/drainage-plate_c4

More about Roof Greening Installation, please refer: http://www.greengrassgrid.com/roof-greening-installation_n10

More about Leiyuan Company, please refer: http://www.greengrassgrid.com/about-us_d1
