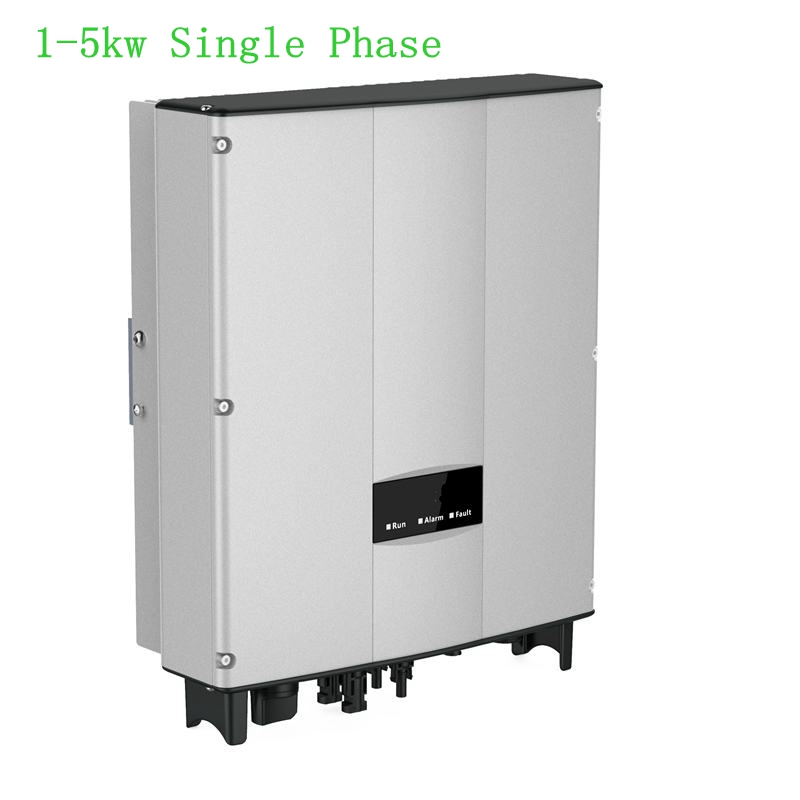

Grid Tie Solar Inverter Single Phase 1kw 2kw 3kw 4kw 5kw On Grid Inverter


EU standard single phase 220v, 230v, 240v 50hz, string inverter for home use



  • Warranty5-10 years
  • Lead Time10days
  • Item NoSingle Phase
  • CertificationCE, TUV, IEC, UL, VDE,,,,etc
  • TypeOn Grid
  • Output Voltage 220-240V


Greensun Grid Tie String Solar Inverter for Home


Grid Tie Solar Inverter Single Phase 1kw 2kw 3kw 4kw 5kw On Grid Inverter

on grid inverter 3kw 5kw 220v 240v


Model
1KW
2KW
3KW
4.6KW
5KW
6KW
7.5KW
Max Input Power
1200W
2200W
3300W
5000W
5000W
6600W
8300W
Max DC Input Voltage
450V
450V
500V
600V
600V
600V
600V
Start-up Input Voltage
100V
120V
120V
120V
120V
120V
120V
Grid Voltage Range
                                 180~270V (According to local standard)
Nominal Frequency
                                          50/60Hz
Grid Frequency Range
                                 47-53 / 57-63Hz (According to local standard)
Grid Connection
                                            Single Phase
Max Efficiency
97.2%
97.2%
97.3%
97.6%
97.6%
97.6%
97.6%
MPPT Efficiency
                                                >99.9%
Protection
PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid Monitoring, Island protection, DC monitoring, Short current protection etc.
Communication Interface
                                                          RS485(standard); WIFI
Certification
IEC 62116, IEC61727, IEC61683, IEC60068, CE, CGC, AS4777, VDE4105, C10-C11, G83/G59
Warranty
   5years, 7years, 10years
Temperature Range
-25℃ to +60℃
DC Terminal
Waterproof Terminals
Demension(H*W*D mm)
280*300*138
280*300*138
280*300*138
280*300*138
344*478*170
344*478*170
405*315*170
Approx Weight
9.5kg
9.5kg
9.5kg
11.5kg
11.5kg
11.5kg
11.5kg

Grid tie (utility tie) PV systems consist of solar panels and an on grid inverter, without batteries.

The solar panel provides a special inverter that directly converts the DC voltage of the solar panel into an AC power source matching the power grid.

Extra power can sale to local city grid to reduce your home electricity fee.

On-grid inverter specifications include single-phase 220-240v, 50hz; three-phase 380-415V 50hz; single-phase 120v / 240v ,240v 60hz and three-phase 480v.



Our Company Projects for Reference

on grid inverter solar power system



One stop solution for solar power system.

For more information, please feel free to contact our team

Email: peter@greensunpv.com

Whatsapp: +86 186 5699 5254
