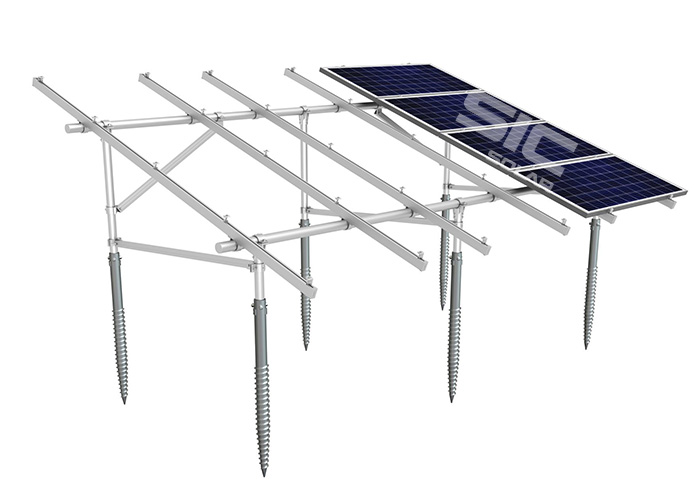

Ground solar panel system
SIC N type ground mounting systems are made of anodized AL6005-T5 and steel, all components have been pre-cut and pre-drilled for easy assembly in installation site, saving time and labor cost. The high performance, all anodized materials provide long lasting durability and over 25 years services life.
SIC technical team designs the mount structure with highly strong wind load and snow load resistance for extreme weather condition. With easy installation ground screw foundation and concrete foundation, the ground mounting structure is suitable for commercial projects especially large scale plants. Highly pre-assembled structure can save much installation time and labor cost.
Category: Ground mounting system
|
Name
|
Residential ground mounted solar panels
|
|
Installation Site
|
Roof or Ground
|
Foundation
|
Concrete or Ground Screw Foundation
|
Material
|
Aluminum 6005-T5 & Steel
|
Color
|
Natural or Customized
|
Anticorrosive
|
Anodized aluminum & stainless steel
|
Tilt Angle
|
0°~60°
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Standards
|
AS/NZS 1170.2, JIS C 8955:2011
|
|
Warranty
|
10 years warranty and 25 years service time
|
Advantages as follow:
☆ Ground mounting array could be customized according to your ground size.
☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.
☆ Aluminum profile is very light and easy for installation. It is also anti-corrosion.
☆ Pre-assembled main frame – highly save the labor cost at your installation site.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.
