This solar bracket is short off the ground, suitable for installation in places where snow is small, and there are few supporting square tubes, so the overall price is cheap.
Technical Parameters
|
Installation Angle
|
5-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

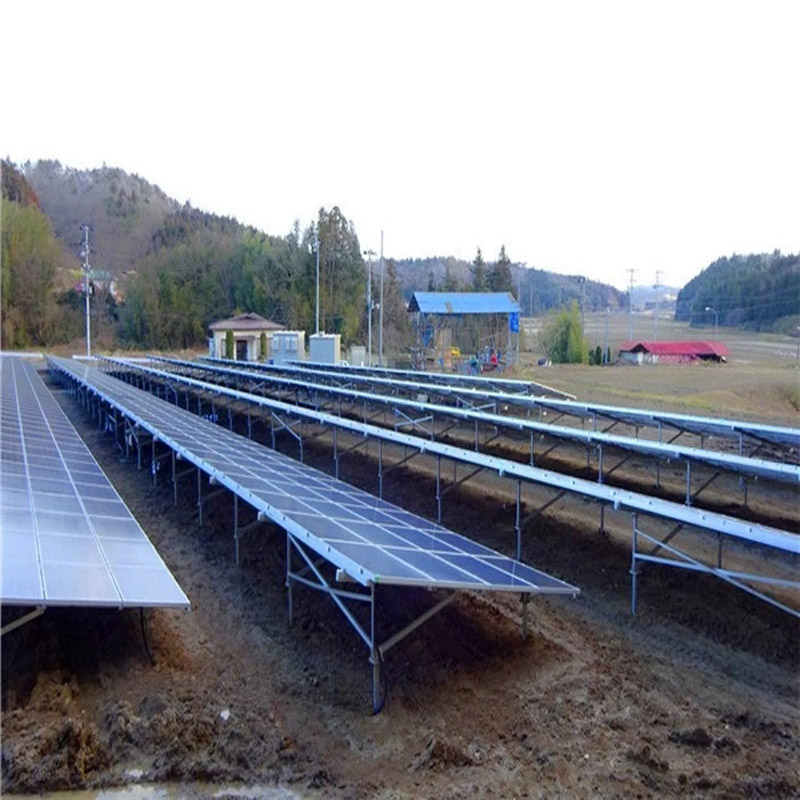

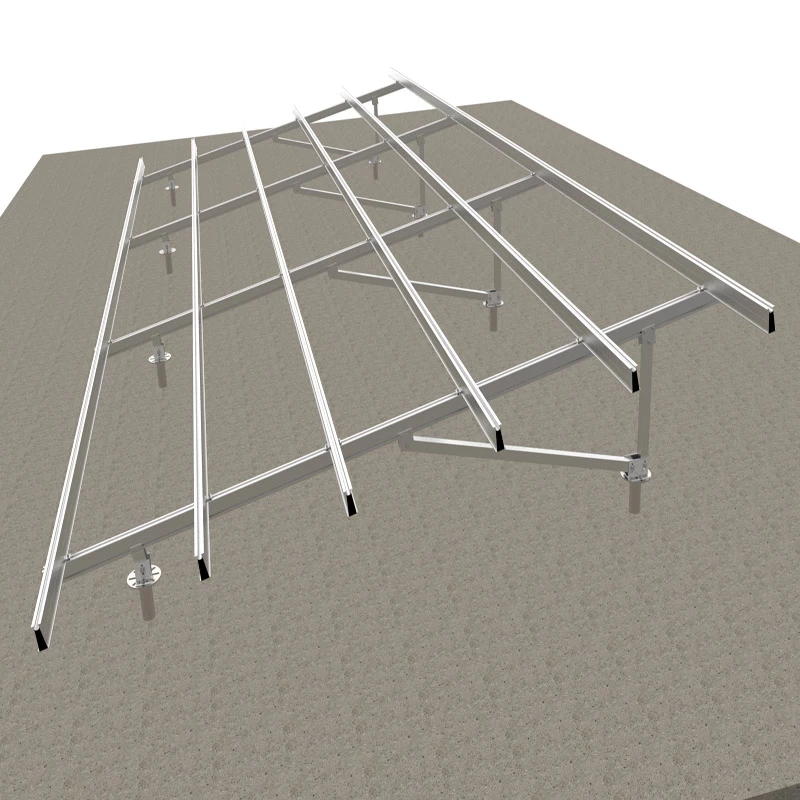

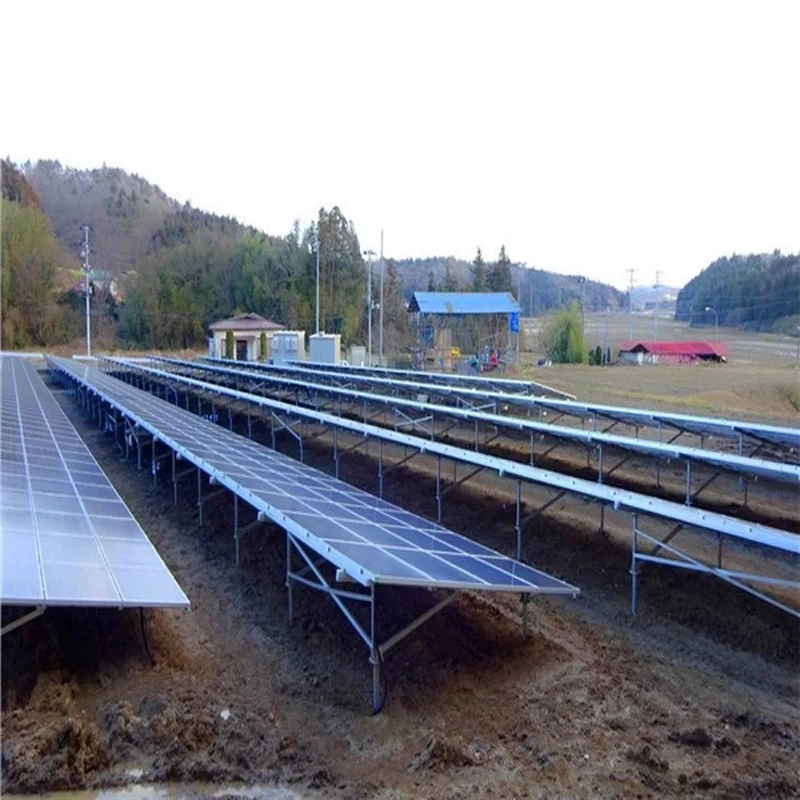

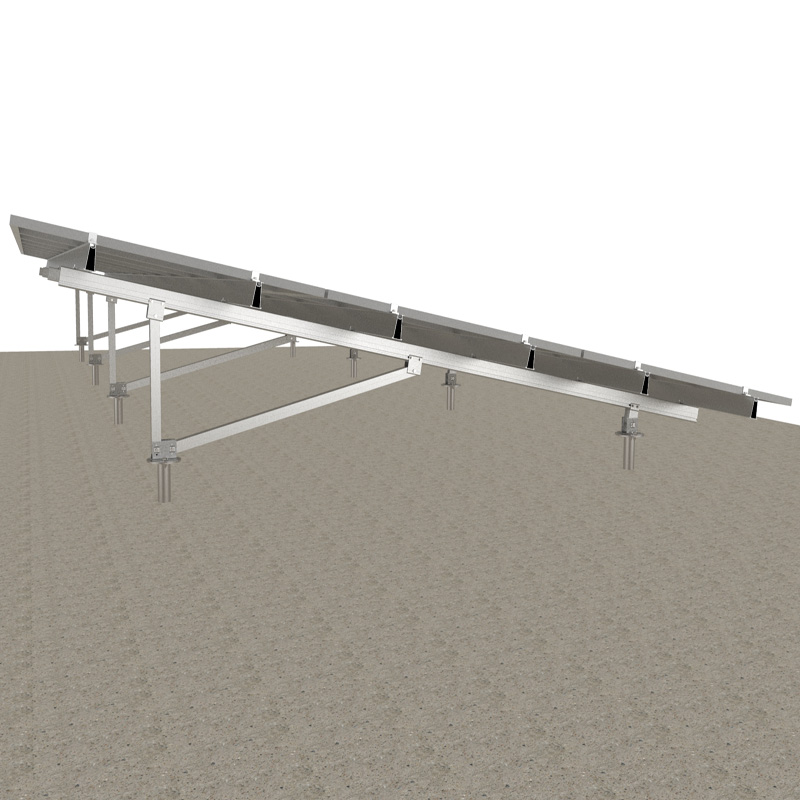

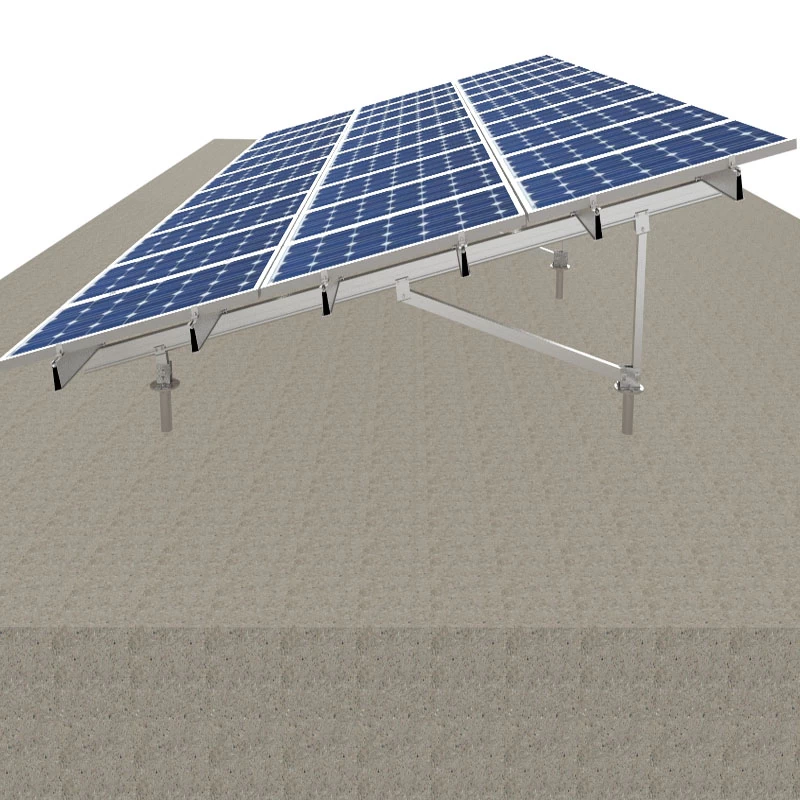

A type ground mounting system
Feature:
1. The type A mount has a lower height from
the ground and is suitable for a site with less snow;
2. There are fewer components and cheaper
price.
Advantage:
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.
Component photos of A type ground mounting system

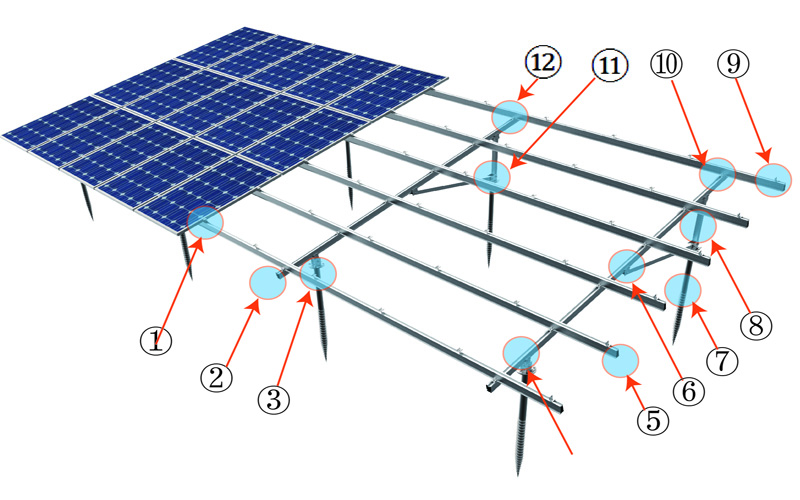

1. Solar inter clamp 2. Solar support beam 3. Solar base 90 4. Solar connecter 70
5. 2# Solar rail 6. Solar connecter 90 7. Ground screw 8. Solar aluminum alloy
square tube
9. Solar end clamp 10. Solar rail clamp 11. 2# Solar Rail splice 12. Solar base 140

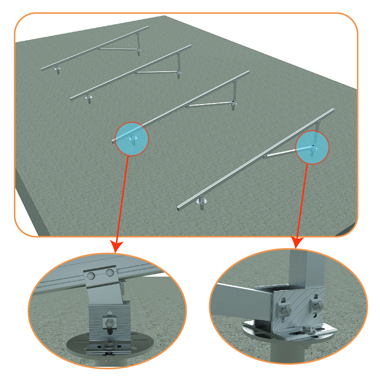

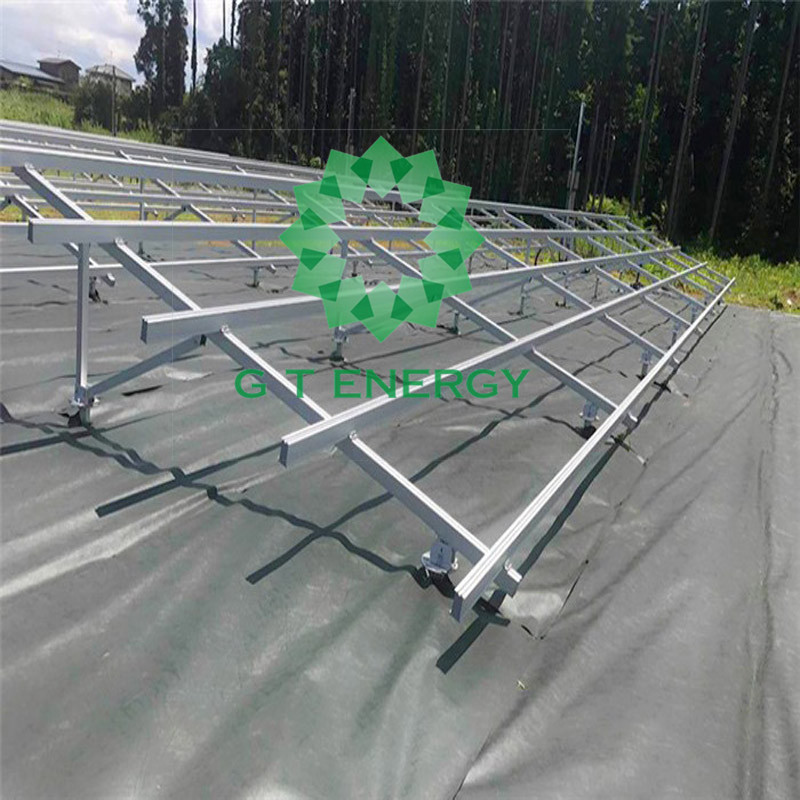

Installation photos of A type ground mounting system

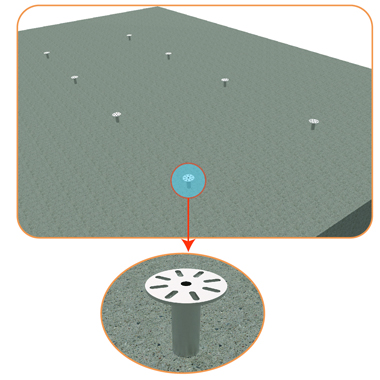

Step1：Install ground screw according to Step2： Install the pre-assembled
distance marked in drawing support beam on the ground screw

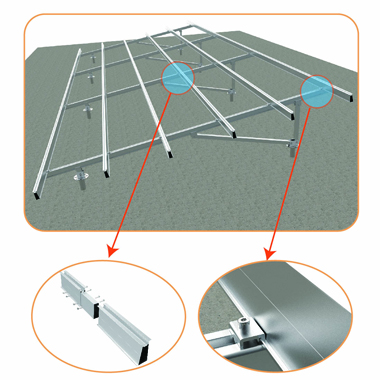

Install ground screw Solar connecter 70 Solar base 140

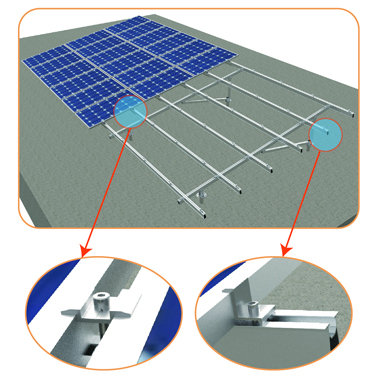

Step3：Install rails and rail splices Step4：Fasten panel by inter clamp
and end clamp
Rail splice Rail clamp Inter clamp End clamp
