Ground Screw

LARGE Ground Screw are very widespread application,not only for solar ground mounting system,but also for fence system and building structure foundation,etc. can install into the soil earth no need any concrete foundation.it is very easy to operate with the device.


  • Wind LoadUpto 60m/s
  • Surface TreatmentHot Galvanized
  • Raw MaterialHot Galvanized Q235
  • Installation SiteOpen Ground
  • Snow LoadUpto 1.5KN/m2
  • Standard ComplianceAS/NZS1170.2 ; SGS and other international standards
Facebook Twitter Pinterest LinkedIn 分享

Solar Ground Screw For Ground Mounting

LARGE Ground Screw including with plate and non-plate, The diameter of plate is OD180, OD200 and OD220mm. 220mm, The normal diameter of pole is OD76 and OD48.6mm.The material of ground screw is hot galvanized Q235 steel, its hot-dip gavanized thickness is  more than 80μm.

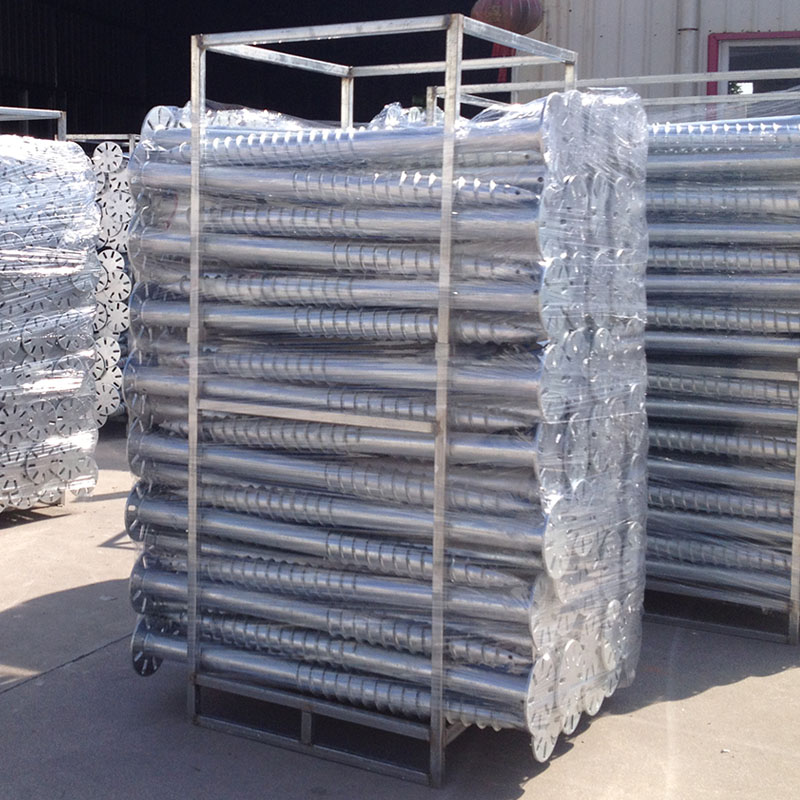

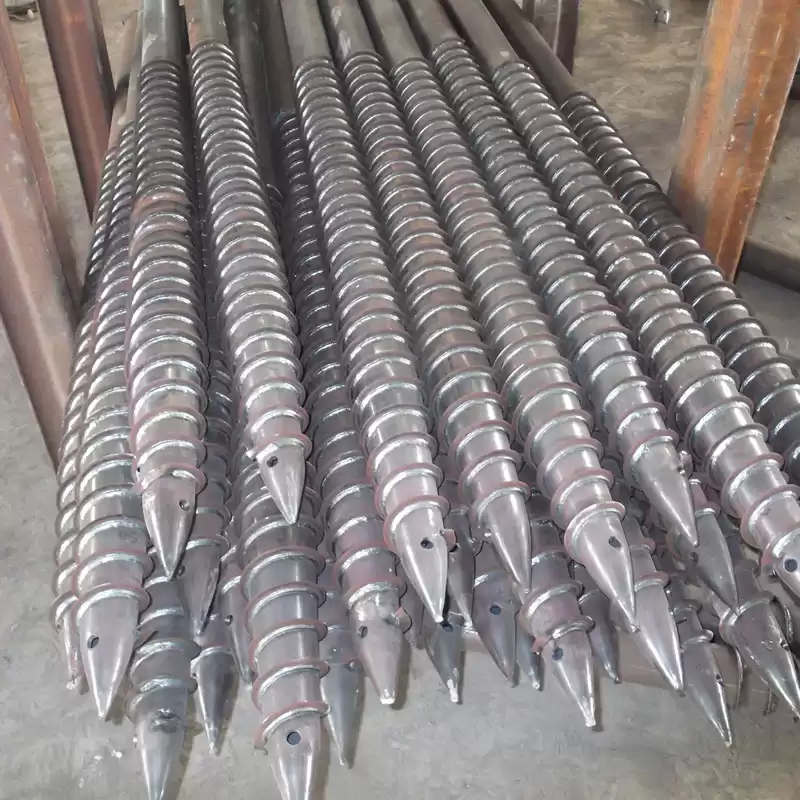

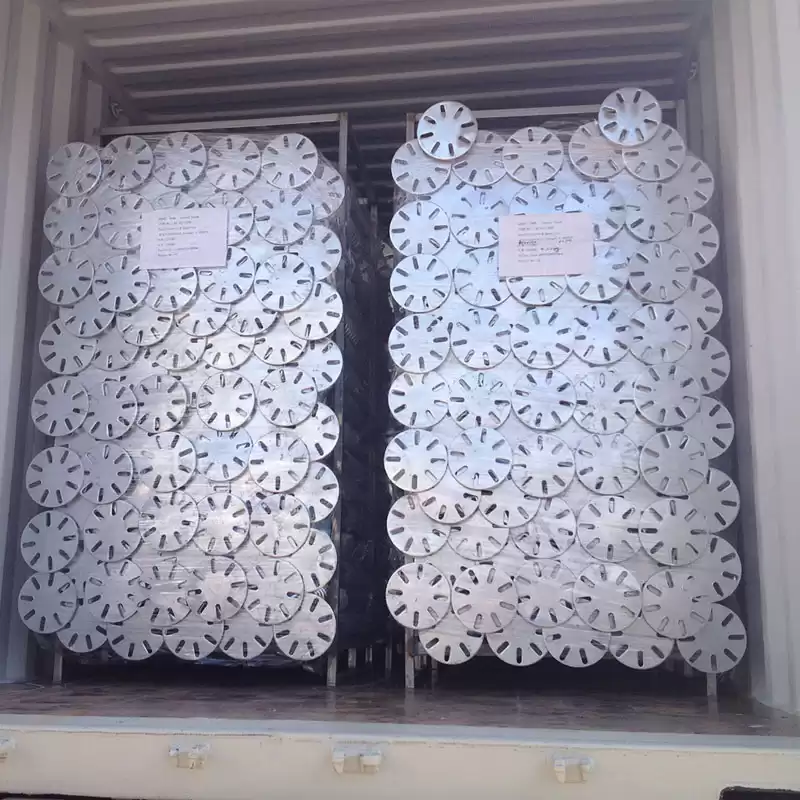

LARGE Solar Ground Screw Pictures:

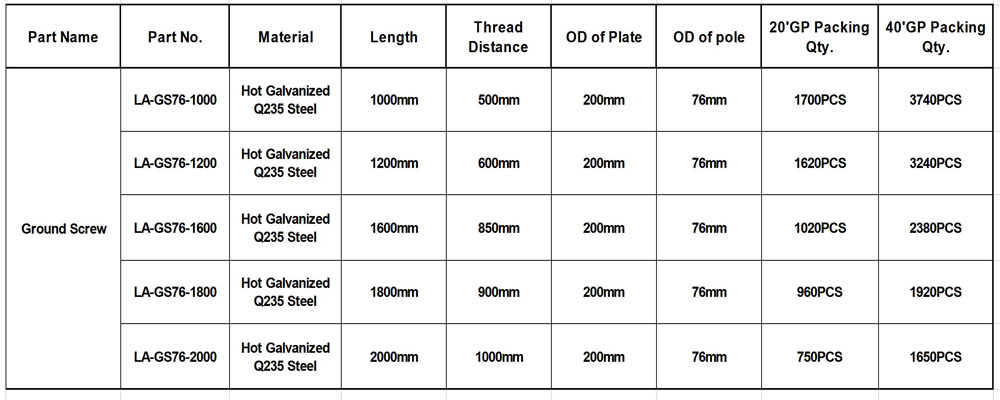

Ground Screw Feature:

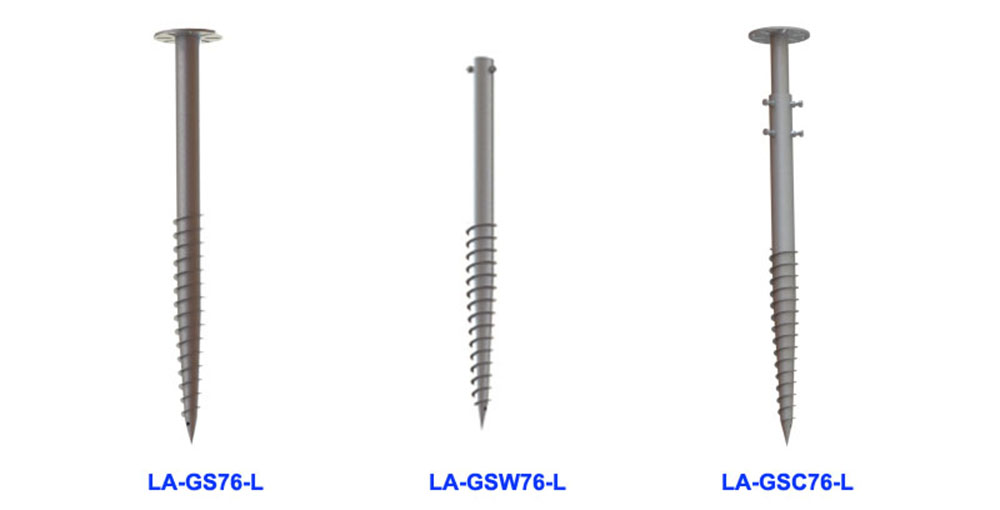

Ground screw anchors

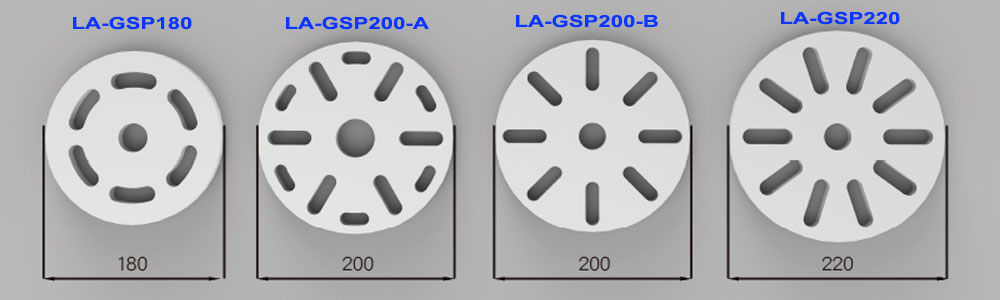

Ground Screw Plate Series:


Ground Screw Plate Mounting

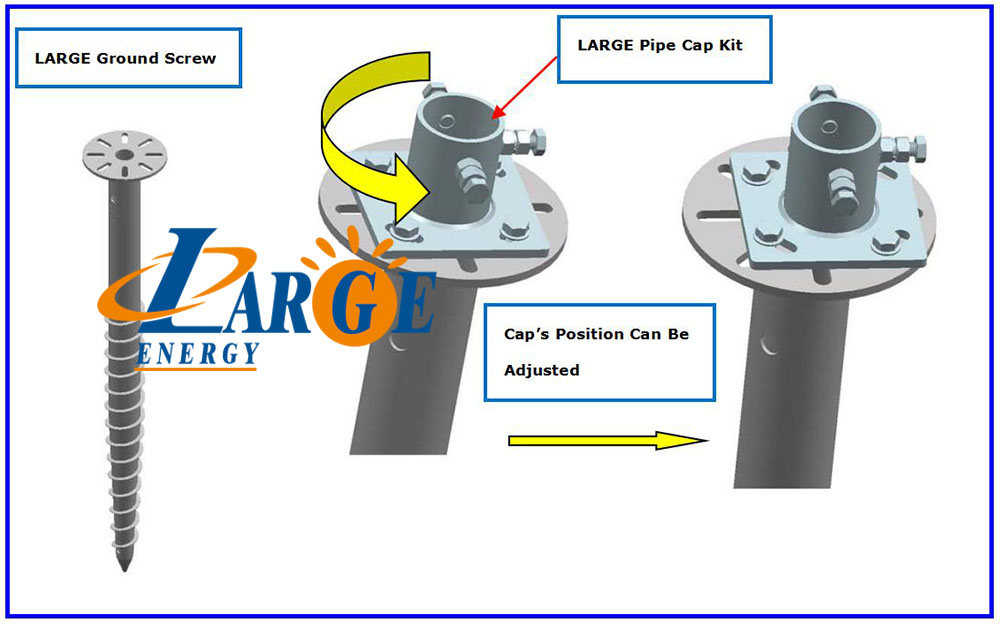

Ground Screw and Pipe Cap Base installation Guide:

Ground Screw Installation
