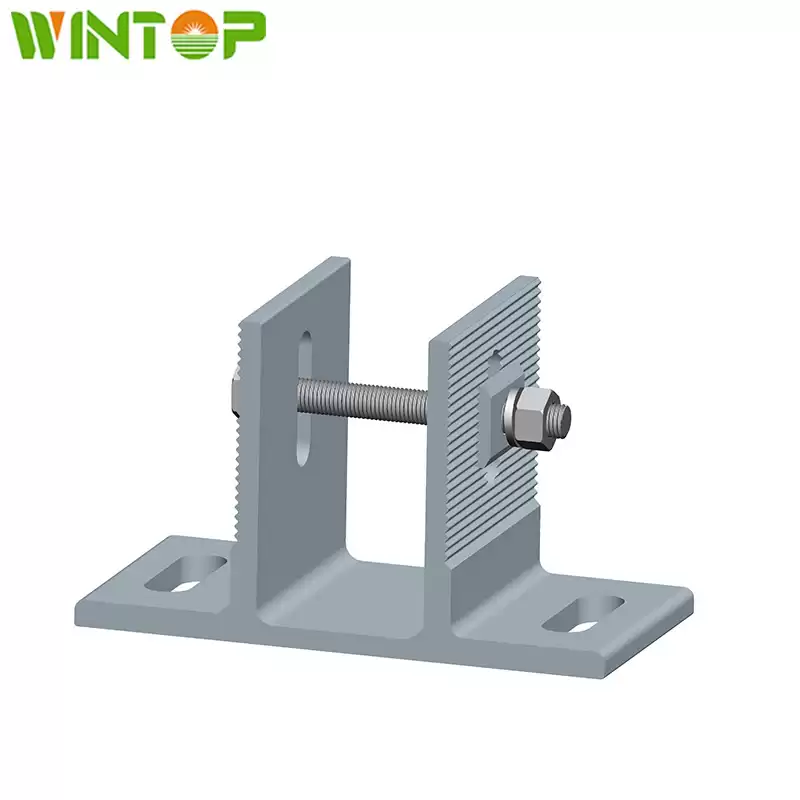

Ground Solar Mounting Component Aluminum Base

The aluminum solar component base oxidized on each side is beautiful and corrosion-resistant.


  • Installation locationGround
  • BrandWintop
  • Installation foundationConcrete foundation and ground screw foundation
  • Installation angle
  • Wind load60m/s(216kmh/133mph)
  • Snow load1.4KN/m²
  • Distance from module lowest point to the ground
  • Applicable module type
  • Module Orientation
  • Design standard
  • Bracket material
  • Fastener Material
  • Warranty10 years
  • Service Lifemore than 20 years
  • ModelAB-0001

Ground Solar Mounting Component Aluminum Base

The ground installation system fixed on the concrete foundation or the ground screw foundation with this type of base has a higher wind resistance level.

There are two installation methods

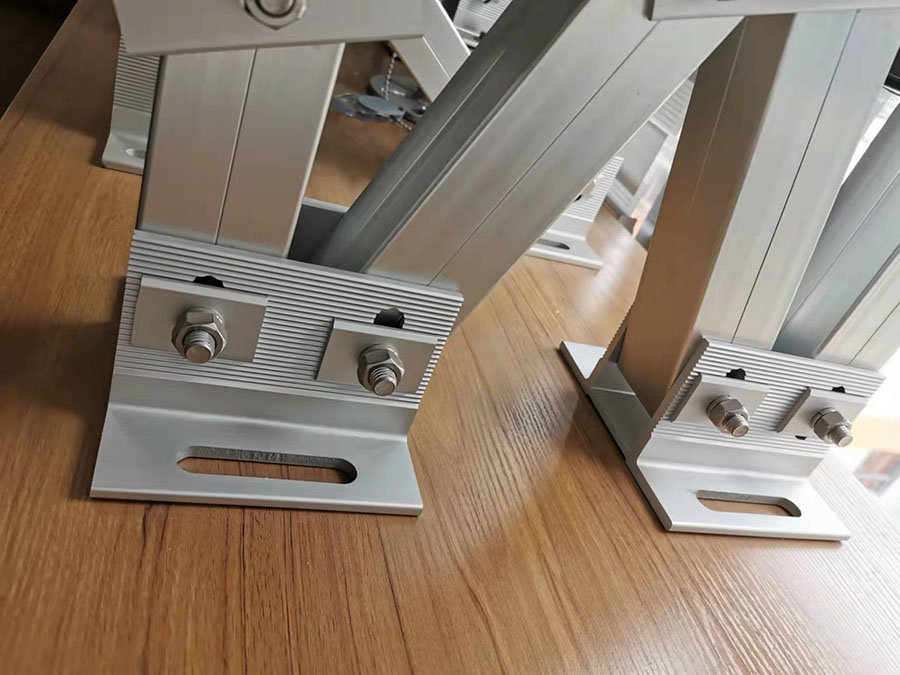

1.concrete foundation

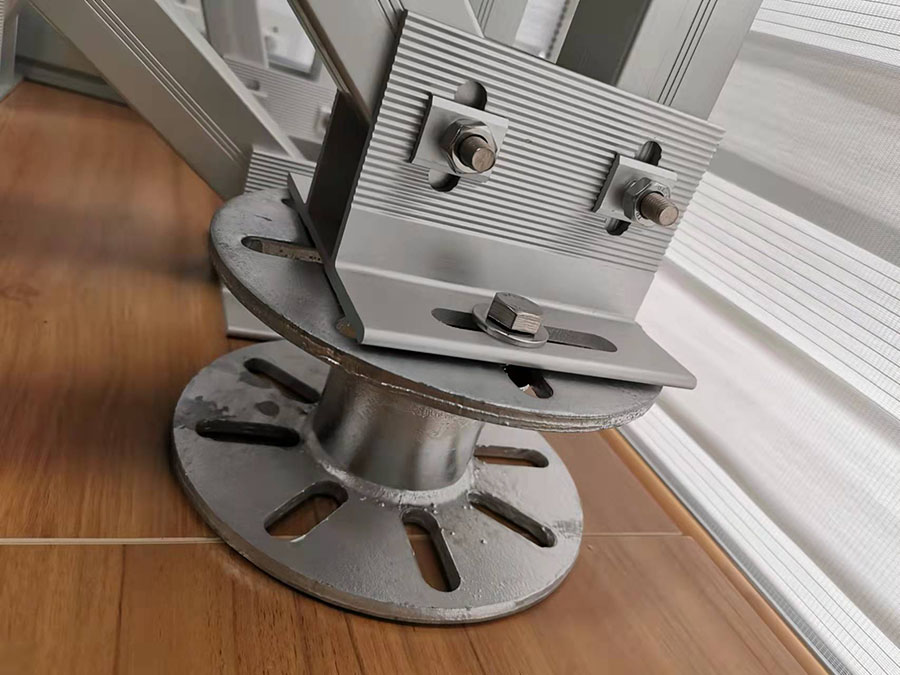

2.ground screw foundation


Name Base
Anti-slip gasket
Hex bolts
Hexagon nut
spring washer
Size 80mm M10 M10*90 M10
M10
Quantity 1 2 1 1 1
Material
Aluminium
Aluminium
SUS304 SUS304
SUS304
